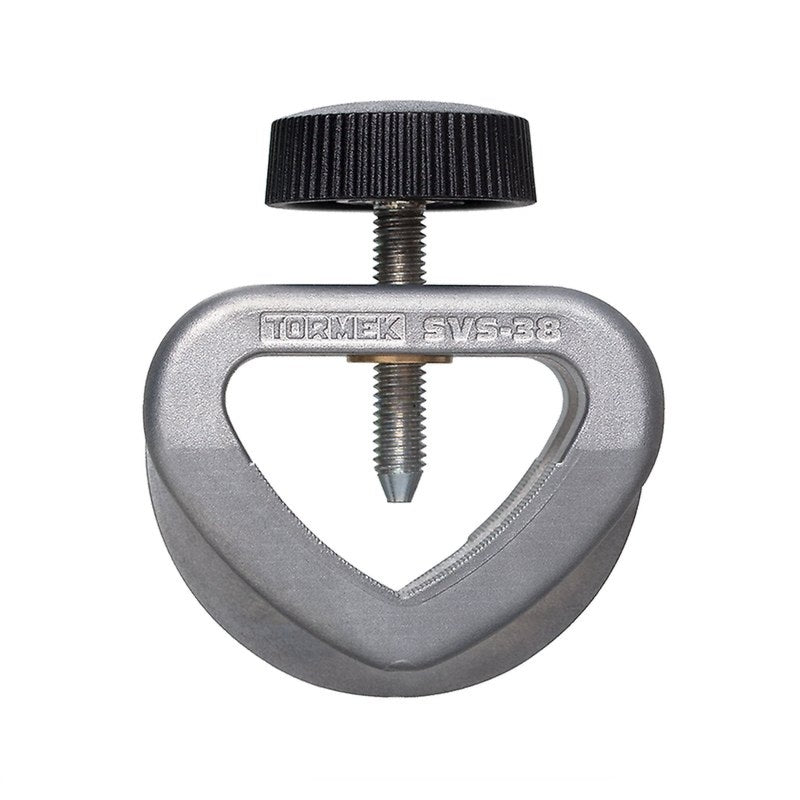

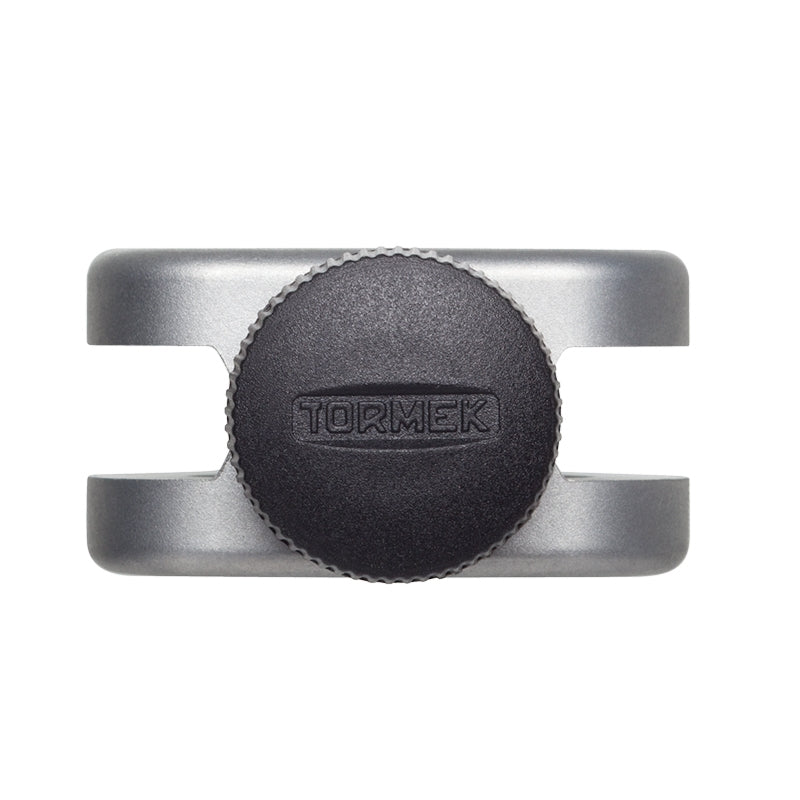

Tormek Short Tool Jig | SVS-38

Tormek Short Tool Jig | SVS-38.

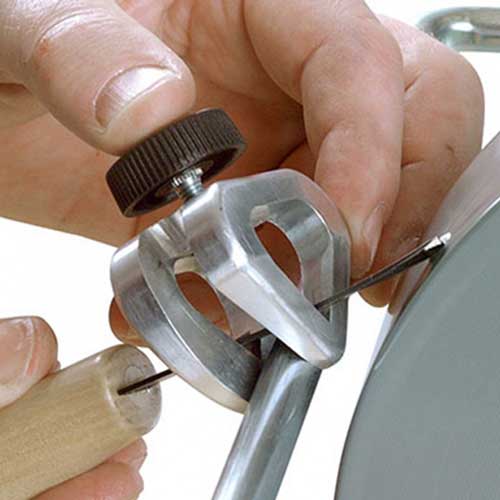

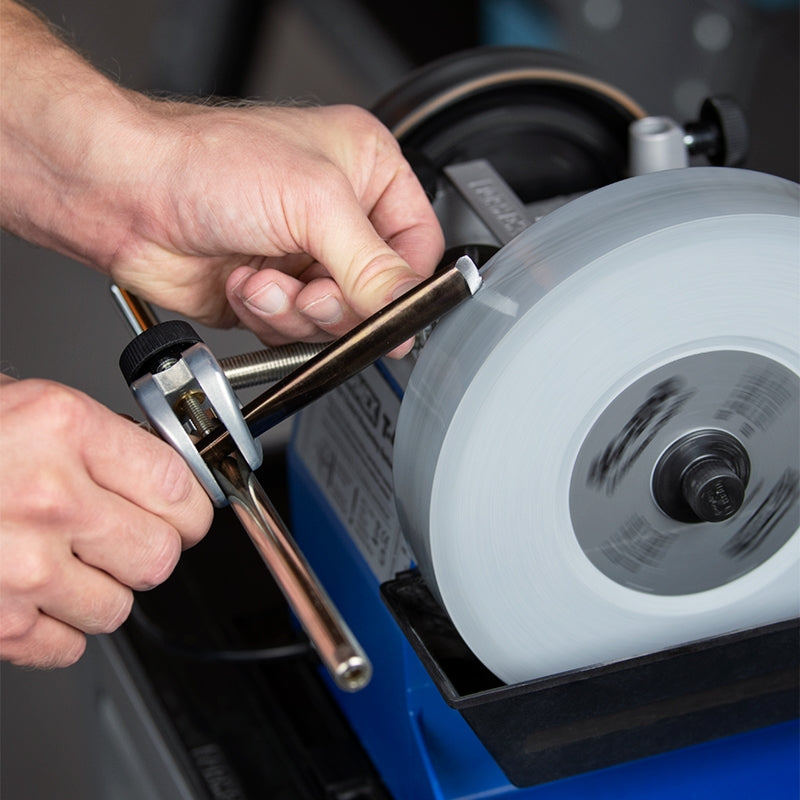

The Tormek SVS-38 Short Tool Jig has been developed especially for short carving tools, short chisels, tools for electric sculpturing machines, and smaller straight gouges. Keen amateurs can also use it to restore damaged flat-head screwdrivers. Its user-friendly design allows for very stable sharpening and works seamlessly with the Tormek T-4 and T-8, as well as older models.

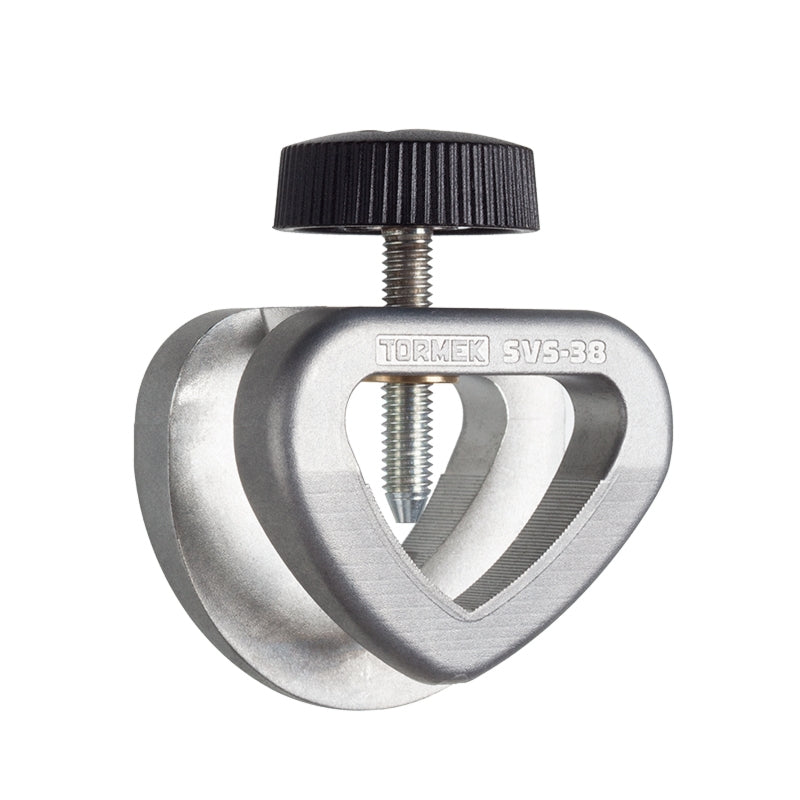

This jig features two parallel flanges that guide on both sides of the universal support, ensuring maximum stability during use. The tool always remains perpendicular to the grinding wheel, even when rotated. This stability enables users to fully concentrate on sharpening or honing without concern about positioning. The minimum tool length is 45mm (1.77”) at a 20° sharpening angle, while the maximum tool width is 38mm (1.5”).

Features & Benefits:

• Specialised Design: Developed for short carving tools, chisels, sculpturing machine tools, and smaller straight gouges.
• Stable Operation: Parallel flanges ensure maximum stability and keep tools perpendicular to the grinding wheel.
• Ease of Use: Allows users to focus on sharpening and honing without adjusting tool alignment.
• Versatile Compatibility: Works with Tormek T-4, T-8, and older Tormek models.
• Flexible Sharpening Capacity: Supports tools with a minimum length of 45mm (1.77”) and a maximum width of 38mm (1.5”).

Specifications:

Weight: Shipping weight 0.17 kg (0.37 lb)
Colour: Gray/black
Material: Precision-cast zinc, black composite
Minimum Tool Length: 45mm (1.77”) at 20° sharpening angle
Maximum Tool Width: 38mm (1.5”)
Warranty: 2-year warranty

Scope of Delivery:

• 1 x Tormek SVS-38 Short Tool Jig (fully assembled and ready to use)
• 1 x Instructions for the SVS-38 Short Tool Jig

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
