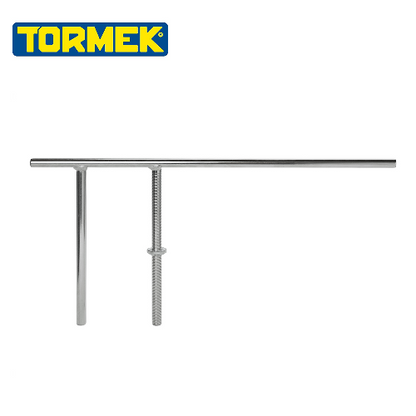

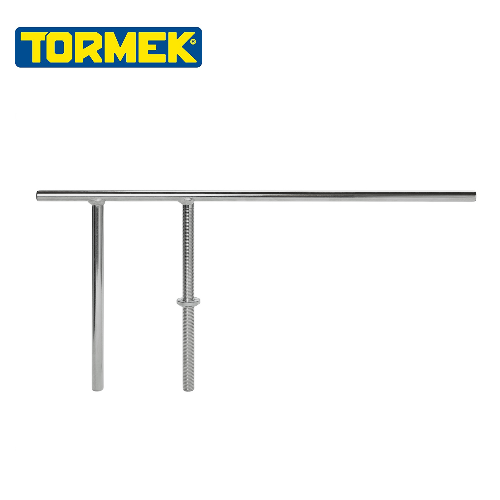

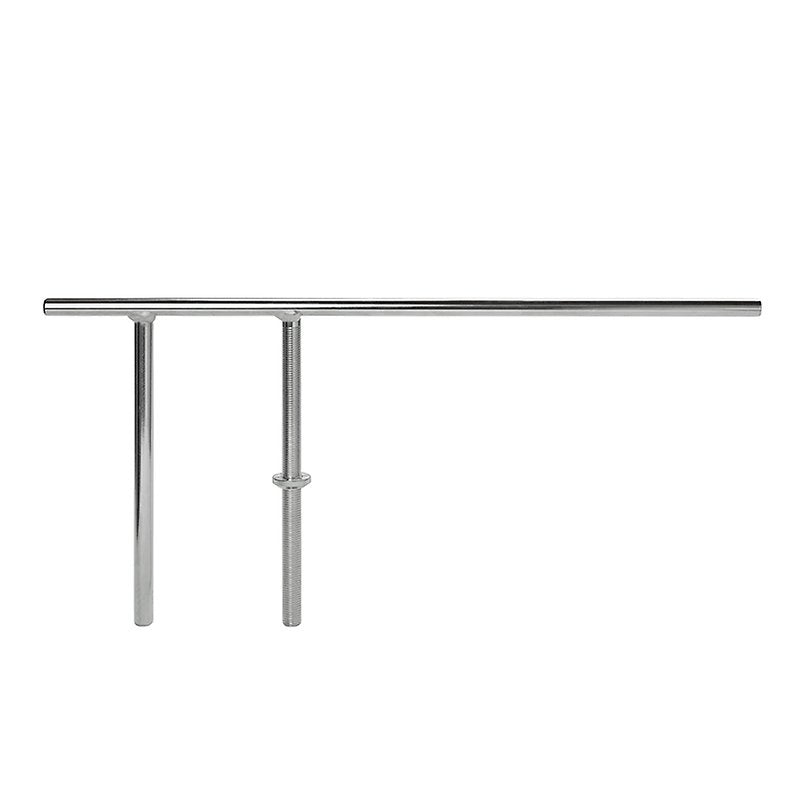

Tormek Extended Universal Support | US-430

Tormek Extended Universal Support | US-430.

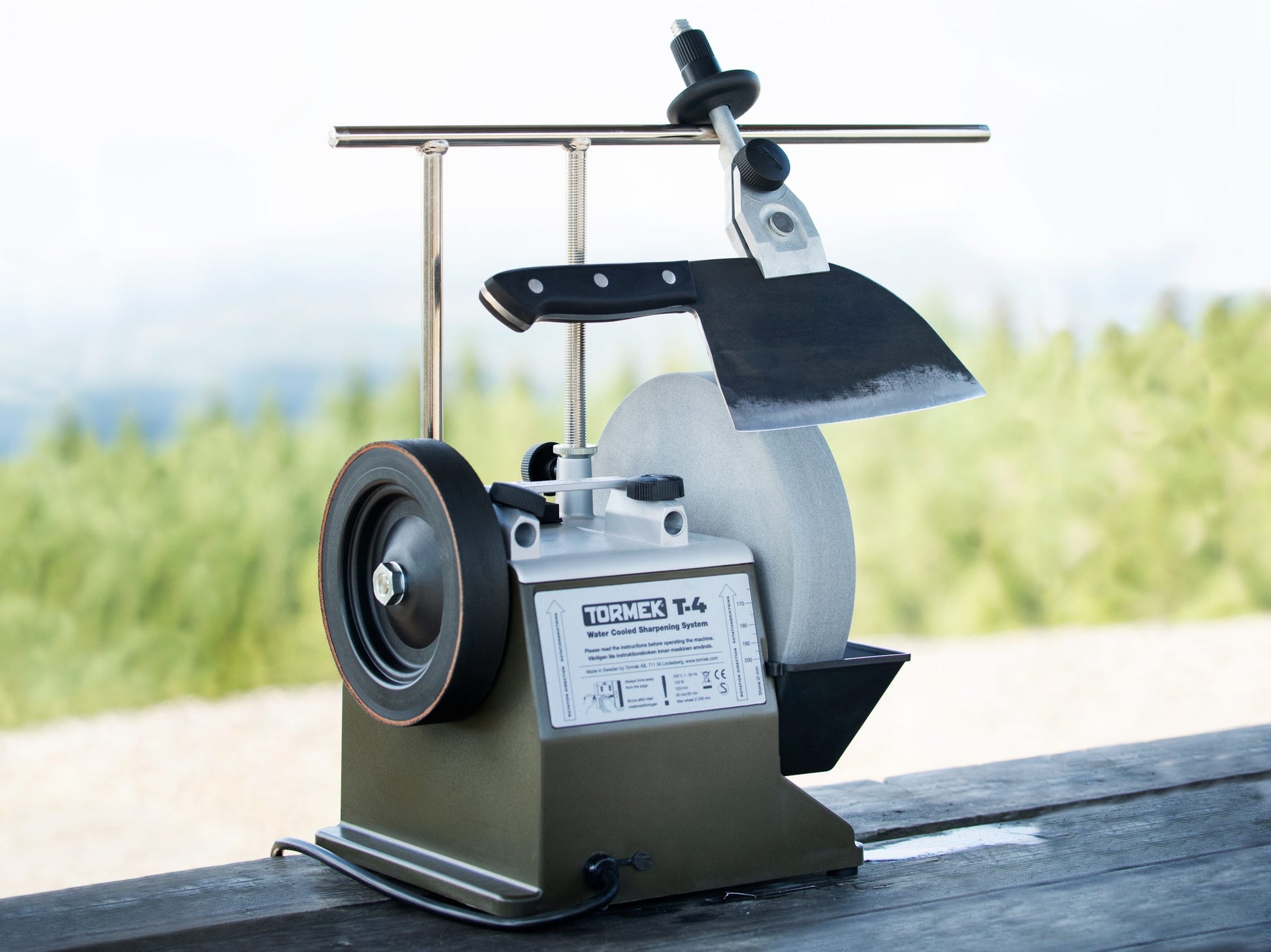

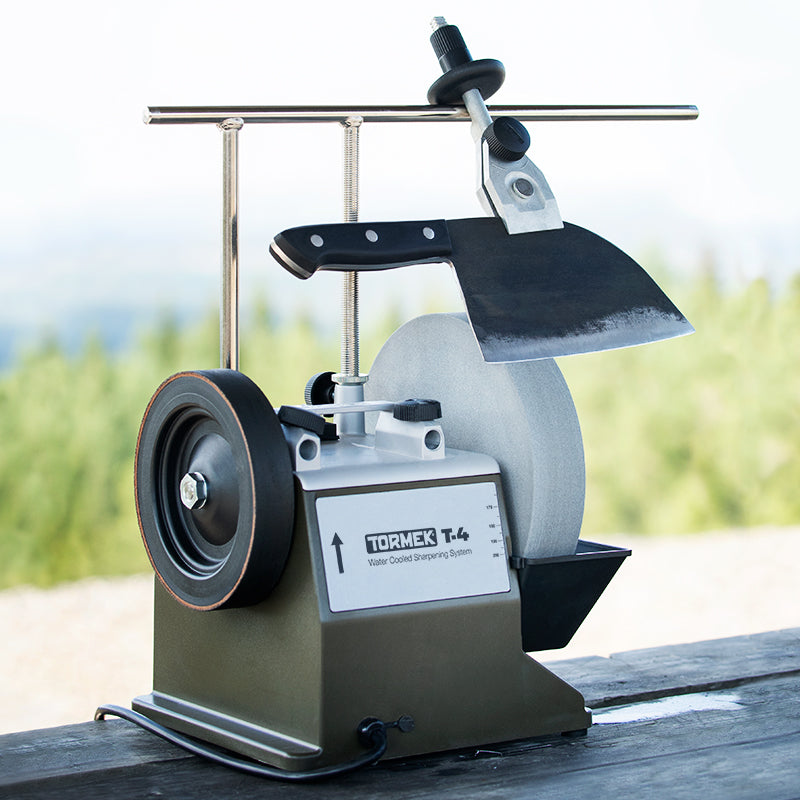

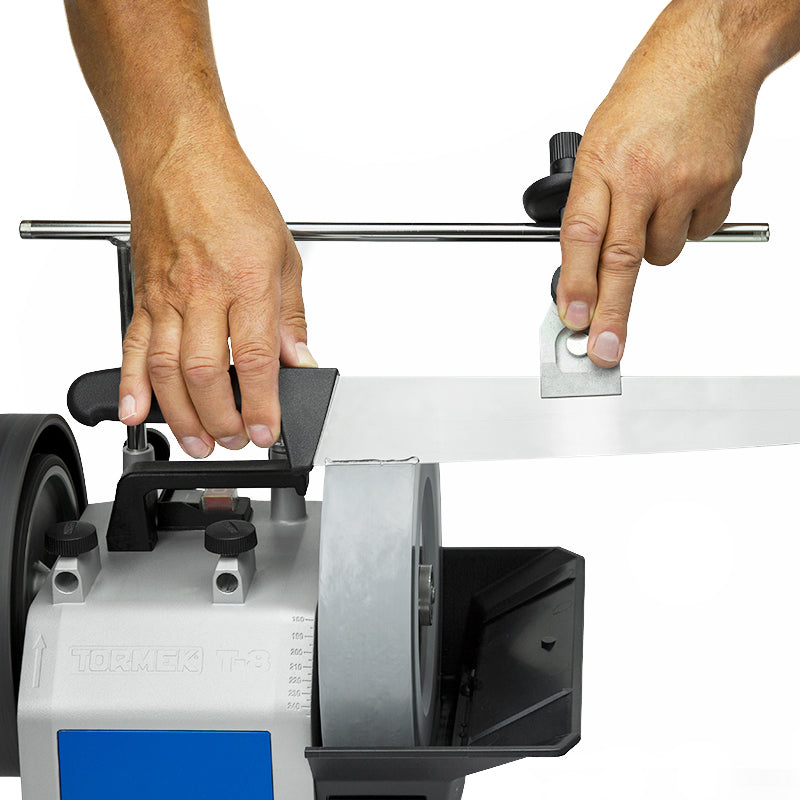

The Tormek US-430 Extended Universal Support is specially designed for sharpening tools that are too long or tall for standard universal supports. Ideal for long knives, meat cleavers, and machetes, it gives you greater flexibility when working with oversized blades. The extended design measures 436 mm (17 1/8”) in length and 212 mm (8 3/8”) in height, making it perfectly suited for applications where extra reach is essential.

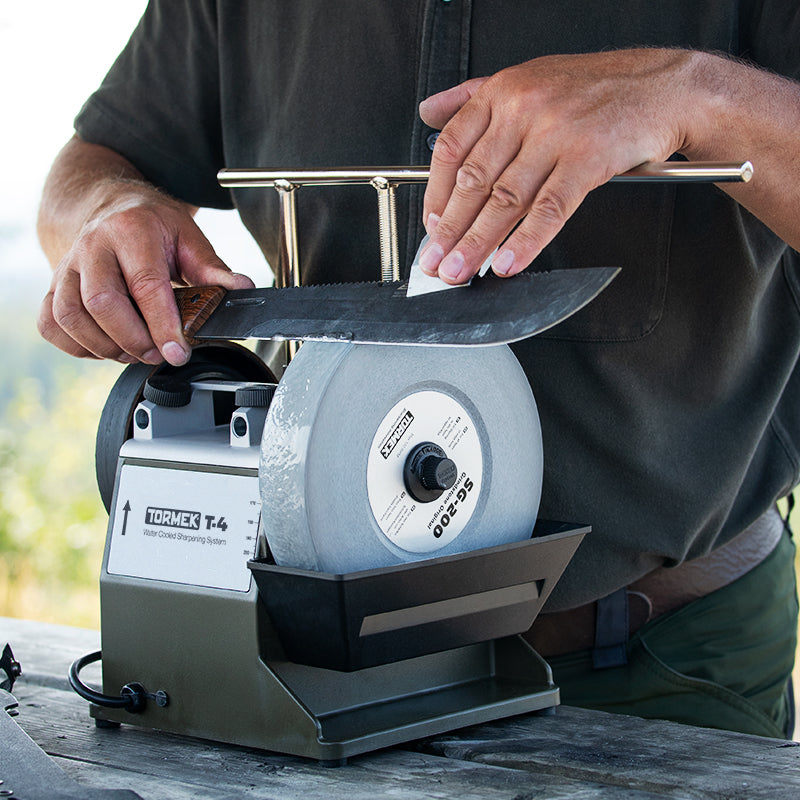

Like other Tormek universal supports, the US-430 features a Micro Adjust scale for precise sharpening angle settings. It can be positioned vertically for sharpening into the edge (edge leading), horizontally for sharpening away from the edge (edge trailing), or horizontally for honing with jigs. Additionally, it is compatible with the MB-102 Multi Base for sharpening on the side of diamond grinding wheels.

The US-430 fits a wide range of machines, including the Tormek T-8, T-7, T-4, T-3, and older models. Please note that the SE-77 Square Edge Jig stop function does not work with this extended support, as it is too long for the mechanism.

Features & Benefits:

• Extended Reach: 436 mm (17 1/8”) length provides additional support for long knives and machetes.
• Increased Height: 212 mm (8 3/8”) height allows sharpening of tall tools such as meat cleavers.

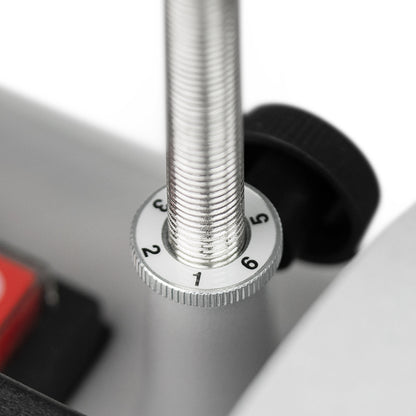

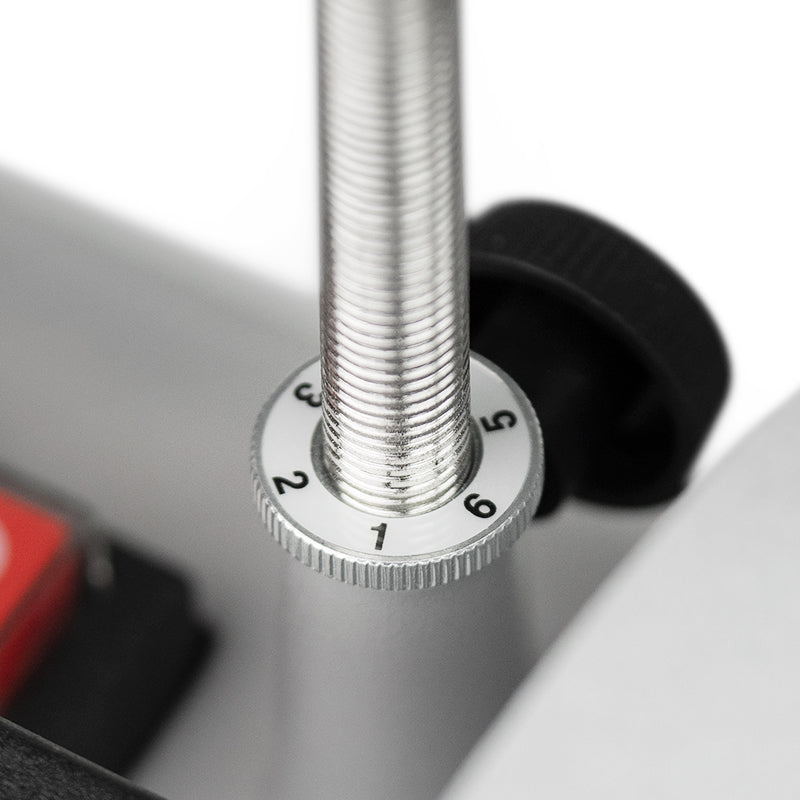

• Micro Adjust Scale: Enables precise and repeatable angle settings.
• Flexible Positioning: Can be mounted vertically, horizontally, or used with the MB-102 Multi Base for diamond wheel side sharpening.
• Machine Compatibility: Fits Tormek T-8, T-7, T-4, T-3, and older models.
• Durable Build: Made from nickel-plated steel for strength and longevity.

Specifications:

Weight: Shipping weight 0.87 kg (1.92 lb)
Colour: Silver
Material: Nickel-plated steel
Dimensions: 436 mm (17 1/8”) length, 212 mm (8 3/8”) height
Warranty: 2-year warranty

Scope of Delivery:

• 1 x Tormek US-430 Extended Universal Support (fully assembled and ready to use)

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
