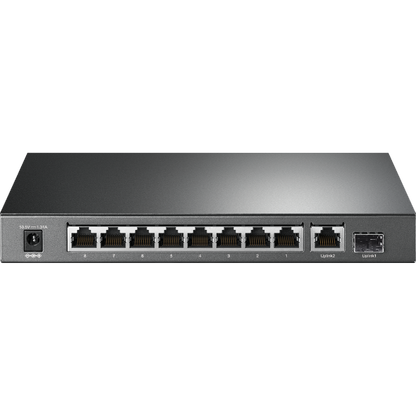

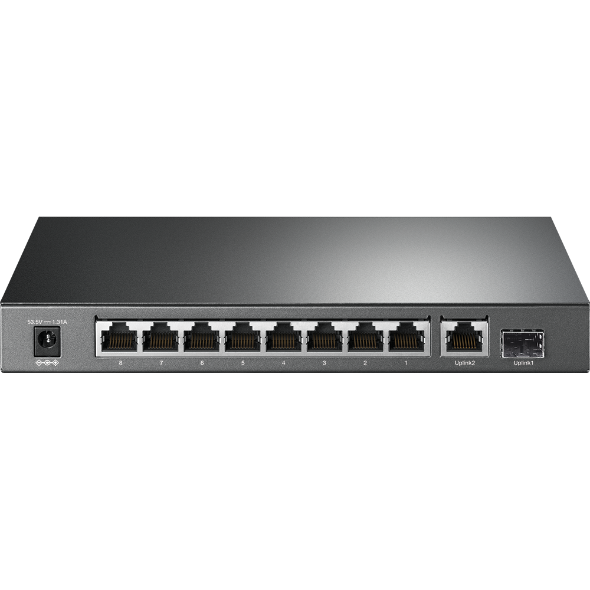

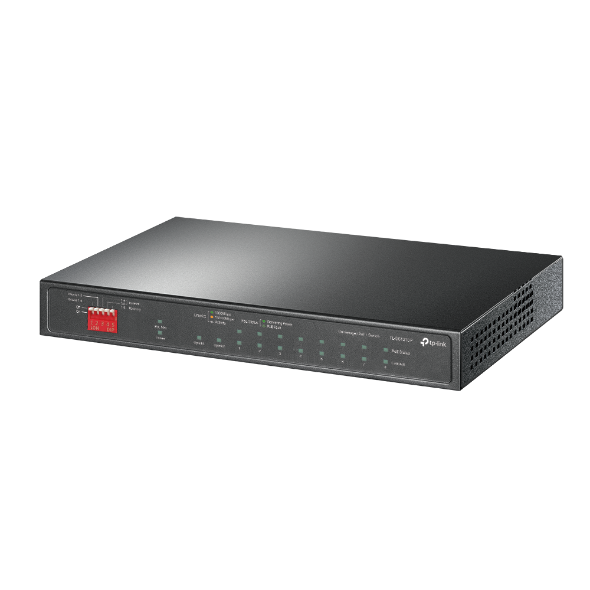

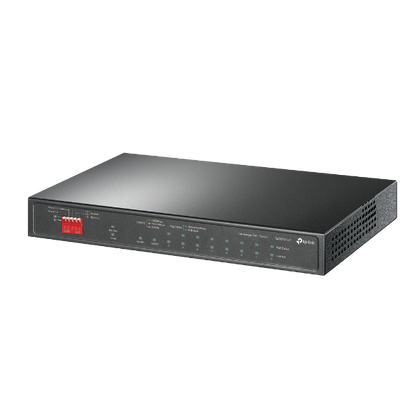

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ | TL-SG1210P

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ | TL-SG1210P.

Build and Expand Your Gigabit Network with PoE+.

The TP-Link TL-SG1210P is an unmanaged switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Features & Benefits:

• 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
• With 8 PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs and expands office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
• Up to 250 m data and power transmission range under Extend Mode **
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Easy to use, with no configuration and installation needed

Learn more about TP-Link PoE technology >

Specifications:

• Interface: 8 PoE+ 10/100/1000Mbps RJ45 Ports; 1 10/100/1000Mbps RJ45 Port; 1 Gigabit SFP Slot
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 1000BASE-X MMF, SMF
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
• Packet Forwarding Rate: 14.88 Mpps
• PoE Ports (RJ45): Standard: 802.3at/802.3af compliant; PoE Ports: Port1- Port 8; PoE Power Budget: 63W
• MAC Address Table: 4K
• Jumbo Frame: 16 KB
• Switching Capacity: 20 Gbps
• Dimensions (W x D x H): 209 × 126 × 26 mm
• Max. Power Consumption: 7.11 W (220/50Hz. no PD connected); 78.13 W (220/50Hz. with 63W PD connected)
• Max Heat Dissipation: 24.25 BTU/h (no PD connected); 266.42 BTU/h (with 63W PD connected)
• Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs; EEE802.3x Flow Control; 802.1p/DSCP QoS; IGMP Snooping
• Transmission Method: Store-And-Forward
• Certifications: CE, FCC, RoHS
• Environment - Operating Temperature: 0℃~40℃ (32℉~104℉)
• Environment - Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Environment - Operating Humidity: 10% ~ 90% non-condensing
• Environment - Storage Humidity: 5%~90% non-condensing

Scope of Delivery:

• TL-SG1210P
• Power Adapter
• Installation Guide

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
