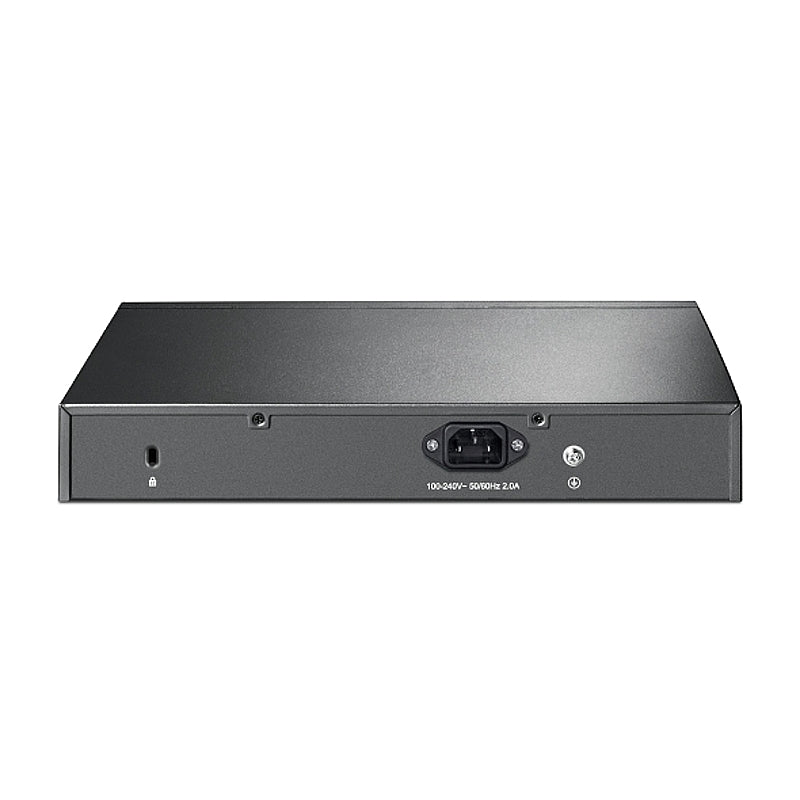

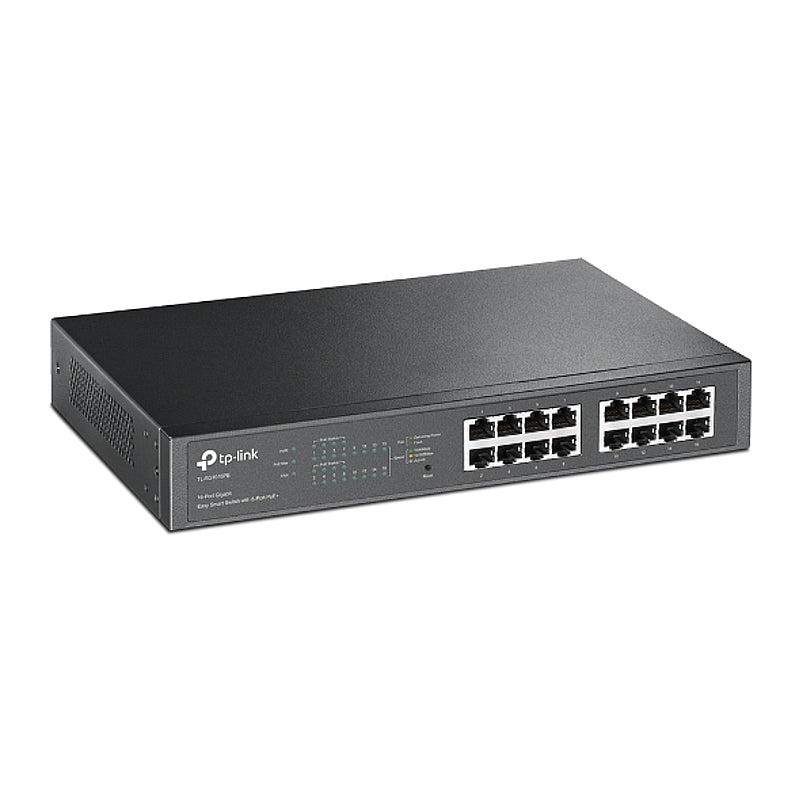

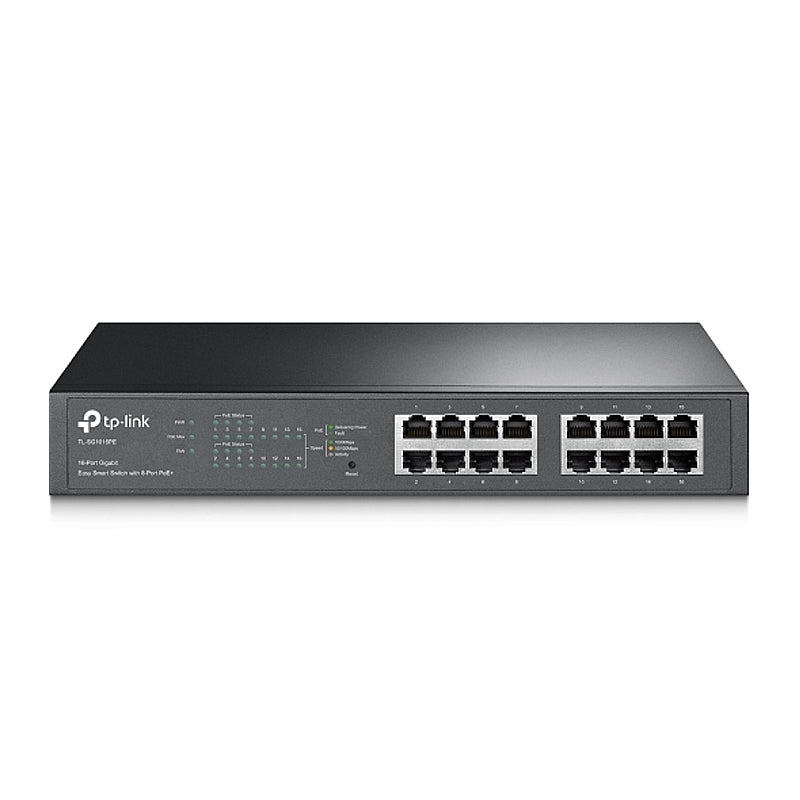

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ | TL-SG1016PE

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ | TL-SG1016PE.

The TL-SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ provides managed Gigabit connectivity and 150W PoE power on ports 1-8, with fan-cooled design, VLAN support, IGMP Snooping, QoS priority queuing, Extend Mode, PoE auto recovery, loop prevention, storm control, and rack-mount capability for efficient powering and management of IP cameras, VoIP phones, and wireless access points in medium-sized networks.

Features & Benefits:

• 16× 10/100/1000Mbps RJ45 ports

• Equipped with 8× PoE+ supported ports to transfer data and power over a single cable

• With a total PoE power budget of 150 W,* up to 30 W per port

• Works with IEEE 802.3af/at compliant devices, expanding home and office networks

• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery

• Simple network set-up on top of plug-and-play connectivity

• Web-based user interface and management utility simplify configuration

Learn more about TP-LINK PoE technology >

What This Product Does.

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement.

TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 150 W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function.

Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 6 are using 30 W (maximum power per port is 30 W), the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system, this means Port 1, 2 ,3, and 4 will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6.

Easy To Use.

TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.

Specifications:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 16× 10/100/1000 Mbps RJ45 Ports; AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
• Fan Quantity: 1
• Physical Security Lock: Yes
• PoE Ports (RJ45): Standard: 802.3af/at compliant; PoE Ports: Port 1 to Port 8; PoE Power Budget: 150 W
• Dimensions (W x D x H): 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)
• Mounting: Rack Mountable/ Desktop
• Max. Power Consumption: 8.07 W (110 V/ 60 Hz with no PD connected); 177.67 W (110 V/60 Hz with 150 W PD connected)
• Max Heat Dissipation: 27.52 BTU/h (with no PD connected); 605.85 BTU/h (with 150 W PD connected)
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 10 KB
• Quality of Service: Support Port-Based/802.1p/DSCP priority; Support 4 priority queues; Rate Limit; Storm Control
• L2 Features: IGMP Snooping V1/V2/V3; Static Link Aggregation; Port Mirroring; Cable Diagnostics; Loop Prevention; PoE Auto Recovery
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs); MTU/Port/Tag VLAN
• PoE: PoE Management; Extend Mode; PoE Auto Recovery
• Management Features: Web-based GUI; Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward
• Certifications: FCC, CE, RoHS
• Environment - Operating Temperature: 0–50 ℃ (32–122 ℉)
• Environment - Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Environment - Operating Humidity: 10–90% non-condensing
• Environment - Storage Humidity: 5–90% non-condensing

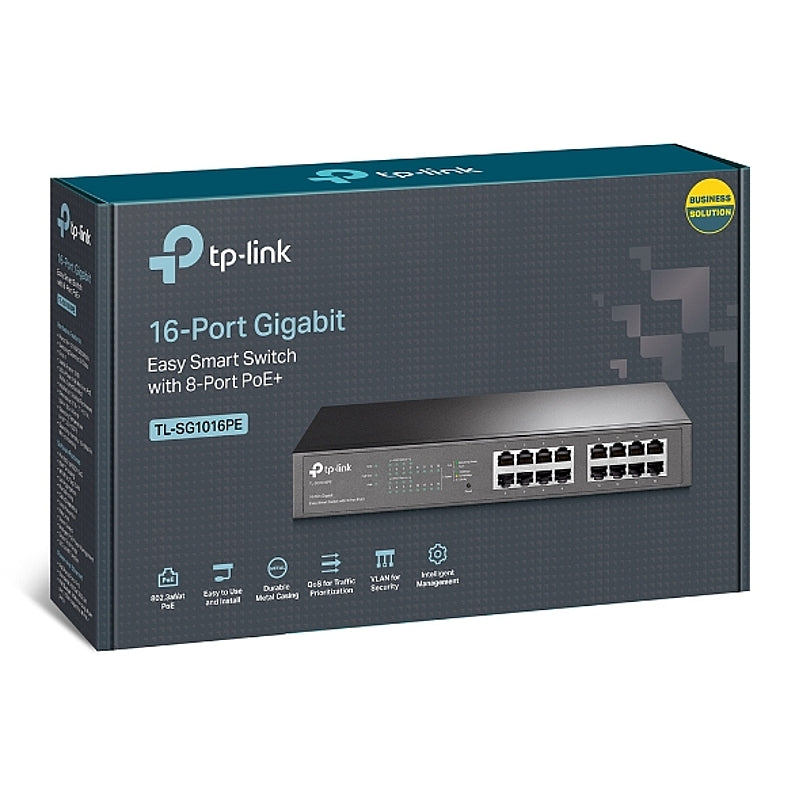

Scope of Delivery:

• TL-SG1016PE
• Power Cord
• Installation Guide
• Resource CD
• Rackmount Kit
• Rubber Feet

For More Information, Visit Link Below:

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
