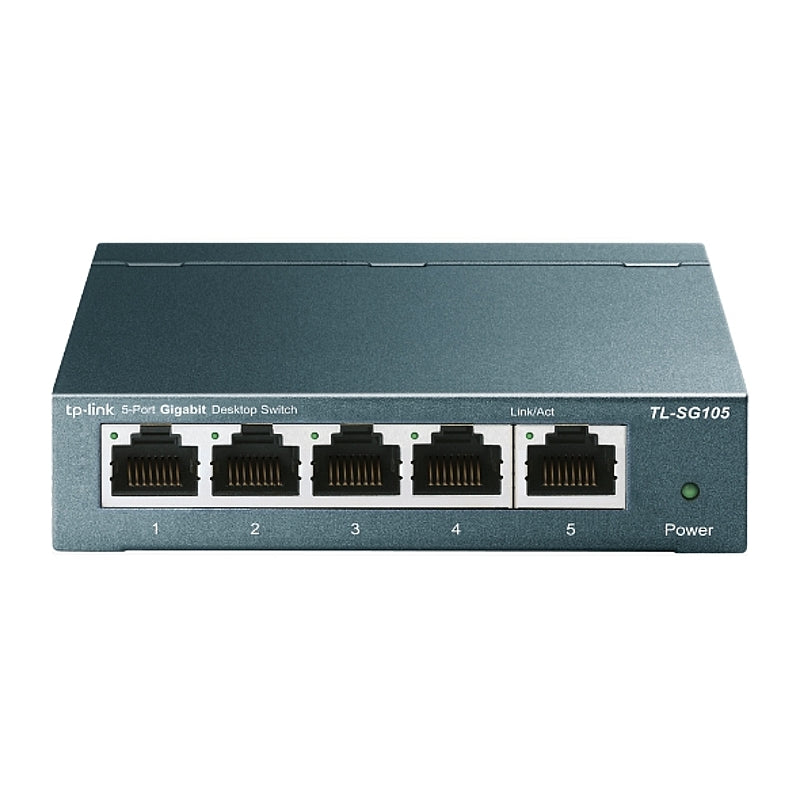

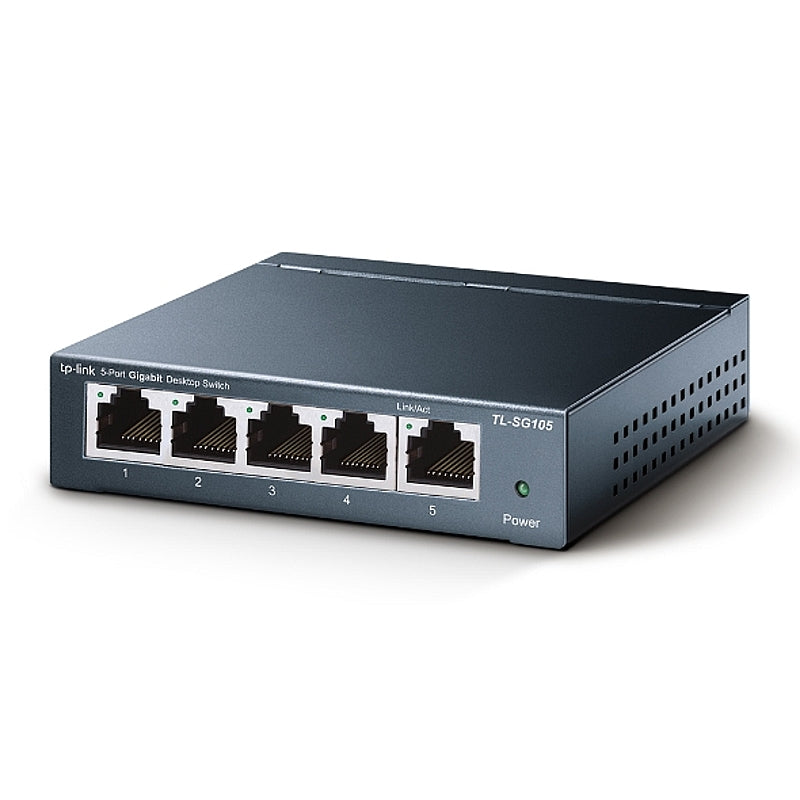

TP-Link 5-Port 10/100/1000Mbps Desktop Switch | TL-SG105

TP-Link 5-Port 10/100/1000Mbps Desktop Switch | TL-SG105.

Plug and Play, Expand Your Gigabit Network.

The TP-Link TL-SG105 is a 5-Port Gigabit Desktop Switch designed to expand Gigabit networks easily, suitable for home or office use to increase server and backbone connection speeds. It offers plug-and-play connectivity with five non-blocking Gigabit ports for interference-free transfer of large, bandwidth-intensive files.

Features & Benefits:

• 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

• Plug and play, no configuration needed

• Supports 802.1p/DSCP QoS and IGMP Snooping functions

• Durable metal casing, desktop/wall-mounting options, and a fanless design

• IEEE 802.3x flow control provides reliable data transfer

• Green Ethernet technology reduces power consumption

• Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping

Conveniently Conduct Business.

The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 helps you deal with your business quickly and easily, any time.

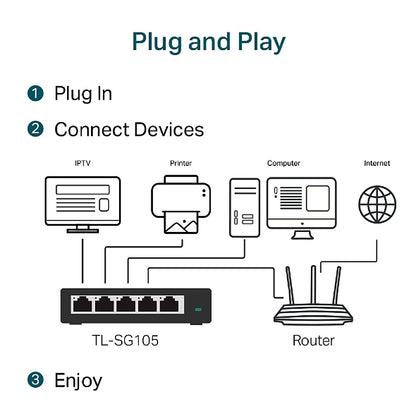

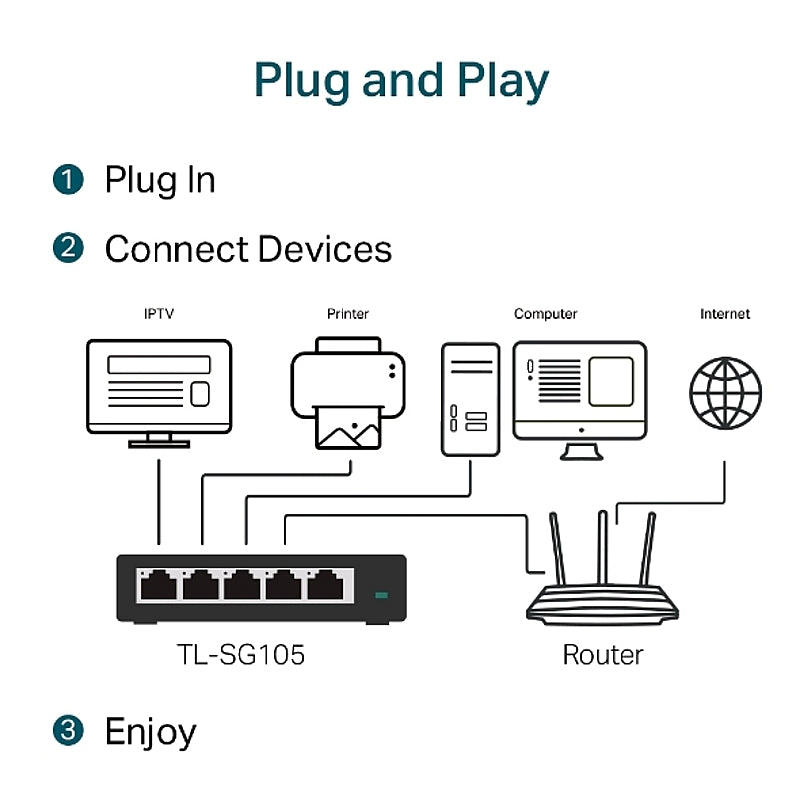

Plug and Play, No Configuration Required.

A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.

1. Plug In

2. Connect Devices

3. Enjoy

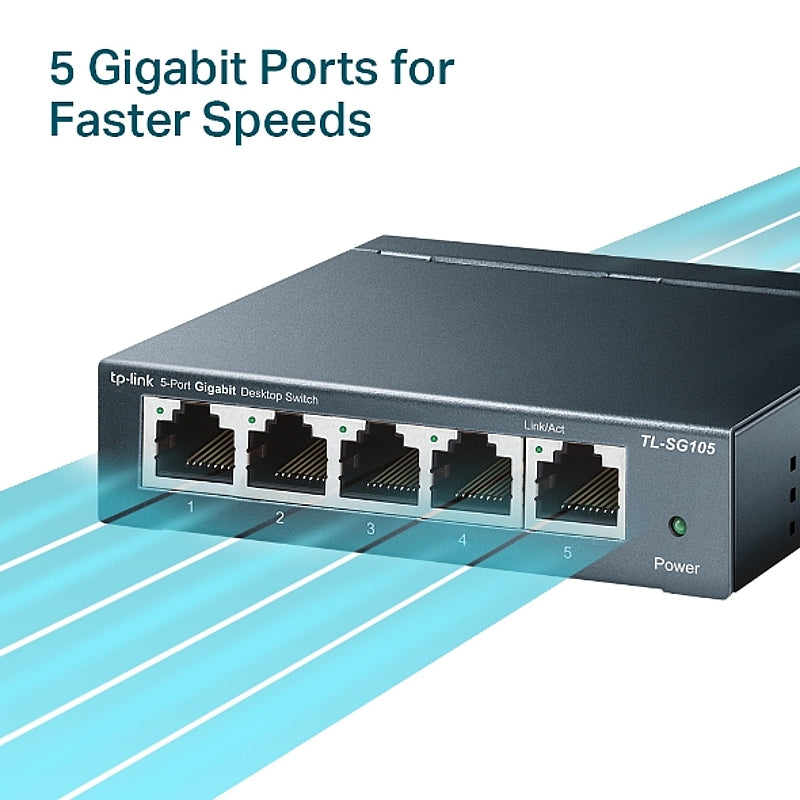

Five Gigabit Ports for Faster Speeds.

Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

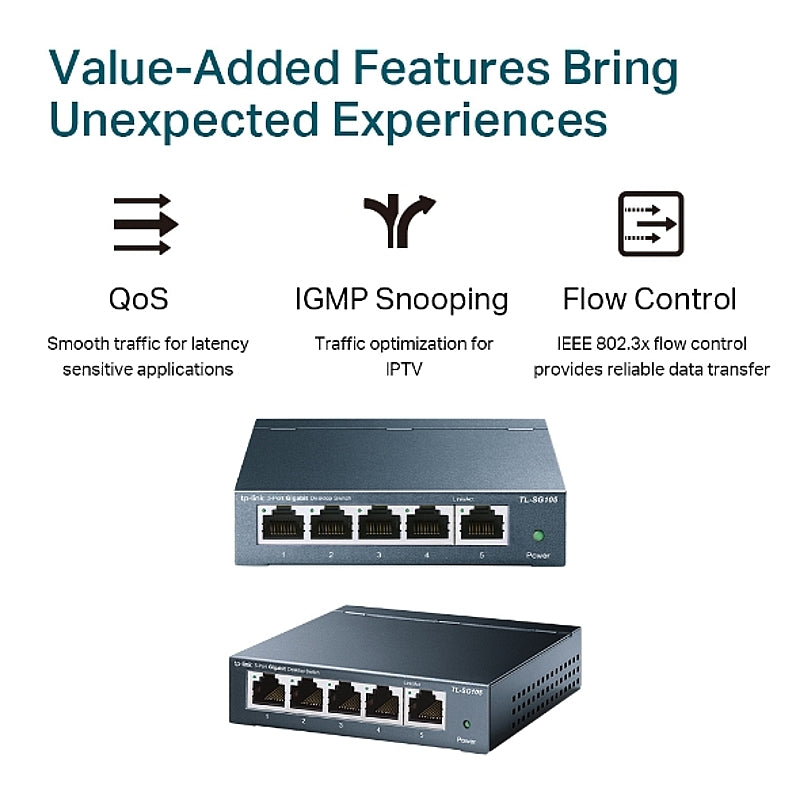

Value-Added Features Bring Unexpected Experiences.

QoS for a Lag-Free Experience. Ensures smooth traffic for latency sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization. Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

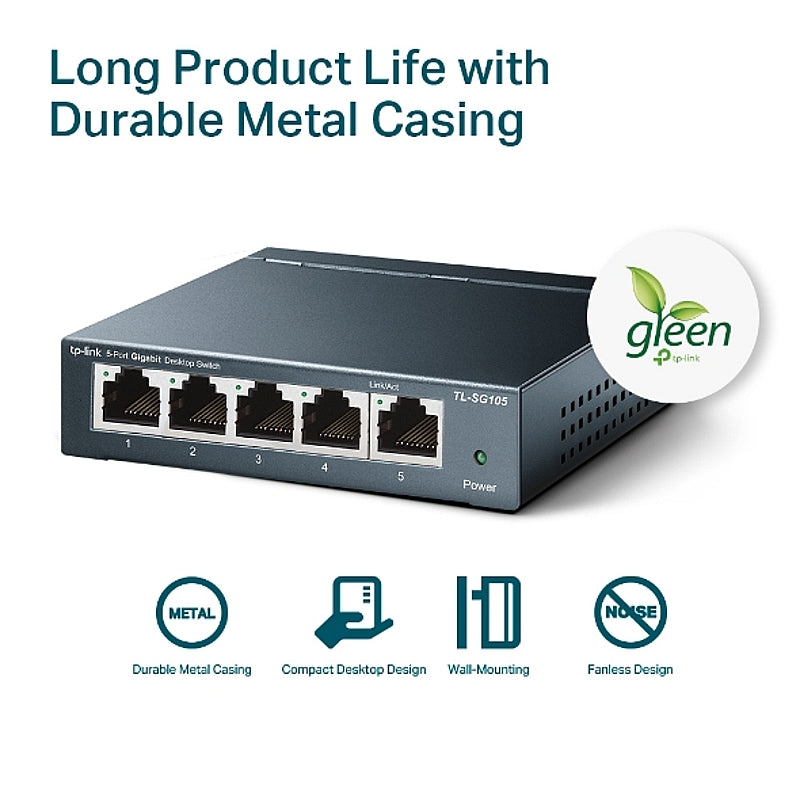

Long Product Life with Durable Metal Casing.

Interior components of TL-SG105 are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG105 delivers switching performance you can depend on

Go Green with Your Ethernet.

TP-Link’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

Specifications:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
• Interface: 5 10/100/1000 Mbps Auto-Negotiation RJ45 Ports supporting Auto-MDI/MDIX
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 5 V DC / 0.6A)
• LED: System Power; Link/Act indicators per port built into each RJ-45 port
• Dimensions (W x D x H): 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm)
• Max. Power Consumption: 3.0 W (220 V/50 Hz)
• Max Heat Dissipation: 10.23 BTU/h
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1 Mb
• Jumbo Frame: 16 KB
• Advanced Features: Green Ethernet Technology; IEEE 802.3x Flow Control; 802.1p/DSCP QoS (for V2 and later versions); IGMP Snooping
• Transmission Method: Store and Forward
• Certifications: CE, FCC, RoHS
• Environment - Operating Temperature: 0–40 °C (32–104 °F)
• Environment - Storage Temperature: -40–70 °C (-40–158 °F)
• Environment - Operating Humidity: 10–90% RH non-condensing
• Environment - Storage Humidity: 5–90% RH non-condensing

Scope of Delivery:

• 5-Port 10/100/1000Mbps Desktop Switch TL-SG105
• Power Adapter
• Installation Guide

For More Information, Visit Link Below:

TP-Link 5-Port Gigabit Desktop Switch

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
