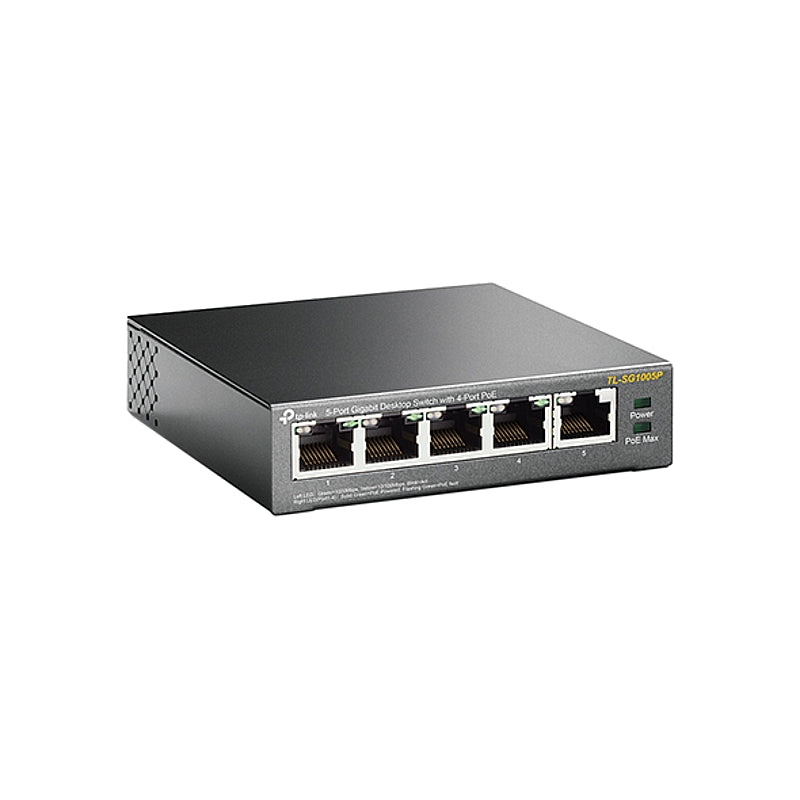

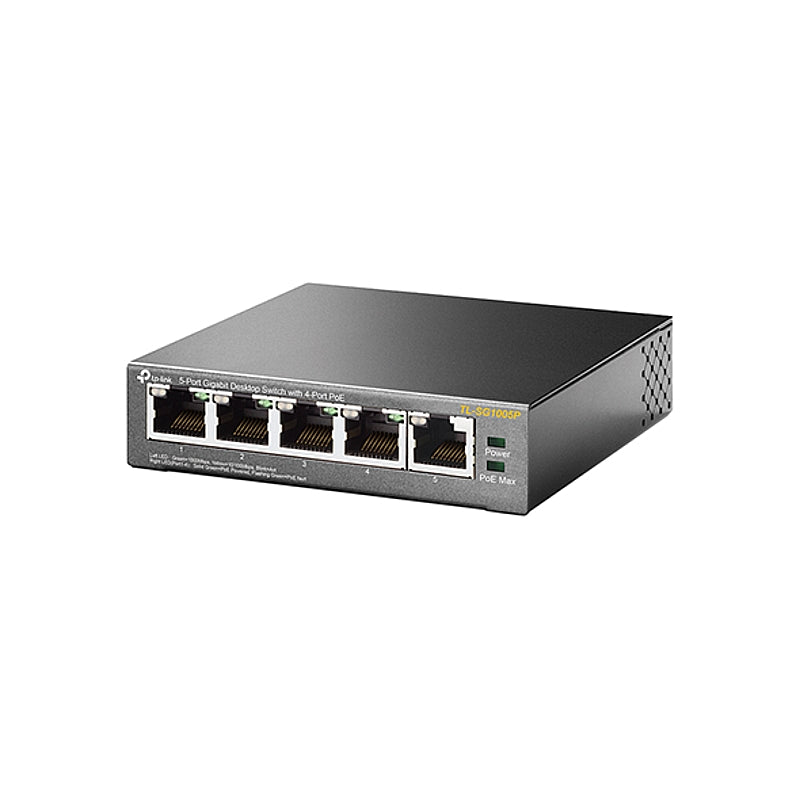

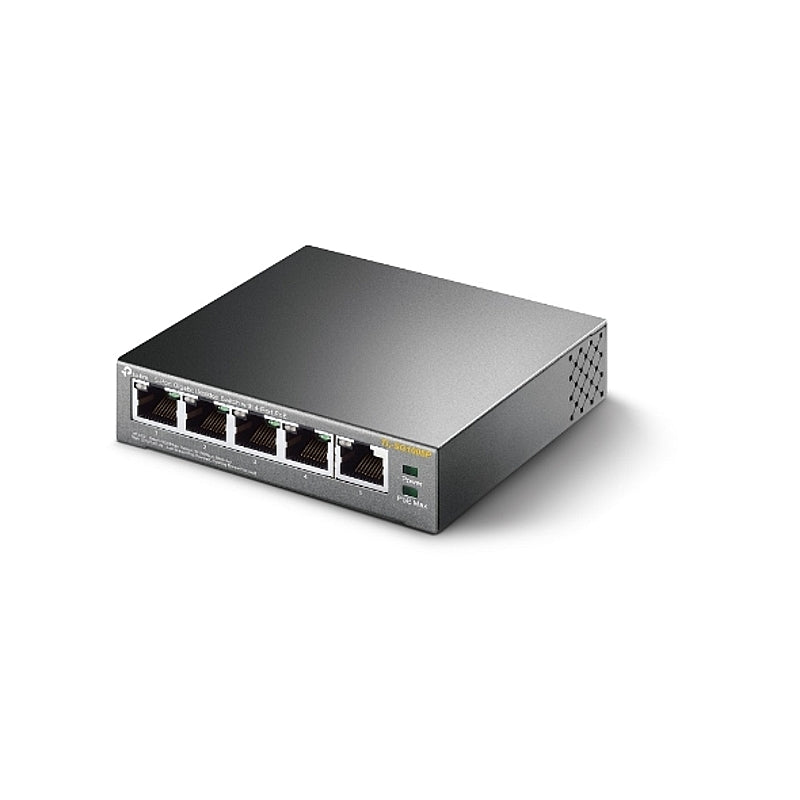

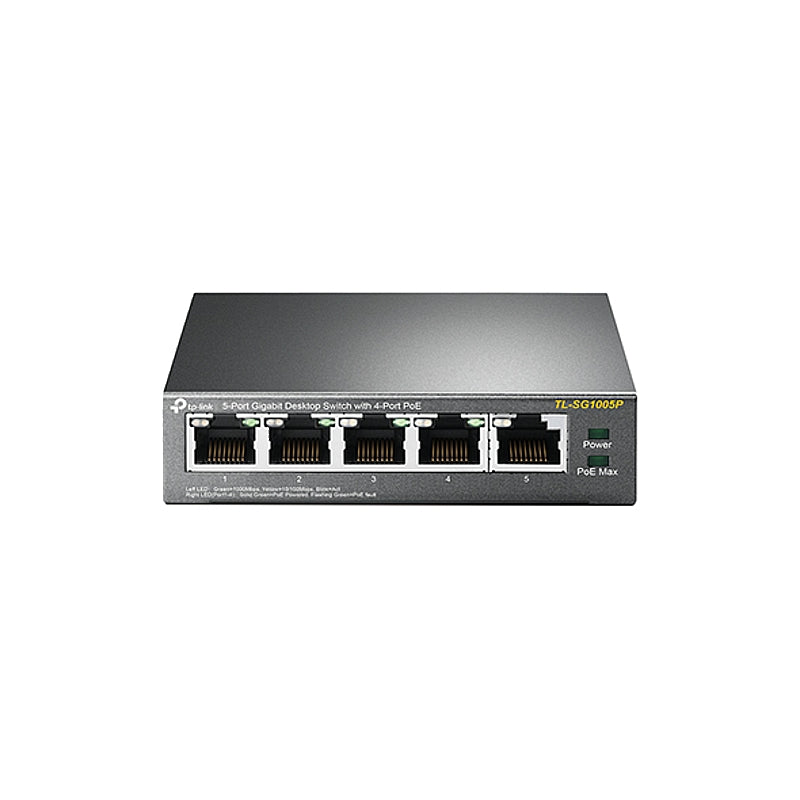

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE | TL-SG1005P.
The TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+ offers reliable Gigabit connectivity and 56W PoE power supply on ports 1-4, supporting IEEE 802.3af compliant devices, fanless silent design, QoS, IGMP Snooping, and compact plug-and-play setup for small networks, surveillance, or VoIP applications.
Features & Benefits:
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
PoE Switches for Your Ultra Convenience.
-
Surveillance. Work with IP Cameras
-
Conference Call. Work with IP Phones
-
Wi-Fi Coverage. Work with Omada EAPs
Easy to Use.
- Connect To Power
- Connect To Devices
- Enjoy
Power over Ethernet.
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management.
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Advanced Functions for Higher Performance.
-
Qos For Fluent Online Experience. Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
-
IGMP Snooping Traffic Optimization for IPTV. IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy Metal Casing.
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Specifications:
-
Interface: 5 10/100/1000Mbps RJ45 Ports; AUTO Negotiation/AUTO MDI/MDIX
-
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
-
Fan Quantity: Fanless
-
External Power Supply: External Power Adapter (Output: 48VDC / 1.25A)
-
Packet Forwarding Rate: 7.44 Mpps
-
PoE Ports (RJ45): Standard: 802.3af compliant; PoE Ports: Port1 - Port4; Power Supply: 56W
-
Backbound Bandwidth: 10 Gbps
-
MAC Address Table: 2K
-
Jumbo Frame: 16 KB
-
Switching Capacity: 10 Gbps
-
Dimensions (W x D x H): 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
-
Max. Power Consumption: 3.95 W (220/50Hz, no PD connected); 64.44 W (220/50Hz, with 56W PD connected)
-
Max Heat Dissipation: 13.48 BTU/h (no PD connected); 219.87 BTU/h (with 56W PD connected)
-
Advanced Features: Compatible With IEEE 802.3af Compliant PDs; Priority Function; MAC Address Auto-Learning And Auto-Aging; IEEE 802.3x Flow Control; 802.1p/DSCP QoS; IGMP Snooping
-
Transmission Method: Store-And-Forward
-
Certifications: FCC, CE, RoHS
-
Environment - Operating Temperature: 0℃~40℃ (32℉~104℉)
-
Environment - Storage Temperature: -40℃~70℃ (-40℉~158℉)
-
Environment - Operating Humidity: 10%~90%RH non-condensing
-
Environment - Storage Humidity: 5%~90%RH non-condensing
Scope of Delivery:
- TL-SG1005P
- Power Adapter
- Installation Guide
For More Information, Visit Link Below:
TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
