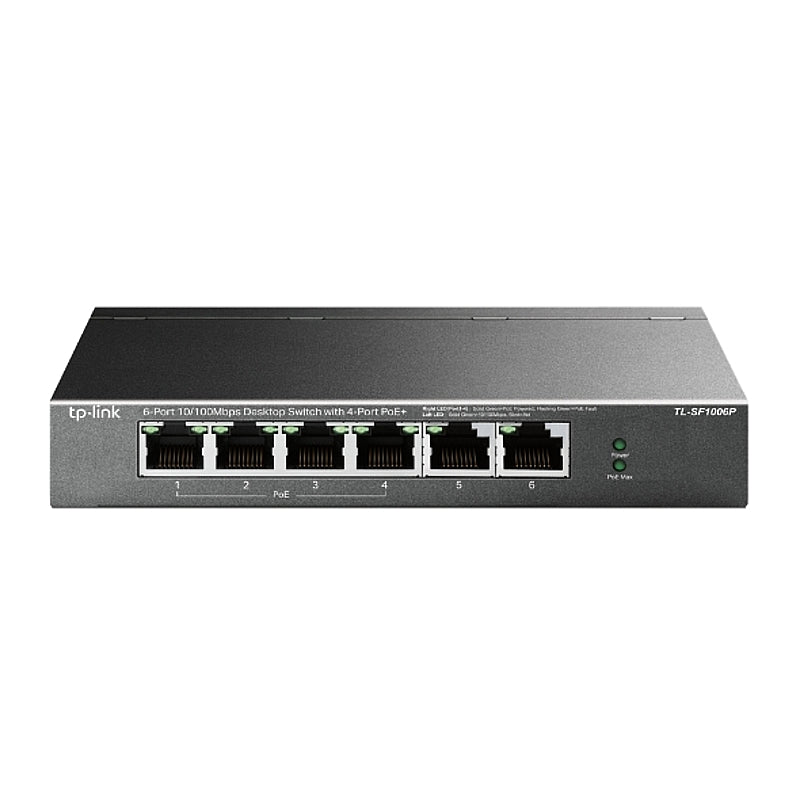

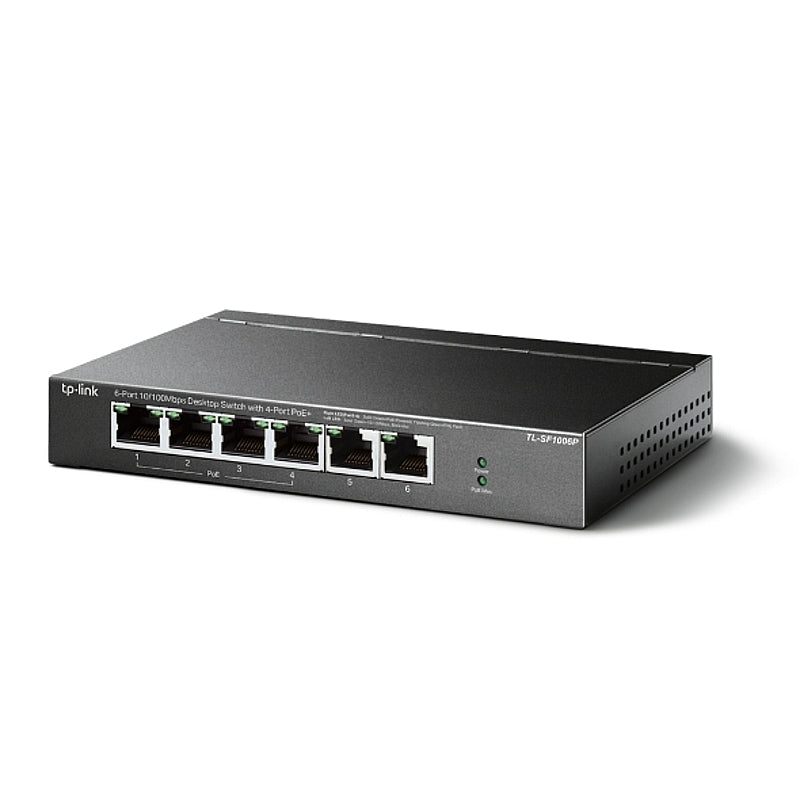

TP-Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ | TL-SF1006P

TP-Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ | TL-SF1006P.

The TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ delivers reliable Fast Ethernet connectivity and 67W PoE power on ports 1–4, with fanless design, Extend Mode for 250m reach, Priority Mode, PoE auto recovery, flow control, and compact plug-and-play setup for IP cameras, VoIP phones, and wireless access points.

Features & Benefits:

• 6× 10/100 Mbps RJ45 ports

• 4× PoE+ ports transfer data and power on individual cables

• Works with IEEE 802.3af/at compliant PDs

• Up to 250m data and power transmitting range under Extend Mode**

• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

• Supports PoE Power up to 30 W for each PoE port

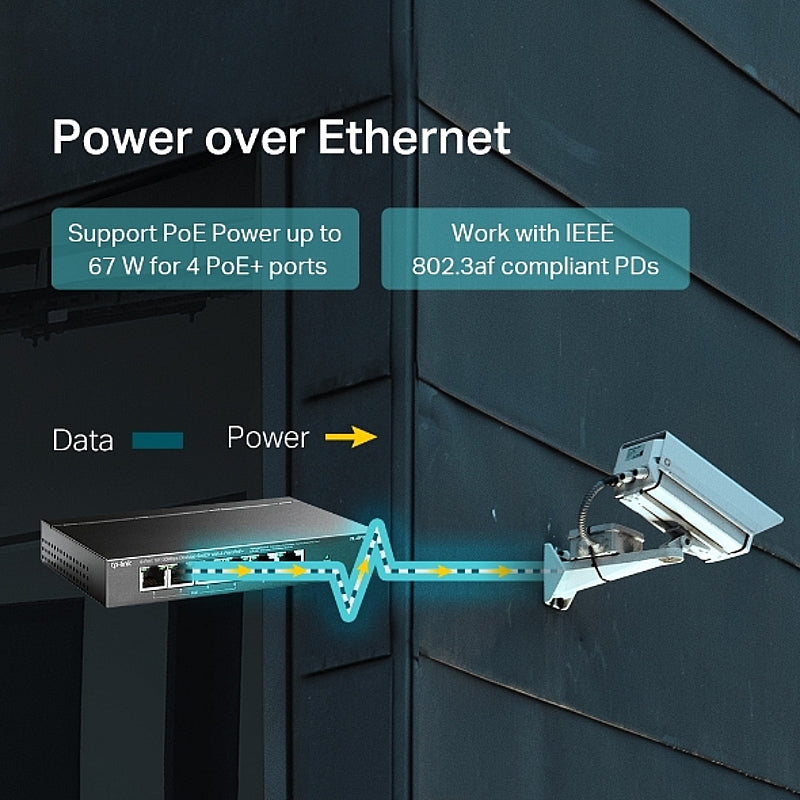

• Supports PoE Power up to 67 W for all PoE ports*

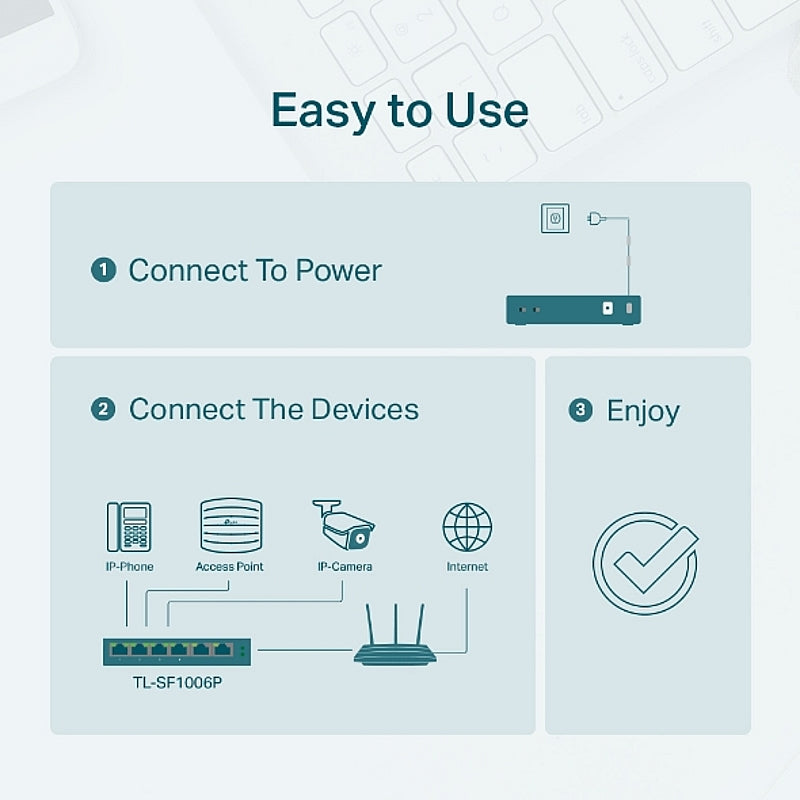

• Plug and play with no configuration required

Learn more about TP-Link PoE technology >

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Specifications:

• Interface: 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+); AUTO Negotiation; AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• External Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
• Packet Forwarding Rate: 0.8928 Mpps
• PoE Ports (RJ45): Standard: 802.3af/at compliant; PoE Ports: Ports 1–4; Power Supply: 67 W
• MAC Address Table: 2K
• Jumbo Frame: 2 KB
• Switching Capacity: 1.2 Gbps
• Dimensions (W x D x H): 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
• Max. Power Consumption: 2.52 W (220 V / 50 Hz, no PD connected); 75.4 W (220 V / 50 Hz, with 67 W PD connected)
• Max Heat Dissipation: 8.59 BTU/h (no PD connected); 257.11 BTU/h (with 67 W PD connected)
• Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs; Extend Mode Button (Ports 1–4); Priority Mode Button (Ports 1–2); PoE Auto Recovery (Ports 1-4); MAC Address Auto-Learning and Auto-Aging; IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
• Transmission Method: Store-And-Forward
• Certifications: FCC, CE, RoHS
• Environment - Operating Temperature: 0–40 ℃ (32–104 ℉)
• Environment - Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Environment - Operating Humidity: 10–90% RH non-condensing
• Environment - Storage Humidity: 5–90% RH non-condensing

Scope of Delivery:

• TL-SF1006P
• Power Adapter
• Installation Guide

For More Information, Visit Link Below:

TP-Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
