TP-Link Omada Gigabit WDM Media Converter | TL-FC311A-20

TP-Link Omada Gigabit WDM Media Converter | TL-FC311A-20.

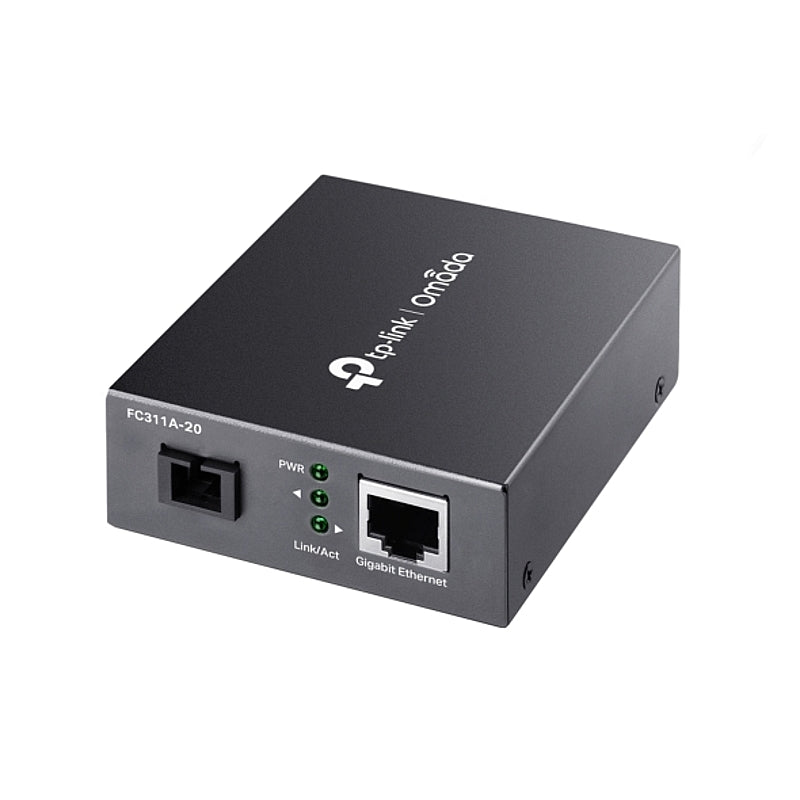

The FC311A-20 Gigabit Media Converter converts between 1000Mbps copper RJ45 Ethernet and single-mode fiber optic (SC/UPC) up to 20 km, with auto MDI/MDIX, plug-and-play operation, and reliable performance for extending network reach in industrial or long-distance applications.

Features & Benefits:

• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX

• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

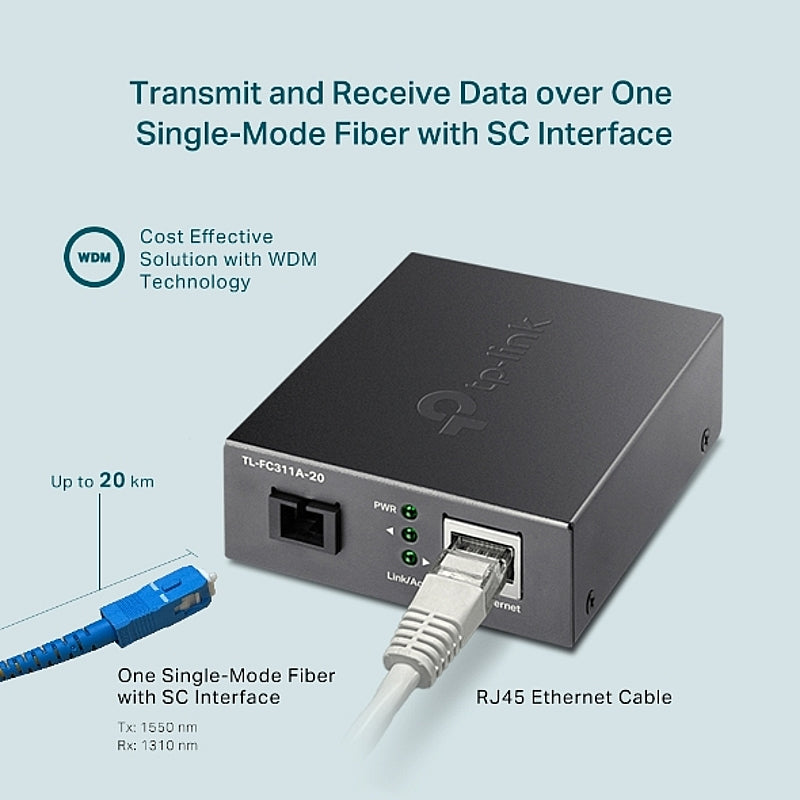

• Adopts WDM technology, transmitting and receiving data on one single fiber

• Extends fiber distance up to 20 km

What This Product Does:

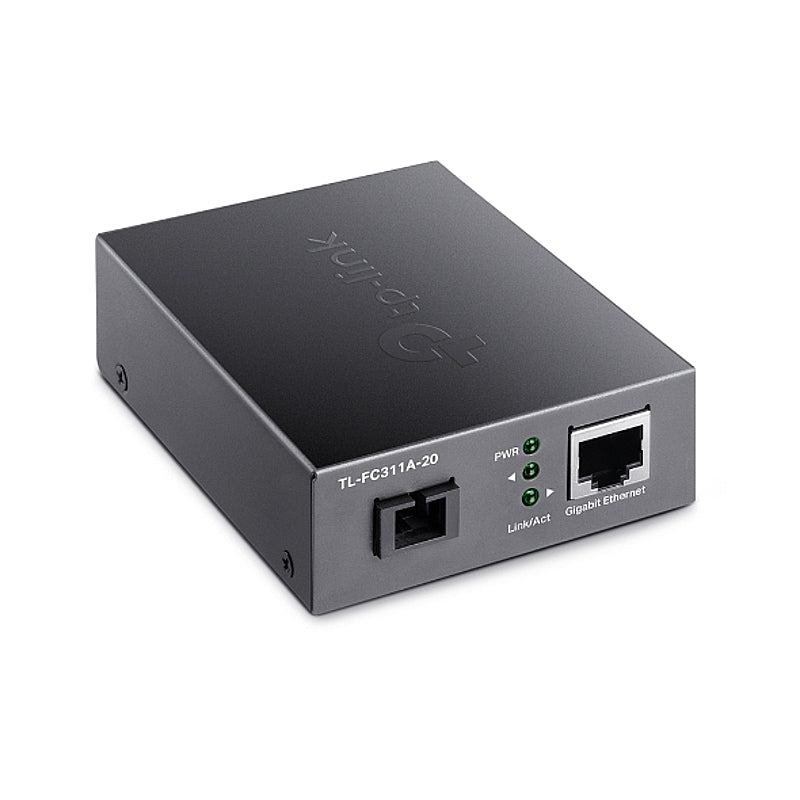

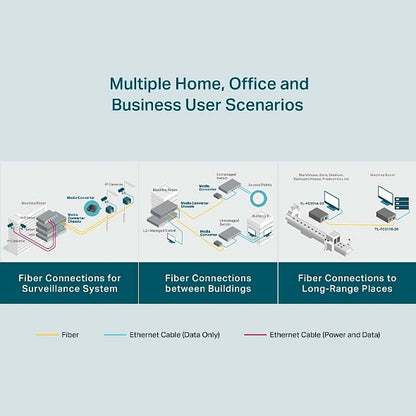

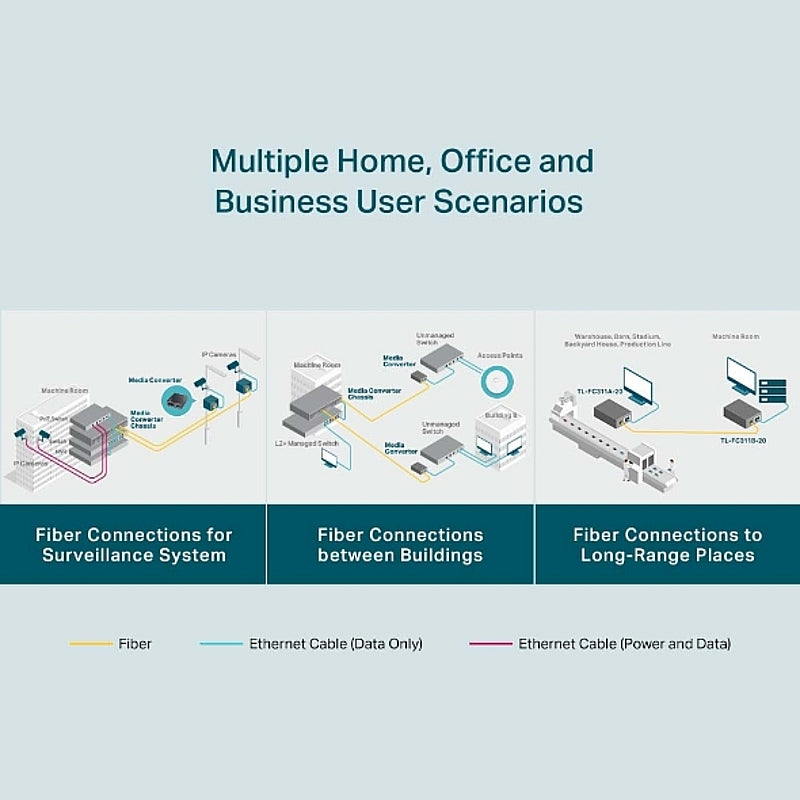

TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works:

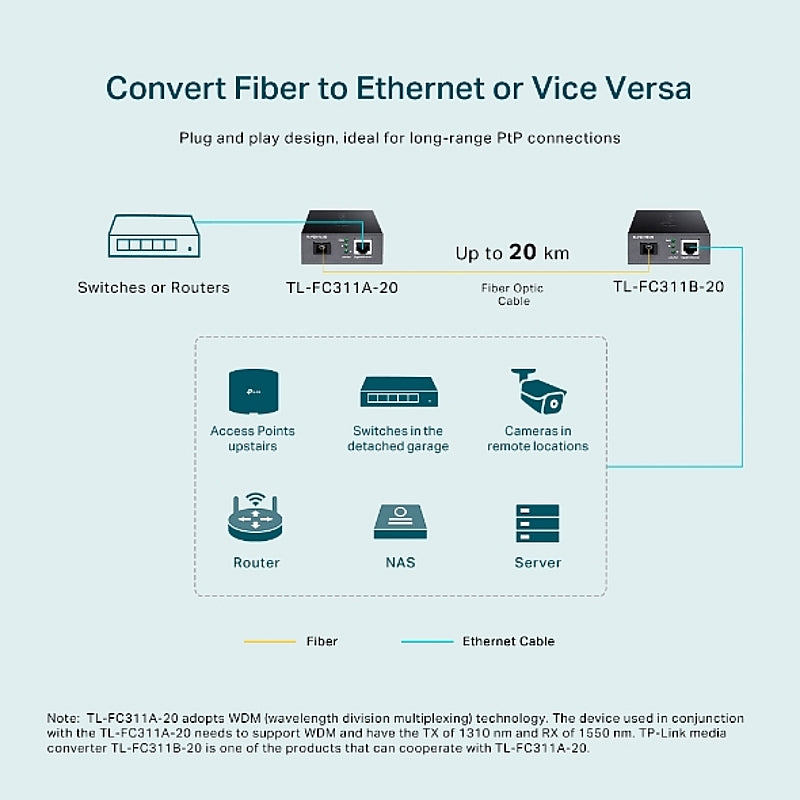

TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers.  TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the  TL-FC311A-20 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter  TL-FC311B-20 is one of the products that can cooperate with  TL-FC311A-20.

Other Features:

Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Specifications:

• Standards and Protocols: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

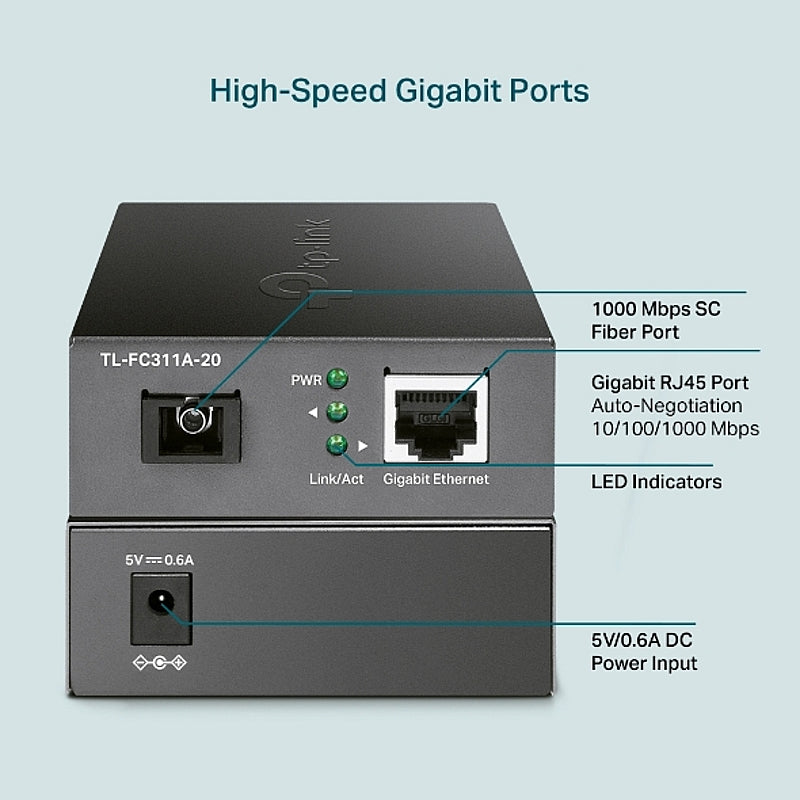

• Interface: 1× Gigabit SC/UPC Fiber Port; 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
• Network Media: Single-mode Fiber (9/125μm, maximum 20 km); UTP category 5, 5e cable (maximum 100 m)

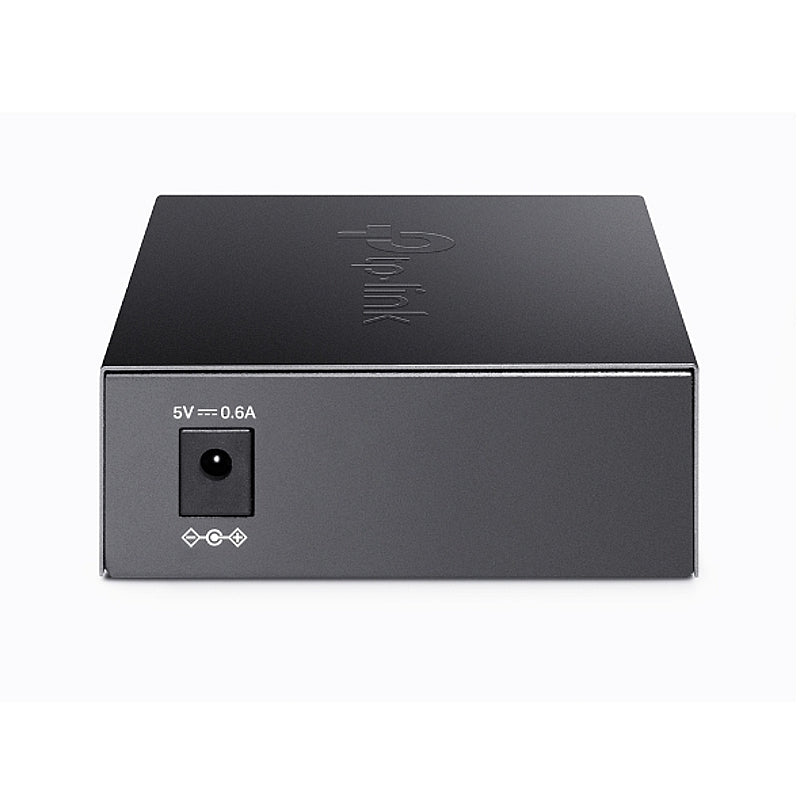

• Power Supply: External Power Adapter: 5 V/0.6 A

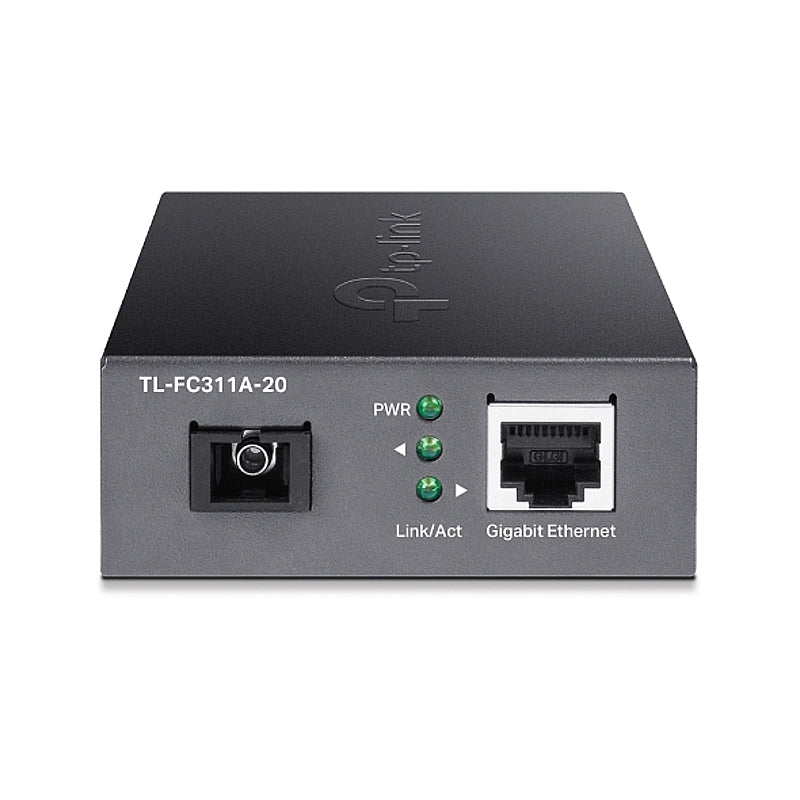

• LED: PWR, Link/Act
• Wave Length: 1550 nm TX, 1310 nm RX
• Dimensions (W x D x H): 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)
• Environment - Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
• Environment - Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
• Environment - Operating Humidity: 10% to 90% RH non-condensing
• Environment - Storage Humidity: 5% to 90% RH non-condensing

Scope of Delivery:

• Media Converter FC311A-20
• Power Adapter
• Installation Guide

For More Information, Visit Link Below:

TP-Link Omada Gigabit WDM Media Converter

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
