TP-Link Omada PoE Injector | POE150S.
The POE150S PoE Splitter delivers 802.3af-compliant power and Gigabit data over a single cable to non-PoE devices, with selectable 12V/9V/5V output, up to 100m transmission, auto-sensing, and compact design for powering IP cameras, VoIP phones, or wireless APs from PoE sources.
Features & Benefits:
- IEEE 802.3af compliant
- Auto-determine the necessary power requirements
- Gigabit speed support
- Plug-and-Play, no configuration required
What This Product Does.

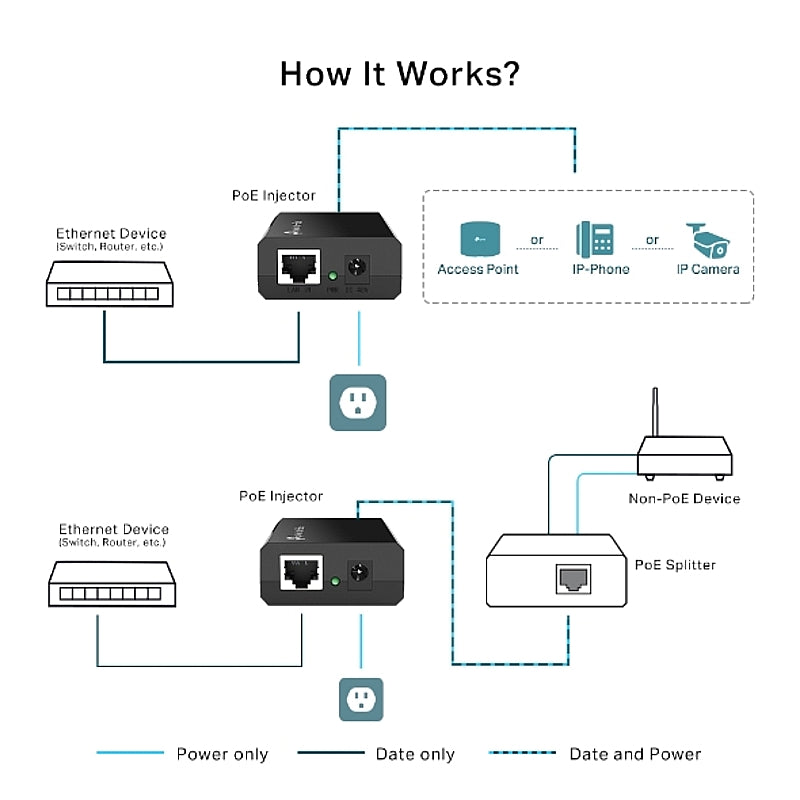

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Specifications:
-

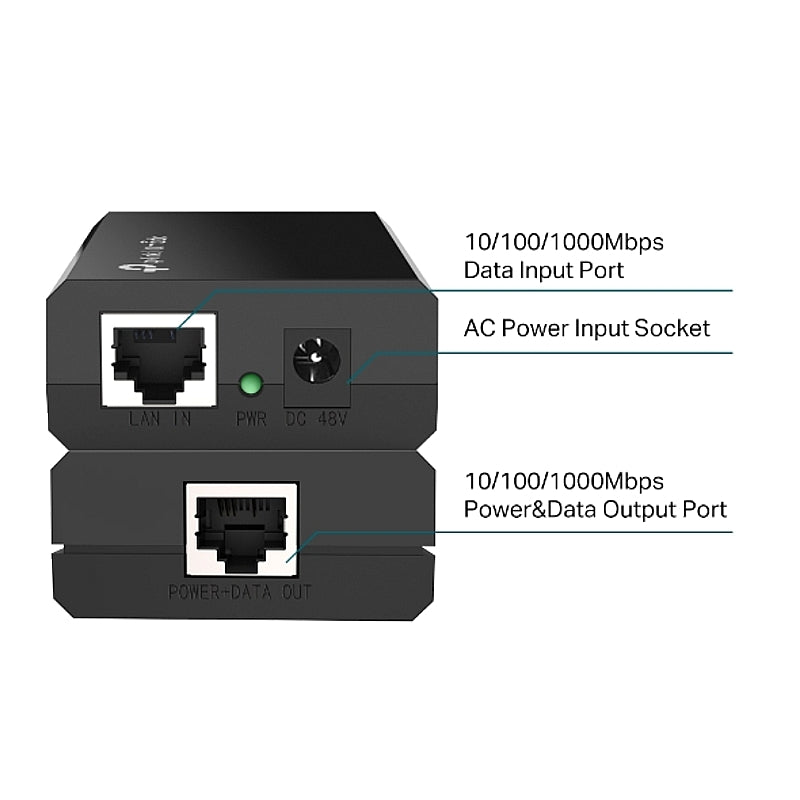

Interface: 2× 10/100/1000Mbps RJ45 Port; Auto Negotiation/Auto MDI/MDIX; 1× 48VDC Power Input Port
-
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 100BASE-TX: UTP category 5, 5e cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
-

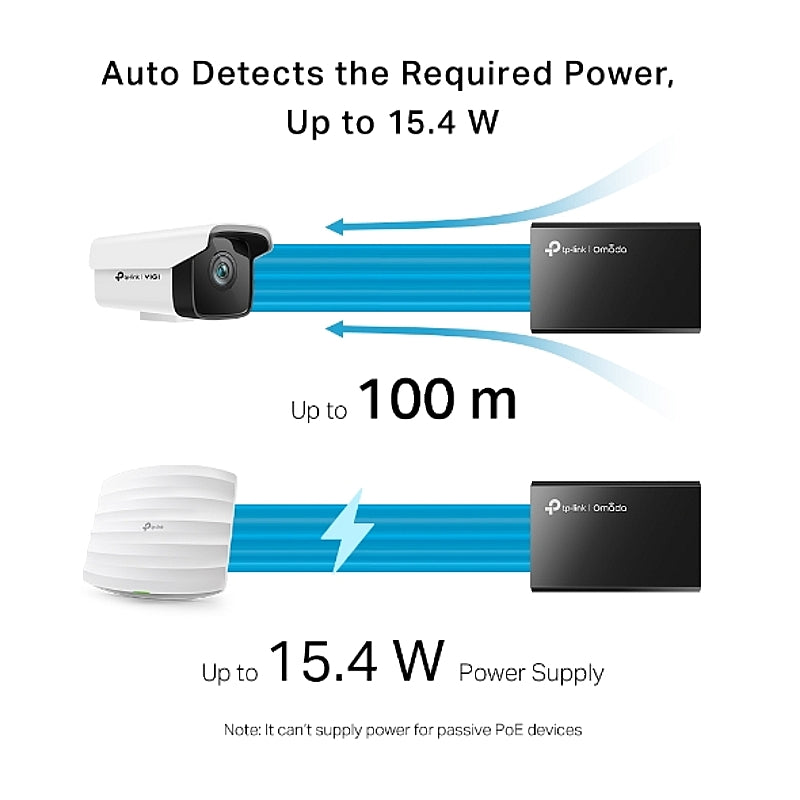

Power Supply: 15.4 W (Max. 48VDC)
-
LED: PWR
-
Dimensions (W x D x H): 3.2 x 2.1 x 0.9 in. (80.8 x 54 x 24 mm)
-
Basic Function: Compatible With IEEE 802.3af Compliant PDs; Delivers Power Up To 100 Meters; Auto-determine the necessary power requirements
-
Certifications: FCC, CE, RoHS
-
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux
-
Environment - Operating Temperature: 0℃~40℃ (32℉~104℉)
-
Environment - Storage Temperature: -40℃~70℃ (-40℉~158℉)
-
Environment - Operating Humidity: 10%~90% non-condensing
-
Environment - Storage Humidity: 5%~90% non-condensing
Scope of Delivery:
- POE150S
- Power Adapter
- Installation Guide
For More Information, Visit Link Below:
TP-Link Omada PoE Injector
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
