TradeWeld ARCMASTER 1700L Inverter Welder Kit 170A, 220V/1P | MCOW4022

TradeWeld ARCMASTER 1700L Inverter Welder Kit 170A, 220V/1P | MCOW4022.

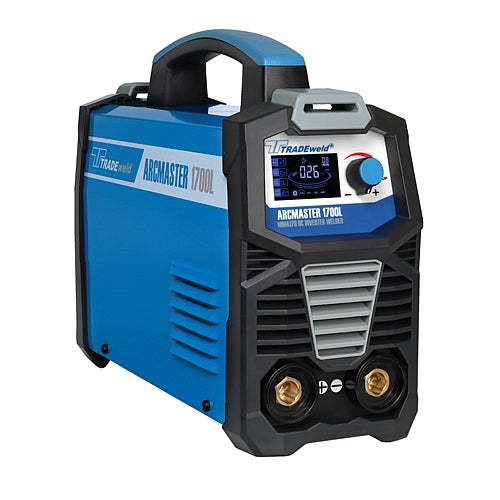

The TradeWeld ARCMASTER 1700L Inverter Welder Kit 170A, 220V/1P | MCOW4022 is built for demanding welding environments where consistent output and mobility are essential. Using advanced IGBT inverter technology, it ensures smooth DC current output and stable arc performance while maintaining energy efficiency. Its compact and lightweight design makes it portable and easy to handle on-site or in workshop settings.

The welder includes an LCD smart display for real-time monitoring and control, allowing users to fine-tune welding parameters accurately. It also integrates advanced features such as Hot Start and ARC Force for easier arc ignition and improved welding stability. The VRD (Voltage Reduction Device) and LIFT TIG functions enhance safety and flexibility during operation. Manufactured with a robust metal body, this unit offers reliability and long-term durability, supported by a 2-year warranty.

Features & Benefits:

• IGBT Inverter Technology: Provides efficient power conversion, stable DC output, and excellent welding characteristics.

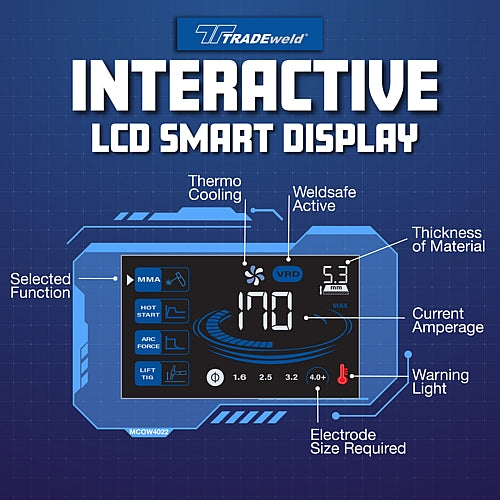

• LCD Smart Display: Enables clear, real-time monitoring of performance and output settings.
• Hot Start and ARC Force: Ensures quick arc ignition and stable performance during welding.
• Compact and Portable: Lightweight design allows easy transport and operation in various locations.
• VRD Function: Improves operator safety by reducing open-circuit voltage when not welding.
• LIFT TIG Functionality: Offers additional flexibility for TIG welding applications (with compatible accessories).
• Robust Metal Construction: Built to withstand tough working environments.
• Energy Efficient: Designed for reduced power consumption while maintaining high output.
• Reliable Cooling System: Fan-cooled design ensures consistent performance under heavy-duty use.
• 2-Year Warranty: Provides assurance of quality and long-term reliability.

Specifications:

Rated Input Voltage: AC220V ±10% 1 Phase
Frequency: 50/60Hz
Rated Input Current: 26.4A
Output Current: 170A
Rated Output Voltage: 26.8V
No Load Voltage: 60V
VRD Voltage: 14V
Duty Cycle: 60%
Efficiency: 85%
Power Factor: 0.93
Protection Class: IP21S
Cooling Method: Fan-cooled
Material: Metal
Colour: Blue / Black
Warranty: 24 Months
Barcode: 6009553204341

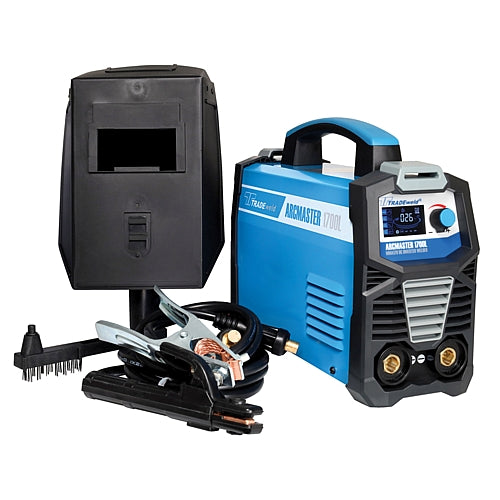

Scope of Delivery:

• 1 x Welding Machine
• 1 x Set of Cables
• 1 x Handheld Face Shield
• 1 x Wire Brush

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
