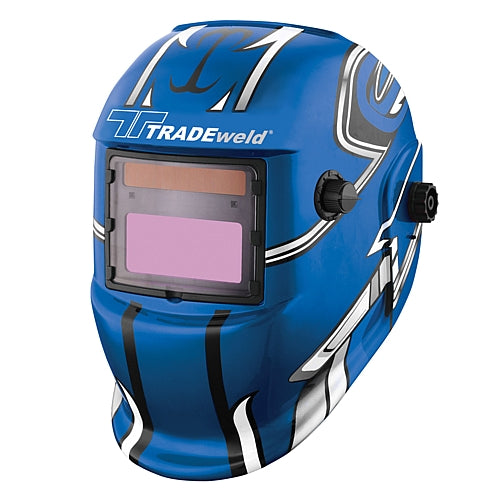

The TRADEweld Auto Dark Helmet, boasting a 24-month warranty, is a cutting-edge solution for welding professionals. With an auto-darkening lens approved by ANSI, the helmet offers a viewing area of 90 x 35mm and a cartridge size of 110 x 90 x 9mm. Equipped with two arc sensors, the light state is DIN 4, and the dark state is variable shade 9-13, controlled externally. The fully automatic power on/off feature, sensitivity control, and UV/IR protection (DIN16) ensure a seamless welding experience.
Powered by a solar cell and 2 x AAA alkaline batteries, the helmet includes a low/high sensitivity control dial. The switching time from light to dark is an impressive 1/15000s, with a customizable dark-to-light transition via the control dial. Suitable for low amp TIG welding (>10 Amps DC, 10 Amps AC), the helmet also features a grinding function, low volume alarm, ADF self-check, and operates within a temperature range of -5°C to +55°C.
The package includes replacement lenses: Ewlens010, Inner Lens 006, Ewlens011, Outer Lens 006, and Auto Darkening Filter Lens 006 (Ewlens018).
Stock Code (SKU): EWHEL0006
Barcode: 6003398060612
Brand: Tradeweld
Colour: Blue
Made from / Composition: Plastic
Warranty: 24 Months
Viewing Area: 90 x 35mm
Cartridge Size: 110 x 90 x 9mm
Arc Sensor: 2
Light State: DIN 4
Dark State: Variable Shade 9-13
Shade Control: External, Variable
Power On/Off: Fully Automatic
Sensitivity Control: Low – High, By Control Dial
UV/Ir Protection: DIN16
Power Supply: Solar Cell 2 x AAA Alkaline
Battery Change Required
Switching Time: 1/15000s (Light To Dark)
Dark To Light: Min – Max, By Control Dial
Low Amp. TIG: >10 Amps(DC), 10 Amps(AC)
Grinding Function: Yes
Low Volume Alarm: Yes
ADF Self Check: Yes
Operating Temp: -5°C~+55°C
Storing Temp: -20°C~+70°C
Replacement Lenses: Ewlens010, Inner Lens 006, Ewlens011, Outer Lens 006, Ewlens018 (Auto Darkening Filter Lens 006)
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
