TRADEweld MIG 325 C Welding Machine, 380V (Compact) | EWM0051-I

TRADEweld MIG 325 C Welding Machine, 380V (Compact) | EWM0051-I.

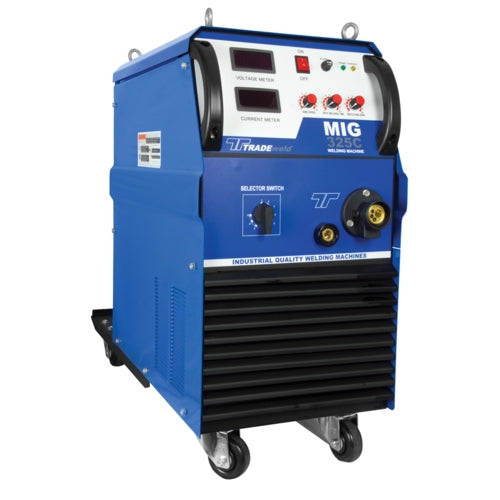

The TRADEweld MIG 325 C Welding Machine (Compact) is manufactured to the highest standards using step-controlled transformer technology. This compact yet powerful MIG welder features an internal 4-wheel wire feed system and offers DC current output. With 3-phase 380V input, it provides stepless wire speed control and 10-position voltage control for precise adjustments. The welder delivers excellent welding characteristics while consuming less power due to its robust construction. It is ideal for fabrication work and can carry a gas bottle for gas welding operations. The machine supports solid wire from Ø 0.8mm to 1.2mm and can weld steel thickness ranging from 1.0mm to 16mm. It operates with a duty cycle of 60% and has an open circuit voltage (OCV) of 17-38V. The compact dimensions and net weight of 110kg make it suitable for various welding applications.

Features & Benefits:

• Precise Control: Offers stepless wire speed control and 10-position voltage control for accurate adjustments.
• High Performance: Delivers excellent welding characteristics with 320A output and a 60% duty cycle.
• Compact Design: Despite its power, the machine is compact and suitable for various welding tasks.
• Gas Compatibility: Can carry a gas bottle and supports gas welding operations for added versatility.
• Robust Construction: Built to last with a focus on durability and reliability for long-term use.

Specifications:

Model: MIG 325 C
Part Number: EWM0051-I
Barcode: 6003398068908
Output Process: MIG
Solid Wire: Ø 0.8mm - 1.2mm
Max Steel Thickness: 1.0mm - 16mm (25.4mm - 406.4mm)
Flux Cored Wire: Ø AMPS 320
Duty Cycle: 60%
OCV: 17-38V
Input Volts: 380V
Input Amps: 20A
Cooling: Fan
IP: 21S
Dimensions: L-960 x W-450 x H-920mm (L-960 x W-450 x H-920mm)
Net Weight: 110kg

Scope of Delivery:

• Manual

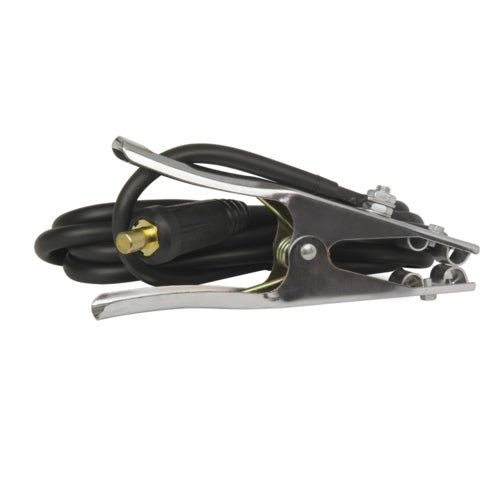

• Earth Cable

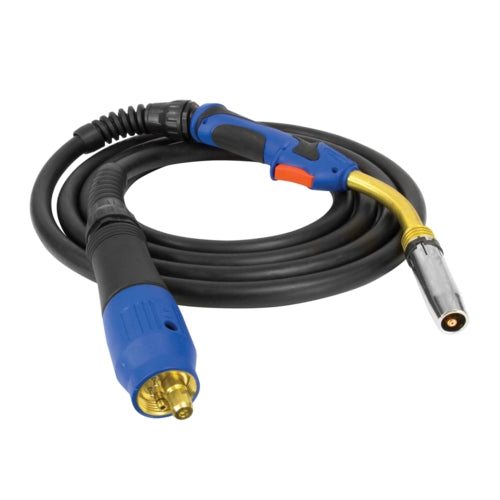

• MIG 36 Torch

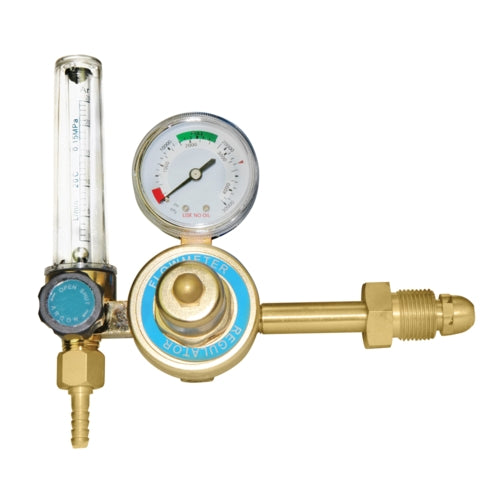

• Argon Flowmeter

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
