TRADEweld MIG 505 S Welding Machine, 380V | EWM0028-IL

TRADEweld MIG 505 S Welding Machine, 380V | EWM0028-IL.

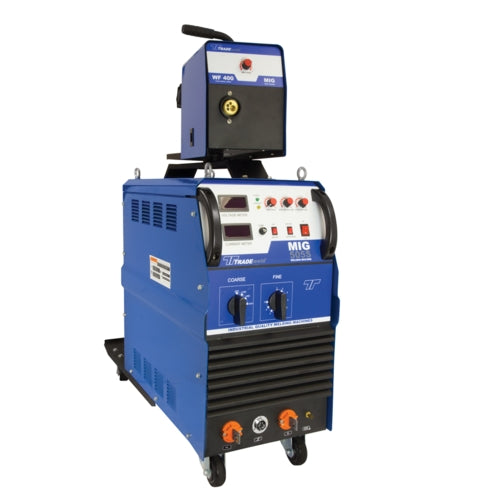

The TRADEweld MIG 505 S Welding Machine is manufactured to the highest standards using step-controlled transformer technology. It features an external 4-wheel wirefeed system and offers DC current output. Available in single and dual voltage options, it provides stepless wire speed control and 30-position voltage control for precise adjustments. The welder delivers excellent welding characteristics with less power consumption due to its robust construction. It is ideal for fabrication work and can carry a gas bottle for both gas and gasless welding operations. The machine supports solid wire from Ø 1.0mm to 2.0mm, flux cored wire from Ø 1.0mm to 3.2mm, and can weld steel thickness ranging from 2.0mm to 20mm. Operating with a duty cycle of 60%, an open circuit voltage (OCV) of 17-52V, and weighing 155kg, this welder is suitable for heavy-duty industrial welding applications.

Features & Benefits:

• Precise Control: Offers stepless wire speed control and 30-position voltage control for accurate adjustments.
• High Performance: Delivers excellent welding characteristics with 500A output and a 60% duty cycle.
• Robust Construction: Built to last with a focus on durability and reliability for heavy-duty industrial use.
• Versatile: Can be used with or without gas, supporting both gas and gasless welding operations.
• Gas Bottle Compatibility: Can carry a gas bottle for added convenience during welding tasks.

Specifications:

Model: MIG 505 S
Part Number: EWM0028-IL
Barcode: 6003398070888
Output Process: MIG
Solid Wire: Ø 1.0mm - 2.0mm (25.4mm - 50.8mm)
Max Steel Thickness: 2.0mm - 20mm (2.0mm - 508mm)
Flux Cored Wire: Ø 1.0mm - 3.2mm (25.4mm - 81.28mm)
Amps: 500A
Duty Cycle: 60%
OCV: 17-52V
Volts: 380V
Amps: 41A
Cooling: Fan
IP: 21S
Dimensions: L-1060 x W-450 x H-936mm
Net Weight: 155kg

Scope of Delivery:

• Manual

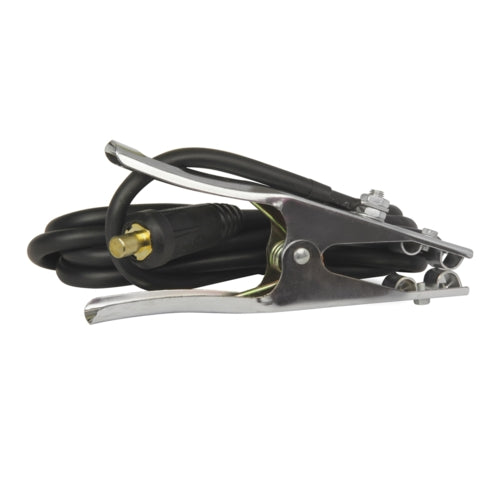

• Earth Cable

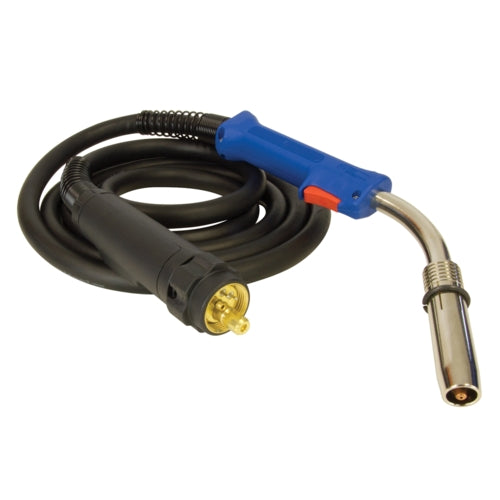

• MIG 40 Torch

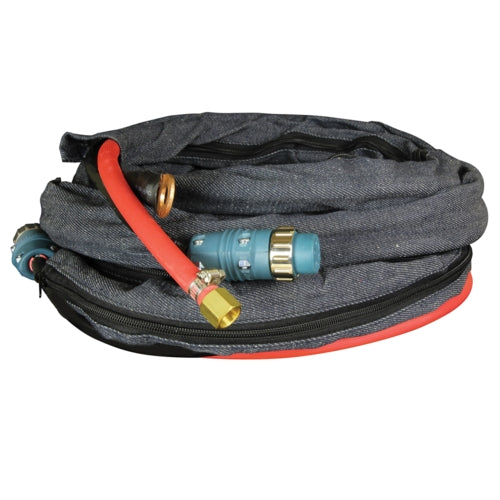

• 4mt Connection Cable

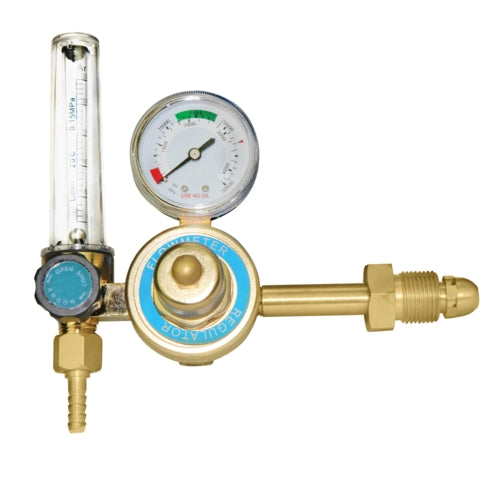

• Argon Flowmeter

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
