The majority of plunge saws can cut between 40 and 65mm deep. However, when used with a guide track and standard bench dogs on a multifunction workbench, the setup is generally limited to cutting sheet material. The UJK Long Super Dog removes this limitation, opening a completely new range of joinery and carpentry possibilities.

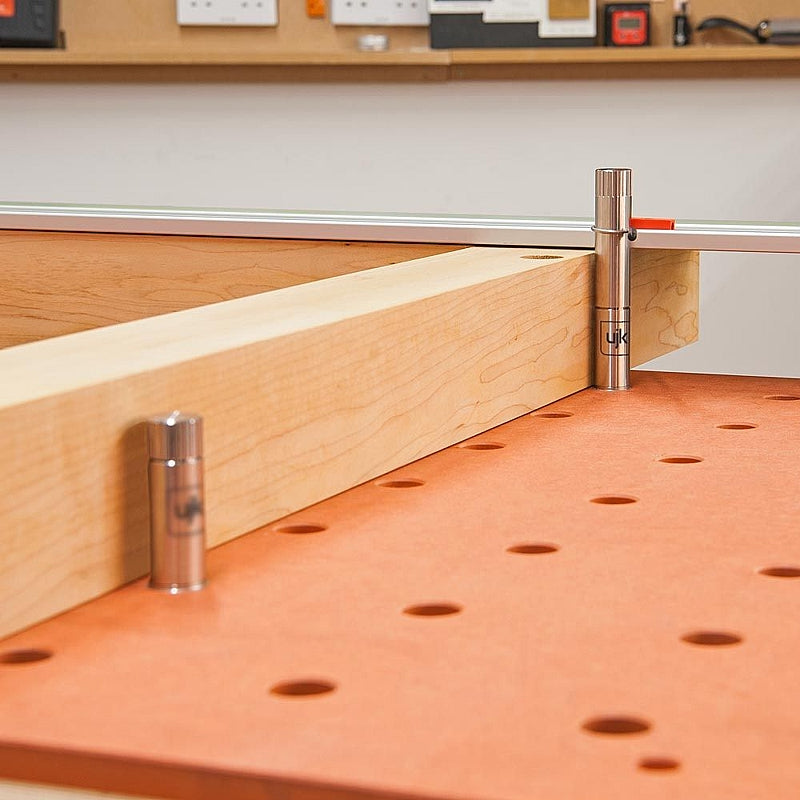

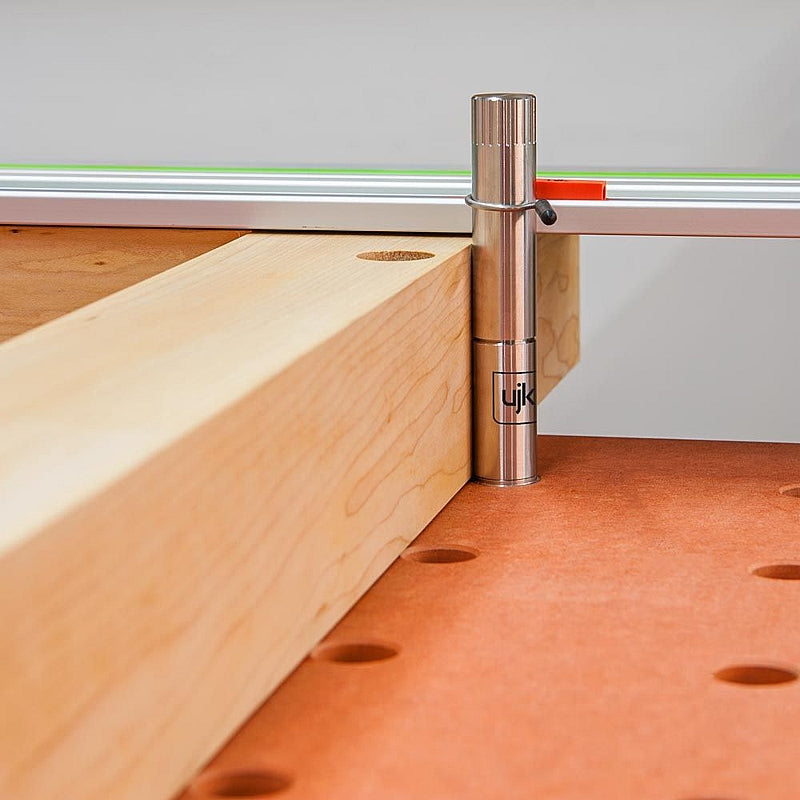

The 120mm projection allows you to cut much thicker timber, taking full advantage of your saw’s depth of cut. Using your multifunction workbench and track, the Long Super Dog offers exacting precision for cutting large timbers or trenching.
Precise CNC manufacturing from 303 stainless steel to exceptionally fine tolerances ensures precision and a lifetime of accuracy.

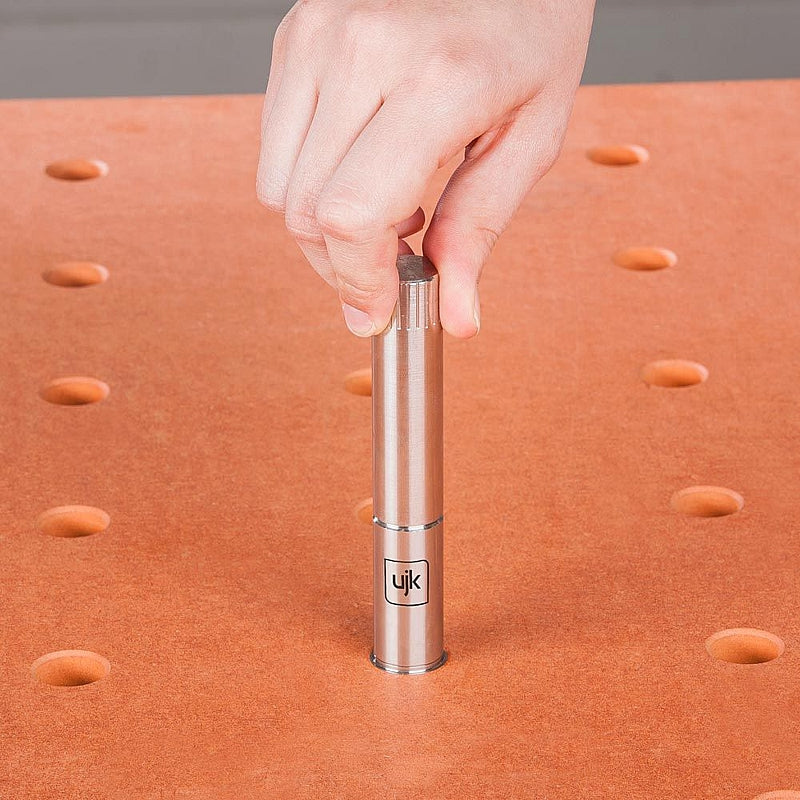

Long Super Dogs fit exactly into the 20mm holes of the UJK multifunction workbench. They are compatible with the Festool MFT/3 and self-built grid tables made using UJK Parf Guide System. Push the Long Super Dog into a hole, simply twist the top and it’s rock solid.

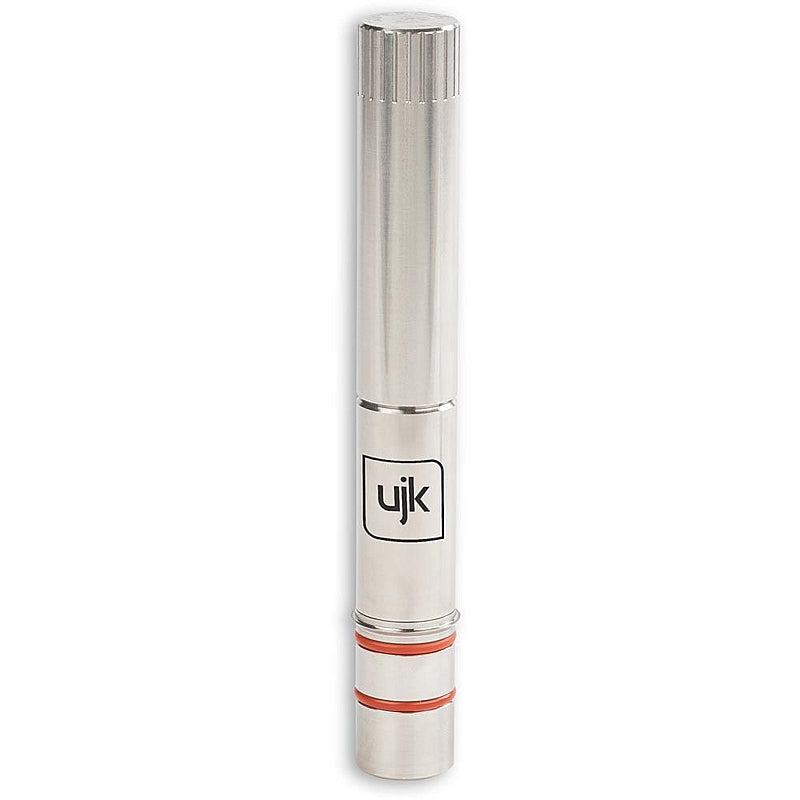

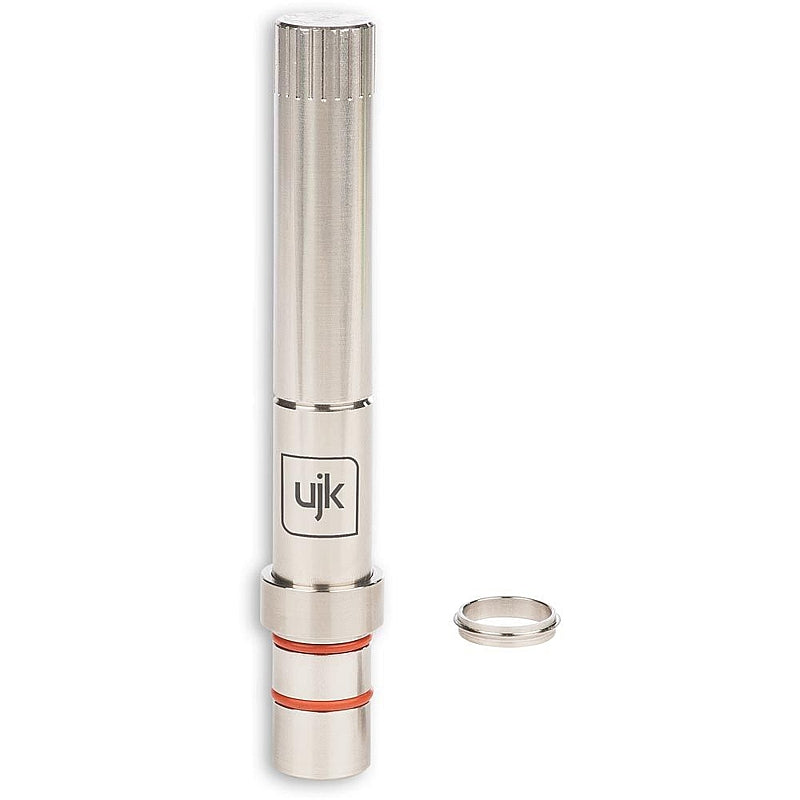

The Long Super Dog has a 120mm projection and comes with 2 interchangeable collars. A 10mm tall register collar with a 25mm diameter exactly mimics the original bench dog. The Stop collar fits into a chamfer around the dog hole (standard on the UJK workbenches). This provides a register ensuring the dog sits flush and perpendicular to the work surface.
A UJK chamfer cutter is available for non-chamfered tables. We recommend using the Dog Rail Clip with the Long Super Dogs. A standard UJK Super Dog is also available.
The UJK Chamfer Ring© is the intellectual property of Axminster Tools Ltd. Any infringement is strictly prohibited.
When combined with a Parf Guide System or the UJK Multifunction Workbench, the UJK Super Dog enables you to cut perfect 90 and 45 degree cuts with your track saw. The task is quick and hassle free producing accurate results every time.
Founded in 2012 with over 200 years of combined experience in the woodworking industry, UJK continues to develop tools that help to make your life easier.
Accurate, repeatable cuts.

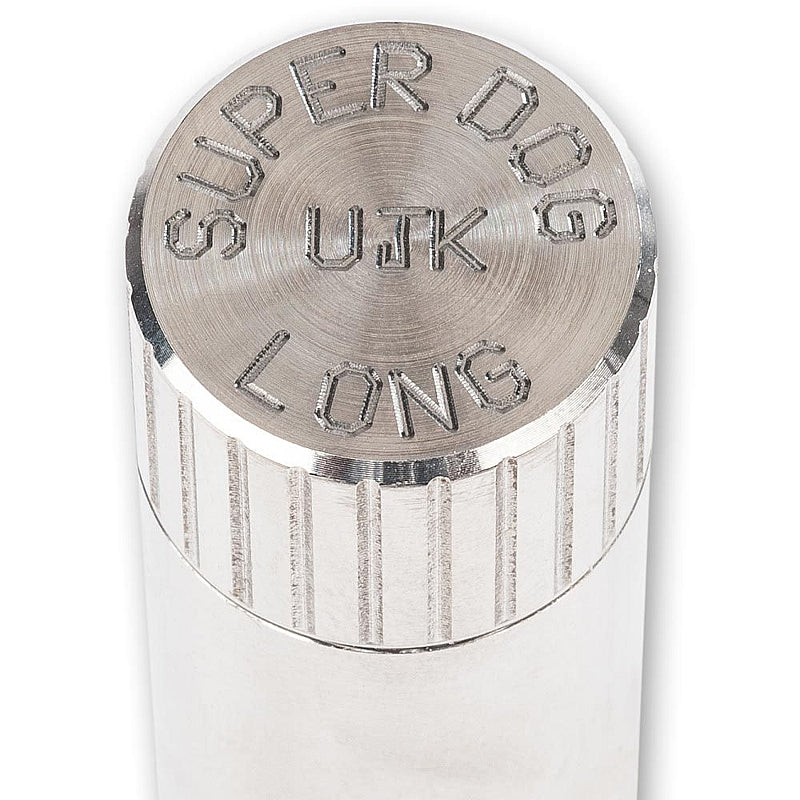

Once locked into position from the top, the Super Dog ensures there is no wobble or movement; typical in dogs without a locking device. Precisely manufactured to an exceptionally fine tolerance, this simple device delivers complete accuracy, every time.
Choice of configuration.
The Super Dog comes with interchangeable collars. Mimicking the original Dog, a 25mm diameter, 10mm tall mid-bush provides 60mm projection in total. A stop collar fits into the chamfer around the dog hole (standard on the UJK Multifunction Workbench). Can also be fitted from underneath the work surface to create a low profile dog
The Long Super Dog opens up a completely new range of joinery and carpentry possibilities. The majority of plunge saws can cut between 40 and 65mm deep. However, when used with a guide track and standard Dogs on a multifunction workbench, the setup is generally limited to cutting sheet material. The UJK Long Super Dog removes this limitation whilst guaranteeing accuracy.
Compatible with tables with 20mm holes.
One of the biggest benefits of the Super Dog is that it lets you take advantage of the grid of holes on any workbench with 20mm dog holes. They are also fully compatible with the UJK Multifunction Workbench and Festool Multi-functional MFT/3 Table, for example. Suitable for precision jig work, tracksaw operation and work holding.
