UJK Universal Dovetail Jig | 106843

UJK Universal Dovetail Jig | 106843.

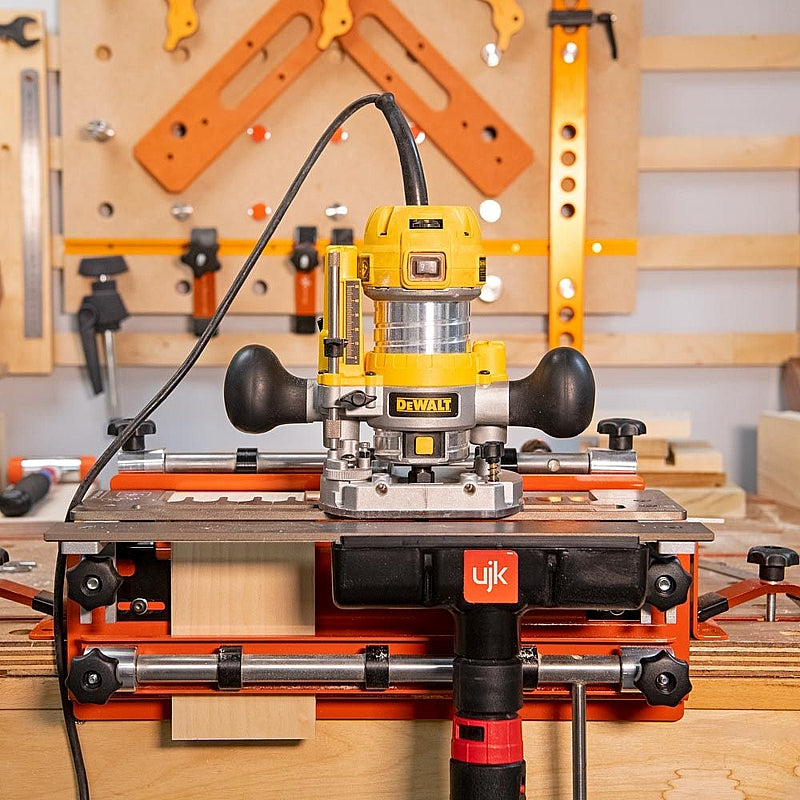

The UJK Universal Dovetail Jig is designed to simplify the creation of professional-quality dovetail joints. Made in the UK from heavy-gauge steel with precisely CNC-machined components, it ensures durability and long-term accuracy. Its super-hard anodised finger templates provide consistent results, while the stabiliser bar offers extra support for your router’s base. The jig accommodates six different joint types, including half blind dovetails, box/finger joints, through dovetails, sliding dovetails, groove/housing joints, and corner dovetail rebates. Additionally, an improved dust extraction outlet with magnetic attachment allows easy cleaning and workpiece access. The jig is compatible with any router accepting 1/4" (6.35mm), 8mm, or 1/2" (12.7mm) shank cutters and comes with three Axcaliber precision-ground TCT router cutters, two American-style threaded guide bushes, and full instructions for immediate use.

Features & Benefits:

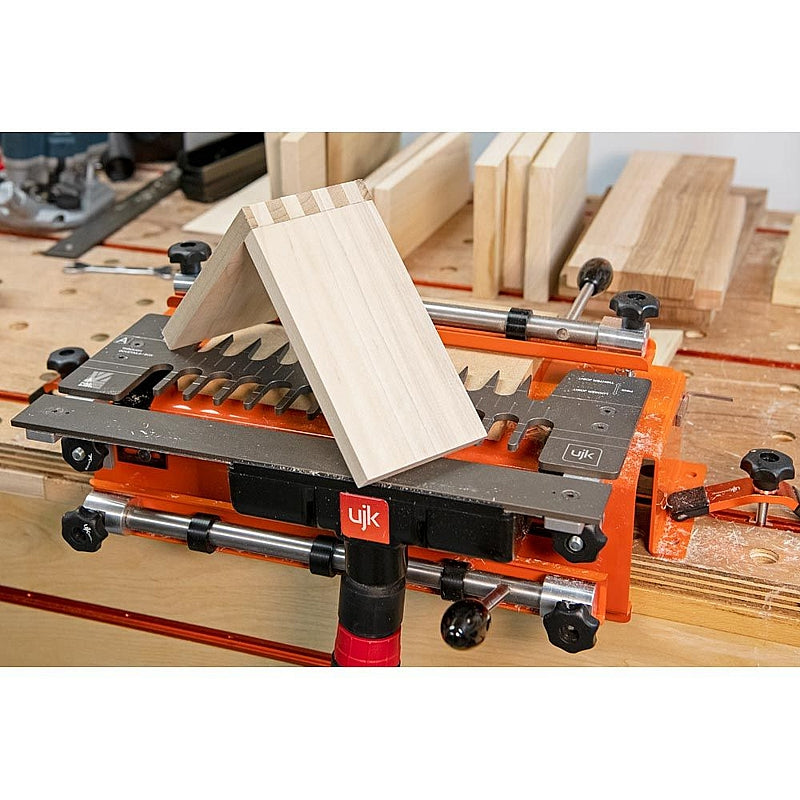

• Versatile Joint Production: Capable of cutting six different types of dovetail and finger joints for maximum woodworking flexibility.
• Robust Construction: Heavy-gauge steel base and CNC-machined components provide durability and stability.

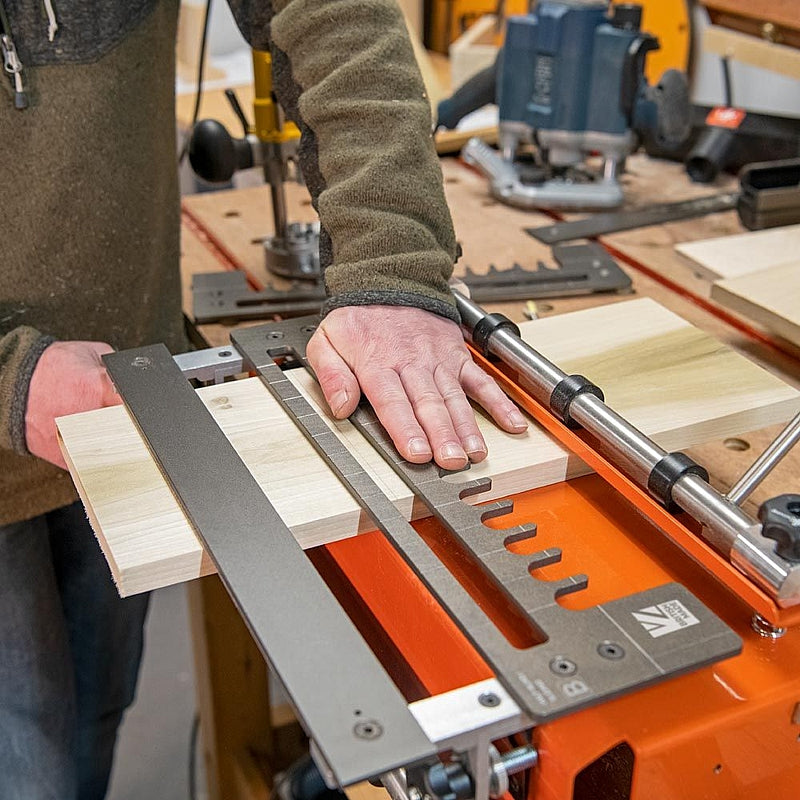

• Precision Templates: Super-hard anodised finger templates ensure consistent, accurate cuts over time.

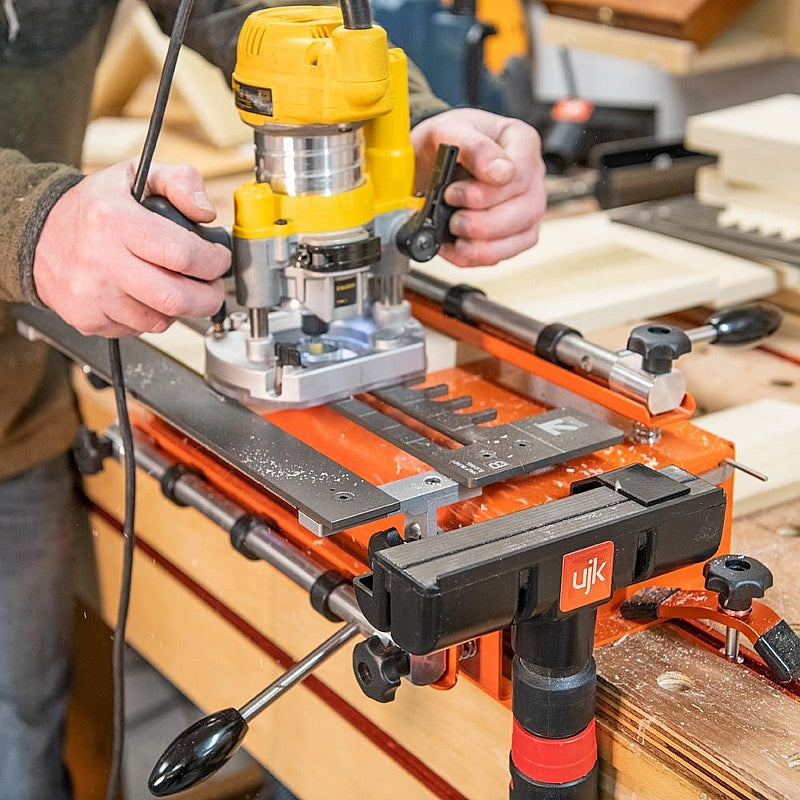

• Stabiliser Bar: Provides extra support for the router base to improve cutting accuracy.

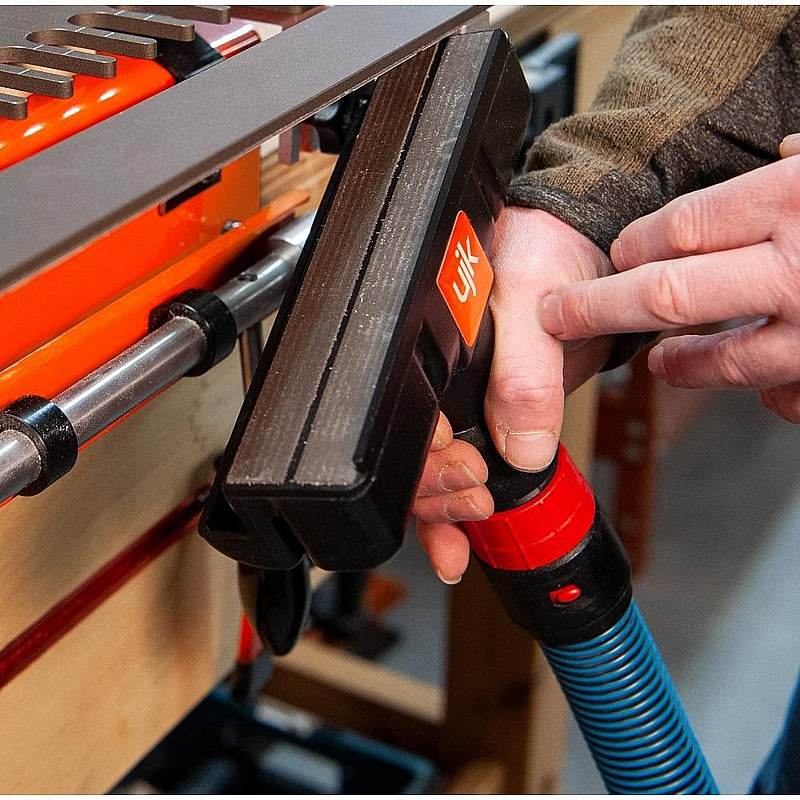

• Improved Dust Extraction: Magnetic dust outlet allows easy removal and efficient dust collection.

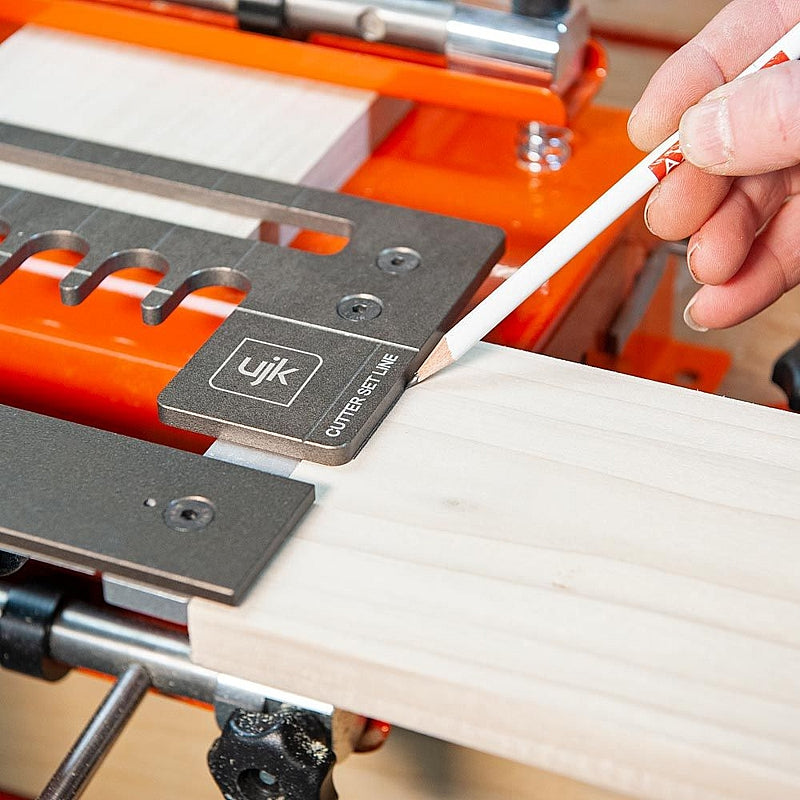

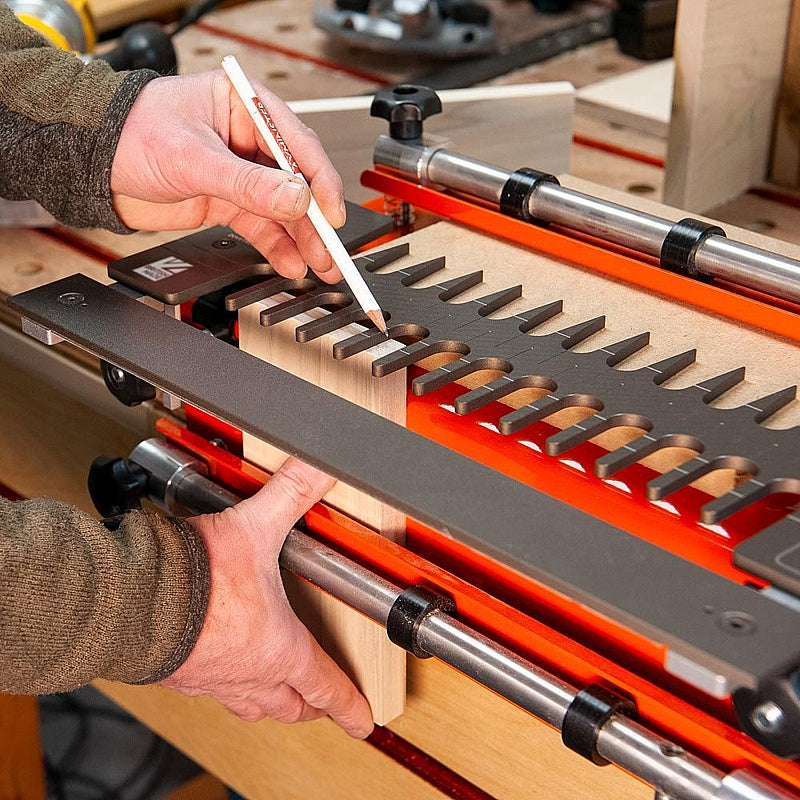

• Easy Setup: 11mm template offsets and fast cam action clamps simplify marking and workpiece holding.
• Wide Router Compatibility: Works with routers accepting 1/4" (6.35mm), 8mm, or 1/2" (12.7mm) shank cutters.
• Ready to Use: Supplied with three precision TCT cutters and two guide bushes for immediate operation.

Specifications:

• Code: 106843
• Material Thickness: 6 mm to 25 mm
• Material Width: 300 mm
• Router Shank Compatibility: 1/4" (6.35mm), 8mm, 1/2" (12.7mm)
• Rating: Trade/Professional
• Included Cutters: 3 × Axcaliber precision-ground TCT (7° dovetail, straight dovetail, 12.5mm straight)
• Guide Bushes: 2 × American style threaded guide bushes + 8mm–1/4" sleeve
• EAN Barcode: 5052511120987

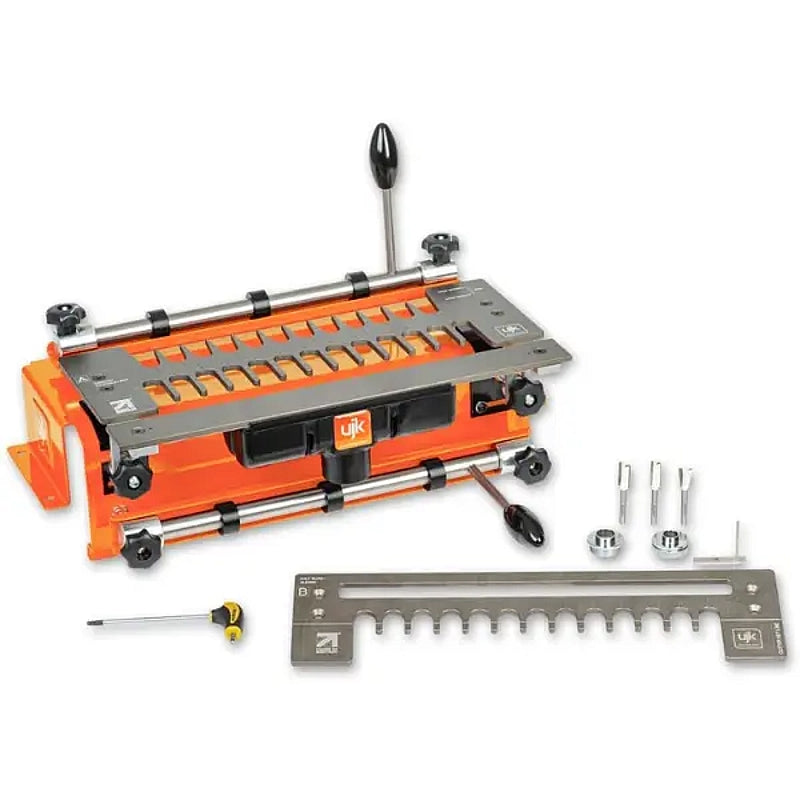

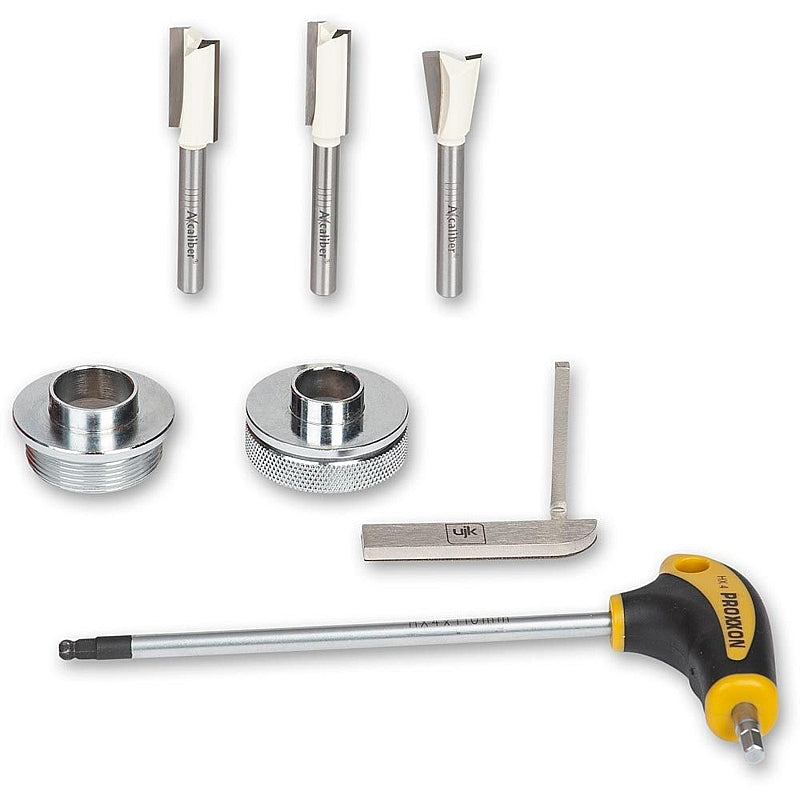

Scope of Delivery:

• 1 × UJK Universal Dovetail Jig
• 3 × 1/4" shank Axcaliber TCT router cutters
• 2 × American-style threaded guide bushes
• 1 × 8mm–1/4" sleeve
• Full instructions manual

Downloads:

Download the PDF product instructions and data sheet here:

Instructions & Manuals
Technical Data Sheet

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
