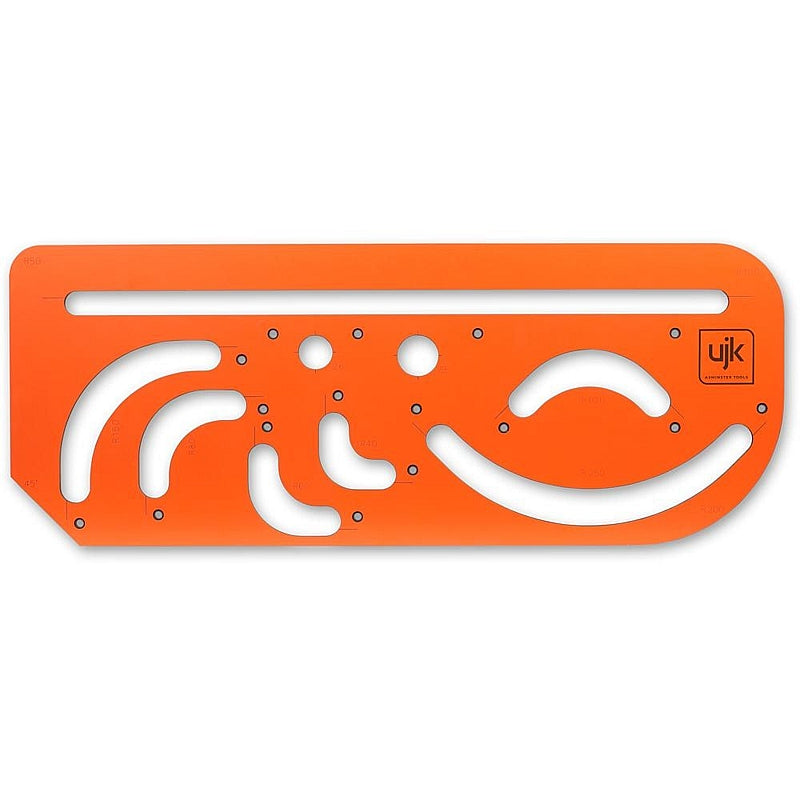

UJK Worktop Radius Jig | 105279

UJK Worktop Radius Jig | 105279.

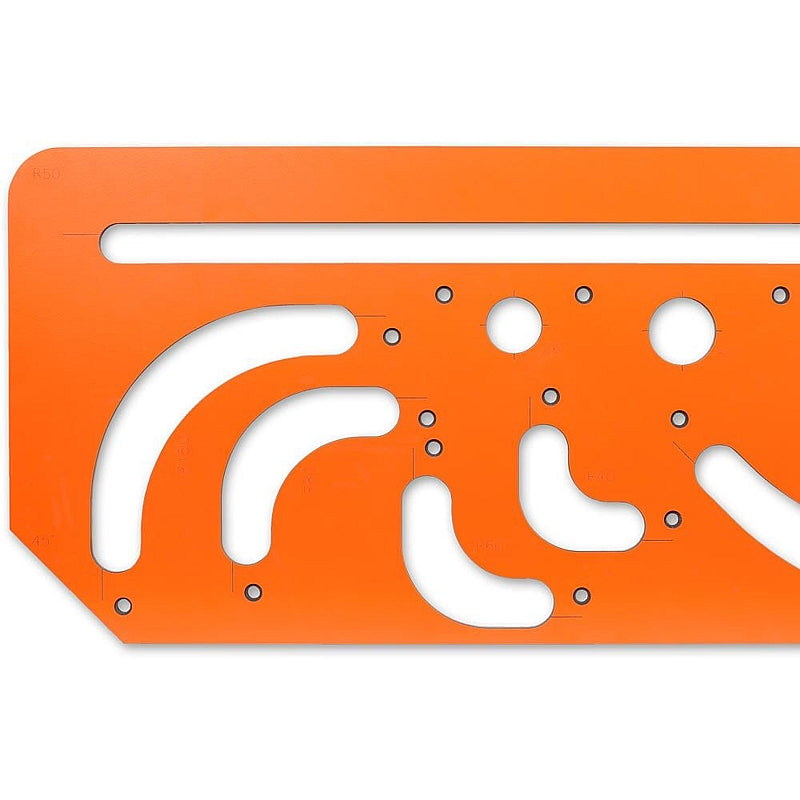

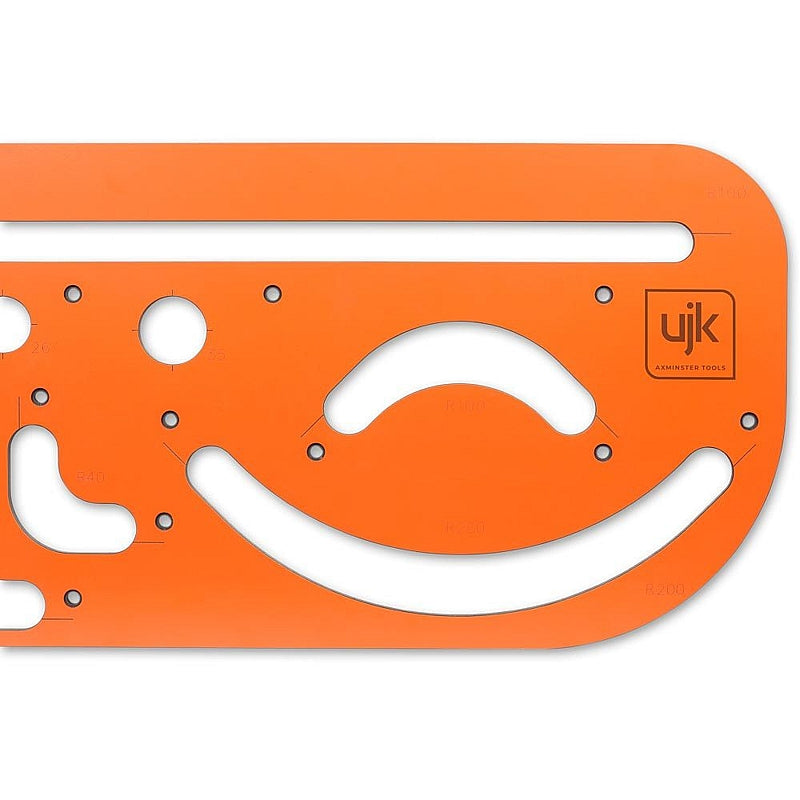

The UJK Worktop Radius Jig is a professional-grade routing template engineered from 12mm solid compact phenolic resin for exceptional stability, accuracy and durability. Furthermore, it is designed to complement the UJK Worktop Jig, significantly expanding routing capability for both workshop and site-based applications.

In addition, the jig enables precise routing of both internal and external radii, making it ideal for worktops, cabinetry and furniture manufacturing. As a result, users can achieve consistent, repeatable results across a wide range of shaping tasks.

Moreover, setup is straightforward thanks to the included locating pins, which position the jig securely against the workpiece edges. Therefore, only basic clamping and a compatible router setup are required to begin work.

This jig also supports multiple routing applications, including straight cuts, 45° cuts and cabinet hinge recesses. Consequently, it provides a versatile all-in-one solution for professional woodworking environments.

Features & Benefits:

• Precision Phenolic Resin Construction: CNC-machined 12mm material ensures long-lasting stability and accuracy.
• Multi-Radius Capability: Produces 40mm, 60mm, 80mm, 100mm, 150mm and 250mm internal and external radii.
• Versatile Cutting Options: Includes straight cuts up to 820mm, 45° cuts and cabinet hinge recesses.
• Fast Setup System: Locating pins allow quick and accurate positioning on workpieces.
• Professional Routing Accuracy: Designed for repeatable, high-precision results in workshop environments.
• Cabinet & Worktop Use: Ideal for furniture making, cabinetry and worktop fabrication.
• Enhanced Workflow Efficiency: Reduces setup time and improves routing consistency.

Specifications:

• Code: 105279
• Brand: UJK
• EAN: 5052511108206
• Product Type: Worktop Radius Routing Jig
• Material: 12mm Solid Compact Phenolic Resin
• Radius Options: 40mm, 60mm, 80mm, 100mm, 150mm, 250mm (internal & external)
• Straight Cut Capacity: Up to 820mm
• Additional Cut Options: 45° cuts and cabinet hinge recesses (26mm and 35mm)
• Guide Bush Requirement: 30mm guide bush (not included)
• Router Cutter Requirement: 12.7mm (1/2") x 50mm cutter (not included)

Scope of Delivery:

• 1 x UJK Worktop Radius Jig

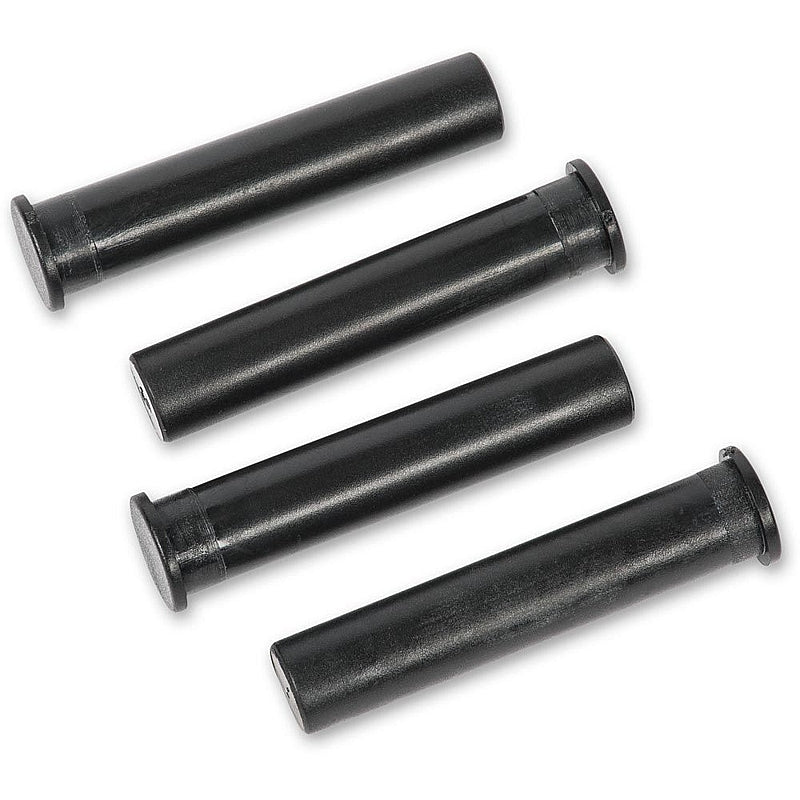

• 4 x Locating Pins
• 1 x Instruction Guide

Instructions & Manuals

Please Note: This product requires additional accessories including a 30mm guide bush, 12.7mm (1/2") router cutter and clamps (not included). Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
