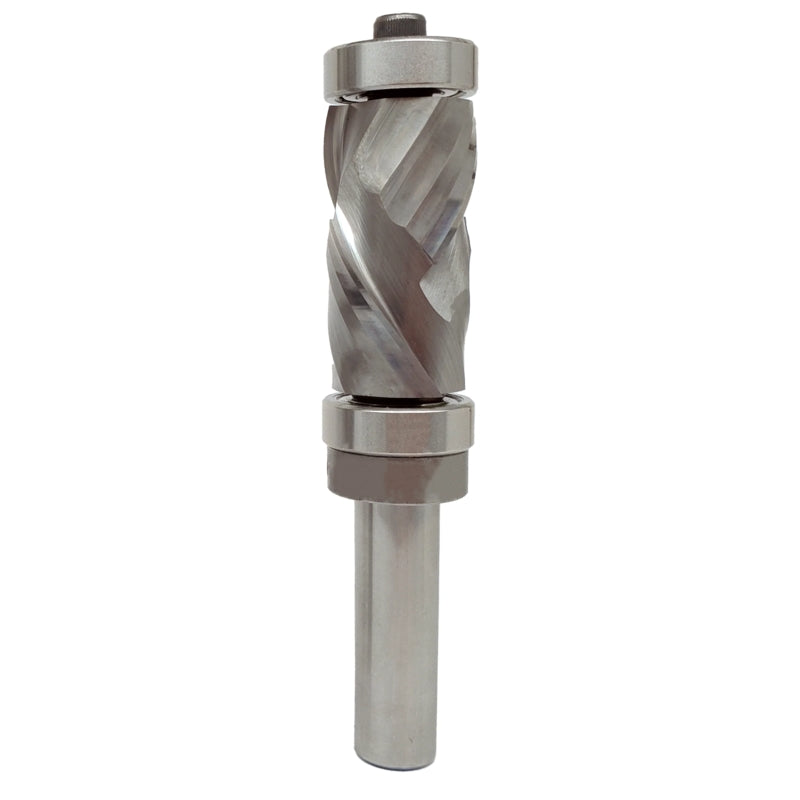

Whiteside Ultra-Long Ultimate Trim Combination Router Bit, 1/2"SH, 7/8"CD, 1-5/8"CL | UDC9163

Whiteside Ultra-Long Ultimate Trim Combination Router Bit, 1/2"SH, 7/8"CD, 1-5/8"CL | UDC9163.

The Whiteside UDC9163 Ultra-Long Ultimate Trim Combination Router Bit is designed to produce exceptionally clean, precise edges on materials up to 1-5/8" (41.28mm) thick. Its 2+2 compression spiral design combines up-cut and down-cut flutes to ensure smooth shearing of fibres on both the top and bottom surfaces of your workpiece, even in challenging wood grains.

Built from premium solid carbide and equipped with top and bottom bearings, this bit provides flexibility to work from either side of your template. It features a 1/2" (12.7mm) shank, a 7/8" (22.23mm) cutting diameter, a 1-5/8" (41.28mm) cutting length, and a 4-1/4" (107.95mm) overall length. This combination makes it suitable for hand-held and table-mounted routers with 1/2" collets.

Recommended for use between 12,000 and 14,000 RPM (maximum 16,000 RPM), this bit ensures high performance, precision, and an exceptionally smooth finish. For optimal results, it is advised to select the shortest cutting length suitable for the material thickness being worked.

Features & Benefits:

• Ultra-Long Compression Design: Provides a clean edge on both sides of the workpiece by combining up-cut and down-cut shearing action.
• Top and Bottom Bearings: Offers flexible routing options, allowing use with top or bottom templates for enhanced accuracy.
• 2+2 Cutting Geometry: Combines dual flutes with opposing shear angles for smooth cutting and reduced tear-out.
• Heavy-Duty Carbide Construction: Ensures long-lasting performance and durability, even in dense materials.
• Versatile Applications: Ideal for trimming, shaping, and flush routing on natural and composite woods.

Specifications:

Part Number: UDC9163
Tool Type: Ultra-Long Ultimate Trim Combination Router Bit
Material: Solid Carbide
Shank Diameter: 1/2" (12.7mm)
Cutting Diameter: 7/8" (22.23mm)
Cutting Length: 1-5/8" (41.28mm)
Overall Length: 4-1/4" (107.95mm)
Design: 2+2 Compression Spiral
Bearings: Top and Bottom
Recommended RPM: 12,000–14,000 (max 16,000)
Suitable Materials: Natural woods, composite woods
Applications: Flush trimming, edge finishing, and template routing on thick stock

Scope of Delivery:

• 1 x Whiteside Ultra-Long Ultimate Trim Combination Router Bit, 1/2"SH, 7/8"CD, 1-5/8"CL | UDC9163

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
