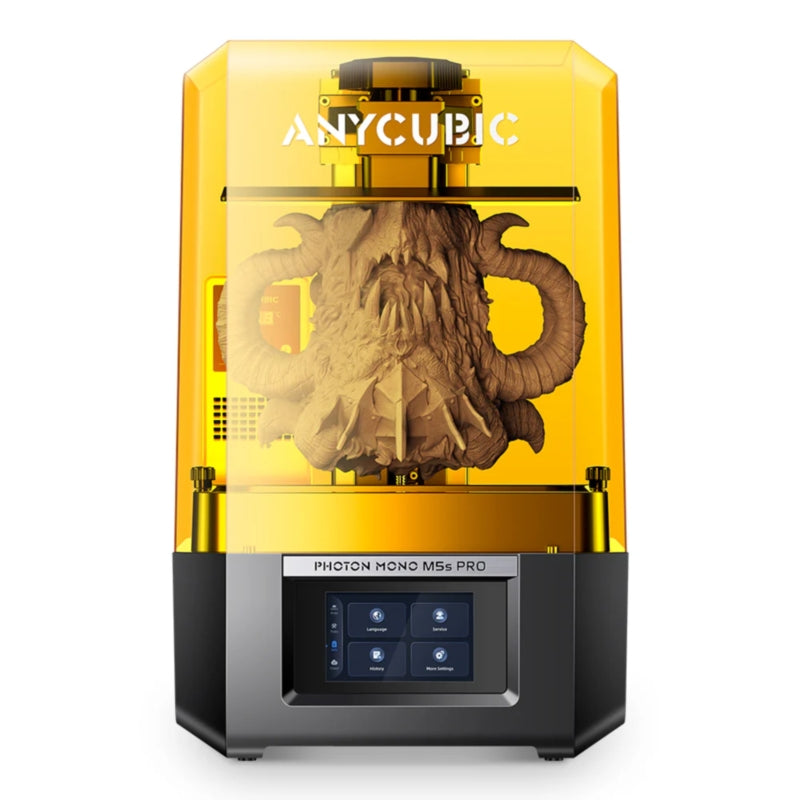

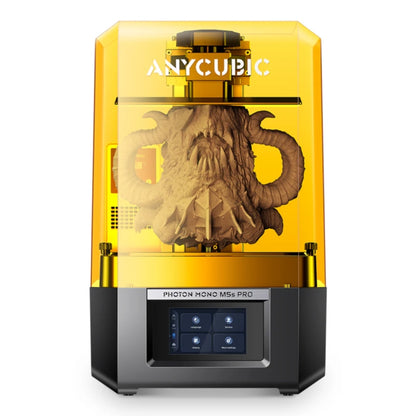

Anycubic Photon Mono M5s Pro 3D Printer | ANY030

nycubic Photon Mono M5s Pro 3D Printer | ANY030.

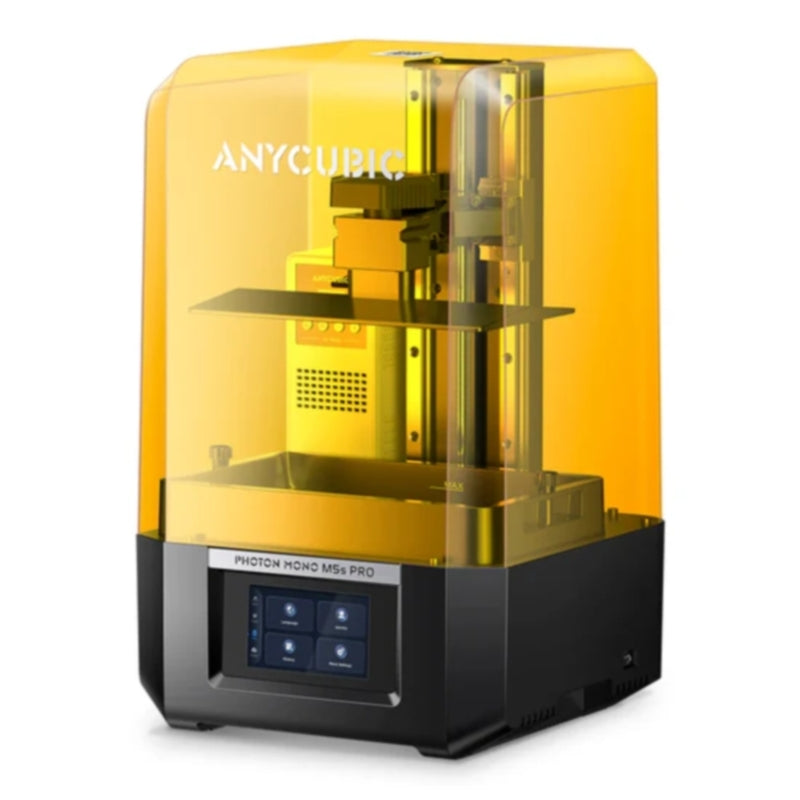

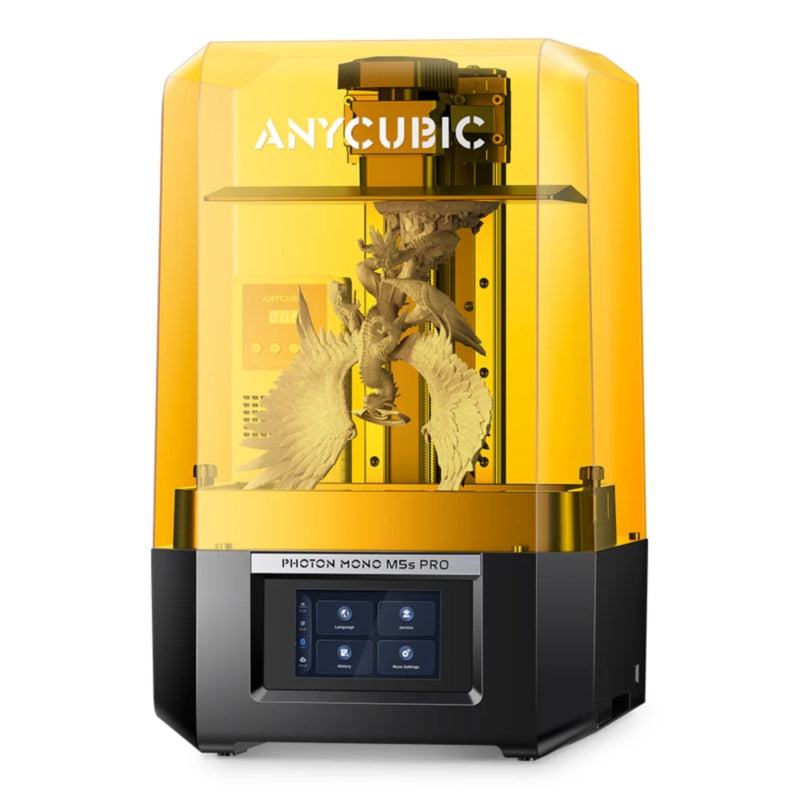

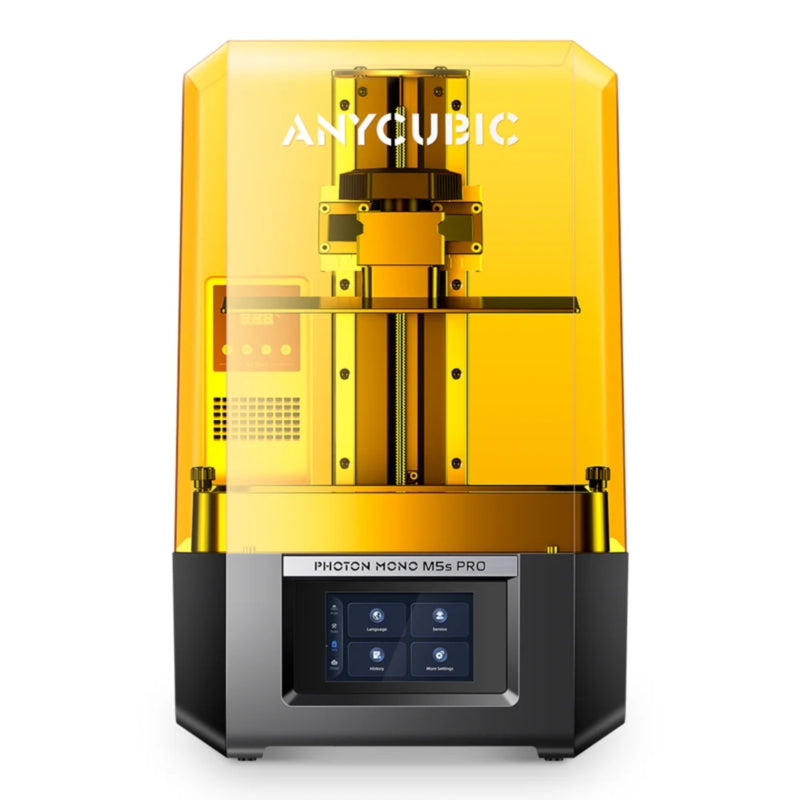

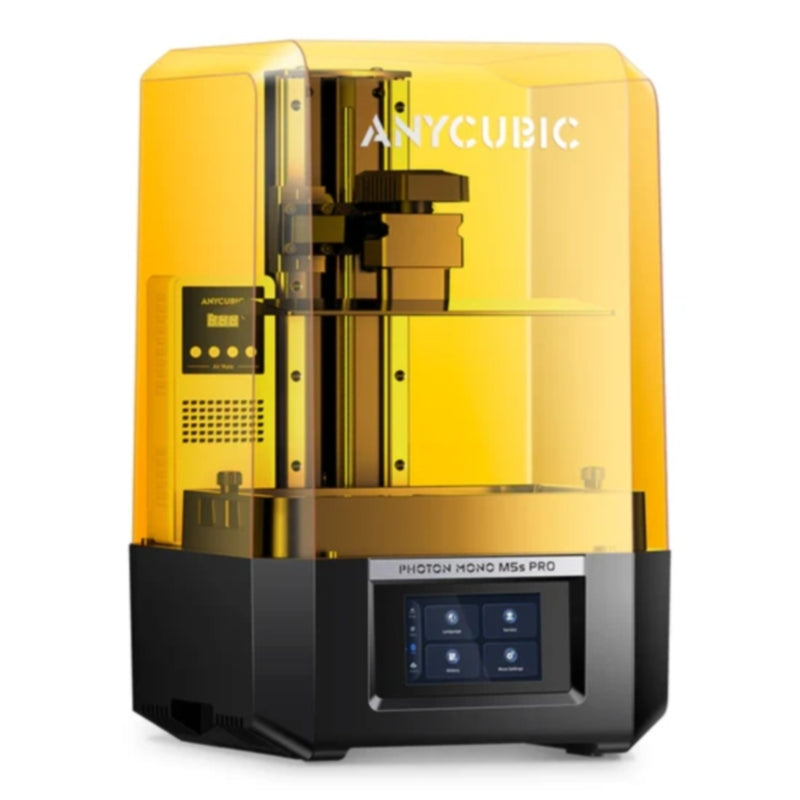

The Anycubic Photon Mono M5s Pro is an advanced resin 3D printer engineered for exceptional precision, stability, and user convenience. Equipped with a 10.1-inch monochrome LCD boasting 14K (13,312 × 5,120 px) resolution, it achieves an impressive XY resolution of 16.8 × 24.8μm—fine enough to capture the smallest model details. Its high light uniformity of 85% ensures sharp edges and consistent print quality across the entire build platform.

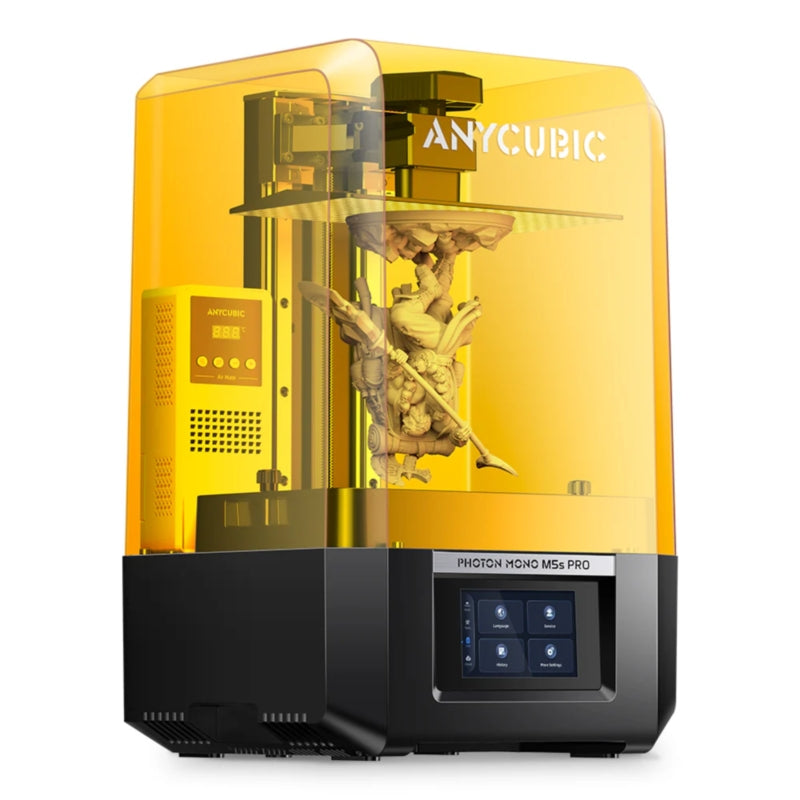

Designed with professional users in mind, the M5s Pro introduces an integrated Air Heater & Purifier Module, which maintains optimal resin temperatures up to 40°C and removes unpleasant odours through an activated carbon filter. This ensures stable operation even in cooler environments and promotes a cleaner workspace.

The machine’s high-speed printing system reaches up to 105mm/h, utilising third-generation high-speed ACF film that reduces peeling force while enhancing layer adhesion. The leveling-free platform uses internal sensors and floating technology to automatically adjust for perfect first layers, simplifying setup and improving reliability.

Furthermore, smart features such as resin residue detection and AI-assisted peeling height adjustment protect components from damage and optimise speed in real time. Connectivity is streamlined through the Anycubic App, which supports one-touch slicing, intelligent monitoring, and access to a large model library—making the printing process intuitive and efficient from start to finish.

Features & Benefits:

• Ultra-High 14K Resolution: 10.1-inch monochrome LCD with 13,312 × 5,120 px delivers outstanding detail and precision.

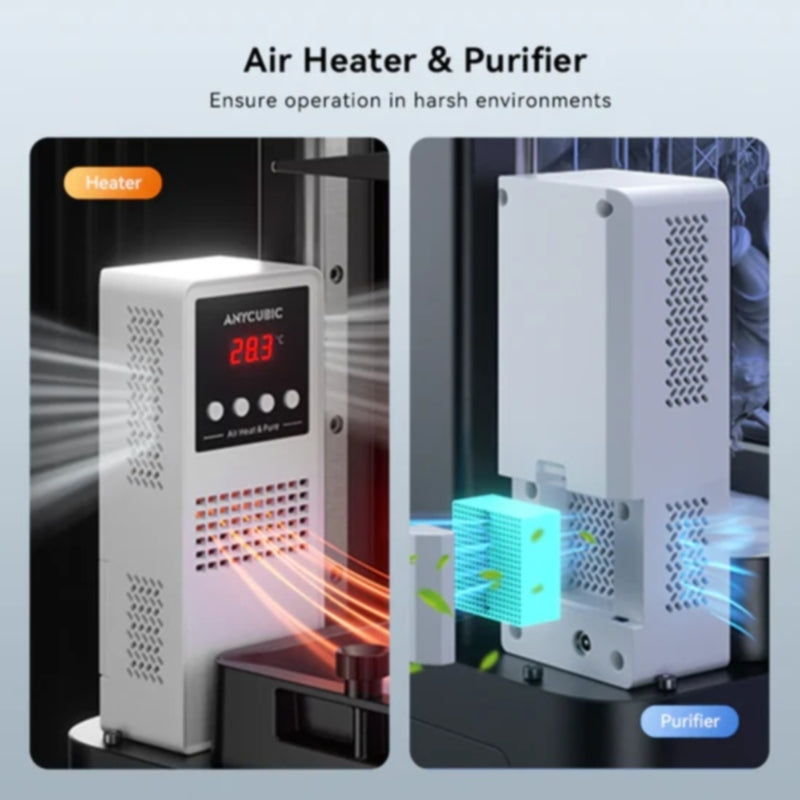

• Air Heater & Purifier Module: Maintains resin temperature above 20°C and reduces odours via activated carbon filtration.
• Fast Printing Performance: Prints at speeds up to 105mm/h using advanced ACF film for smooth layer transitions.
• Leveling-Free Design: Automatically calibrates using internal sensors for consistent first layers and reliable results.
• Smart Detection System: Resin residue detection prevents screen damage and ensures successful print completion.
• AI-Optimised Printing: Adjusts peeling height dynamically for improved speed and accuracy.
• App Connectivity: Enables one-touch printing, slicing, and monitoring via the Anycubic mobile app.
• Enhanced Light Uniformity: 85% uniformity for sharper edges and smooth model surfaces.
• Durable Construction: Laser-engraved aluminium alloy platform and robust dual linear rail system ensure long-lasting stability.

Specifications:

Code: ANY030
Machine Type: Resin 3D Printer
Printing Technology: LCD-based SLA
Resolution: 14K (13,312 × 5,120 px)
XY Resolution: 16.8 × 24.8μm
Light Source: LED matrix UV light source
Exposure Screen: 10.1-inch monochrome LCD
Printing Dimensions: 200mm (H) × 223.78mm (W) × 126.38mm (D)
Printing Volume: 5.7L (200oz.)
Average Printing Speed: 105mm/h (at 0.1mm layer height)
Machine Leveling: Leveling-free (automatic adjustment)
Z-Axis Precision: Dual linear rails, 10μm accuracy
Build Platform: Laser-engraved aluminium alloy
Resin Vat: Unibody design with scale markings
Control Panel: 4.3-inch TFT touchscreen
Machine Dimensions: 460mm (H) × 270mm (W) × 290mm (D)
Machine Weight: 9.4kg (20.7lb.)
Removable Cover: UV-blocking protective lid
Protection Film: Replaceable anti-scratch cover
Data Input: USB Type-A 2.0, Wi-Fi
Software Compatibility: Anycubic App (for slicing and monitoring)

Scope of Delivery:

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
