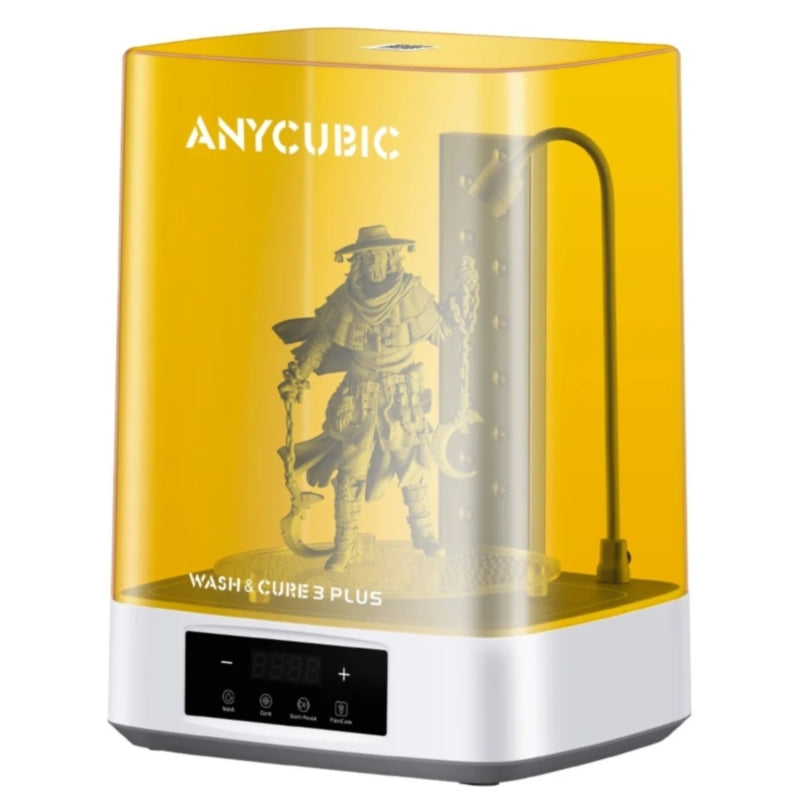

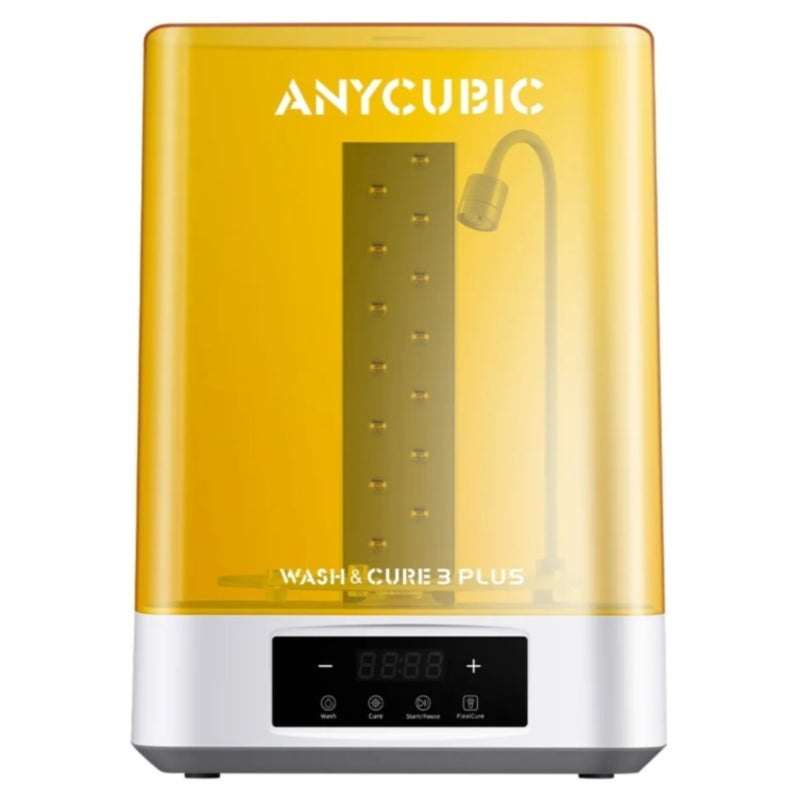

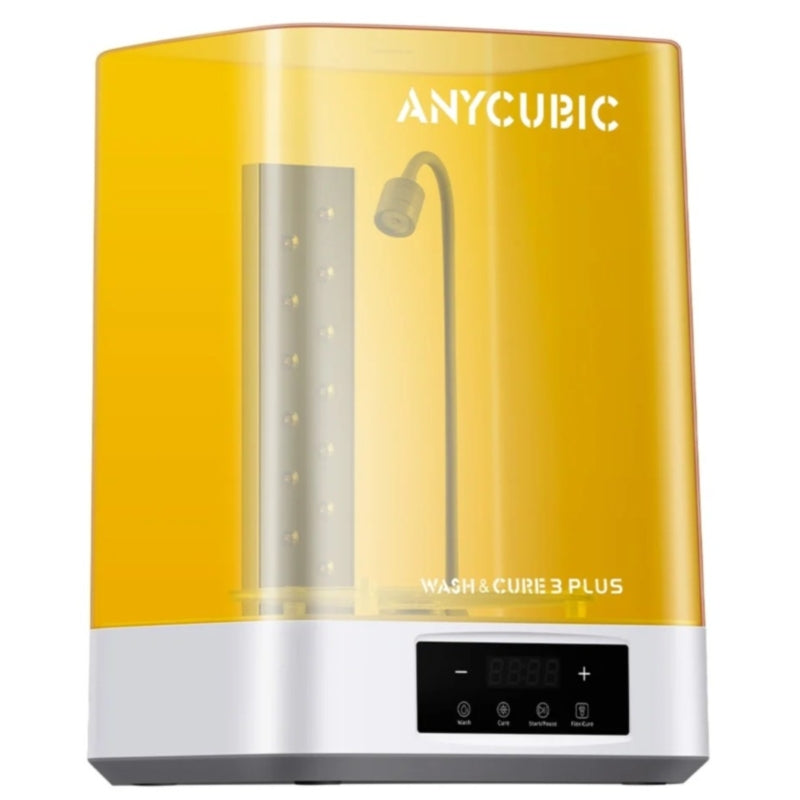

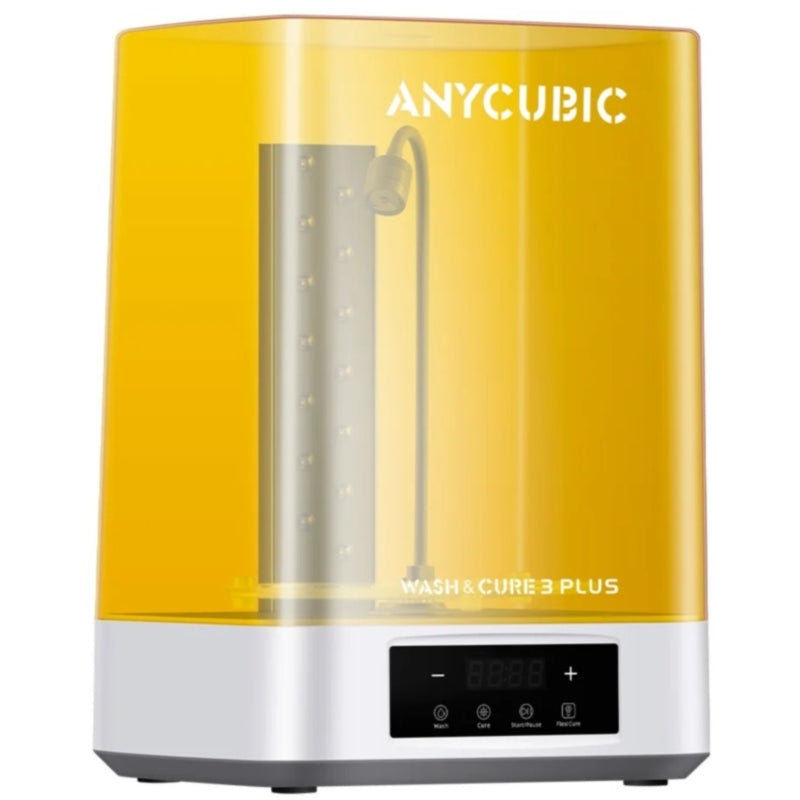

The Anycubic Wash & Cure 3 Plus is a multifunctional cleaning and curing station designed for resin 3D prints. As the enhanced version of the Wash & Cure 2.0, it offers increased capacity and improved performance. It now supports a total washing volume of 12L and a curing volume of 7.6L, making it suitable for resin 3D printers with build sizes up to 10.6 inches.

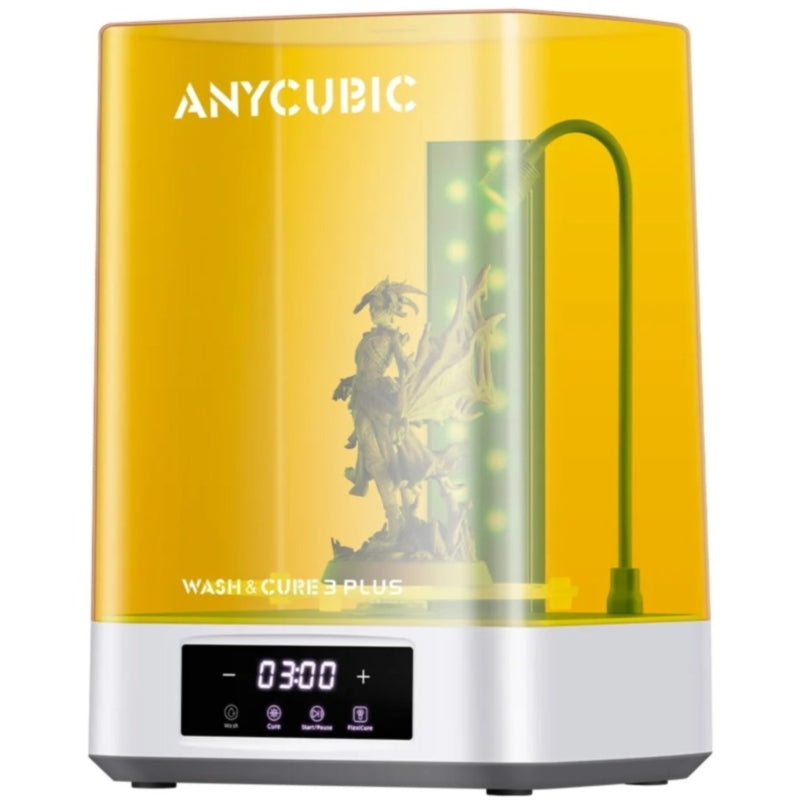

Engineered for precision and convenience, this unit combines powerful washing and uniform curing capabilities. The upgraded Flexicure gooseneck light enhances curing energy by up to 30,000uW/cm² within 1–3cm, ensuring detailed curing of intricate parts such as model edges and folds. The dual-layer design maximises cleaning efficiency and allows simultaneous curing of multiple prints in a single cycle, increasing productivity while reducing IPA usage.

Additionally, the lens light arrangement improves curing uniformity by 20%, achieving smooth, consistent finishes. With its sealed structure and optimised software, noise levels are significantly reduced, creating a quiet, efficient workspace. Users can easily switch between cleaning and curing modes using the touch control interface with a rotary knob, allowing precise time settings from 1 to 30 minutes for greater process control.

Features & Benefits:

• Increased Capacity: Larger washing volume of 7.6L and total bucket volume of 12L accommodate 3D printers up to 10.6 inches.
• Dual-Layer Design: Allows multiple models to be cured or cleaned simultaneously for improved efficiency.
• Enhanced Curing Power: Gooseneck light increases energy output by 30,000uW/cm² for precise detail curing.
• Improved Uniformity: Lens light source offers 20% better curing evenness, reducing shadowing and uneven hardening.

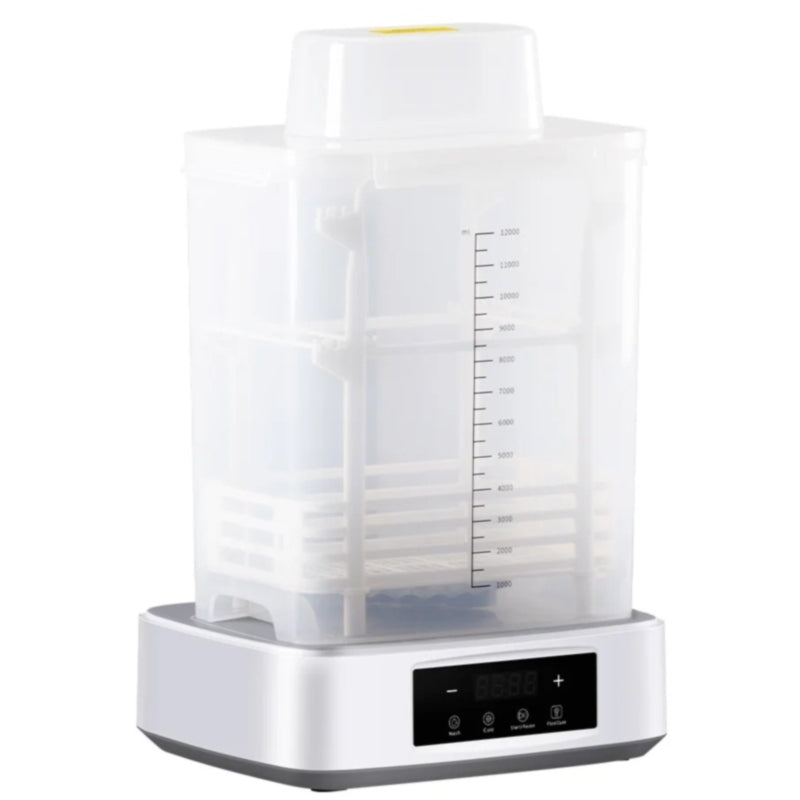

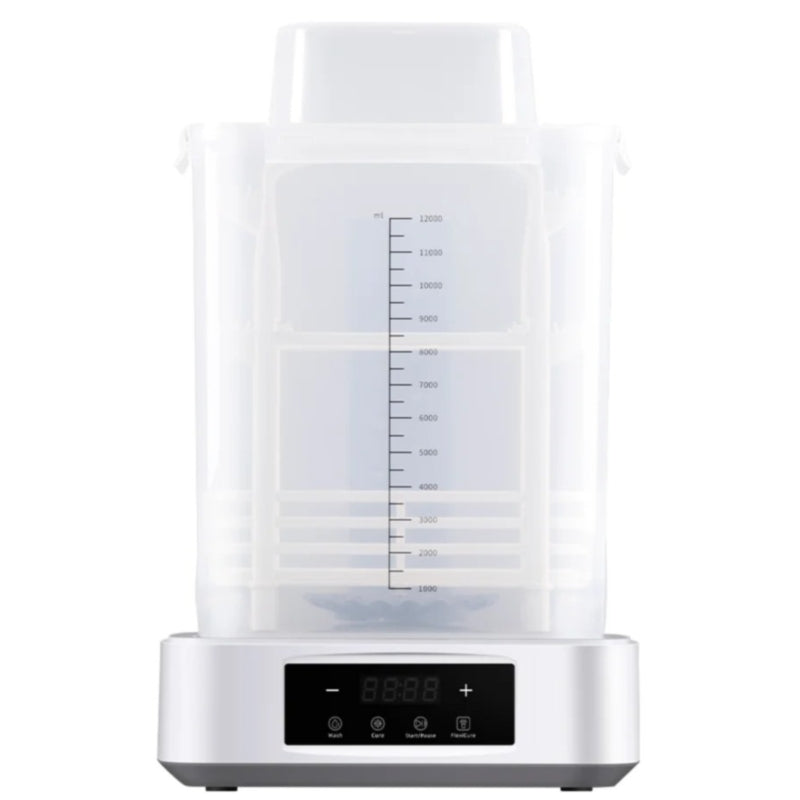

• IPA Saving: Adjustable dual-layer cleaning basket maximises alcohol use efficiency.
• Quiet Operation: Sealed design and optimised software reduce operational noise for a smoother user experience.
• Easy Control: Touchscreen and rotary knob interface enable simple switching between modes and adjustable timer settings.
• All-in-One System: Combines washing and curing in one compact machine, reducing workspace clutter.

Specifications:

Code: ANY032
Machine Properties: Wash and Cure
Control Method: Touch Buttons + Rotary Knob
Rated Power: 36W
Input Voltage: AC110–220V, 50/60Hz
UV Lights Wavelength: 405nm
Time Selection Range: 1–30 minutes
Maximum Cleaning Volume: 230mm (L) × 140mm (W) × 260mm (H)
Cleaning Basket Capacity: 7.6L
Maximum Curing Volume: 9L
Curing Area: 228mm (L) × 128mm (W) × 260mm (H)
Cleaning Method: Alcohol Soaking

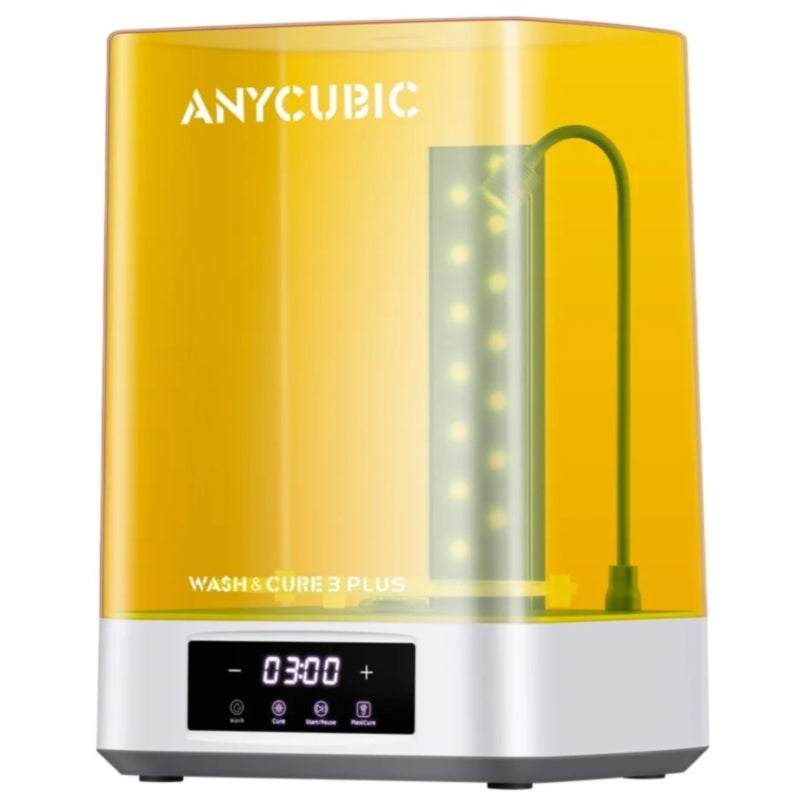

UV Light Configuration: 10 × 405nm LEDs + Gooseneck Light
Machine Dimensions: 434mm (L) × 312mm (W) × 267mm (H)
Package Dimensions: 540mm (L) × 350mm (W) × 400mm (H)
Machine Weight: 6.5kg
Package Weight: 7.2kg
Core Functions: Cleaning & Post-Curing for Resin 3D Prints

Scope of Delivery:

• 1 x Anycubic Wash & Cure 3 Plus
• 1 x Washing Bucket
• 1 x Washing Basket
• 1 x Hex Key Set
• 1 x Rack Bar
• 1 x Gooseneck Light
• 1 x Power Adapter
• 1 x Instruction Manual
• 1 x Curing Table

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
