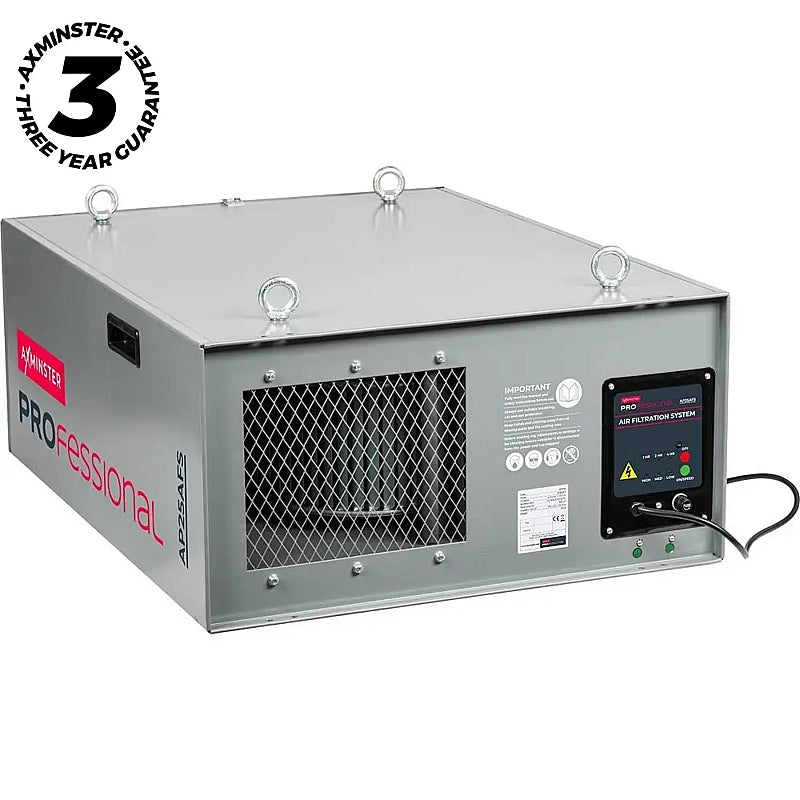

The Axminster Professional AP25AFS Air Filter is intended for workshops of 300m³ or less and helps collect dry airborne wood dust particles that remain hanging in the air. Powered by a 150W motor, it draws air through an electrostatic pre-filter and into the main pleated filter. As a result, it filters 98% of all particles 5 microns in size and 86% of all particles 1 micron in size. In addition, the supplied remote control unit offers three motor speed settings and three timer settings of 1, 2 or 4 hours, allowing the unit to continue running after work has finished so it can help clear the air ready for the next day. The machine runs reasonably quietly, with sound pressure levels of 62dB at low speed, 67dB at medium speed and 69dB at high speed. Furthermore, the AP25AFS now includes an Active Flow Sensor that detects when the filter becomes blocked. When this happens, an alarm sounds and the top row of lights on the control panel starts flashing. Once you have cleaned or replaced the filters, reset the system by holding the on speed button for around 10 seconds, then releasing it. This air filter should always be used in conjunction with a dust extractor.

Features & Benefits:

• 3-Speed Air Filtration: Provides air movement of 944, 1,200 and 1,774m³/hr, allowing you to choose the right setting for the workshop.
• Suitable for Workshops up to 300m³: Helps filter dry airborne wood dust in workshops within the stated room volume.
• High Filtration Performance: Filters 98% of particles 5 microns in size and 86% of particles 1 micron in size.

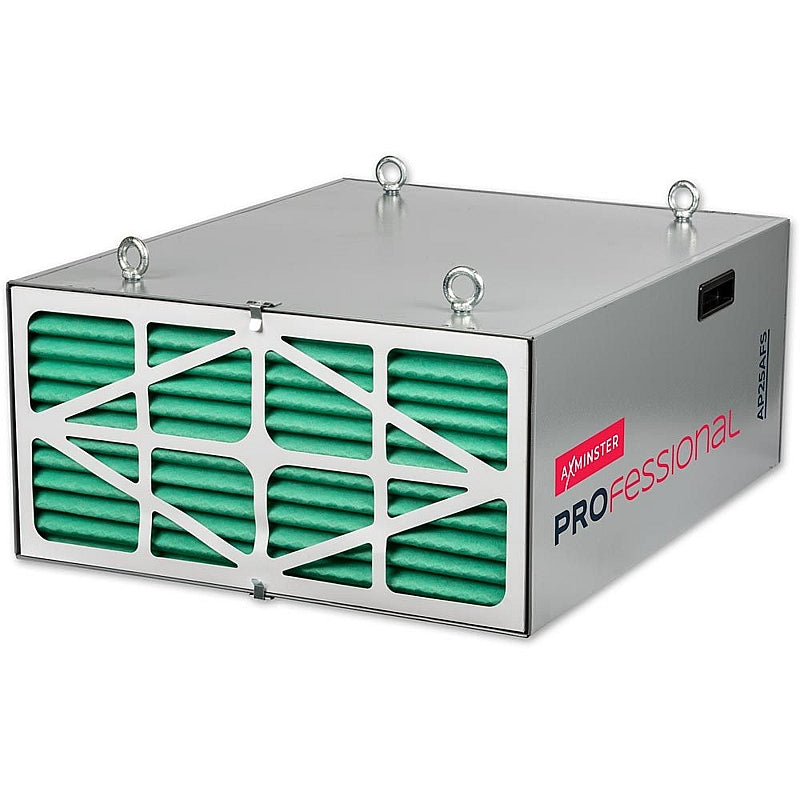

• Electrostatic Pre-Filter: Captures particles before air passes into the main pleated filter.
• Main Pleated Filter: Provides the main filtration stage for airborne wood dust particles.
• Remote Control Handset: Lets you adjust speed and timer settings conveniently.
• Timer Function: Offers 1, 2 or 4 hour time settings, so the unit can continue running after work has finished.
• Active Flow Sensor: Detects when the filter becomes blocked, sounds an alarm and flashes the top row of control panel lights.
• Reasonably Quiet Operation: Runs at sound pressure levels of 62dB at low speed, 67dB at medium speed and 69dB at high speed.
• Mounting Eyes Included: Supplied with four mounting eyes for installation convenience.
• Optional Charcoal Filter Available: Can neutralise odours and harmful organic fumes or particles, including pollen.
• Optional Ceiling Mounting Kit Available: Allows the machine to be hung out of the way using flexible stainless steel wire, screw eyes and bolt up crimps.

Specifications:

• Code: 107709
• Barcode: 5052511124411
• Model: AP25AFS
• Voltage: 230V
• Motor Power: 150W
• Air Movement: 944, 1,200, 1,774m³/hr
• Filter Performance: 98% >5 micron >86% >1 micron
• Room Volume: 300m³
• Overall L x W x H: 770mm x 610mm x 310mm
• Nett Weight: 25kg
• Rating: Frequent Use
• Sound Pressure Level: 69dB at high speed, 67dB at medium speed and 62dB at low speed

Scope of Delivery:

• Axminster Professional AP25AFS Air Filter 230V, 150W
• Electrostatic pre-filter
• Main filter
• Remote control unit
• Four mounting eyes

Instructions & Manuals 1

Instructions & Manuals 2

Footprint

Axminster 3 Year Guarantee:

The Axminster 3 Year Guarantee is designed to provide added peace of mind and reflects Axminster’s confidence in the quality and reliability of its machinery.

Covered products are intended for businesses with occasional periods of continuous work and must be maintained regularly and serviced annually. Please note that the guarantee becomes void if the machine is used for industrial applications or as part of a production line.

You do not need to register your machine to benefit from the guarantee. Simply retain your proof of purchase or receipt.

Additionally, the guarantee includes free parts and labour for a period of three years, subject to the terms and conditions outlined below.

Guarantee Coverage:

• The product must be purchased for the correct intended purpose in accordance with Axminster classification guidelines.
• The product must be operated correctly and used as intended.
• The product must be maintained and serviced according to the manufacturer’s instructions. Proof of servicing may be required.
• All qualifying repairs include free parts and labour during the guarantee period.

Guarantee Exclusions:

• Products used outside the recommended classification guidelines, such as workshop products used for business production purposes.
• Consumable items including original blades, knives, drive belts and abrasives.
• Issues resulting from normal wear and tear, misuse or neglect.
• Damage caused by blunt or incorrect tooling.
• Products that have been modified.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
