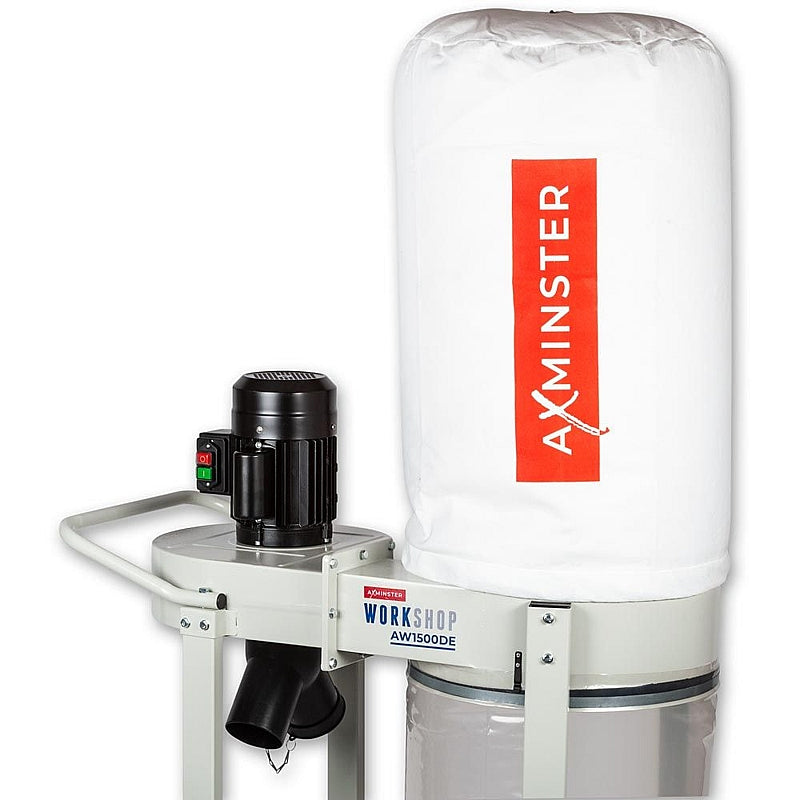

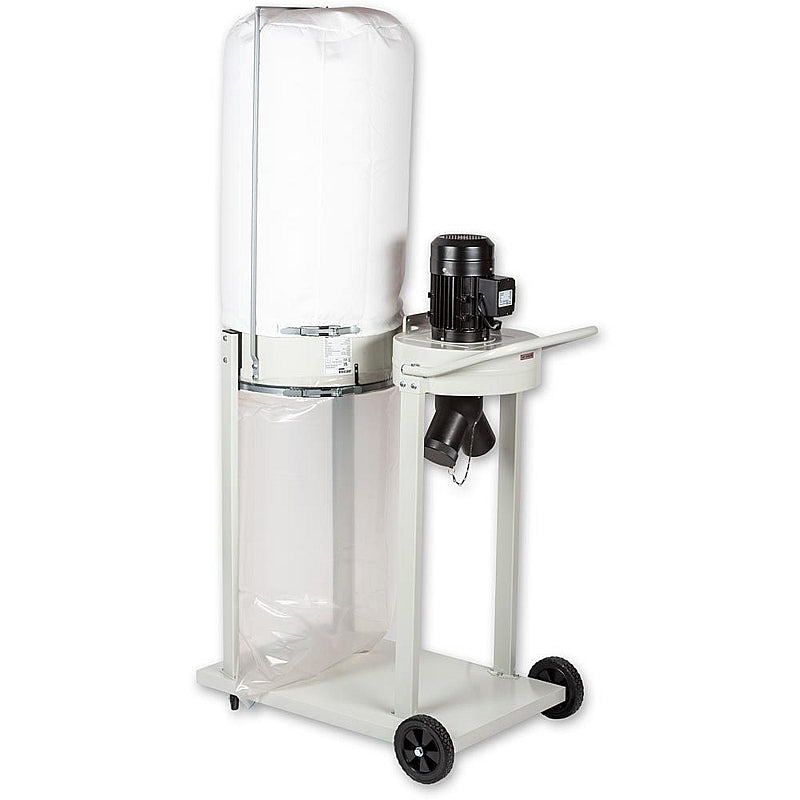

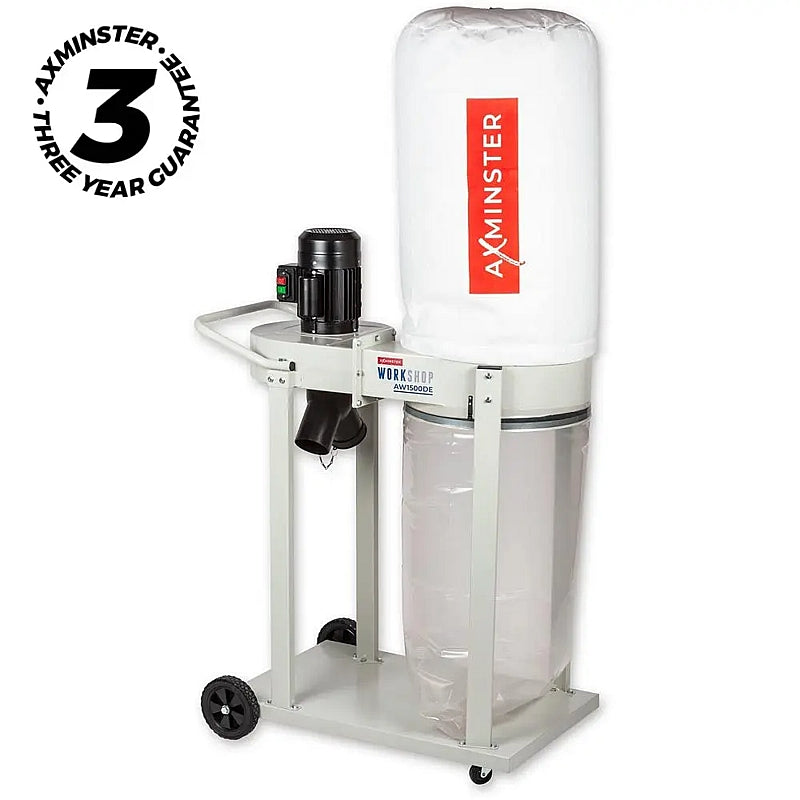

Axminster Workshop Dust Extractor 230V, 1.5kW - 2HP (AW1500DE) | 113336.
The AW1500DE Dust Extractor is ideal for use with larger machines and easily manages dust extraction for multiple tools in the workshop. Powered by a 1.5kW motor, it delivers 1,546m³/hr airflow at 125mm, helping keep your workspace safer and cleaner. In addition, it pairs well with machines that produce large volumes of waste, such as planer thicknessers. With 100% filtration efficiency above 30 microns, it captures larger dust particles and shavings effectively. Furthermore, the balanced steel impeller supports long life and consistent performance, even when connected to machines that generate heavy waste. Designed with practicality in mind, the AW1500DE moves easily around the workshop thanks to its large wheels. Bag clips and quick-fit straps also allow fast, effortless bag changes, helping you keep the machine running with minimal downtime. The extractor has a 153 litre bag capacity and features a main 125mm inlet, with the option to connect two machines at once via two 100mm outlets.
Features & Benefits:
-
Powerful Dust Extraction: Delivers 1,546m³/hr airflow at 125mm, making it suitable for larger machines and heavy waste-producing tools.
-

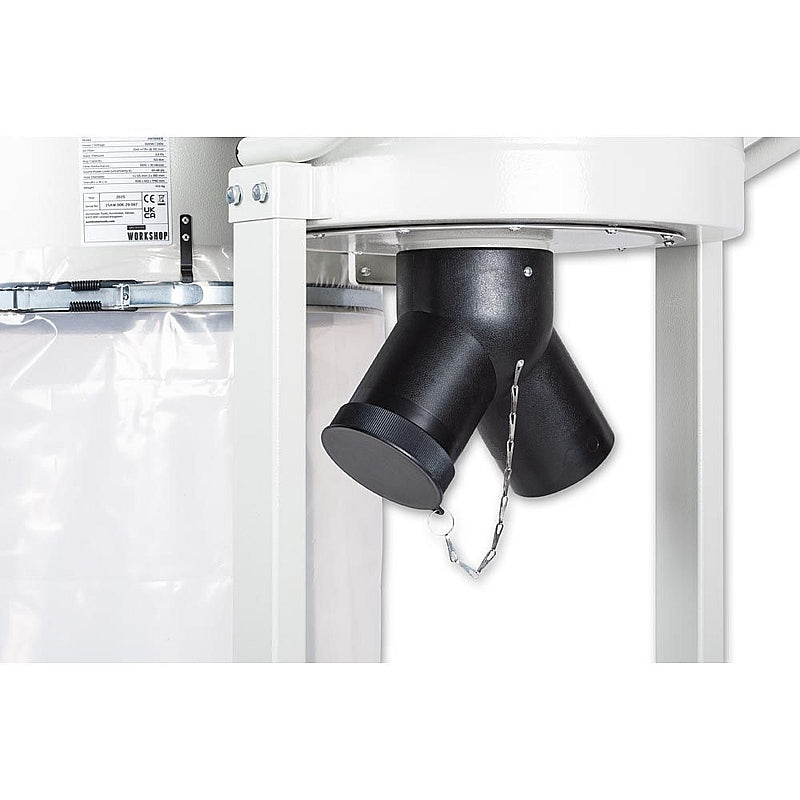

Multiple Machine Connection: Offers a main 125mm inlet or the option to connect two machines at once via two 100mm outlets.
-
Ideal for Larger Machines: Works well with machines that create large volumes of waste, such as planer thicknessers.
-
Effective Filtration: Provides 100% filtration efficiency above 30 microns to capture larger dust particles and shavings.
-
Balanced Steel Impeller: Supports long life and consistent performance during demanding workshop extraction tasks.
-
Large 153 Litre Bag Capacity: Holds a substantial amount of waste, reducing the frequency of bag changes.
-
Quick Bag Changes: Bag clips and quick-fit straps make bag replacement fast and straightforward.
-

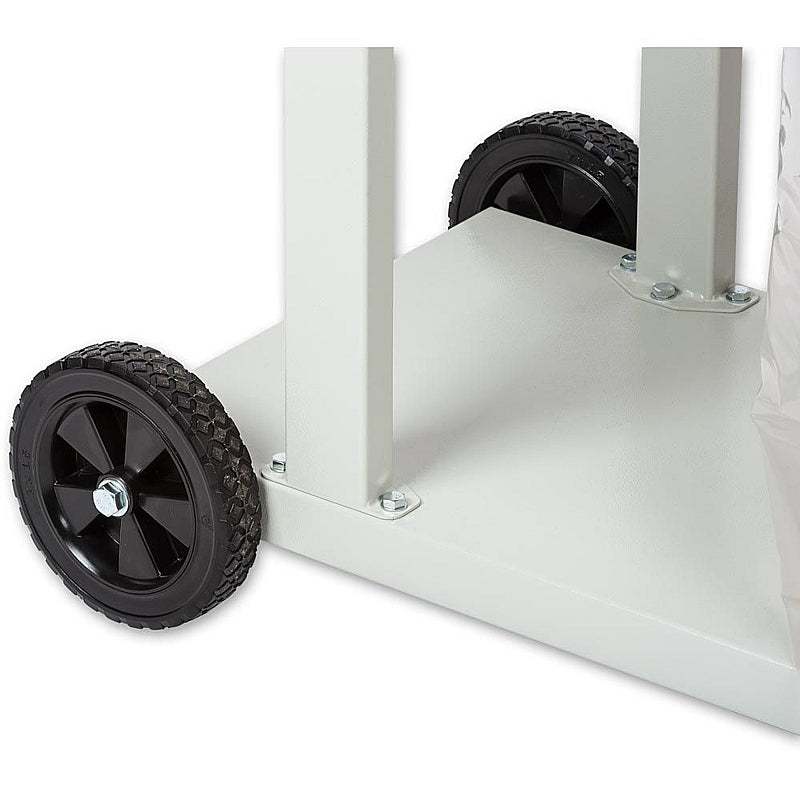

Easy Mobility: Large wheels make the extractor easy to move around the workshop.
-
Great Value Performance: Delivers effective dust control with strong extraction performance for regular workshop use.
Specifications:
-
Code: 113336
-
Barcode: 5052511142415
-
Model: AW1500DE
-
Voltage: 230V
-
Power: 1.5kW
-
Airflow: 1,546m³/hr @ 125mm
-
Bag Capacity: 153 litre
-
Filter Performance: 100% >30 micron
-
Hose Diameter: 1 x 125mm or 2 x 100mm
-
Static Pressure: 2,000Pa
-
Overall L x W x H: 1035 x 653 x 1983mm
-
Nett Weight: 41.5kg
-
Plug Fitted: UK 3 pin plug
-
Rating: Regular Use
-
Sound Power Level LwA [Uncertainty K]: 83dB(A)
Scope of Delivery:
- Axminster Workshop AW1500DE Dust Extractor 230V, 1.5kW - 2HP
