Axminster Professional Floor Pillar Drill 230V, 750W (AP25FD) | 111892

Axminster Professional Floor Pillar Drill 230V, 750W (AP25FD) | 111892.

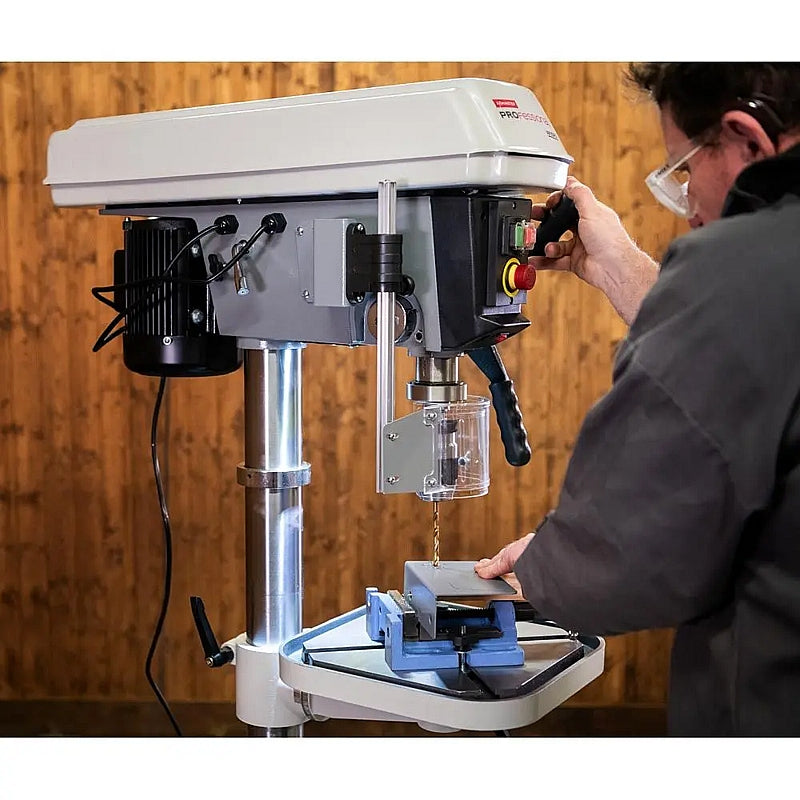

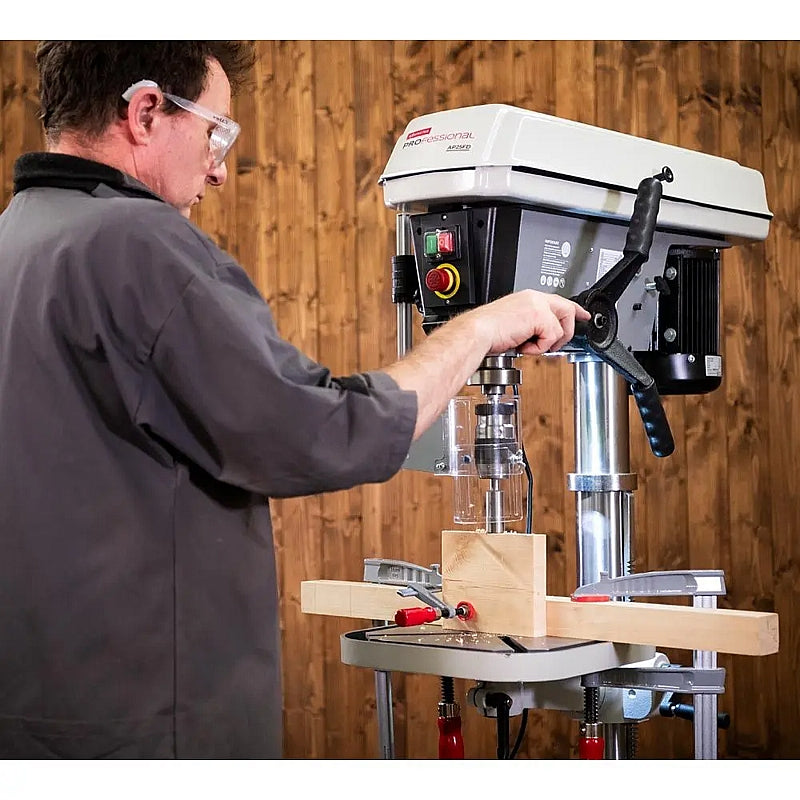

The Axminster Professional AP25FD Floor Drill is designed to provide a robust and precise drilling experience while saving valuable bench space in the workshop. Its large polished cast iron table offers a strong, rigid and stable work surface, helping support accurate drilling operations. In addition, the spindle runs in genuine NSK ball bearings, which increases drilling accuracy and minimises vibration. The multi-vee type belts provide maximum grip and low vibration, contributing to smoother and more stable performance. Safety is also central to the AP25FD design: the electrically interlocked chuck guard helps prevent accidental activation, while the integrated belt cover safety switch stops the drill from running when the cover is open. Furthermore, the adjustable LED work lamp improves visibility of the workpiece. The improved depth stop allows easy adjustment for precise drilling depths, while the one-piece cast iron handle with soft rubber grips gives smooth, comfortable control during use. The quality 1mm to 16mm keyless chuck allows quick and easy drill bit changes, and the rack and pinion table adjustment makes it simple to position the workpiece accurately.

Features & Benefits:

• Precision Spindle with NSK Bearings: The spindle runs in genuine NSK ball bearings, helping increase drilling accuracy and reduce vibration.

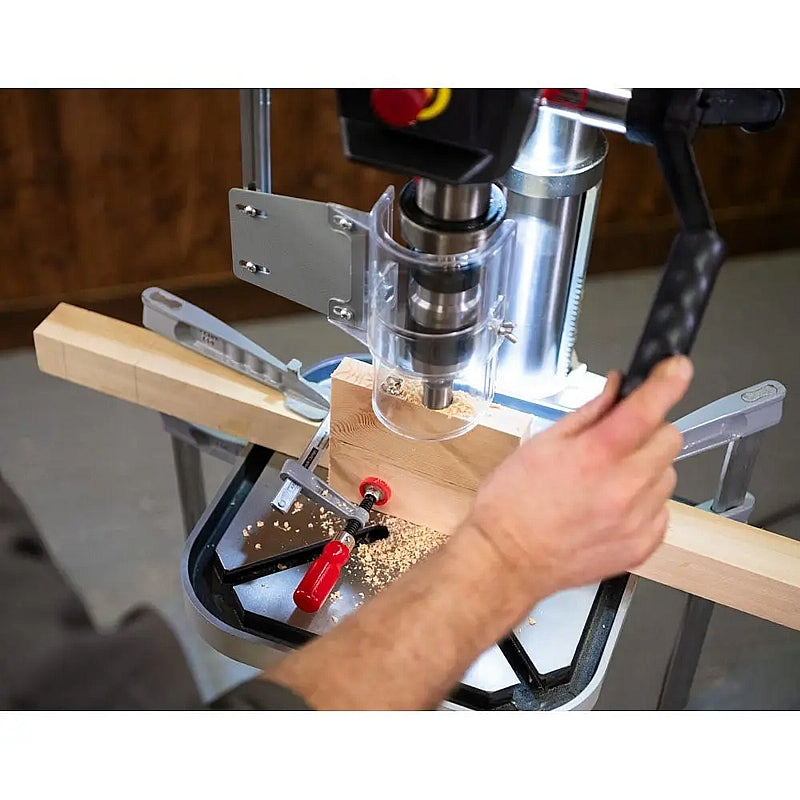

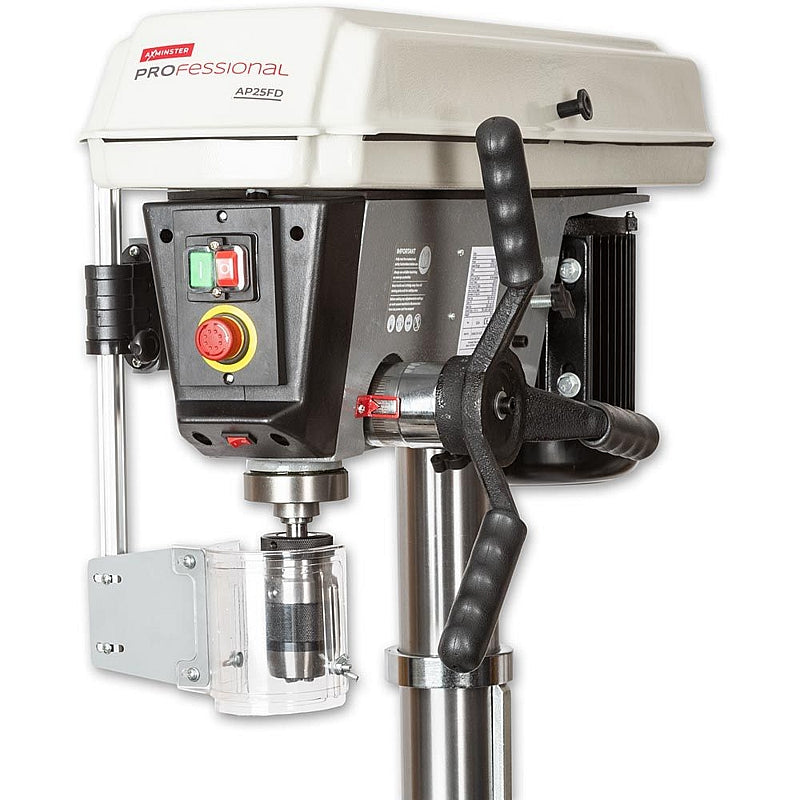

• Enhanced Safety System: The electrically interlocked chuck guard and integrated belt cover safety switch help prevent accidental activation and stop the machine from running with the cover open.
• LED Work Lamp: Improves visibility of the workpiece for clearer, more accurate drilling.

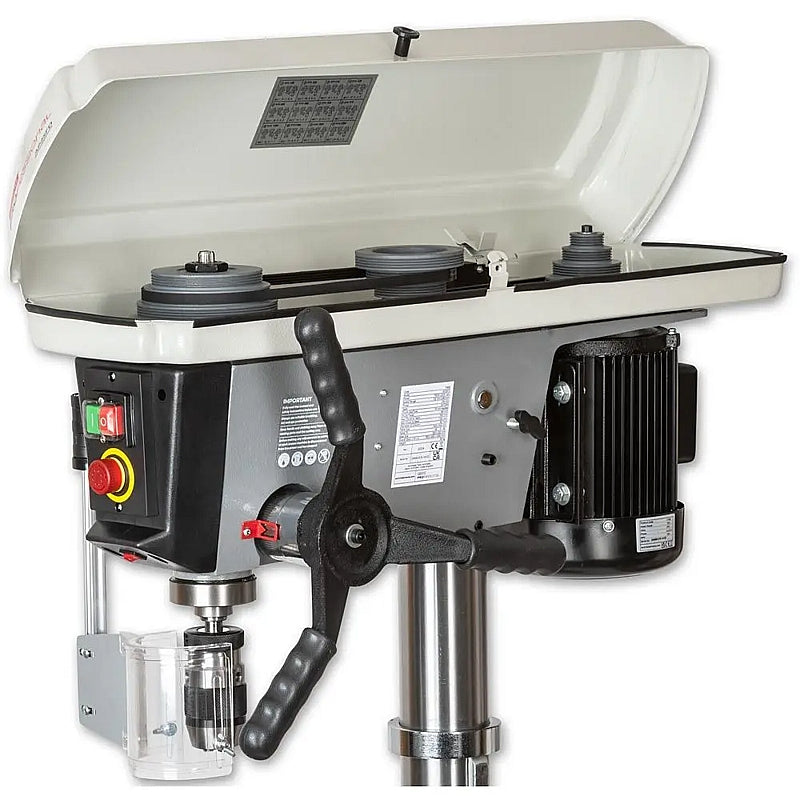

• Multi-Vee Belts: Provide maximum grip and low vibration, supporting smooth and stable operation.

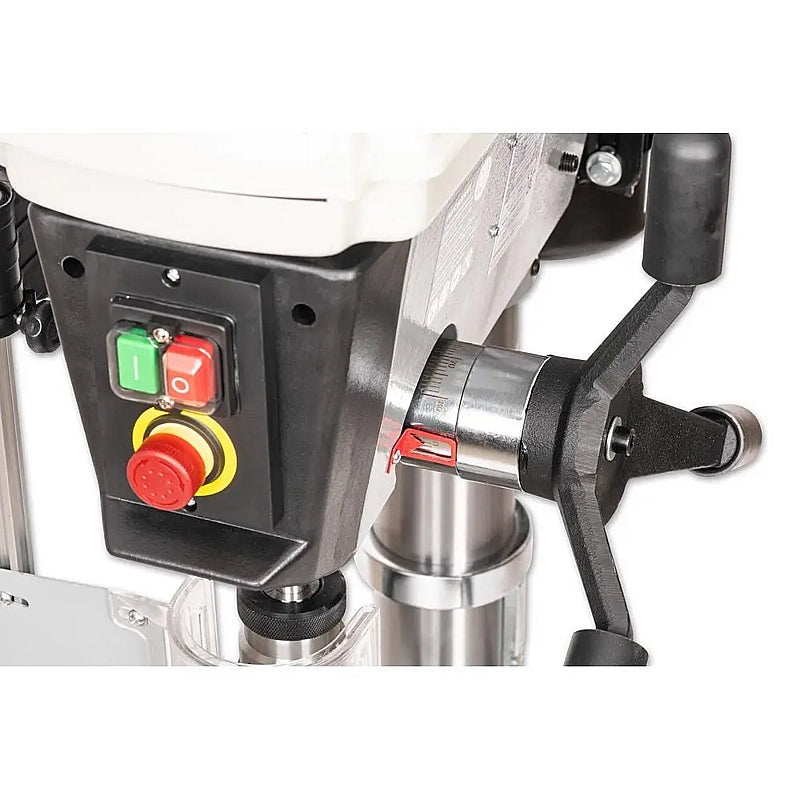

• Improved Depth Stop: Allows easy adjustment for precise control over drilling depth and consistent results.

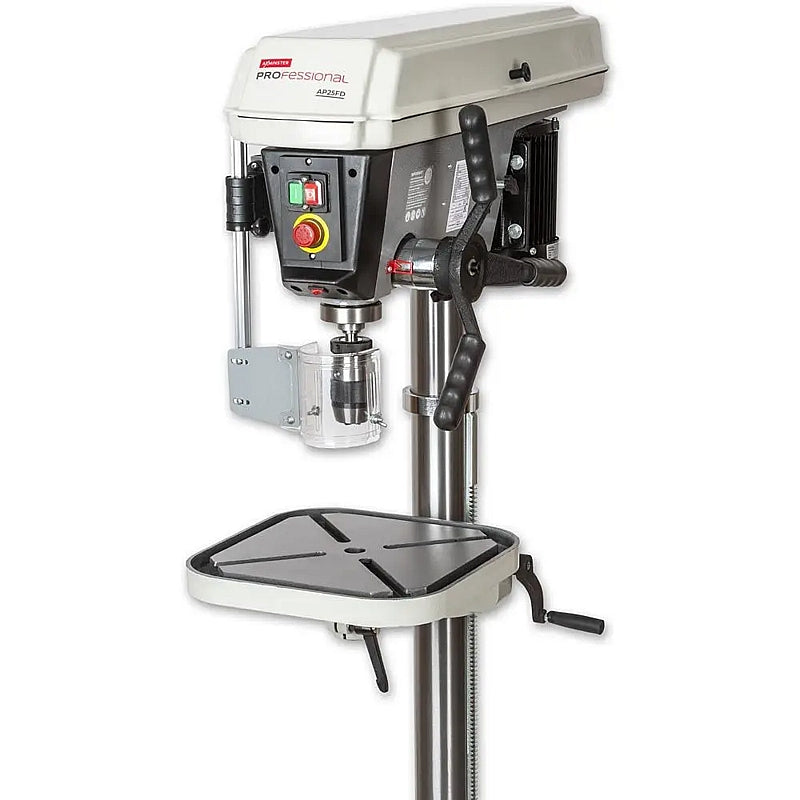

• Polished Cast Iron Table: Provides a strong, rigid and durable work surface for stable drilling operations.
• Rack and Pinion Table Adjustment: Makes table positioning quick and easy, helping you set the workpiece accurately.
• One-Piece Cast Iron Handle: Soft rubber grips provide comfortable control and help reduce user fatigue during extended use.
• Keyless Chuck: The 1mm to 16mm keyless chuck allows quick and easy drill bit changes.

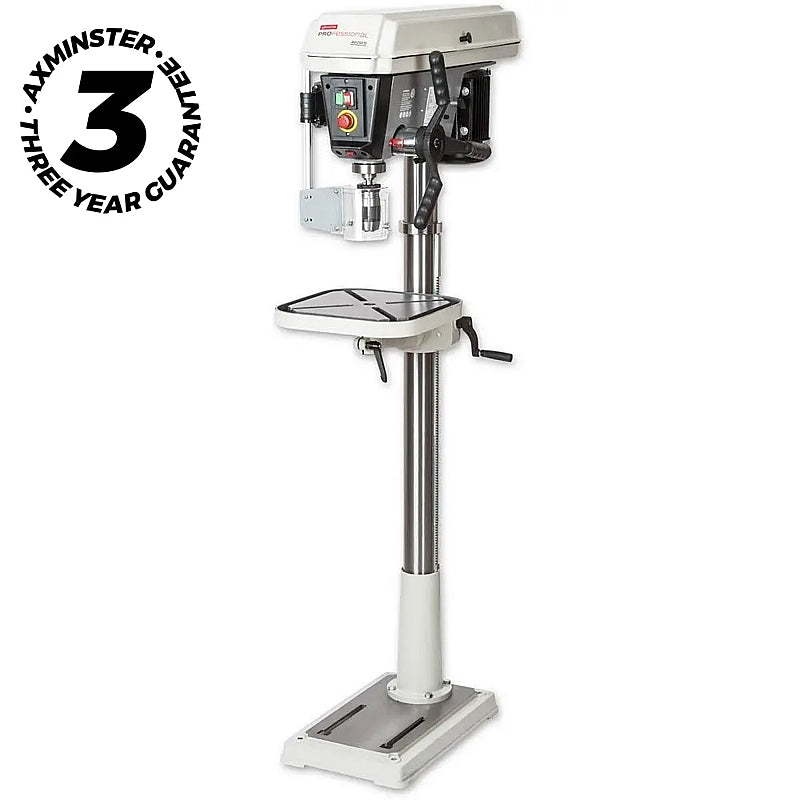

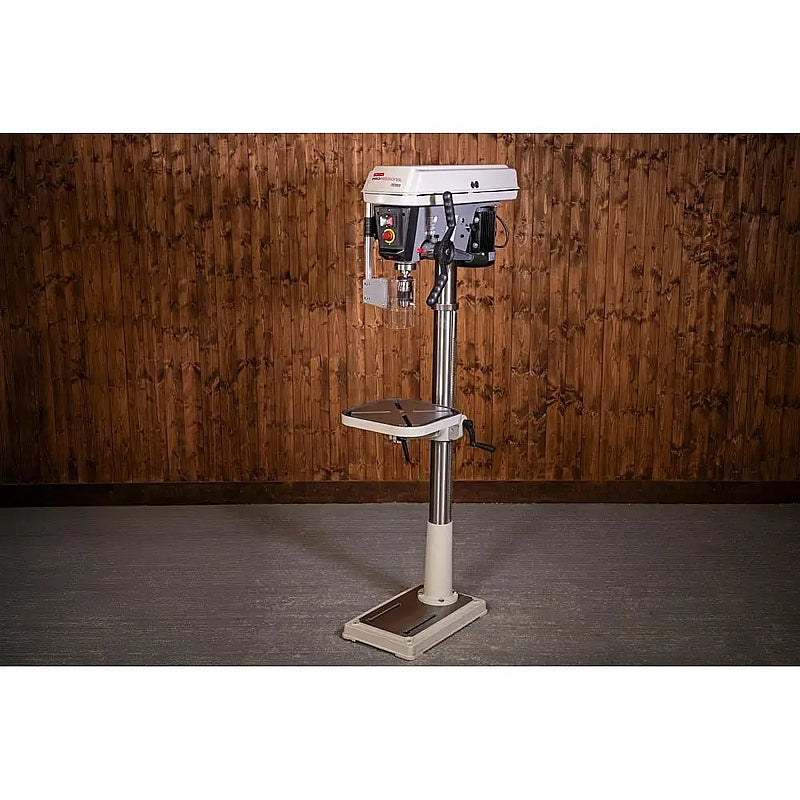

• Floor-Standing Design: Provides a stable drilling platform while keeping valuable bench space free.

Specifications:

• Code: 111892
• Barcode: 5052511136353
• Model: AP25FD
• Voltage: 230V
• Power: 750W
• Base Size: 520mm x 320mm
• Chuck Capacity: 1mm to 16mm
• Chuck Travel: 80mm
• Chuck Type: Keyless
• Diameter of Column: 80mm
• Max Chuck to Base: 1,150mm
• Max Chuck to Table: 700mm
• Max Drilling Mild Steel: 25mm
• Morse Taper: 3 MT
• Nett Weight: 108kg
• Overall L x W x H: 750mm x 430mm x 1,650mm
• Plug Fitted: UK 3 pin plug
• Rating: Frequent Use
• Speed Range: 120 - 2,580rpm
• Table Size: 345mm x 345mm
• Table Tilt: 45° - 0° - 45°
• Throat Depth: 216mm

Scope of Delivery:

• Axminster Professional AP25FD Floor Pillar Drill 230V, 750W
• 1mm to 16mm keyless chuck

Instructions & Manuals

Axminster 3 Year Guarantee:

The Axminster 3 Year Guarantee is designed to provide added peace of mind and reflects Axminster’s confidence in the quality and reliability of its machinery.

Covered products are intended for businesses with occasional periods of continuous work and must be maintained regularly and serviced annually. Please note that the guarantee becomes void if the machine is used for industrial applications or as part of a production line.

You do not need to register your machine to benefit from the guarantee. Simply retain your proof of purchase or receipt.

Additionally, the guarantee includes free parts and labour for a period of three years, subject to the terms and conditions outlined below.

Guarantee Coverage:

• The product must be purchased for the correct intended purpose in accordance with Axminster classification guidelines.
• The product must be operated correctly and used as intended.
• The product must be maintained and serviced according to the manufacturer’s instructions. Proof of servicing may be required.
• All qualifying repairs include free parts and labour during the guarantee period.

Guarantee Exclusions:

• Products used outside the recommended classification guidelines, such as workshop products used for business production purposes.
• Consumable items including original blades, knives, drive belts and abrasives.
• Issues resulting from normal wear and tear, misuse or neglect.
• Damage caused by blunt or incorrect tooling.
• Products that have been modified.
