Axminster Workshop Bandsaw 230V, 1.7kW (AP2920B) | 108517

Axminster Workshop Bandsaw 230V, 1.7kW (AP2920B) | 108517.

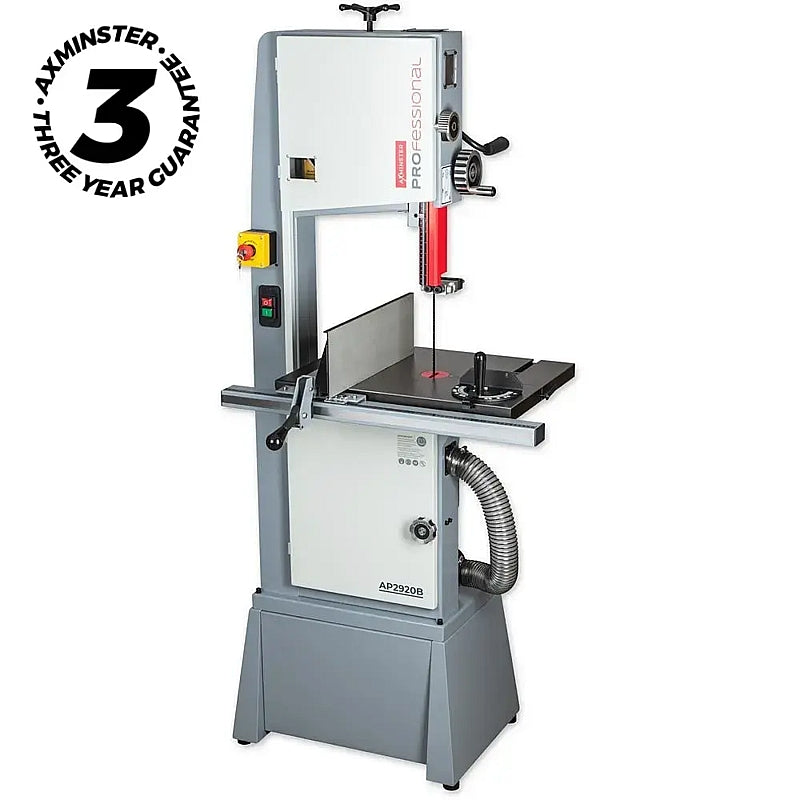

The Axminster Workshop AP2920B Bandsaw is a great-value floor-standing machine designed for woodturners, cabinet makers and woodworkers who need generous cutting capacity without taking up unnecessary workshop space. It combines a 1.7kW induction motor with a 300mm maximum cutting height, making it suitable for a variety of tasks, from cabinet making to woodturning preparation. In addition, the 440mm x 540mm cast iron table gives large workpieces firm support and allows timber to glide smoothly during cutting. The tubular steel frame provides robust strength and helps reduce vibration, while the press steel doors support the machine’s durable workshop build. Furthermore, the 355mm cast iron blade wheels with hard rubber tyres help maintain blade speed and promote a smooth, consistent cut. The upper blade guide uses rack and pinion rise and fall adjustment, so you can set the guide quickly and accurately. The rip fence locks positively and includes a Hi/Lo auxiliary fence: use the high position for full support when deep ripping, or the low position when cutting thin section timber close to the blade. Moreover, the quick tension release lever makes blade changes straightforward, while fully adjustable blade tensioning and tracking help deliver precise cutting action. Dual mitre slots on either side of the blade make the machine practical for jig use, and the supplied premium mitre fence includes useful pre-set angle stops. Efficient two-point dust extraction works through a 63mm outlet under the table linked to a 100mm outlet by the bottom wheel.

Features & Benefits:

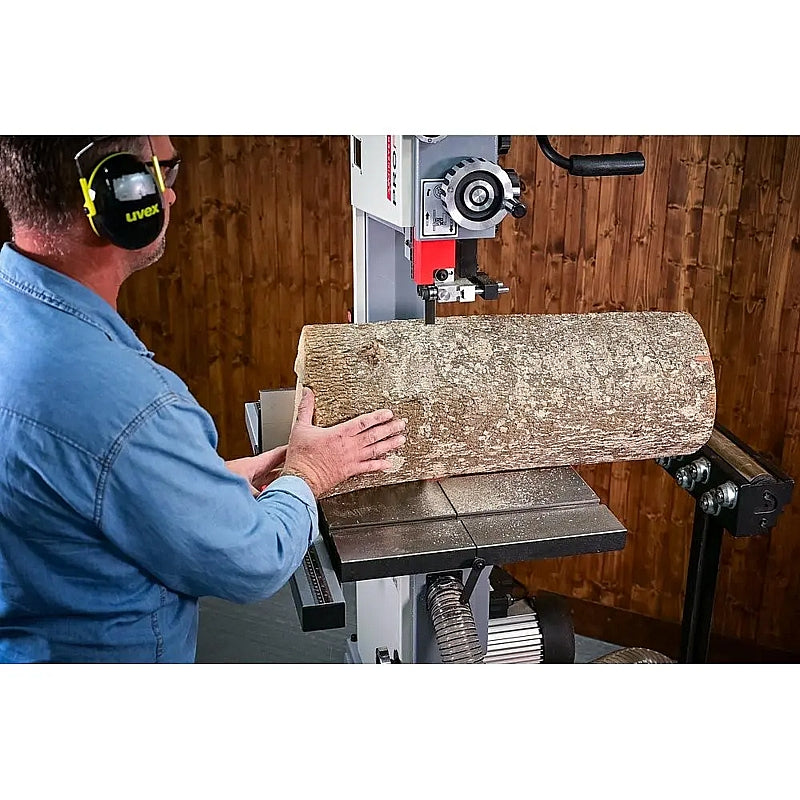

• Large Cutting Capacity: Offers up to 300mm maximum cutting height, making it suitable for cabinet making, woodturning preparation and larger workshop tasks.
• 1.7kW Induction Motor: Provides dependable power for the machine’s generous cutting capacity.
• Large Cast Iron Table: The 440mm x 540mm table supports larger workpieces and helps timber glide smoothly during cutting.
• Tubular Steel Frame: Adds robust strength and helps reduce vibration for smoother operation.
• Press Steel Doors: Support the bandsaw’s durable, professional workshop construction.

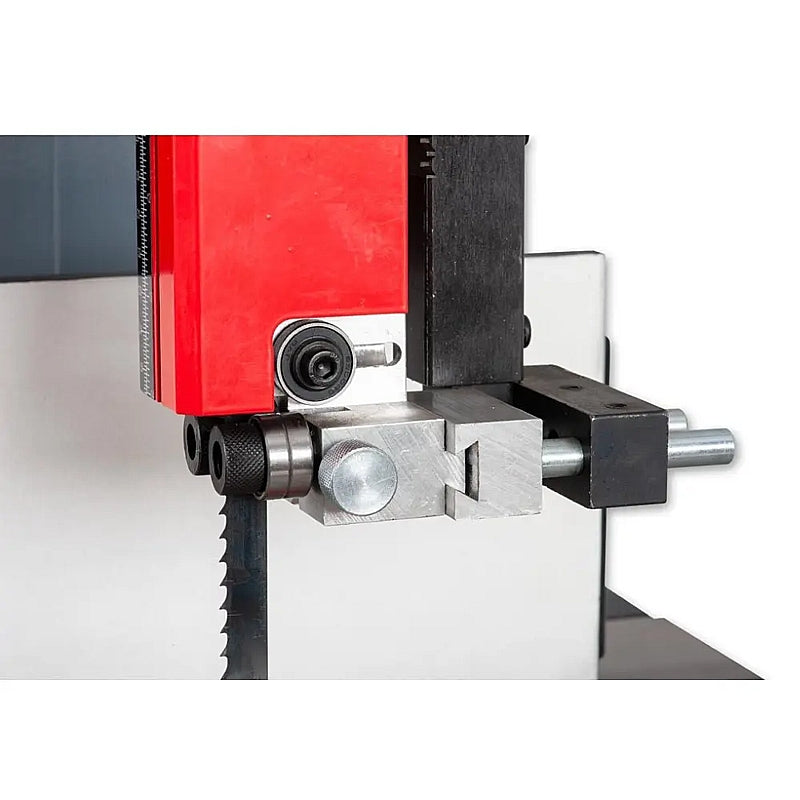

• Independent Adjustable Blade Guide System: Allows quick and easy set-up, helping you focus on the cutting task.

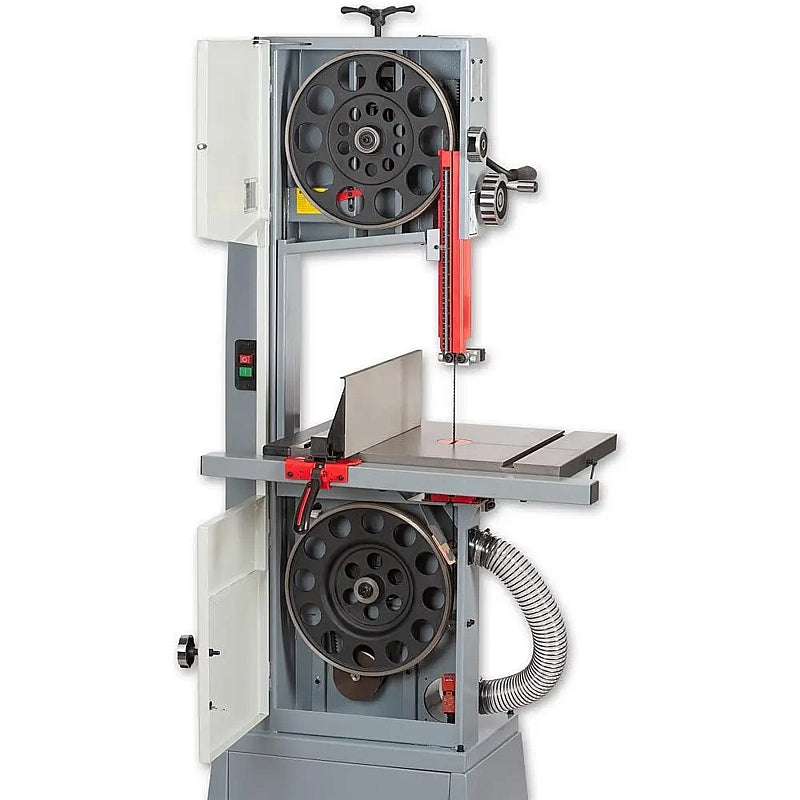

• Cast Iron Blade Wheels: The 355mm diameter wheels reduce vibration and help maintain blade speed for a smooth, consistent cut.

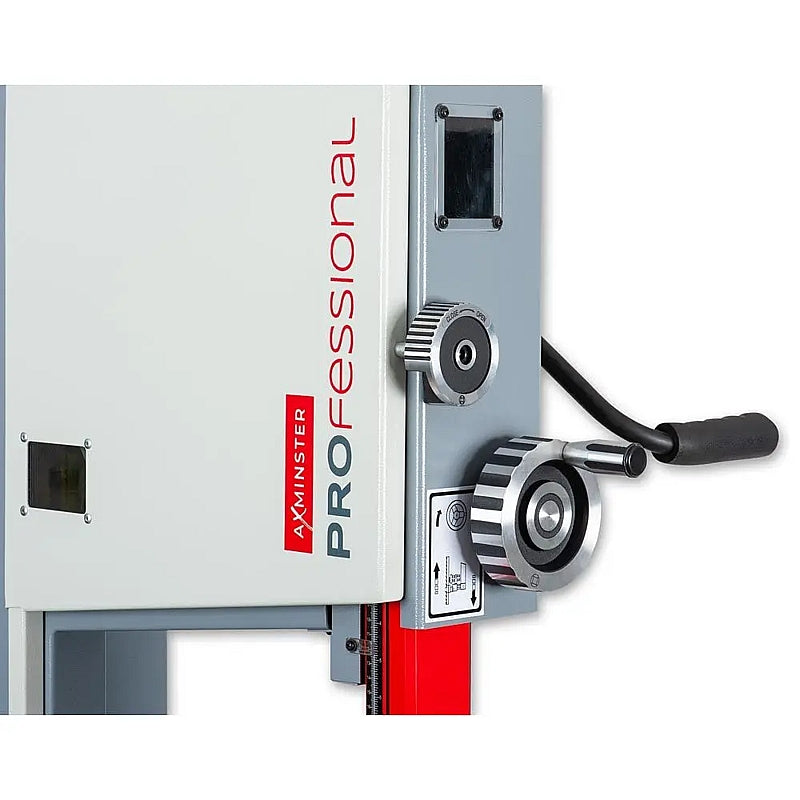

• Rack & Pinion Upper Guide Adjustment: Makes it easy to raise and lower the upper blade guide for accurate set-up.
• Tension Release Lever: Makes blade changes straightforward and convenient.

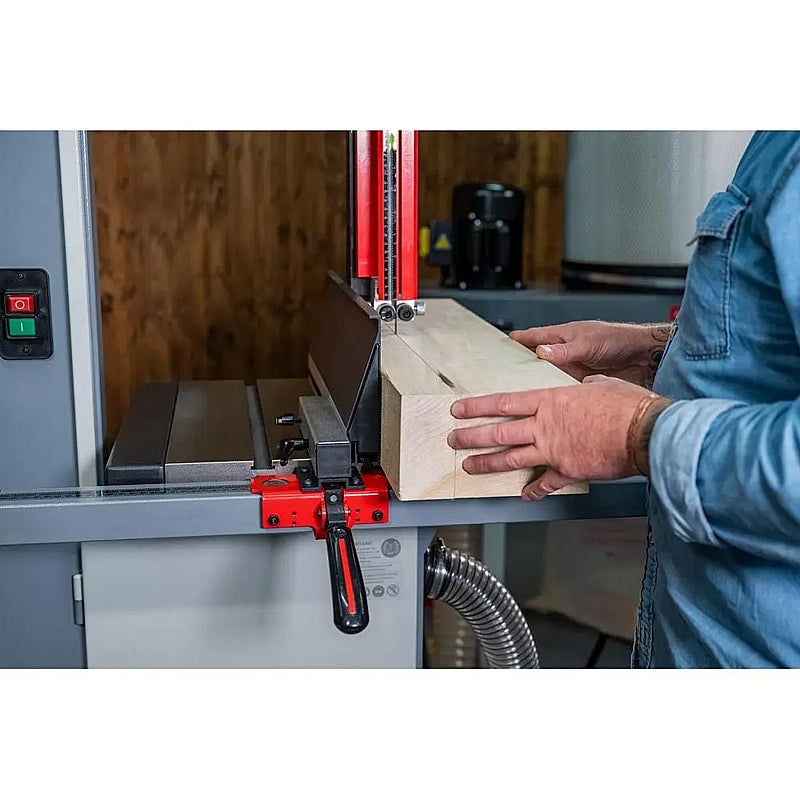

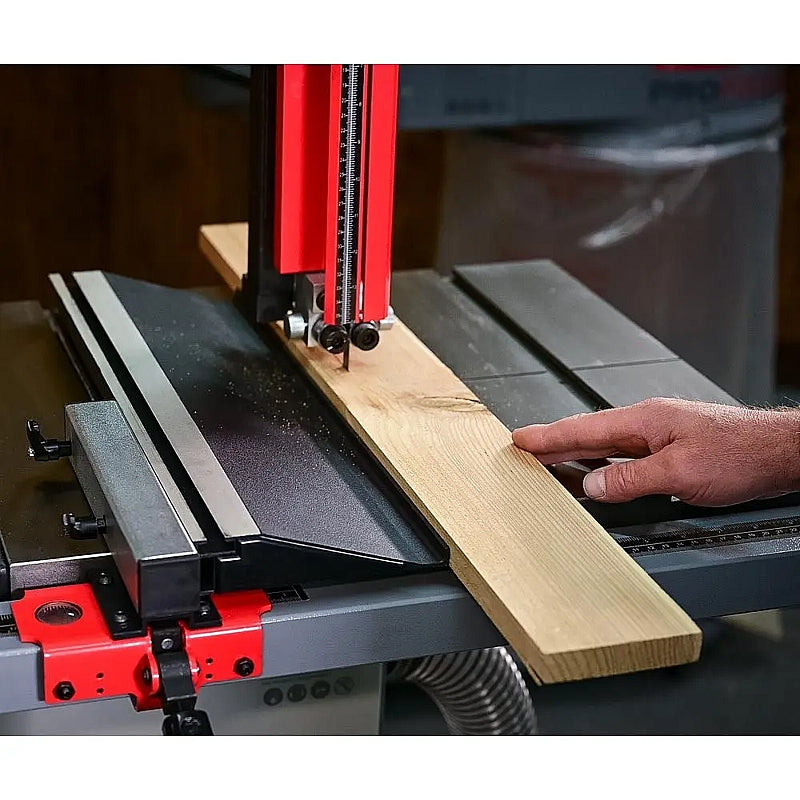

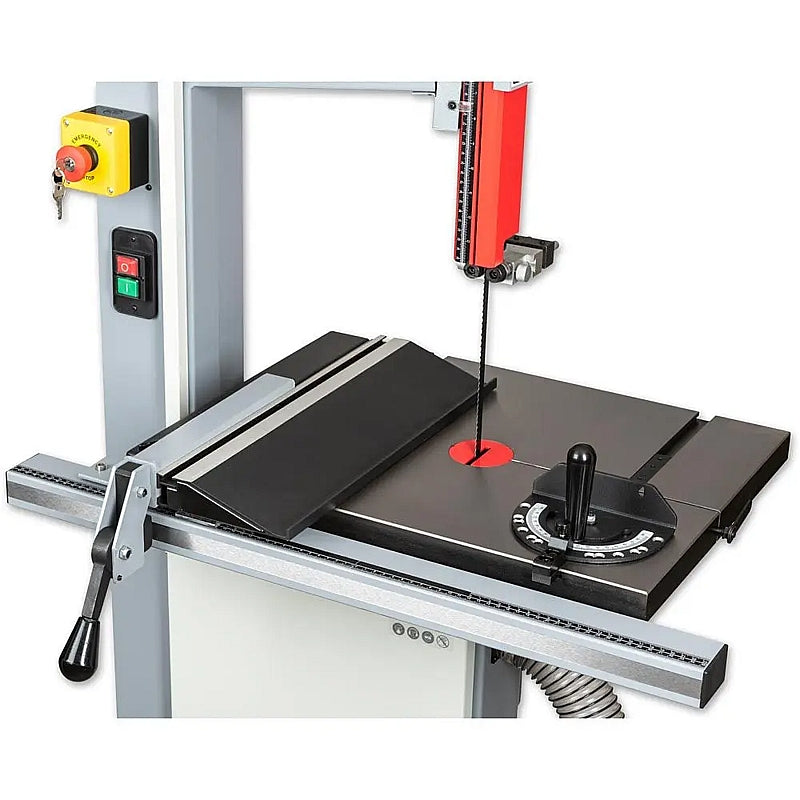

• Hi/Lo Auxiliary Rip Fence: Locks positively and gives full support for heavy-duty ripping or safer close-to-blade work on thin section timber.
• Dual Mitre Slots: Two mitre slots, positioned either side of the blade, make the bandsaw suitable for jig use.
• Premium Mitre Fence: Includes useful pre-set angle stops for practical angled cuts.

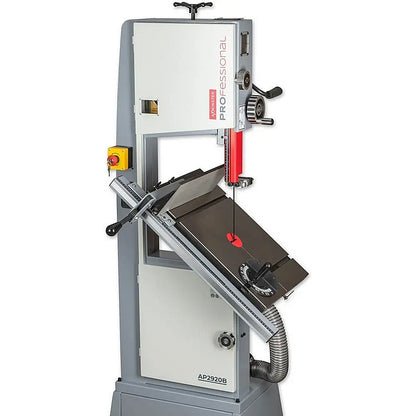

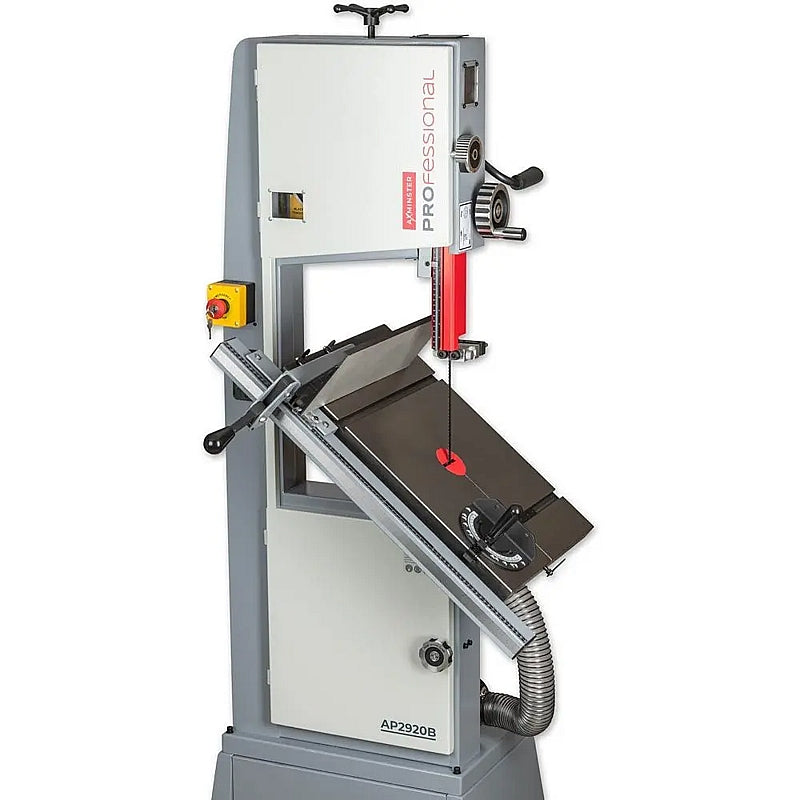

• Tilting Cast Iron Table: Tilts from 0° to 45° for angled cutting applications.

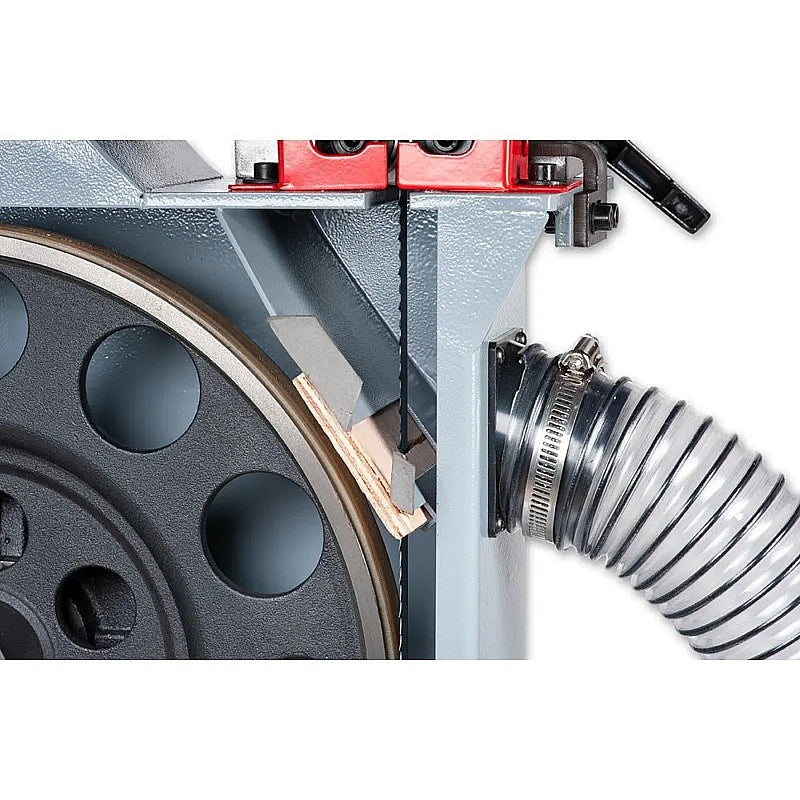

• Dual Dust Extraction: Uses a 63mm outlet under the table linked to a 100mm outlet by the bottom wheel for efficient two-point extraction.
• Die Cast Aluminium Handwheels: Provide smooth adjustment and a quality feel during set-up.

Specifications:

• Code: 108517
• Barcode: 5052511127535
• Model: AP2920B
• Voltage: 230V
• Power: 1.7kW
• Bandsaw Blade Length: 2,920mm (115")
• Bandsaw Wheel Diameter: 355mm
• Blade Speed: 800m/min
• Blade Width Min/Max: 3mm to 19mm
• Max Cutting Height: 300mm
• Max Width of Cut: 345mm
• Table Size: 440mm x 540mm
• Table Height: 1,015mm
• Table Height on Stand: N/A
• Table Tilt: 0° - 45°
• Dust Extraction Outlet: 100mm & 63mm
• Minimum Extraction Airflow Required: 1,200m³/hr
• Overall L x W x H: 760mm x 875mm x 1,910mm
• Nett Weight: 122kg
• Plug Fitted: UK 3 pin plug
• Rating: Frequent Use
• Sound Power Level LwA [Uncertainty K]: 90dB(A) [3.0dB]
• Sound Pressure Level LpA [Uncertainty K]: 72.5dB(A) [3.0dB]

Scope of Delivery:

• Axminster Workshop AP2920B Bandsaw 230V, 1.7kW
• Premium mitre fence with pre-set angle stops
• Bandsaw blade - 2,920mm x 12mm x 6tpi

Instructions & Manuals 1

Instructions & Manuals 2

Footprint

Axminster 3 Year Guarantee:

The Axminster 3 Year Guarantee is designed to provide added peace of mind and reflects Axminster’s confidence in the quality and reliability of its machinery.

Covered products are intended for businesses with occasional periods of continuous work and must be maintained regularly and serviced annually. Please note that the guarantee becomes void if the machine is used for industrial applications or as part of a production line.

You do not need to register your machine to benefit from the guarantee. Simply retain your proof of purchase or receipt.

Additionally, the guarantee includes free parts and labour for a period of three years, subject to the terms and conditions outlined below.

Guarantee Coverage:

• The product must be purchased for the correct intended purpose in accordance with Axminster classification guidelines.
• The product must be operated correctly and used as intended.
• The product must be maintained and serviced according to the manufacturer’s instructions. Proof of servicing may be required.
• All qualifying repairs include free parts and labour during the guarantee period.

Guarantee Exclusions:

• Products used outside the recommended classification guidelines, such as workshop products used for business production purposes.
• Consumable items including original blades, knives, drive belts and abrasives.
• Issues resulting from normal wear and tear, misuse or neglect.
• Damage caused by blunt or incorrect tooling.
• Products that have been modified.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
