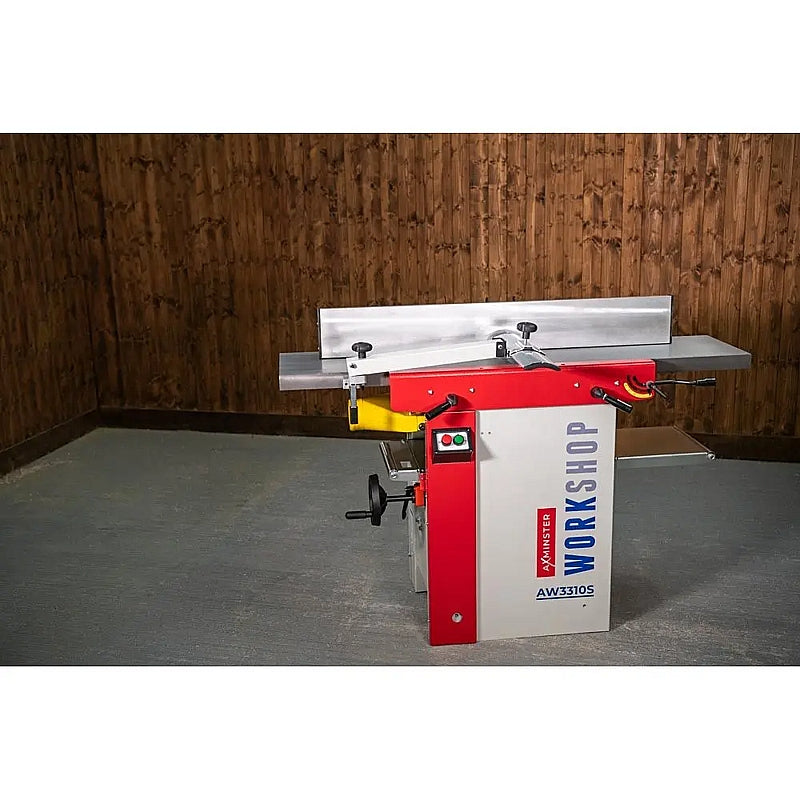

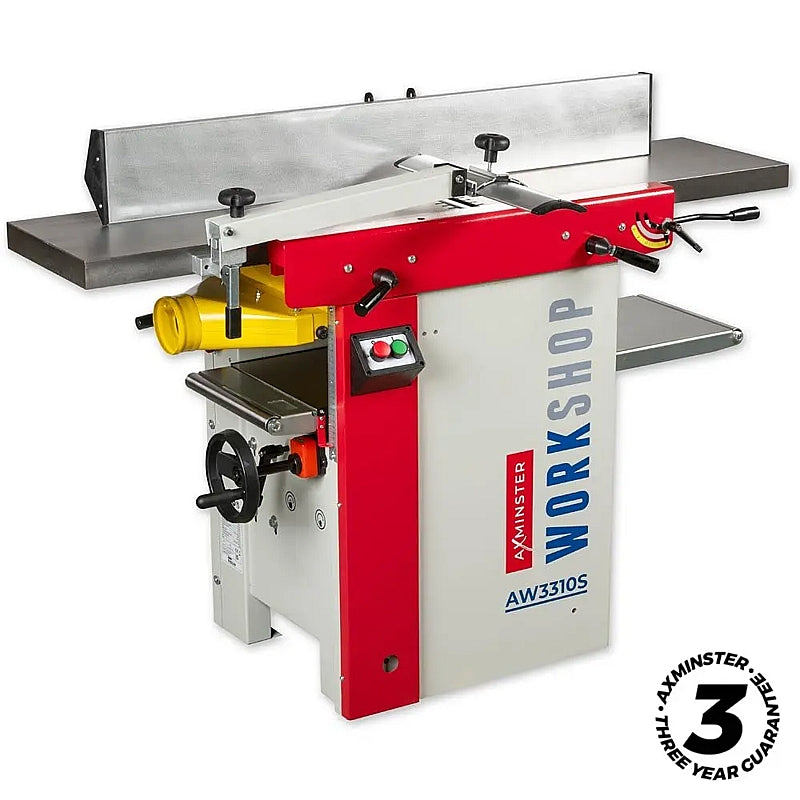

Axminster Workshop Spiral Planer Thicknesser 230V, 3.0kW (AW3310S) | 113347

Axminster Workshop Spiral Planer Thicknesser 230V, 3.0kW (AW3310S) | 113347.

The AW3310S Spiral Planer Thicknesser is engineered for smooth, accurate and consistent woodworking results. Its spiral cutting block uses 30 TC spur cutters arranged in two rows, which offer a much longer service life than traditional HSS blades and help virtually eliminate planing ripple. Furthermore, when a cutter edge eventually dulls, you can rotate the cutter 90° with the supplied Torx driver, tighten it, and continue working without resetting blades or waiting for sharpening. Spiral blocks also run quieter and with significantly reduced vibration, making the machine more comfortable to use. In addition, the alloy fence provides reliable support for precise work and adjusts easily with stops at 90° and 45°. Switching between jointing and thicknessing is quick and intuitive, as the single-lift tables raise together in one smooth motion. A 5.4m/min feed speed helps produce a consistently clean, smooth finish, while the digital height gauge makes thickness adjustments simple and accurate. Moreover, the viewing window in the feed table allows easy monitoring during operation. Powered by a robust 3.0kW motor, the AW3310S handles a wide range of tasks with a 310mm planing width and 230mm thicknessing capacity. The maximum depth of cut when planing is 3.0mm, while the maximum depth of cut for thicknessing is 4.0mm.

Features & Benefits:

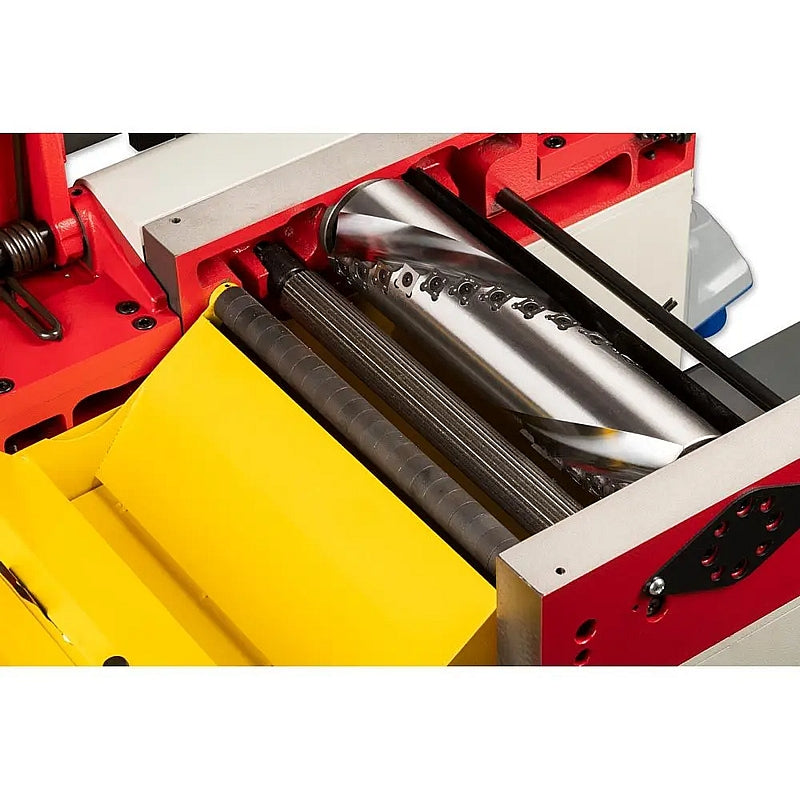

• Spiral Cutter Block: Produces an exceptionally smooth finish, helps virtually eliminate planing ripple, runs quieter in use and reduces vibration.
• 30 TC Spur Cutters: Provide a longer service life than traditional HSS blades and allow quick 90° rotation when an edge dulls.

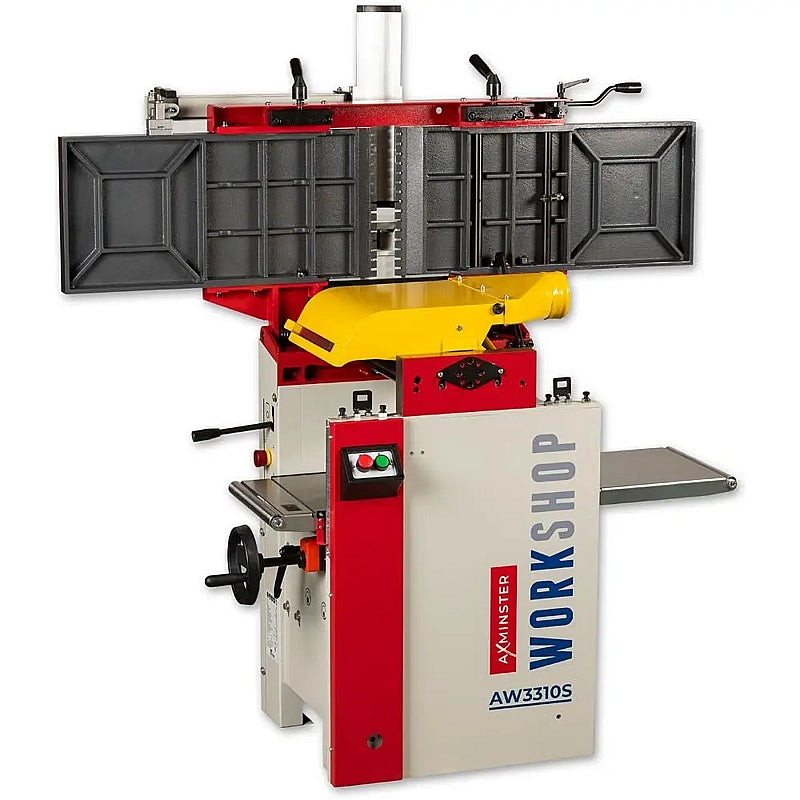

• Single-Lift Tables: Raise together in one smooth motion, making it quicker to change between jointing and thicknessing.

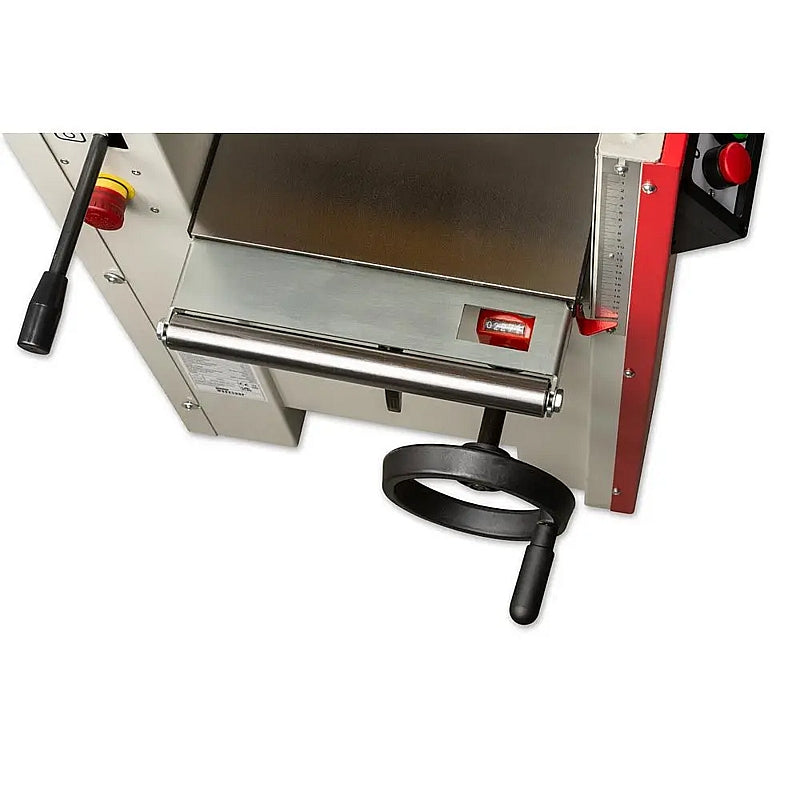

• Digital Height Gauge: Makes thickness adjustment quick, simple and accurate for consistent cutting results.
• 3.0kW Motor: Provides ample power for a wide range of planing and thicknessing tasks.

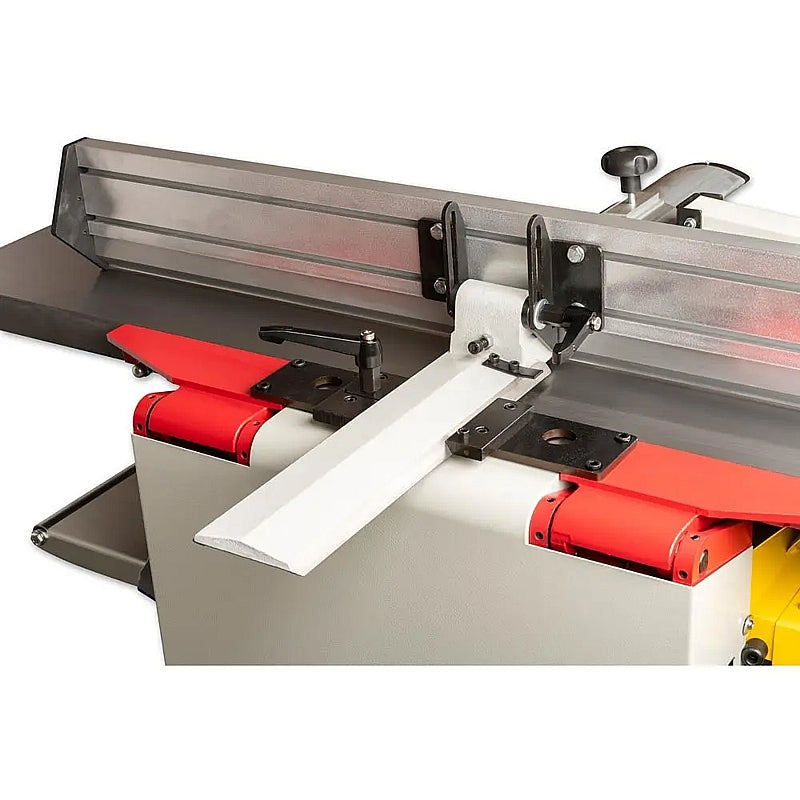

• Alloy Tilting Fence: Supports precise work and adjusts easily with stops at 90° and 45° for accuracy and stability.
• Excellent Capacity: Offers a 310mm planing width and 230mm thicknessing height, helping you tackle larger projects efficiently.
• 5.4m/min Feed Speed: Supports a clean, smooth and consistent finish during thicknessing.

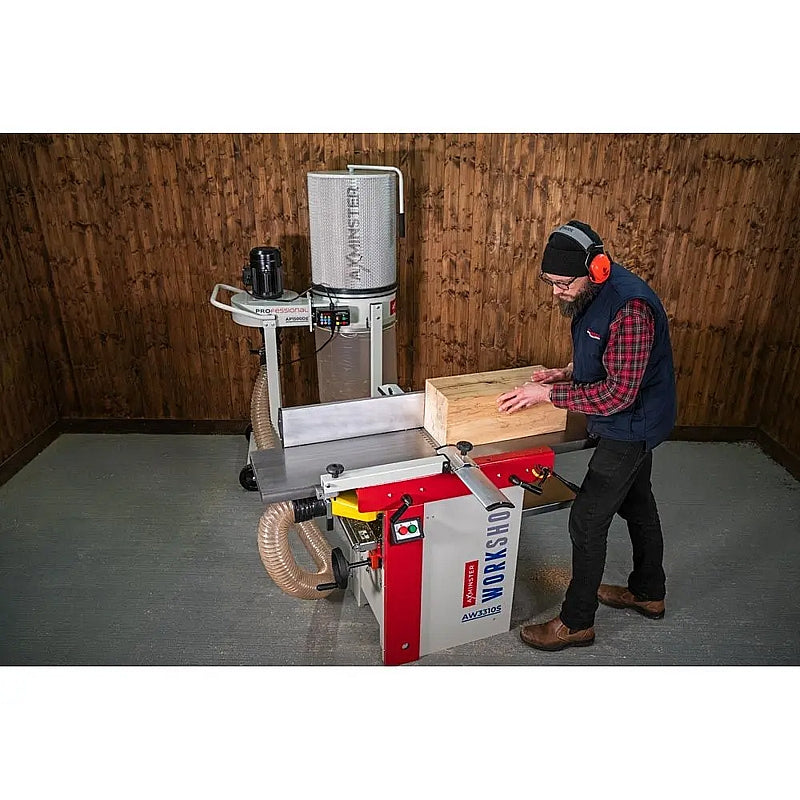

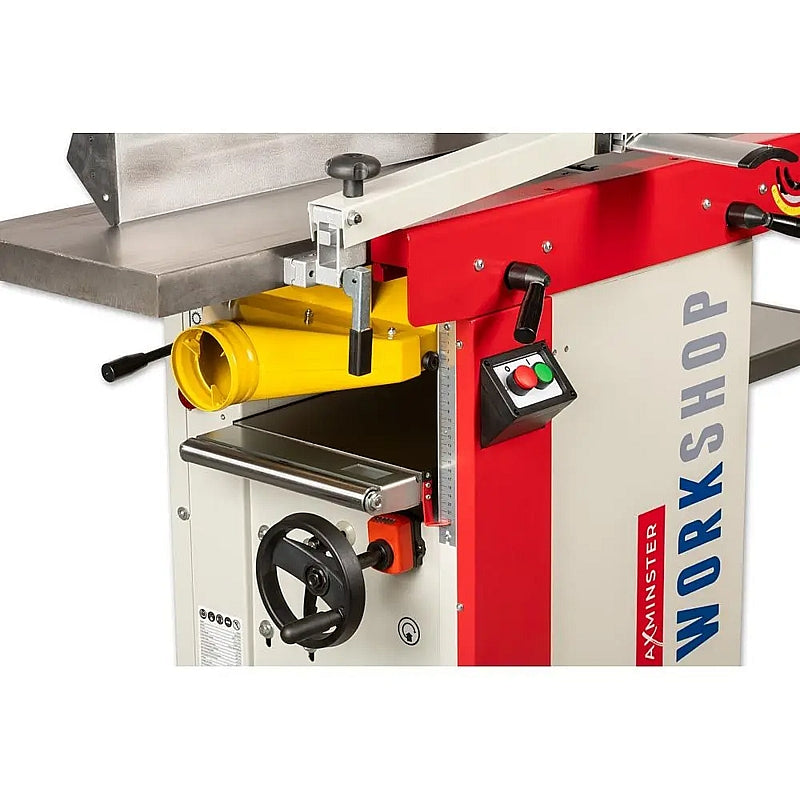

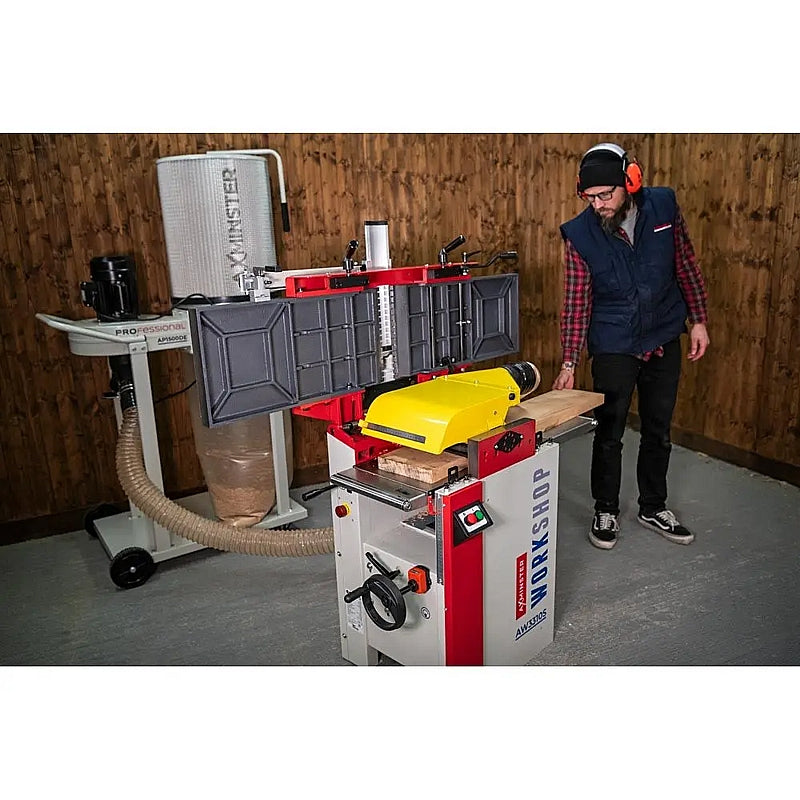

• Efficient Dust Extraction: Helps keep the workspace cleaner when connected to suitable extraction.
• Viewing Window: Allows easy monitoring through the feed table during operation.

Specifications:

• Code: 113347
• Barcode: 5052511142323
• Model: AW3310S
• Voltage: 230V
• Power: 3.0kW
• Number of Motors: 1
• Cutterblock Diameter: 75mm
• Cutterblock Speed: 4,500rpm
• Knives: TC spur cutters x 30
• Number of Knives: 30
• Feed Speed: 5.4m/min
• Max Planing Width: 310mm
• Max Thicknessing Height: 230mm
• Max Depth of Cut Planer: 3.0mm
• Max Depth of Cut Thicknesser: 4.0mm
• Length of Table: 1400mm
• Overall L x W x H: 1400 x 1200 x 1050mm
• Dust Extraction Outlet: 100mm
• Minimum Extraction Airflow Required: 1,500m³/hr
• Sound Power Level LwA [Uncertainty K]: 87dB(A) [3.0dB]
• Nett Weight: 208kg
• Rating: Regular Use
• Power Supply Requirement: Requires a 16 amp supply; a C Type breaker is recommended. If unsure, please contact a qualified electrician.

Scope of Delivery:

• Axminster Workshop AW3310S Spiral Planer Thicknesser 230V, 3.0kW


Instructions & Manuals

Axminster 3 Year Guarantee:

The Axminster 3 Year Guarantee is designed to provide added peace of mind and reflects Axminster’s confidence in the quality and reliability of its machinery.

Covered products are intended for businesses with occasional periods of continuous work and must be maintained regularly and serviced annually. Please note that the guarantee becomes void if the machine is used for industrial applications or as part of a production line.

You do not need to register your machine to benefit from the guarantee. Simply retain your proof of purchase or receipt.

Additionally, the guarantee includes free parts and labour for a period of three years, subject to the terms and conditions outlined below.

Guarantee Coverage:

• The product must be purchased for the correct intended purpose in accordance with Axminster classification guidelines.
• The product must be operated correctly and used as intended.
• The product must be maintained and serviced according to the manufacturer’s instructions. Proof of servicing may be required.
• All qualifying repairs include free parts and labour during the guarantee period.

Guarantee Exclusions:

• Products used outside the recommended classification guidelines, such as workshop products used for business production purposes.
• Consumable items including original blades, knives, drive belts and abrasives.
• Issues resulting from normal wear and tear, misuse or neglect.
• Damage caused by blunt or incorrect tooling.
• Products that have been modified.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
