Axminster Professional Bench Pillar Drill, 230V (AP325PD) | 025107705

Axminster Professional Bench Pillar Drill, 230V (AP325PD) | 025107705.

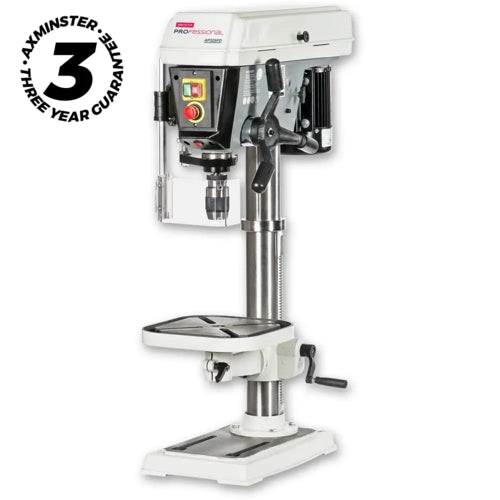

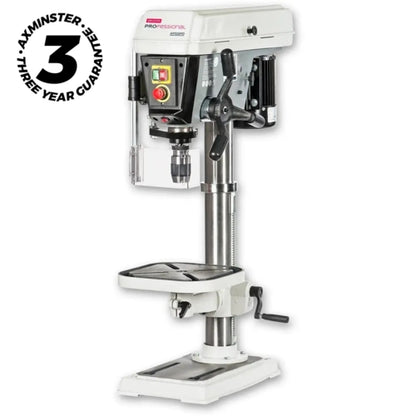

The Axminster Professional Bench Pillar Drill (AP325PD) is a robust and reliable tool, meticulously designed for precision drilling in professional and trade settings. Built with a cast iron and machined steel construction, this pillar drill offers unparalleled strength, stability, and accuracy, making it ideal for heavy-duty applications.

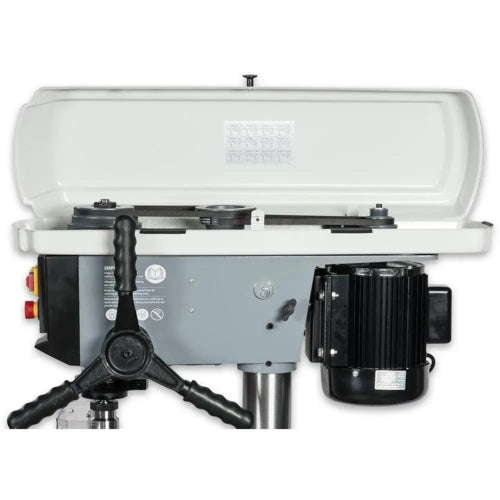

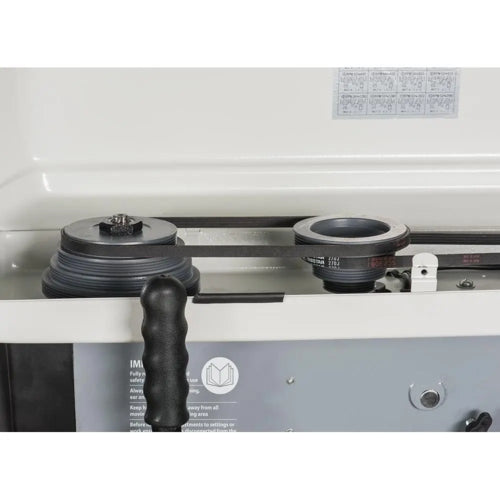

Equipped with a smooth-running 650W induction motor and a multi-vee belt transmission, this drill delivers consistent performance across a wide speed range of 120 to 2,580 rpm, with 12 adjustable belt speeds for optimal control. The precision spindle assembly operates on NSK ball race bearings, ensuring long-lasting reliability. The quill is MT2 with a keyless chuck capacity of 1mm to 16mm, providing versatility for a wide range of tasks.

The rack-and-pinion table height adjustment and tiltable table (45° to 0° to 45°) make this drill exceptionally convenient to use, while the integrated LED work lamp enhances visibility. Safety is prioritized with interlocked belt covers and an adjustable chuck guard, along with a separate emergency stop switch for immediate shutdown when necessary.

Designed to withstand the demands of professional and school workshops, the Axminster Professional Bench Pillar Drill is the ideal choice for achieving superior drilling accuracy and performance.

Features & Benefits:

• Powerful 650W Induction Motor: Provides smooth and consistent drilling performance.
• Wide Speed Range: Twelve belt speeds ranging from 120 to 2,580 rpm for optimal versatility.
• Precision Spindle Assembly: Ensures accurate and reliable operation, supported by NSK ball race bearings.
• Adjustable Keyless Chuck: Accommodates a range of drill bits from 1mm to 16mm for versatility.

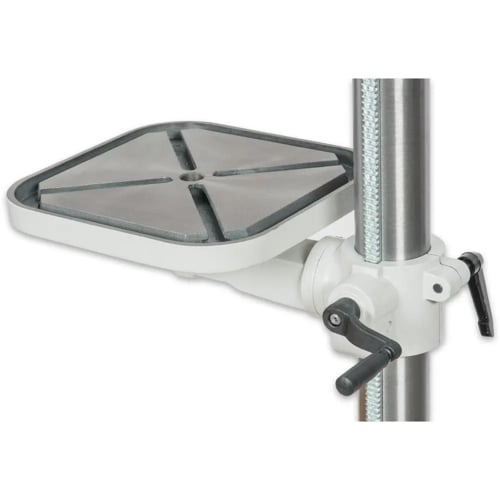

• Rack-and-Pinion Table Adjustment: Allows for easy and precise height adjustments.

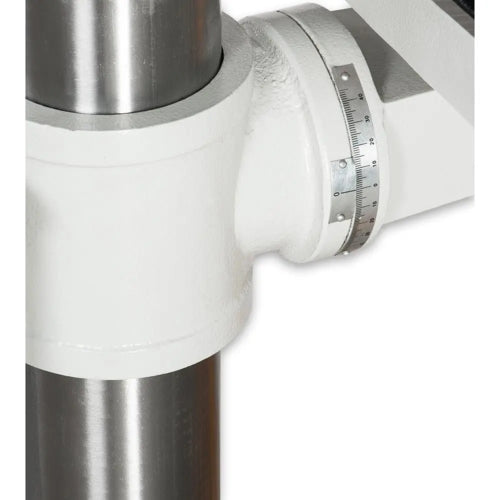

• Tiltable Table: Provides flexibility with a tilt range of 45° to 0° to 45° for angled drilling.

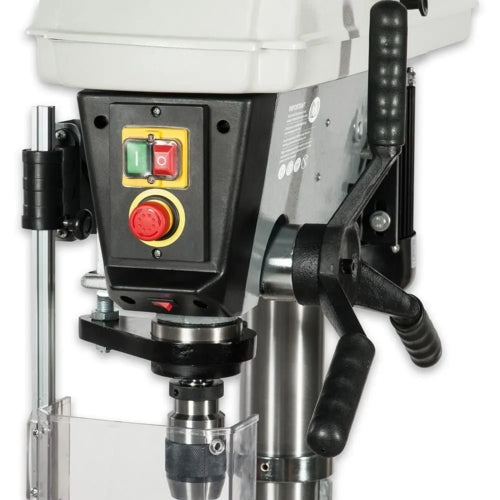

• Integrated Safety Features: Includes interlocked belt cover, chuck guard, and an emergency stop switch.

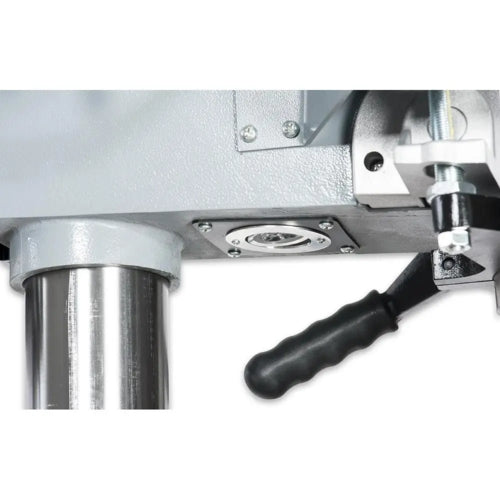

• Built-in LED Work Lamp: Enhances visibility for precision work in various lighting conditions.

Specifications:

Base Size: 450mm x 270mm
Chuck Capacity: 1mm to 16mm
Chuck Travel: 80mm
Chuck Type: Keyless
Diameter of Column: 80mm
Max Chuck to Base Distance: 500mm
Max Chuck to Table Distance: 325mm
Max Drilling in Mild Steel: 20mm
Morse Taper: 2 MT
Nett Weight: 82kg
Overall Dimensions (L x W x H): 670mm x 360mm x 1,020mm
Power: 650W
Rating: Trade/Professional
Speed Range: 120 – 2,580 rpm (12 speeds)
Spindle Taper: 2 MT
Table Size: 290mm x 290mm
Table Tilt: 45° – 0° – 45°
Throat Depth: 178mm
Voltage: 230V

Scope of Delivery:

• 1 x Axminster Professional Bench Pillar Drill
• 1 x Keyless Chuck (1mm to 16mm)
• 1 x Integrated LED Work Lamp
• 1 x Adjustable Chuck Guard

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
