Axminster Professional Drum Sander 745W - 230V (AP406DS) | 025107636

Axminster Professional Drum Sander 745W - 230V (AP406DS) | 025107636.

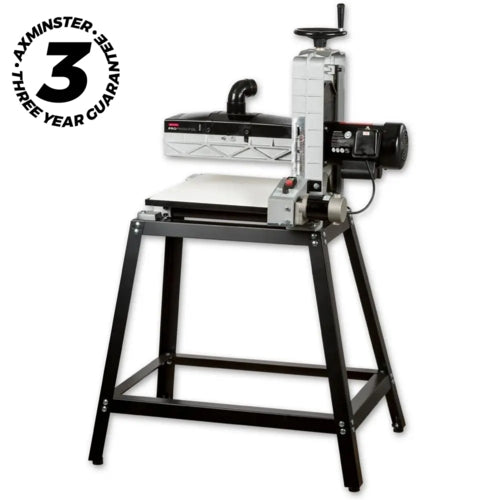

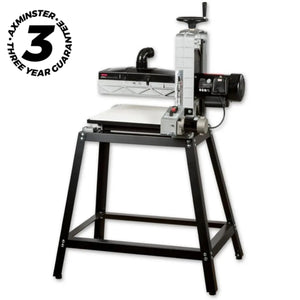

The Axminster Professional AP406DS Drum Sander is a simple yet highly effective finishing machine, ideal for both board sanding and square frame sanding. Constructed mainly from aluminium alloy castings with a steel base frame, this sander delivers long-lasting robustness while maintaining a compact footprint. The machine is supported by a sturdy, splayed leg steel floor stand for stability during use.

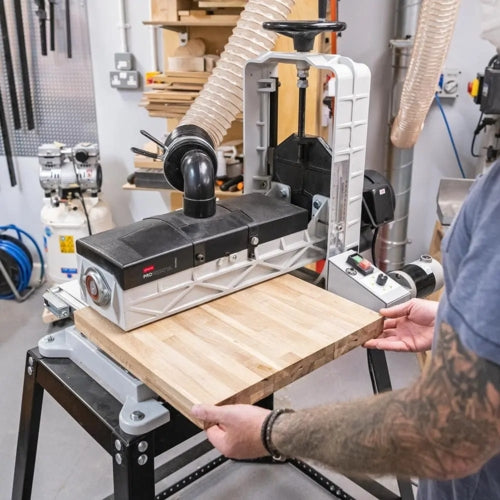

Thanks to its open-sided design, the AP406DS allows sanding of boards up to 812mm wide by passing material through both sides, while single pass sanding is possible up to 406mm. A hand control wheel with an easy-to-read indicator scale makes adjusting sanding thickness between 3mm and 127mm straightforward. The 0.75kW motor powers the drum, while a variable speed conveyor ensures flexibility to achieve the desired finish on different materials.

The rubber conveyor belt safeguards workpieces from marking, ensuring a smooth, professional finish. Additionally, the conveyor belt is simple to track, with supplied shims allowing precise alignment with the sanding drum. Changing abrasive rolls is quick and tool-free, secured by simple clips. The machine is supplied with an 80 grit abrasive roll to get started immediately.

Please note that drum sanders are designed for finishing and are not intended as replacements for planers or thicknessers. They should be used with pre-planed and dimensioned timber for optimal results.

Features & Benefits:

• Open-Sided Capacity: Sand boards up to 812mm wide (double pass) or 406mm (single pass).
• Variable Speed Conveyor: Adjust feed speed between 0.6–2.6 m/min for different finishes.

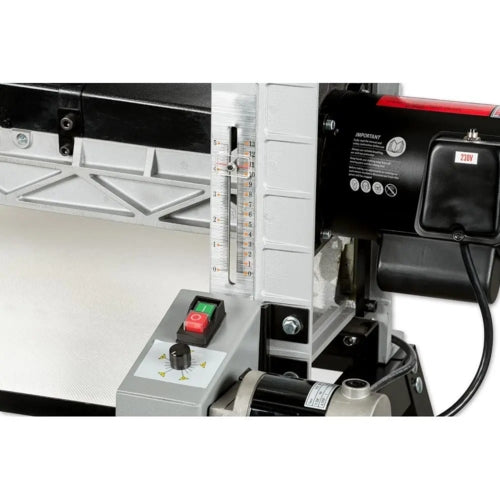

• Accurate Depth Control: Handwheel adjustment with a clear depth scale for 3–127mm thickness range.
• Rubber Conveyor Belt: Protects workpieces from marking while ensuring consistent feeding.

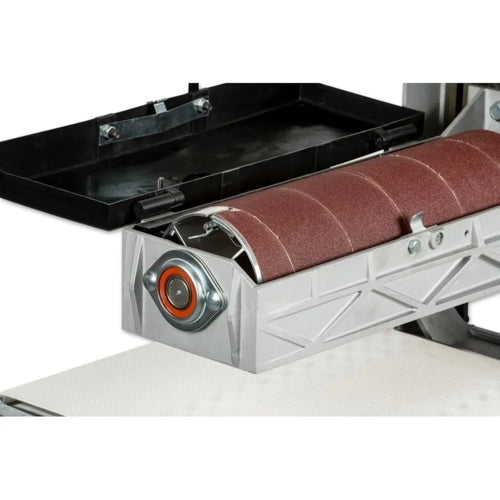

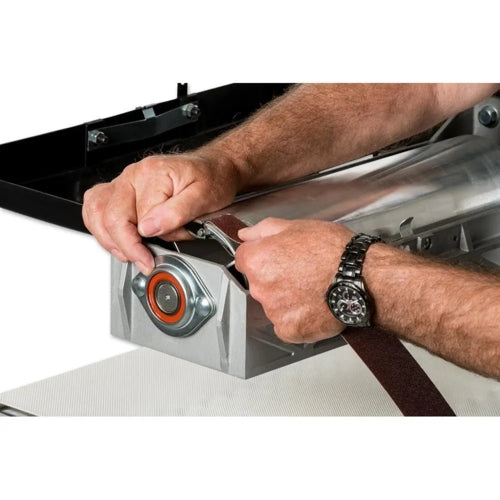

• Tool-Free Abrasive Changes: Simple clip system allows quick abrasive roll replacement.
• Quiet Operation: Low sound pressure level of 63 dB(A) for a comfortable working environment.
• Robust Build: Aluminium alloy castings with a strong steel base frame and floor stand.

Specifications:

• Model: AP406DS
• Code: 025107636
• Power: 745W
• Voltage: 230V
• Abrasive Roll Width: 76mm
• Sanding Drum Diameter: 127mm
• Drum Speed: 1,500rpm
• Sanding Width (Single Pass): 406mm
• Sanding Width (Double Pass): 812mm
• Sanding Thickness Range: 3mm – 127mm
• Feed Speed: 0.6–2.6 m/min
• Dust Extraction Outlet: 63mm
• Min Extraction Airflow Required: 750 m³/hr
• Sound Pressure Level LpA [Uncertainty K]: 63 dB(A) [1.5 dB]
• Overall Dimensions (L x W x H): 900mm x 590mm x 1,555mm
• Nett Weight: 47kg
• Rating: Trade/Professional

Scope of Delivery:

• 1 x Axminster Professional Drum Sander 745W - 230V (AP406DS) | 025107636
• 1 x Steel Floor Stand
• 1 x 80 Grit Abrasive Roll (pre-installed)
• Set of Shims for Conveyor Alignment

Axminster 3 Year Guarantee:

Look for the icon: It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine: Covered by the Axminster 3 Year Guarantee, the product is designed and intended to be used by businesses with occasional periods of continuous work. It must be regularly maintained and serviced annually. The guarantee is void when used for industrial use or as part of a production line.

Keep your receipt: You don’t need to register your new machine to benefit – just keep your proof of purchase.

Free parts & labour: We are so confident in the quality that we cover all parts and labour free of charge for three years.

The 3 Year Guarantee covers parts and labour provided:

• You have purchased the correct product for your intended purpose in accordance with our classification.
• The product is operated correctly.
• You have maintained and serviced the product in accordance with the instructions (proof may be required).

The Guarantee does NOT cover:

• Products purchased for use outside our classification advice e.g. Workshop product used for business purposes.
• Consumable items e.g., original blades, knives, drive belts, or abrasives.
• Issues identified due to normal wear and tear, misuse, and neglect.
• The product has been operated with blunt/incorrect tooling.
• The product has been modified.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
