Axminster Professional Floor Pillar Drill, 230V (AP700PD) | 025107706

Axminster Professional Floor Pillar Drill, 230V (AP700PD) | 025107706.

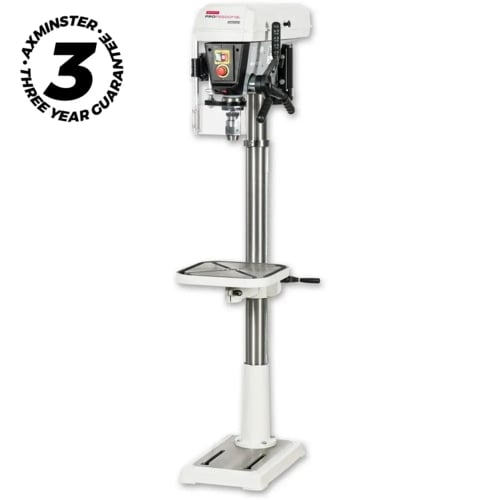

The Axminster Professional Floor Pillar Drill (AP700PD) is a durable and high-performing tool, meticulously crafted for trade and school workshops. Featuring a sturdy construction of cast iron and machined steel, this medium-sized, floor-standing drill ensures exceptional strength, stability, and reliability for heavy-duty drilling tasks.

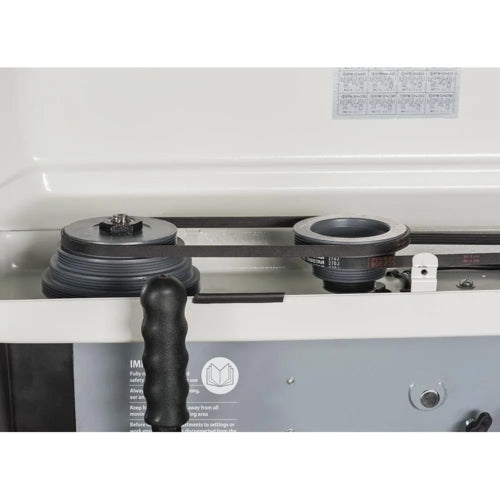

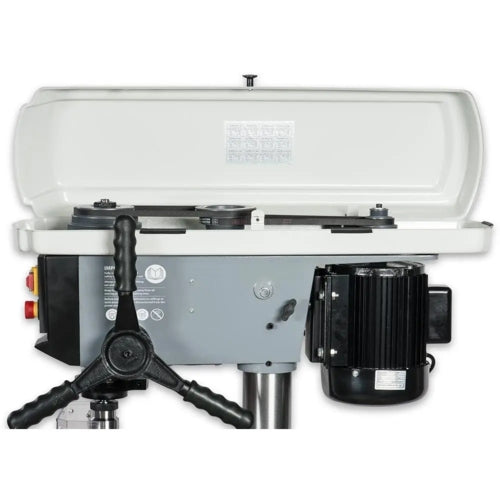

Driven by a smooth-running 750W induction motor, this drill provides 12 adjustable belt speeds ranging from 120 to 2,580rpm, delivering flexibility for various drilling applications. The precision chuck spindle assembly, supported by NSK ball race bearings, ensures accuracy and smooth operation, while the included 1-16mm keyless chuck enhances versatility.

The rack-and-pinion table height adjustment system simplifies usage, and the tiltable table (45° to 0° to 45°) accommodates angled drilling needs. Safety is a priority with the interlocked belt cover, electrically interlocked chuck guard, and a separate emergency stop switch. The integrated LED work lamp ensures excellent visibility, making this pillar drill an excellent choice for achieving precise results in demanding environments.

Please note, this machine must be bolted to the floor for safe operation.

Features & Benefits:

• Powerful 750W Induction Motor: Ensures smooth and reliable operation for consistent performance.
• Wide Speed Range: Twelve belt speeds ranging from 120 to 2,580rpm for versatile drilling applications.
• Precision Chuck Spindle Assembly: Delivers accurate drilling, supported by NSK ball race bearings.
• Adjustable Keyless Chuck: Accommodates drill bits from 1mm to 16mm for increased versatility.

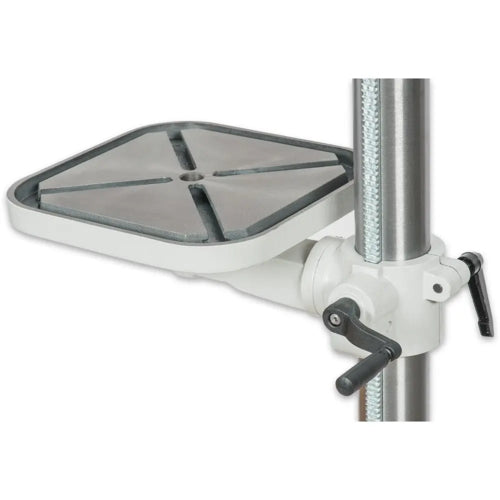

• Rack-and-Pinion Table Adjustment: Simplifies height adjustments for precise positioning.

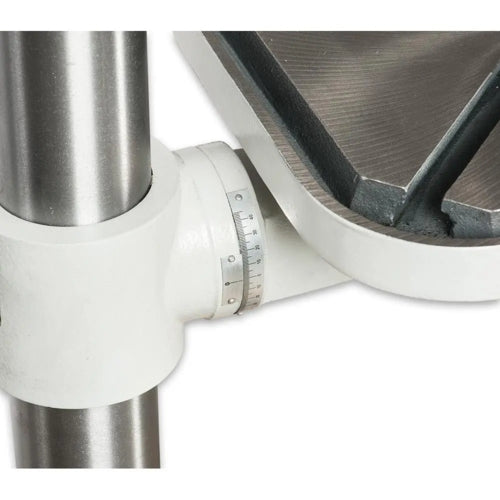

• Tiltable Table: Allows for angled drilling with a tilt range of 45° to 0° to 45°.

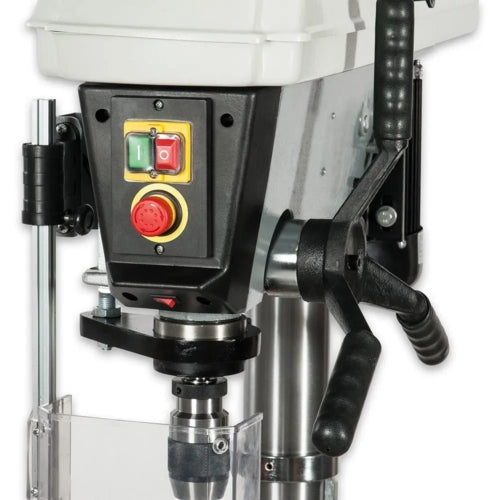

• Integrated Safety Features: Includes an interlocked belt cover, chuck guard, and an emergency stop switch for user protection.
• LED Work Lamp: Enhances visibility for accurate drilling in various lighting conditions.

Specifications:

Base Size: 520mm x 320mm
Chuck Capacity: 1mm to 16mm
Chuck Travel: 80mm
Chuck Type: Keyless
Diameter of Column: 80mm
Max Chuck to Base Distance: 1,150mm
Max Chuck to Table Distance: 700mm
Max Drilling in Mild Steel: 25mm
Morse Taper: 3 MT
Nett Weight: 108kg
Overall Dimensions (L x W x H): 750mm x 430mm x 1,650mm
Power: 750W
Rating: Trade/Professional
Speed Range: 120 – 2,580rpm (12 speeds)
Table Size: 345mm x 345mm
Table Tilt: 45° – 0° – 45°
Throat Depth: 216mm
Voltage: 230V

Scope of Delivery:

• 1 x Axminster Professional Floor Pillar Drill
• 1 x Keyless Chuck (1mm to 16mm)
• 1 x Integrated LED Work Lamp
• 1 x Adjustable Chuck Guard

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
