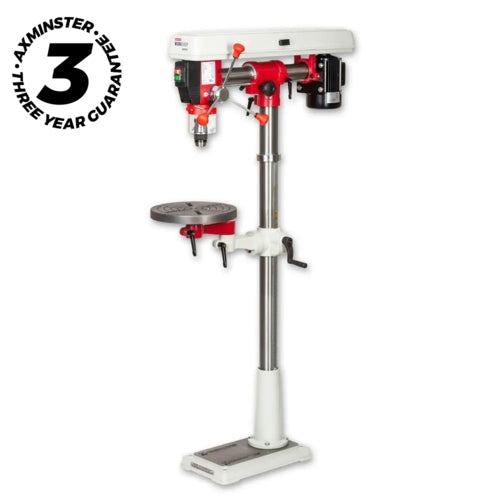

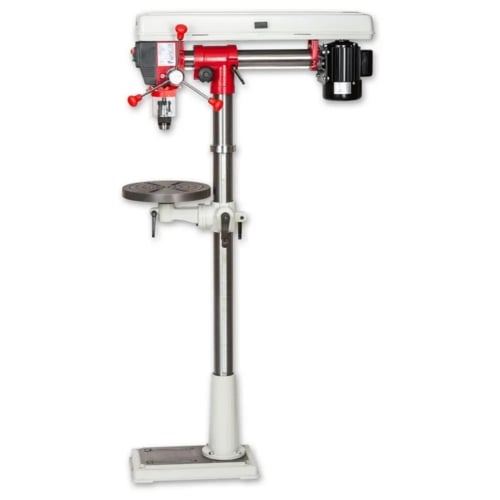

The Axminster Workshop AW680RD Floor Standing Radial Drill is a versatile and cost-effective solution for workshops needing to drill wide or angled workpieces. Designed with a tilting head, it allows drilling beyond the vertical, adding flexibility to a wide range of tasks.

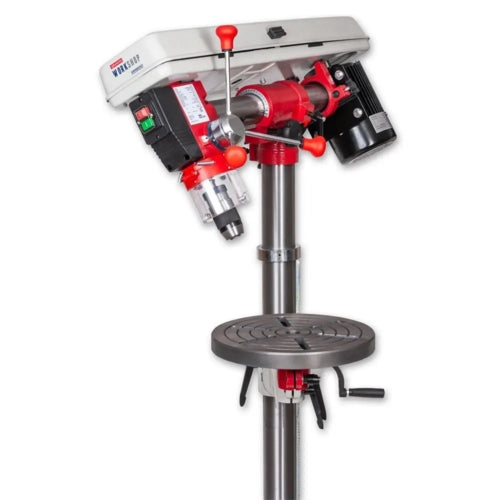

The drilling width can be adjusted between 220mm and 420mm, thanks to a smooth rack and pinion head movement. The tilting function is simple to use—unlock the knob, set the required angle using the scale, then lock the head securely. A locating pin ensures the head returns precisely to the vertical when required.

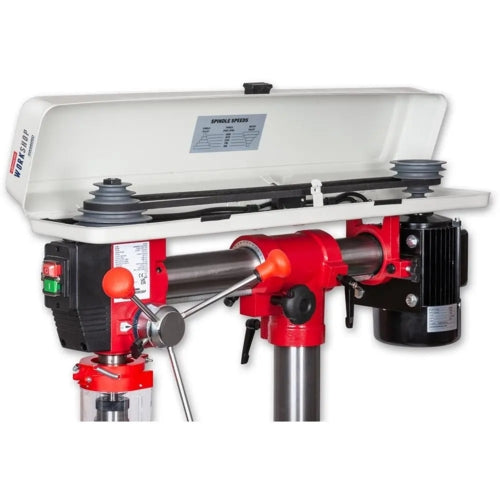

Powered by a reliable 550W induction motor, the AW680RD offers a choice of 5 pulley speeds ranging from 460 to 2,480rpm. It is equipped with a quality 1–16mm keyless chuck mounted on a 2MT arbor, supported by a true running spindle and precision quill assembly for consistent results. The two-part table assembly provides enhanced versatility, while safety is ensured with features such as rubber down feed grips, an NVR switch, a chuck guard, and a belt cover safety switch.

For added stability, this floor-standing drill should be securely bolted to the floor. Please note that when using the head in the horizontal position, care should be taken as Morse taper fittings may loosen if used incorrectly.

Features & Benefits:

• Flexible Drilling Capacity: Adjustable drilling width from 220mm to 420mm suits wide workpieces.
• Tilting Head: Allows angled drilling beyond vertical with accurate repositioning.
• Reliable Motor: 550W induction motor delivers smooth, consistent power.
• Variable Speed: Five pulley speed settings ranging from 460–2,480rpm.
• Quality Chuck: Supplied with a 1–16mm keyless chuck on a 2MT arbor.
• Precision Build: Accurate quill assembly ensures consistent drilling performance.
• Enhanced Safety: Includes NVR switch, chuck guard, and belt cover safety switch.
• Stable Design: Recommended to bolt the machine to the floor for secure operation.

Specifications:

• Model: AW680RD
• Code: 026107693
• Power: 550W
• Voltage: 230V
• Speed Range: 460–2,480rpm (5)
• Chuck Capacity: 1–16mm
• Chuck Type: Keyless
• Chuck Travel: 80mm
• Morse Taper: 2MT
• Throat Depth: 420mm
• Max Chuck to Table: 680mm
• Max Chuck to Base: 1,180mm
• Max Drilling Capacity (Mild Steel): 16mm
• Table Size: 310mm diameter
• Table Tilt: 45° – 0° – 45°
• Base Size: 450mm x 270mm
• Collar Size: 55mm
• Column Diameter: 70mm
• Overall Dimensions (L x W x H): 820mm x 320mm x 1,630mm
• Nett Weight: 61kg
• Rating: Home Workshop

Scope of Delivery:

• 1 x Axminster Workshop Floor Radial Drill 550W - 230V (AW680RD) | 026107693
• 1 x 1–16mm Keyless Chuck
• 1 x Chuck Guard
• 1 x Belt Cover Safety System

Axminster 3 Year Guarantee:

Look for the icon: It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine: Covered by the Axminster 3 Year Guarantee, the product is designed and intended to be used by businesses with occasional periods of continuous work. It must be regularly maintained and serviced annually. The guarantee is void when used for industrial use or as part of a production line.

Keep your receipt: You don’t need to register your new machine to benefit – just keep your proof of purchase.

Free parts & labour: We are so confident in the quality that we cover all parts and labour free of charge for three years.

The 3 Year Guarantee covers parts and labour provided:

• You have purchased the correct product for your intended purpose in accordance with our classification.
• The product is operated correctly.
• You have maintained and serviced the product in accordance with the instructions (proof may be required).

The Guarantee does NOT cover:

• Products purchased for use outside our classification advice e.g. Workshop product used for business purposes.
• Consumable items e.g., original blades, knives, drive belts, or abrasives.
• Issues identified due to normal wear and tear, misuse, and neglect.
• The product has been operated with blunt/incorrect tooling.
• The product has been modified.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
