Axminster Workshop Dust Extractor - 230V, 1.5kW (AW153E) | 026107697

Axminster Workshop Dust Extractor - 230V, 1.5kW (AW153E) | 026107697.

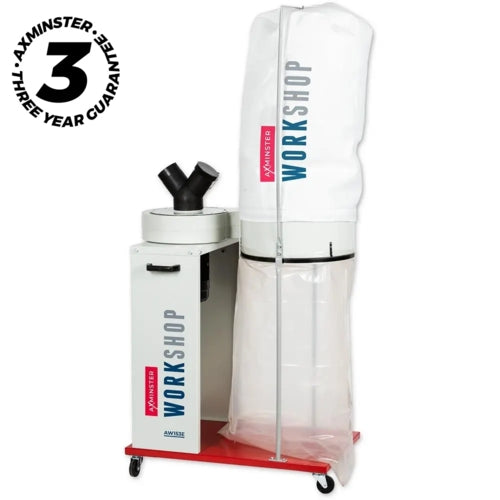

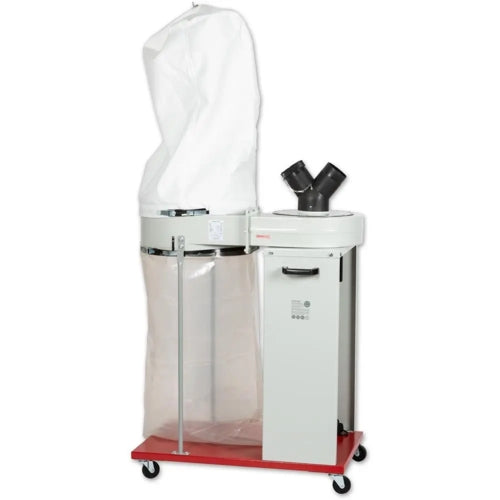

The Axminster Workshop Dust Extractor - 230V, 1.5 kW (AW153E) is the most powerful extractor in our Workshop range. Its 1.5 kW motor delivers an airflow of 1,165 m³/hr with a 100 mm hose, making it ideal for handling most workshop machines. The AW153E features a single 125 mm inlet and comes with a twin 100 mm adaptor for connecting to two machines simultaneously. Its large capacity collection bag and twin 100 mm hose inlets ensure efficient dust and chippings collection.

The top cloth bag serves as the filter while the lower plastic bag collects coarse dust and chippings. The plastic bags allow for bulk disposal and are easy to change thanks to the bag hooks. The extractor is mobile, with castors on the base for easy movement around the workshop. For machines producing fine dust, filtration performance can be enhanced with an optional cartridge filter, which has a large surface area and maintains airflow.

To maximize airflow, it is recommended to use a hose with a minimum diameter of 100 mm. Smaller diameter hoses will significantly reduce the airflow. This machine uses waste sacks sized 785 x 1,200 mm.

Product Highlights:

The AW153E offers a high airflow rate, large capacity collection, easy mobility, and the option to upgrade filtration for fine dust.

Features & Benefits:

• High airflow of 1,165 m³/hr with a 100 mm hose for efficient dust collection
• Large capacity collection bag for handling coarse dust and chippings

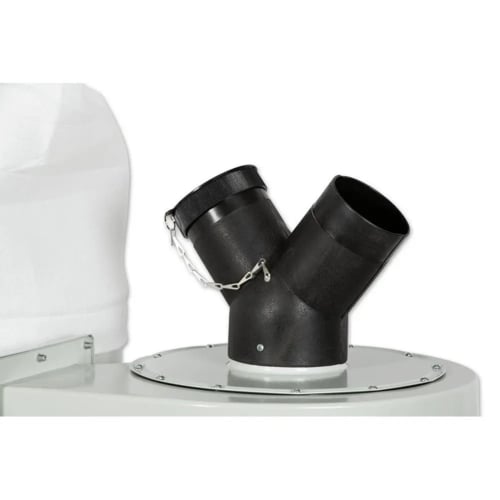

• Single 125 mm inlet with a twin 100 mm adaptor for connecting to two machines
• Top cloth bag filter and lower plastic collection bag for easy disposal
• Optional cartridge filter for improved filtration with fine dust
• Mobile design with castors for easy movement around the workshop

Specifications:

Airflow: 1,165 m³/hr @ 100 mm (33-40 m/s) / 1,730 m³/hr @ 125 mm (27-38 m/s)
Bag Capacity: 150 litres
Cable Length: 2 m
Filter Performance: 100% >30 micron
Hose Diameter: 1 x 125 mm or 2 x 100 mm
Nett Weight: 48.5 kg
Overall Dimensions (L x W x H): 890 mm x 560 mm x 1,990 mm
Plug Fitted: UK 3 pin plug
Power: 1.5 kW
Rating: Home Workshop
Sound Power Level LwA [Uncertainty K]: 77 dB(A) [1.5 dB]
Voltage: 230 V

Scope of Delivery:

• 1 x Axminster Workshop Dust Extractor - 230V, 1.5 kW (AW153E)
• 1 x Twin 100 mm Adaptor
• 1 x Top Cloth Bag
• 1 x Lower Plastic Bag

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
