Axminster Professional Portable Thicknesser 1.8 kW - 230V (AP330ST) | 025109100

Axminster Professional Portable Thicknesser 1.8 kW - 230V (AP330ST) | 025109100.

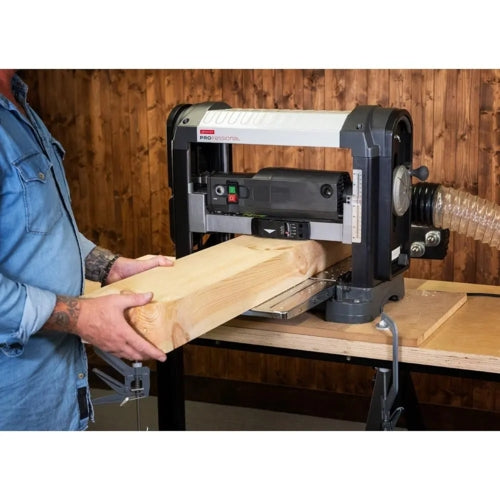

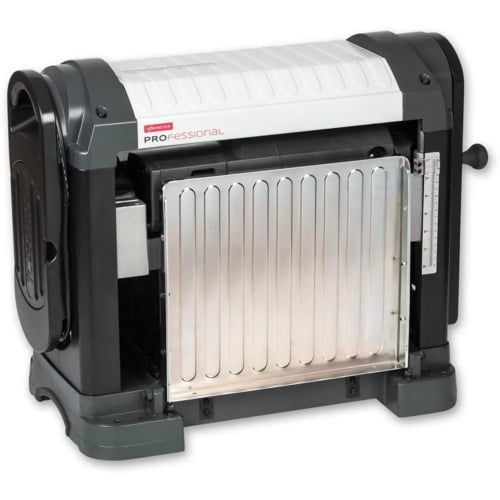

The Axminster Professional AP330ST Portable Thicknesser is a robust and thoughtfully designed machine that provides both precision and efficiency. With a maximum width capacity of 330mm and a depth of up to 152mm, it is capable of removing up to 3.2mm in a single pass, making it suitable for a wide range of woodworking applications. The foldable extension tables ensure easy setup and convenience in smaller workshops or job sites.

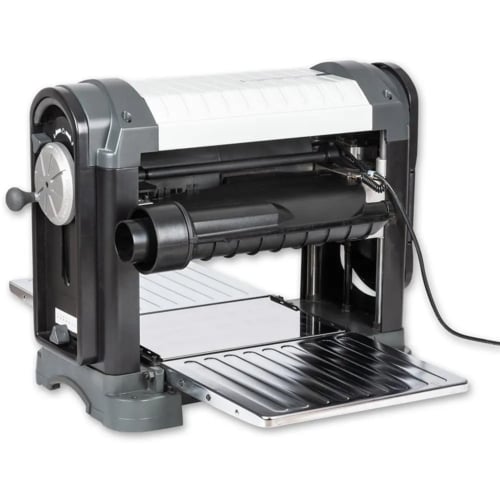

A key feature of this model is its spiral cutter block, fitted with 26 double-edged HSS spur cutters. These provide sharp, durable cutting performance and produce a super smooth finish, reducing the need for sanding. The design also runs quieter and places less load on the motor, while producing fine waste chips that improve dust extraction efficiency. Equipped with dual extraction outlets (100mm and 63mm), it ensures effective chip removal, with a blanking plug supplied for unused outlets.

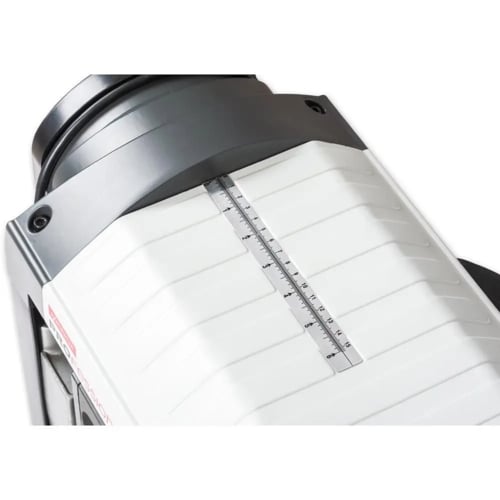

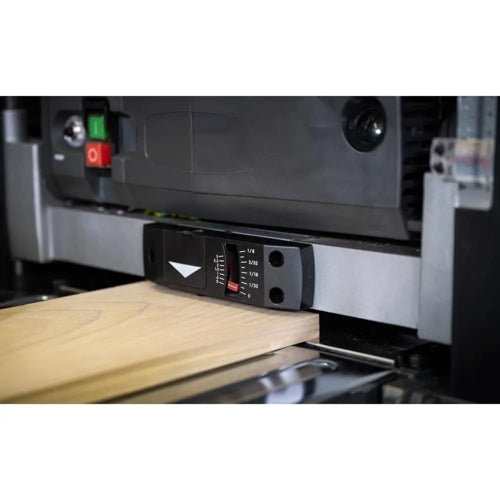

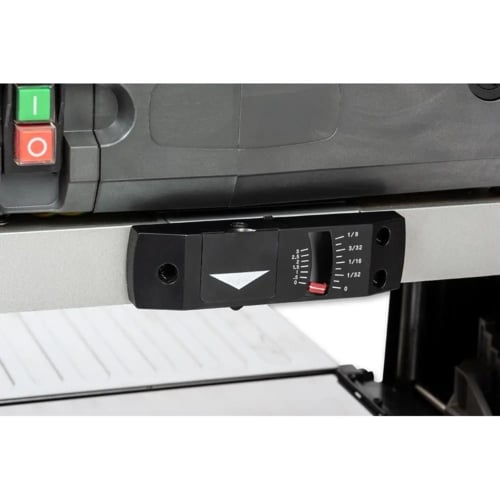

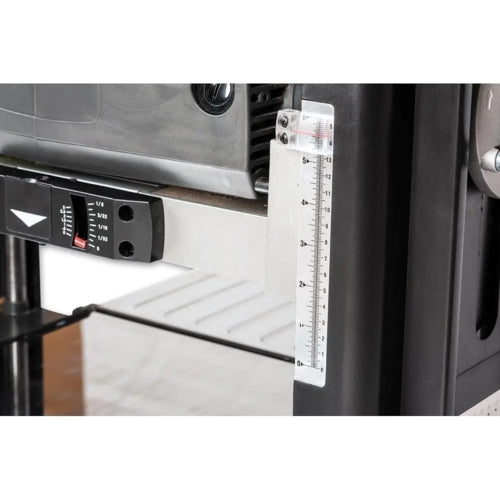

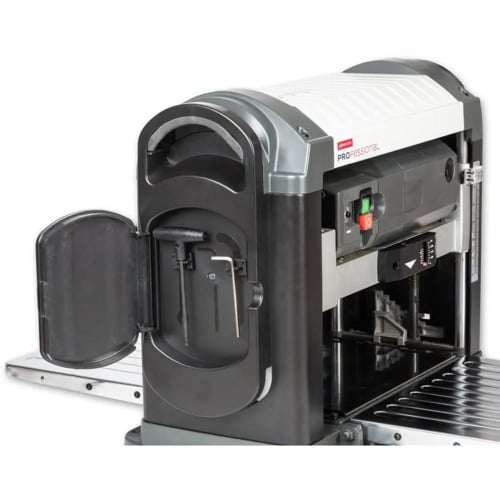

The AP330ST features smooth rise-and-fall adjustment via a handwheel, along with a clear front-mounted depth gauge for accuracy. Eight pre-set depth stops (3.2mm, 6.35mm, 12.7mm, 19mm, 25.4mm, 31.75mm, 38mm and 44.5mm) allow quick and repeatable settings. The Snipe Lock function further improves performance by locking the cutterhead in position to reduce snipe. Additionally, the unit includes a side tool storage compartment and cable tidy for practical organisation. Compact yet powerful, this thicknesser is an excellent addition to any trade or professional woodworking environment.

Features & Benefits:

• Spiral Cutter Block: Fitted with 26 double-edged HSS cutters for smooth, precise results.
• High Capacity: Handles up to 330mm width and 152mm depth, with 3.2mm removal in a single pass.
• Smooth Operation: Easy rise-and-fall handwheel adjustment with clear depth gauge.
• Pre-Set Depth Stops: Eight common thickness settings for quick and accurate adjustments.
• Snipe Lock: Reduces snipe by locking the cutterhead in position.
• Effective Dust Extraction: Dual outlets (100mm and 63mm) ensure efficient chip removal.
• Convenient Design: Folding extension tables, side tool storage, and cable tidy included.
• Durable Performance: Quieter, efficient motor load handling and extended cutter life.

Specifications:

• Model: AP330ST
• Code: 025109100
• Power: 1.8 kW
• Voltage: 230V
• Cutterblock Speed: 10,000 rpm
• Knives: 26 x HSS Spur Cutters
• Feed Speed: 8 m/min
• Max Thicknessing Width: 330mm
• Max Thicknessing Height: 152mm
• Min Thicknessing Height: 3.0mm
• Max Depth of Cut: 3.2mm
• Table Size: 860mm x 330mm
• Length of Table (Including Extensions): 860mm
• Dust Extraction Outlet: 100mm & 63mm
• Min Extraction Airflow Required: 1,200 m³/hr
• Overall Dimensions (L x W x H): 860mm x 670mm x 500mm
• Nett Weight: 38kg
• Sound Power Level LwA [Uncertainty K]: 100 dB(A) [3.0 dB]
• Sound Pressure Level LpA [Uncertainty K]: 90 dB(A) [3.0 dB]
• Plug Fitted: UK 3 Pin Plug
• Rating: Trade/Professional

Scope of Delivery:

• 1 x Axminster Professional AP330ST Portable Thicknesser
• 1 x Spiral Cutter Block fitted with 26 HSS Cutters
• 1 x Folding Extension Tables (Front and Rear)
• 1 x Blanking Plug for Dust Extraction
• 1 x Integrated Tool Storage Compartment
• 1 x Cable Tidy

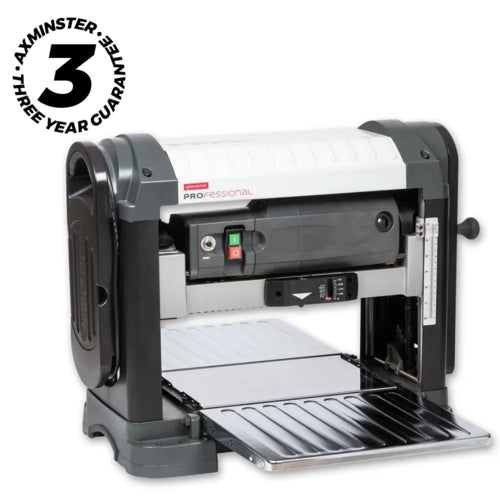

Axminster 3 Year Guarantee:

Look for the icon: It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine: Covered by the Axminster 3 Year Guarantee, the product is designed and intended to be used by businesses with occasional periods of continuous work. It must be regularly maintained and serviced annually. The guarantee is void when used for industrial use or as part of a production line.

Keep your receipt: You don’t need to register your new machine to benefit – just keep your proof of purchase.

Free parts & labour: We are so confident in the quality that we cover all parts and labour free of charge for three years.

The 3 Year Guarantee covers parts and labour provided:

• You have purchased the correct product for your intended purpose in accordance with our classification.
• The product is operated correctly.
• You have maintained and serviced the product in accordance with the instructions (proof may be required).

The Guarantee does NOT cover:

• Products purchased for use outside our classification advice e.g. Workshop product used for business purposes.
• Consumable items e.g., original blades, knives, drive belts, or abrasives.
• Issues identified due to normal wear and tear, misuse, and neglect.
• The product has been operated with blunt/incorrect tooling.
• The product has been modified.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
