Axminster AW1400B Bench-Top Workshop Bandsaw 230V | 026107710

Axminster AW1400B Workshop Bandsaw 230V | 026107710

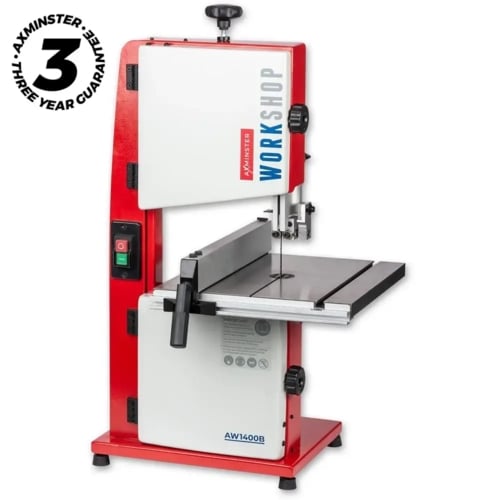

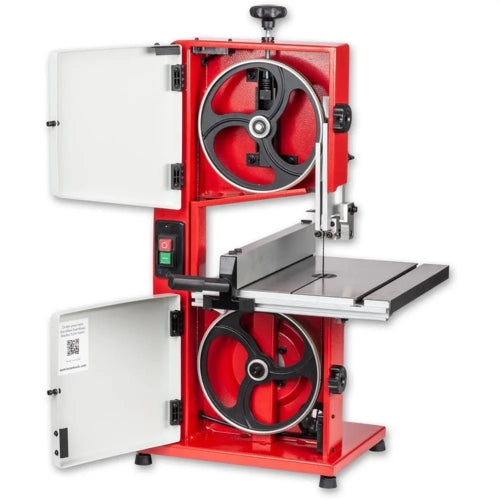

The Axminster Workshop AW1400B Bandsaw is purpose-built for hobbyists, craftworkers, and small workshop environments. This bench-mounted machine delivers reliable cutting performance while remaining compact and easy to move when not in use. Whether you're tackling smaller woodworking tasks or adding a supplementary tool to your workspace, the AW1400B offers precision and control in a space-saving design.

Constructed around a durable welded steel chassis and equipped with a ground cast iron table, the AW1400B ensures excellent stability during use. It accommodates blade widths from 4.8 mm to 9.5 mm, giving you the versatility needed for detailed and varied cutting jobs. Additionally, the bearing blade guides and thrust bearing improve blade control, enabling accurate and consistent cuts beyond typical entry-level bandsaws.

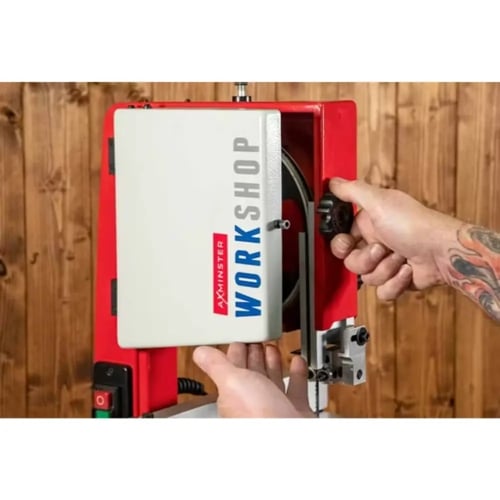

A rack and pinion mechanism allows precise adjustment of the top guide blade, supporting a maximum cutting height of 80 mm. Moreover, the balanced cast alloy wheels and direct drive motor provide smooth, quiet operation. Blade tracking and tensioning controls are conveniently placed on the top wheel's welded sub-frame, ensuring easy access during setup and adjustment.

Dust extraction is managed through a single 40 mm outlet, which works efficiently when connected to a suitable vacuum system—crucial for maintaining a clean workspace and optimizing performance. The bandsaw comes equipped with a UK-manufactured 6 mm x 6 TPI general-purpose blade, suitable for a variety of basic applications. For additional functionality, an optional mitre fence is available separately.

Features & Benefits:

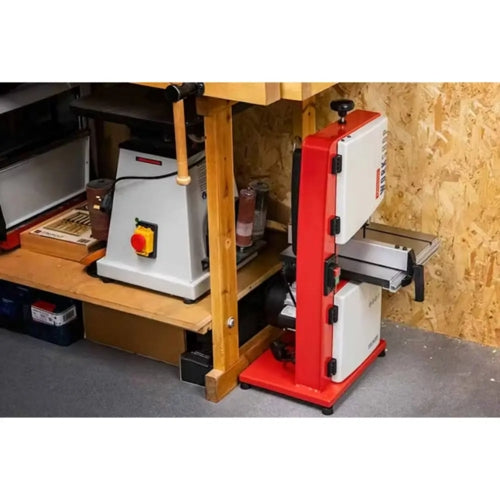

• Compact and Mobile: Easily relocated in smaller workshops or confined spaces.
• Robust Construction: Welded steel frame and cast iron table for improved rigidity and precision.
• Blade Versatility: Compatible with blade widths from 4.8 mm to 9.5 mm for flexible cutting options.

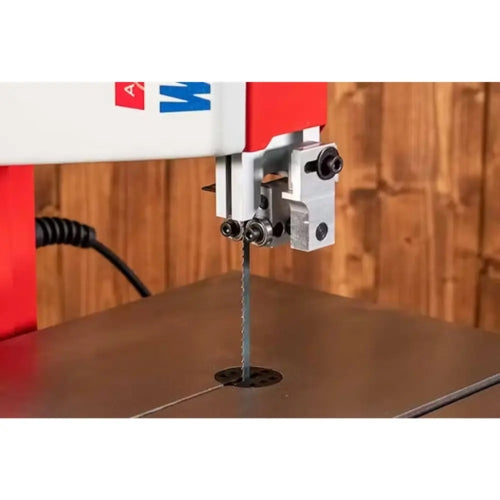

• Precision Cutting: Bearing blade guides and thrust bearing offer increased accuracy and control.
• Height Adjustment: Rack and pinion system supports up to 80 mm cutting depth for varied applications.
• User-Friendly Design: Accessible tracking and tensioning controls enhance setup efficiency.

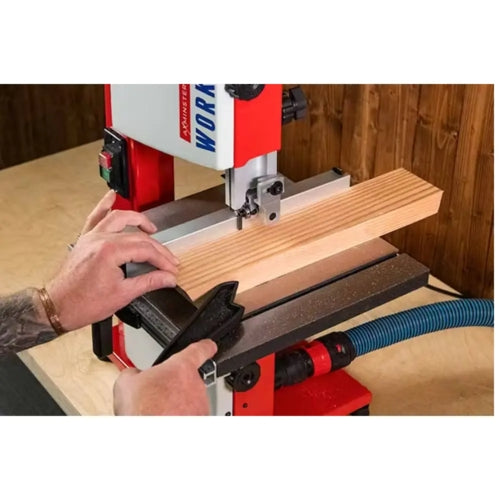

• Effective Dust Control: 40 mm dust port supports clean, efficient operation when connected to an extractor.
• Includes Blade: Supplied with a UK-made 6 mm x 6 TPI general-purpose blade.

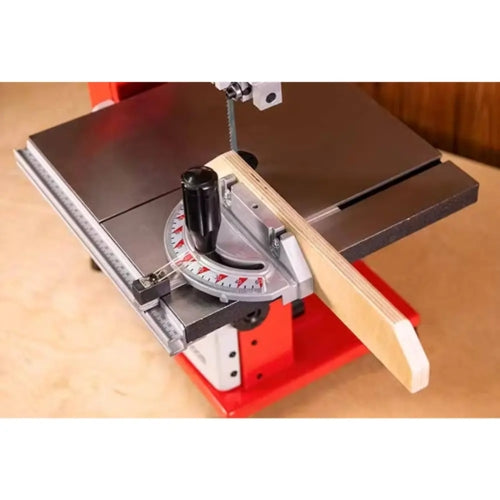

• Accessory Ready: Optional mitre fence available (sold separately) for added functionality.

Specifications:

Model: AW1400B
Voltage: 230 V
Power: 250 W
Rating: Home Workshop
Bandsaw Blade Length: 1,400 mm (55″)
Bandsaw Wheel Diameter: 200 mm
Blade Speed: 800 m/min
Blade Width Range: 4.8 mm to 9.5 mm
Max Cutting Height: 80 mm
Max Width of Cut: 200 mm
Max Width of Cut with Fence: 102 mm
Table Size: 300 mm x 300 mm
Table Height: 290 mm

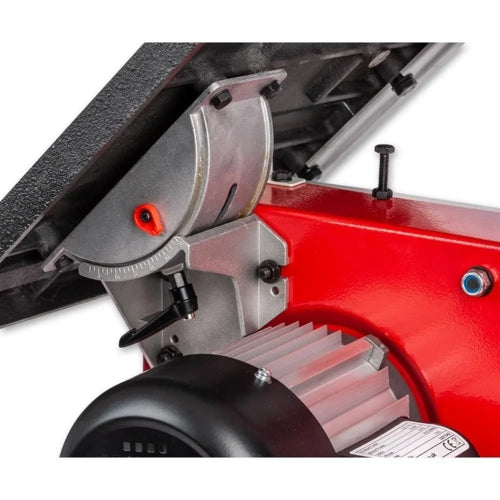

Table Tilt: 0° – 45°
T Slot Size: 13 mm x 9 mm
Dust Extraction Outlet: 40 mm
Minimum Extraction Airflow Required: 200 m³/hr
Overall Dimensions (L x W x H): 450 mm x 430 mm x 700 mm
Nett Weight: 20 kg
Sound Power Level (LwA): 97 dB(A) [Uncertainty K: 3.0 dB]
Sound Pressure Level (LpA): 83.5 dB(A) [Uncertainty K: 3.0 dB]
EAN Barcode: 5052511124886

Scope of Delivery:

• Axminster AW1400B Workshop Bandsaw
• 6 mm x 6 TPI General Purpose Blade (UK manufactured)
• Instruction Manual

Axminster 3 Year Guarantee:

Look for the icon:

• It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine:

• Covered by the Axminster 3 Year Guarantee, this product is designed for home workshop use with occasional continuous operation. Regular maintenance and annual servicing are required. The guarantee is void if used for industrial or production line applications.

Keep your receipt:

• No registration needed – your proof of purchase is sufficient.

Free parts & labour:

• We’re confident in the quality – that’s why all parts and labour are covered for three years.

Guarantee coverage includes:

• Correct usage in accordance with our product classification
• Proper operation and annual maintenance (proof may be required)

Guarantee does NOT cover:

• Commercial/industrial use outside of classification
• Consumables such as blades, belts, and abrasives
• Normal wear and tear, misuse, or neglect
• Operation with blunt or incorrect tooling
  Any modifications made to the machine

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
