Axminster Workshop Benchtop Thicknesser (AW318BT) | 026107676

Axminster Workshop Benchtop Thicknesser (AW318BT) | 026107676.

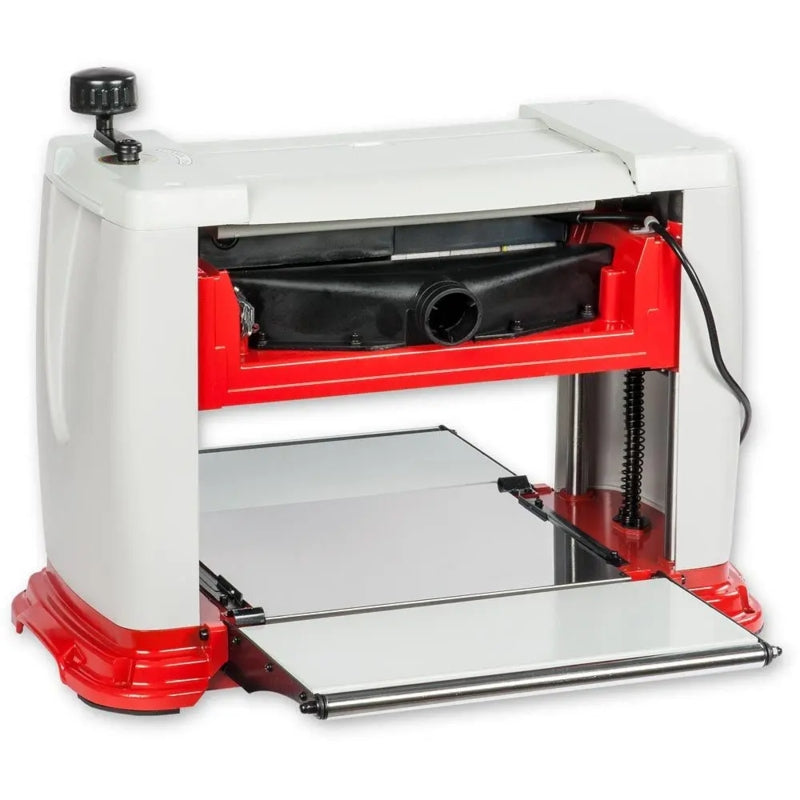

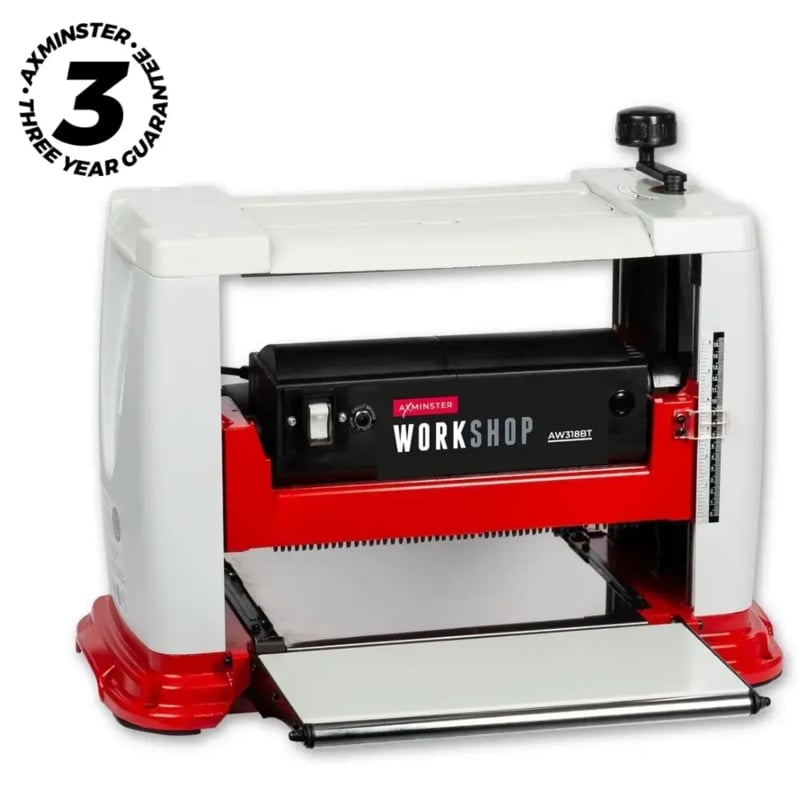

The Axminster AW318BT Benchtop Thicknesser is designed with the enthusiastic woodworker in mind. Despite its compact footprint, it houses a powerful 1,800W motor capable of removing up to 2.5 mm of material per pass. Its two resharpenable HSS blades operate at 9,000 rpm to deliver an impressive 18,000 cuts per minute, ensuring a smooth, ripple-free finish.

A feed speed of 7 m/min facilitates efficient material processing, while the thicknesser accommodates timber up to 153 mm thick and 318 mm wide. For added convenience, both the front and rear table extensions fold down and include end rollers to support longer workpieces during operation.

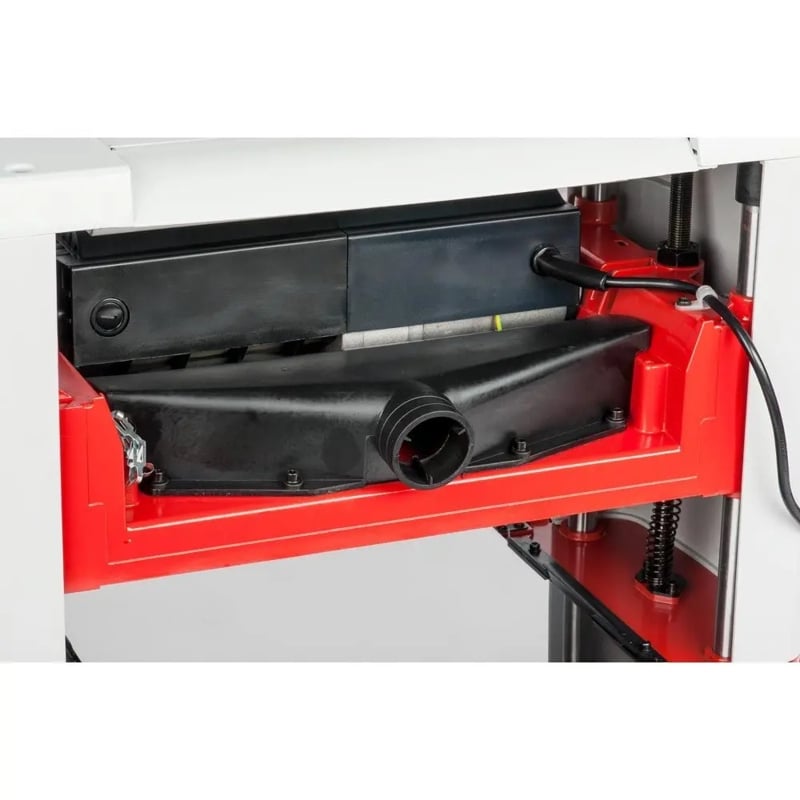

The integrated 50 mm diameter dust extraction outlet allows for a cleaner workspace when connected to an appropriate vacuum extractor. Additionally, motor overload protection with a reset circuit breaker and an NVR safety switch provide operational safety.

Whether working with hardwoods or softwoods, this portable benchtop thicknesser offers consistent performance and reliable results. It is supplied complete with tools and a blade setting jig.

Features & Benefits:

• High Cutting Efficiency: Dual resharpenable HSS blades deliver 18,000 cuts per minute for a superior surface finish.
• Robust Cutting Capacity: Handles stock up to 153 mm thick and 318 mm wide, ideal for a variety of woodworking projects.
• Smooth Material Feed: A feed speed of 7 m/min allows for steady material progression with minimal manual intervention.
• Support for Longer Boards: Fold-down table extensions with end rollers provide enhanced stability and control when planing long boards.
• Clean Work Environment: The 50 mm dust extraction port ensures compatibility with vacuum extractors to manage dust efficiently.
• Safety-Oriented Design: Includes motor overload protection and an NVR switch to prevent accidental restarts.
• Highly Portable: Weighs only 30 kg, making it convenient for transport and use across different locations.

Specifications:

Model: AW318BT
Power: 1.8 kW
Voltage: 230 V
Rating: Home Workshop
Cuts per Minute: 18,000
Cutterblock Speed: 9,000 rpm
Cutterblock Diameter: 48 mm
Knives: HSS (Resharpenable) x 2
Max Depth of Cut Thicknesser: 2.5 mm
Max Thicknessing Height: 153 mm
Min Thicknessing Height: 5.0 mm
Max Thicknessing Width: 318 mm
Feed Speed: 7 m/min
Dust Extraction Outlet: 50 mm
Min Extraction Airflow Required: 390 m³/hr
Overall Dimensions (L x W x H): 600 mm x 360 mm x 480 mm
Nett Weight: 30 kg
EAN Barcode: 5052511125357

Scope of Delivery:

• 1 x Axminster AW318BT Benchtop Thicknesser
• 2 x Resharpenable HSS Blades (pre-installed)
• 1 x Blade Setting Jig
• 1 x Tool Kit

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
