Axminster Professional Table Saw 254mm, 2.5kW (AP254SB) | 025108516

Axminster Professional Table Saw 254mm, 2.5kW (AP254SB) | 025108516.

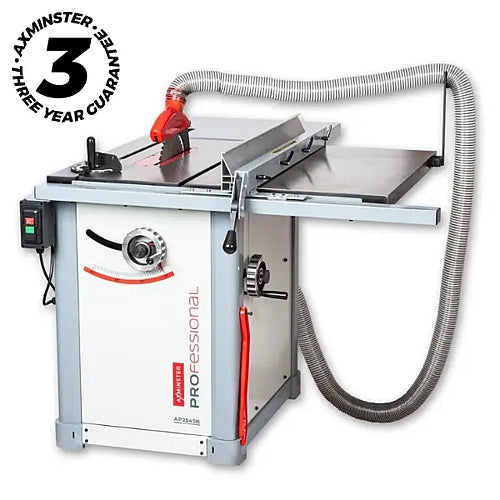

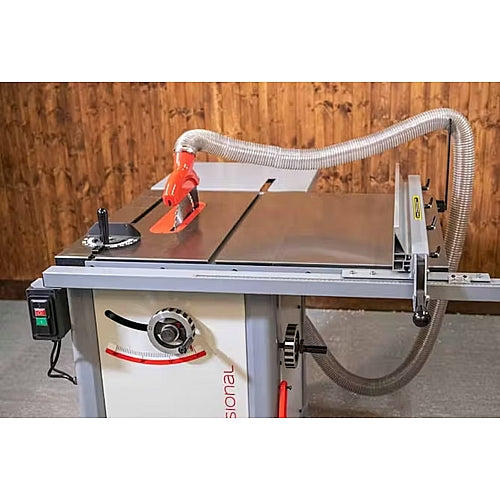

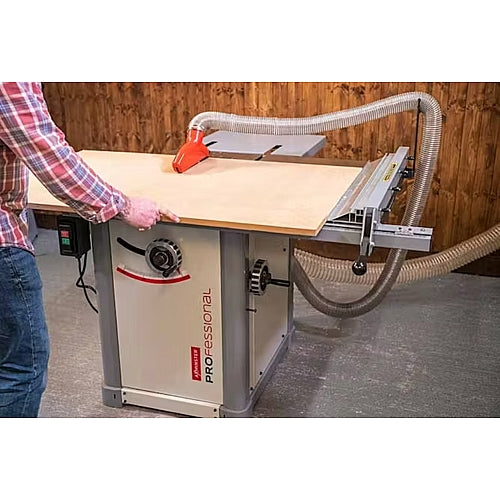

The Axminster Professional Table Saw (AP254SB) is an expertly engineered saw bench tailored for the demands of busy workshops. With a robust 2.5kW induction motor and a solid steel chassis, it provides consistent power and stability for precision cutting tasks. The large, fine-ground cast iron table and right-hand extension table ensure smooth operation, reduced vibration, and an extended cutting width of up to 695mm.

The AP254SB offers an impressive 80mm cutting depth at 90° and 56mm at 45°, accommodating a variety of woodworking tasks. The rip fence, designed with a Hi/Lo aluminium auxiliary feature, ensures close-to-blade work and heavy-duty ripping. Twin T-slot mitre fence grooves on either side of the blade add versatility for jig applications. Additionally, dual dust extraction ports keep the workspace clean and the cutting line visible.

This saw is supplied with an Axcaliber TCT general-purpose blade, right-hand and rear extension tables, and a premium mitre gauge with pre-set angle stops. For enhanced functionality, optional dado blade accessories are available. Built for reliability, it’s backed by the Axminster 3-year Guarantee.

N.B. This Machine requires a 16amp supply and it’s recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.

Features & Benefits:

• Durable Cast Iron Tables: Large fine-ground cast iron surfaces provide stability, reduced vibration, and extended durability.
• Independent Trunnion Assembly: Mounted separately from the table, ensuring the table remains flat and true over time.

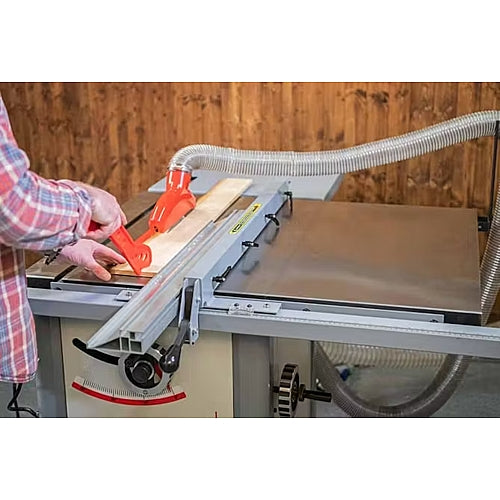

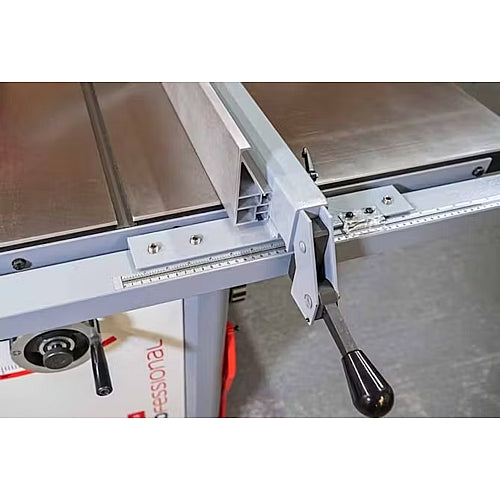

• Solid "T" Style Rip Fence: The dual-height rip fence allows for close-to-blade and heavy-duty ripping with precision.
• Extension Tables: Includes a rear and right-hand extension table, offering a maximum cutting width of 695mm.

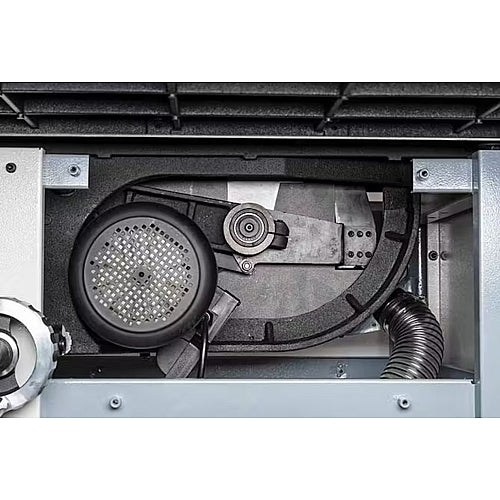

• Powerful Induction Motor: The 2.5kW motor ensures consistent blade speed for reliable performance.

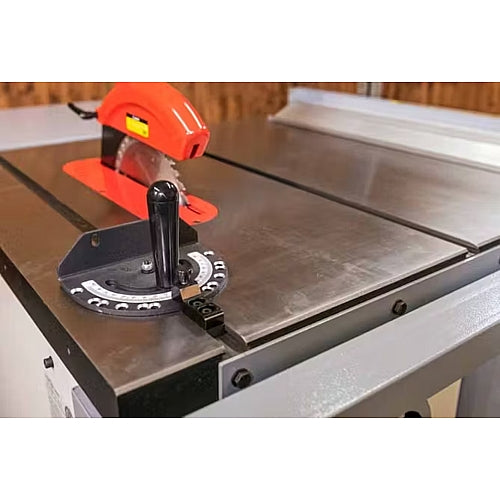

• Twin Mitre Slots: Twin T-slots on both sides of the blade are ideal for jig use and come with a premium mitre gauge.

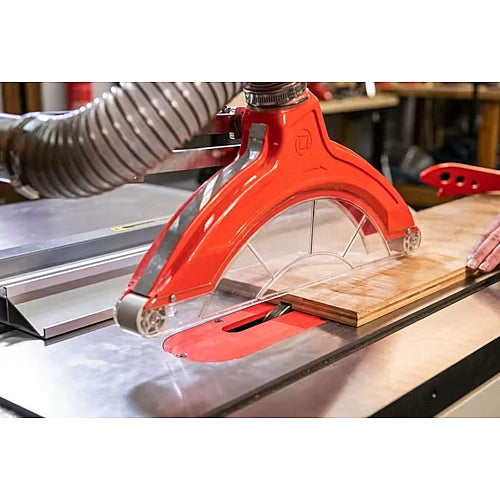

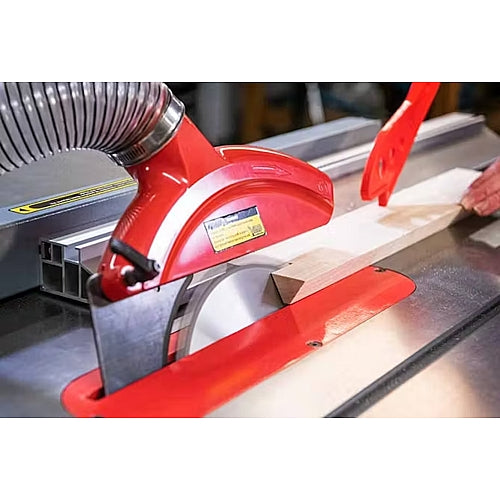

• Dual Dust Extraction Ports: Features a 63mm blade guard hose connection and a 100mm rear outlet for efficient dust management.
• Compatible with Dado Blade: Optional dado blade accessories enable groove cutting for versatile applications.

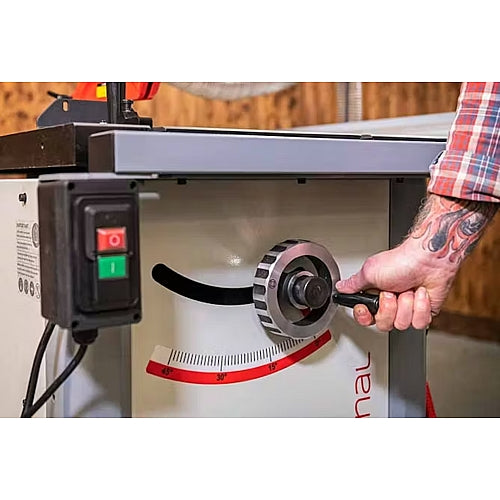

• Heavy-Duty Handwheels: Metal handwheels provide smooth and precise blade adjustments for height and tilt.

Specifications:

Blade Diameter: 254mm
Blade RPM: 4,000rpm
Blade Tilt: 0° to 45°
Bore Size: 30mm
Dust Extraction Outlet: 100mm & 63mm
Max Depth of Cut @ 45°: 56mm
Max Depth of Cut @ 90°: 80mm
Max Width of Cut with Fence: 695mm with R/H extension
Minimum Extraction Airflow Required: 1,000m³/hr
Nett Weight: 175kg
Overall Dimensions (L x W x H): 1,610mm x 1,210mm x 1,125mm
Power: 2.5kW
Rating: Trade/Professional
Sound Power Level LwA [Uncertainty K]: 97.4dB(A) [3.0dB]
Sound Pressure Level LpA [Uncertainty K]: 80.5dB(A) [3.0dB]
Spindle Diameter: 5/8″ (15.87mm)
Table Height: 850mm
Table Size: 580mm x 800mm
Voltage: 230V

Scope of Delivery:

• 1 x Axminster Professional Table Saw (AP254SB)
• 1 x Axcaliber TCT General-Purpose Blade
• 1 x Rear Extension Table
• 1 x Right-Hand Extension Table
• 1 x Premium Mitre Gauge with Pre-Set Angle Stops

https://www.youtube.com/watch?v=xBy3reoDyRY

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
