Axminster Workshop Bandsaw 1.1kW, 230V (AW2606B) | 026108000

Axminster Workshop Bandsaw 1.1 kW, 230V (AW2606B) | 026108000.

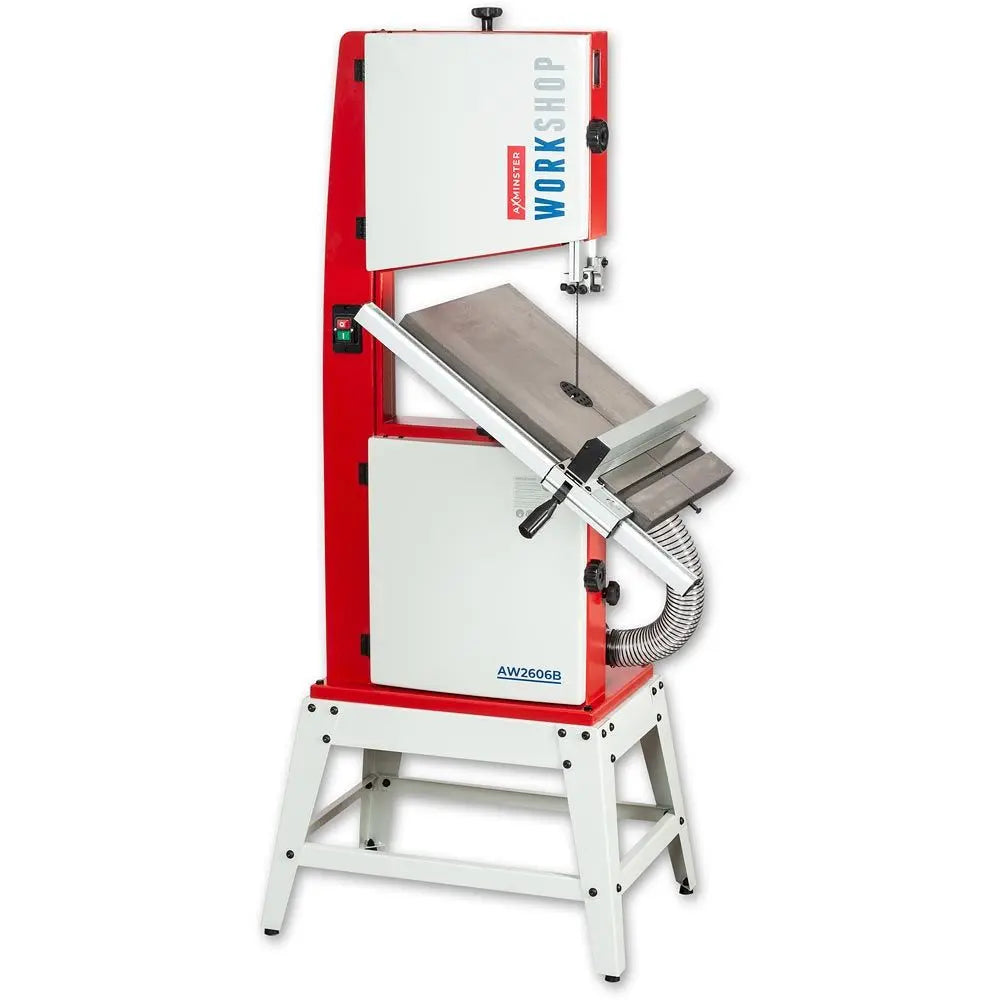

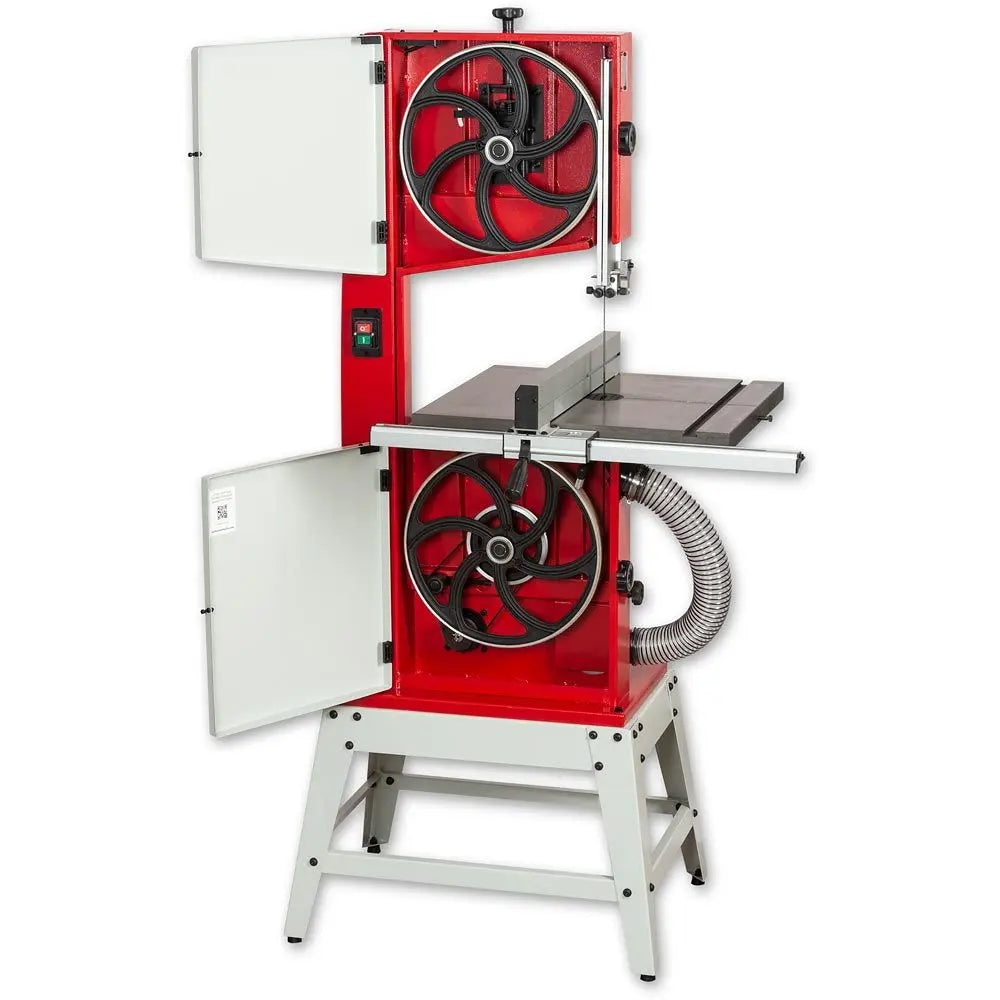

The AW2606B Bandsaw is designed to provide dependable performance for both precise veneer slicing and resawing large timber sections. Its quiet, reliable alloy-bodied 1.1 kW induction motor drives the bandsaw via a multi V-belt, and the dual blade speed allows for optimal cutting for various tasks. The bandsaw’s strong fabricated steel frame and generously sized cast iron table ensure stability and accuracy during operation.

The cast iron table includes a standard 19mm mitre fence slot, and the quick-locking rip fence mounts solidly to the front rail, supported by twin scales that allow flexible fence placement on either side of the blade. Bearing guides enhance accuracy, while the rack and pinion system enables easy adjustment of the upper blade guide. Dust is efficiently managed with two interconnected extraction points leading to a single 100mm outlet, compatible with a suitable extractor. The bandsaw comes with a splayed leg steel stand with rubber feet and a UK-made general purpose 1/2″ x 4tpi blade, ready for immediate use.

Features & Benefits:

• Large Cutting Capacity: Resaw thick timber or cut thin veneers with up to 200mm height and 360mm width.
• Rigid Cast Iron Table: Provides stable support for accurate and precise cuts.
• Dual Blade Speeds: 600 and 840 m/min ensure the right speed for each cutting task.

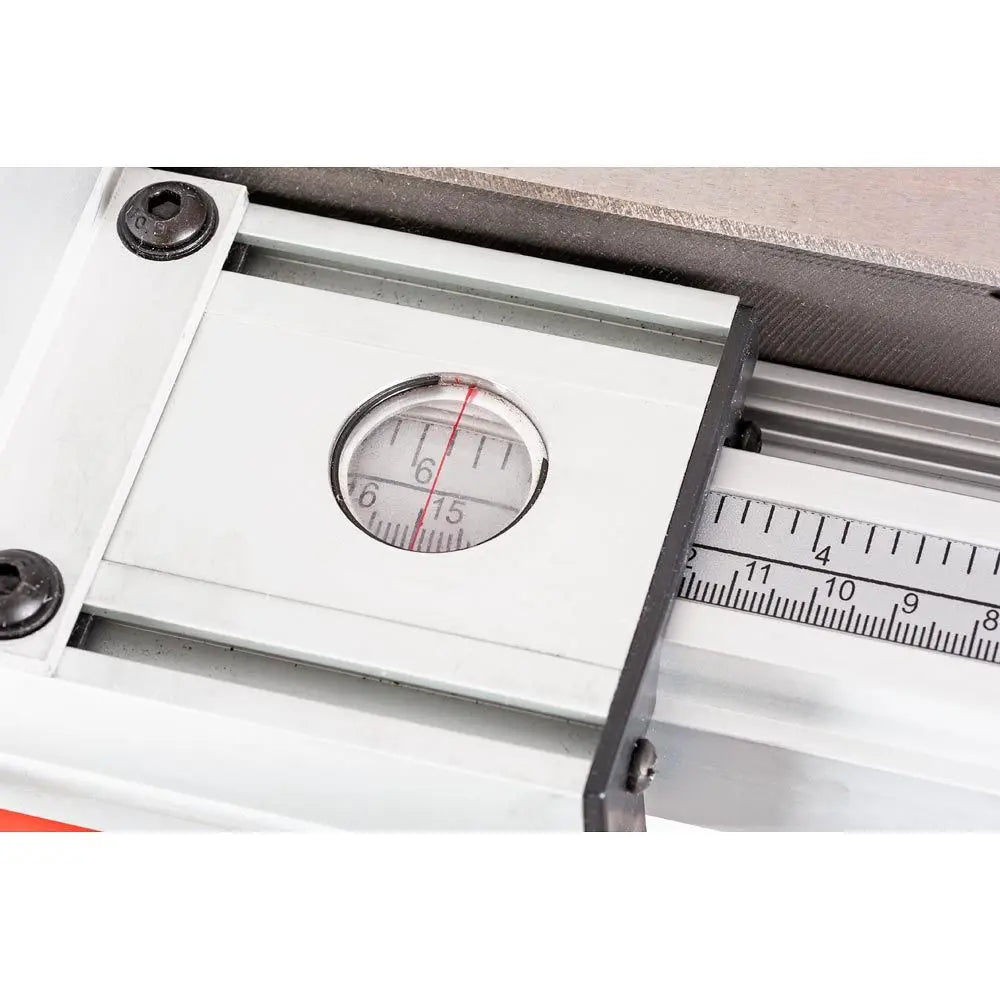

• Quick-Locking Rip Fence: Solid front rail mounting and twin scales for flexibility and precision.

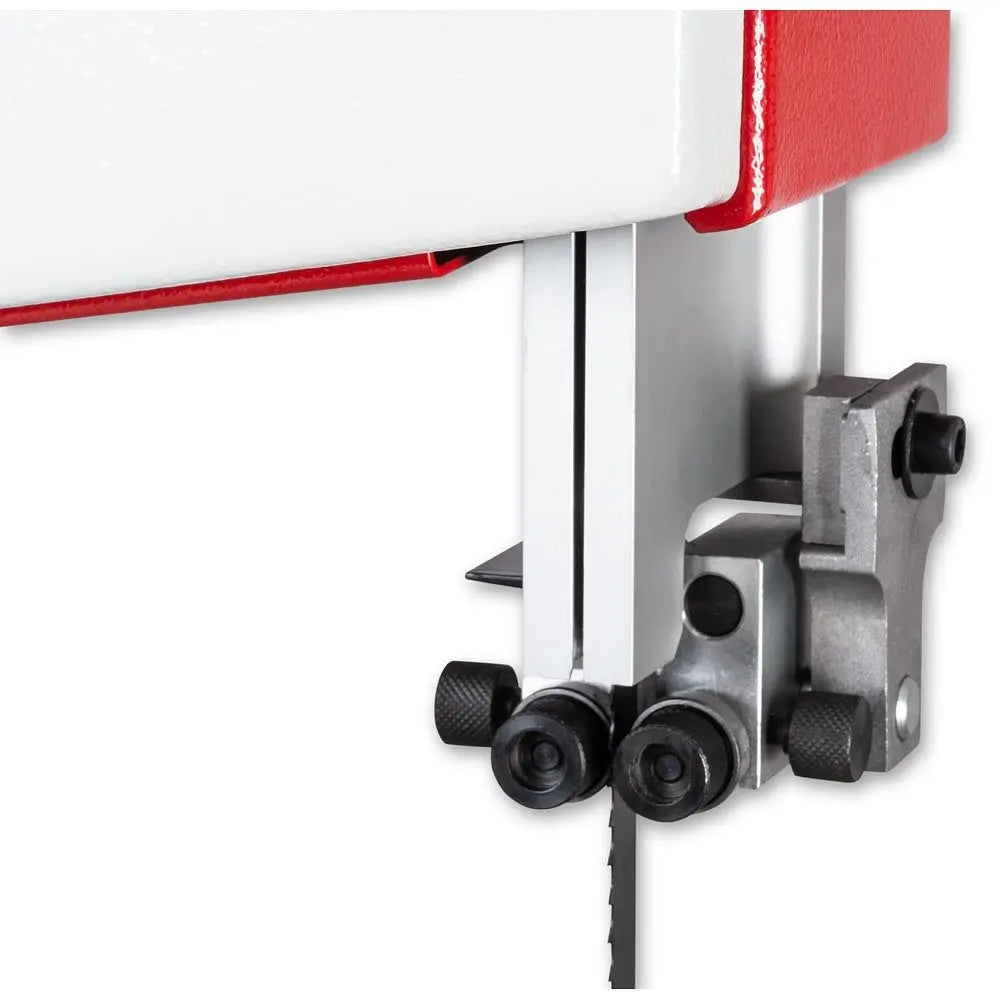

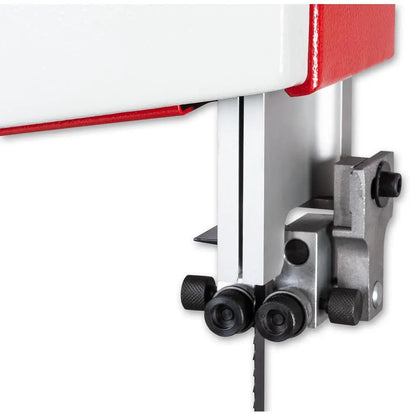

• Accurate Blade Guidance: Bearing guides and rack-and-pinion upper guide adjustment improve cutting precision.

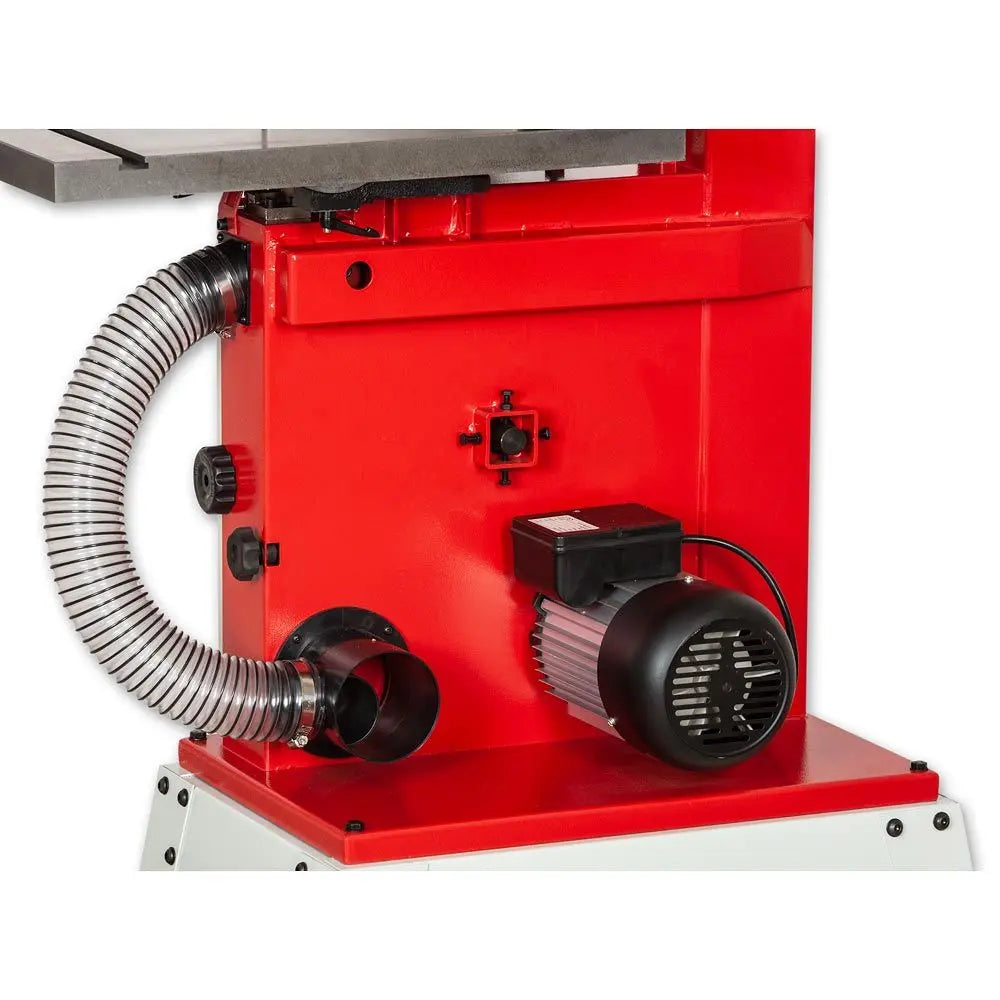

• Efficient Dust Extraction: Two extraction points joined to a single 100mm outlet keep the workspace clean.
• Stable Steel Stand: Splayed legs with rubber feet provide safety and balance.

Specifications:

Model: AW2606B
Code: 026108000
EAN Barcode: 5052511126309
Power: 1.1 kW
Voltage: 230 V
Bandsaw Blade Length: 2,606 mm
Bandsaw Wheel Diameter: 370 mm
Blade Speed: 600 & 840 m/min
Blade Width Min-Max: 6 mm to 19 mm
Dust Extraction Outlet: 100 mm
Max Cutting Height: 200 mm
Max Width of Cut: 360 mm
Max Width of Cut with Fence: 260 mm
Min Extraction Airflow Required: 1,000 m³/hr
Sound Power Level LwA [Uncertainty K]: 98.5 dB(A) [3.0 dB]
Sound Pressure Level LpA [Uncertainty K]: 84 dB(A) [3.0 dB]
T Slot Size: 19 mm x 9.5 mm
Table Height: 1,060 mm
Table Size: 485 mm x 550 mm

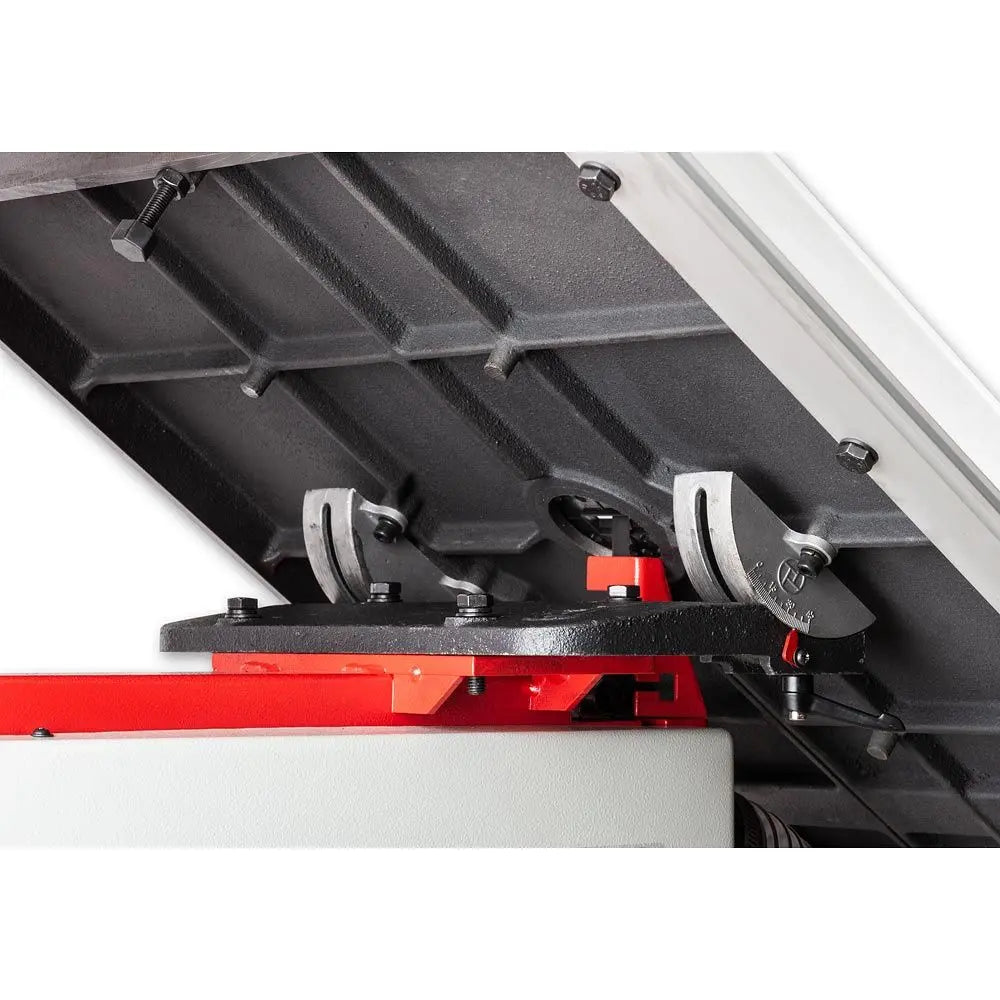

Table Tilt: 0° – 45°
Overall L x W x H: 980 mm x 760 mm x 1,740 mm
Nett Weight: 85 kg
Rating: Home Workshop

Scope of Delivery:

• 1 x Axminster Workshop Bandsaw 1.1 kW, 230V (AW2606B) | 026108000

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
