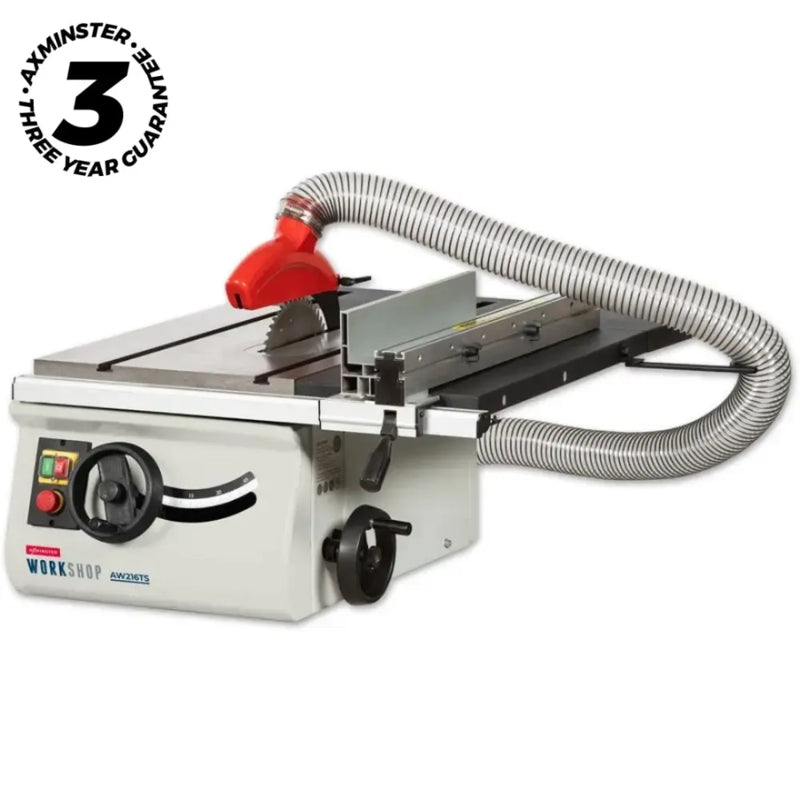

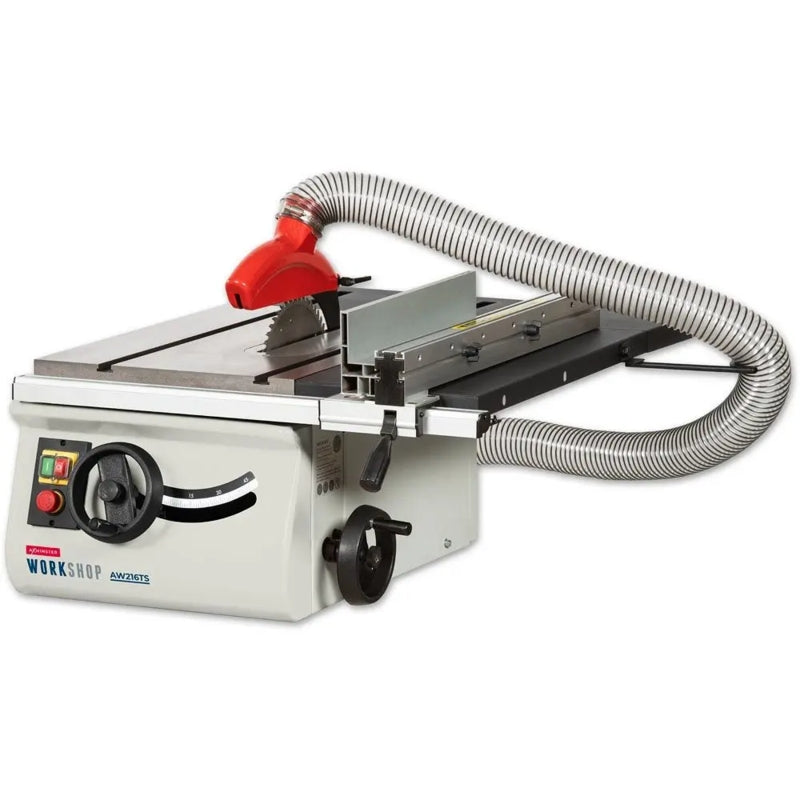

Axminster Workshop Table Saw 216mm, 1.1kW (AW216TS) | 026107712

Axminster Workshop Table Saw 216mm, 1.1kW (AW216TS) | 026107712.

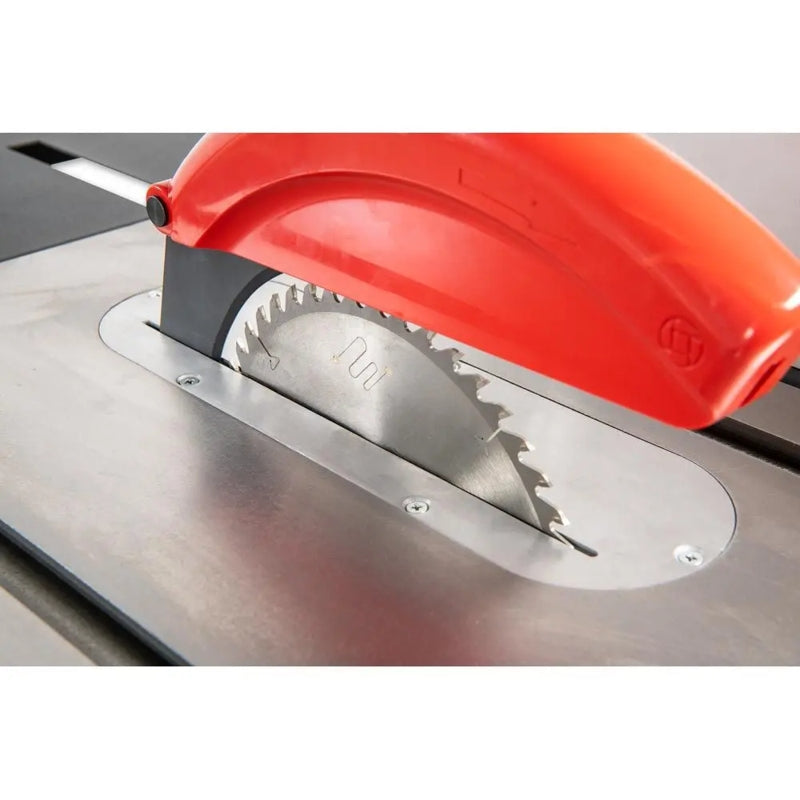

The AW216TS Table Saw is designed for home workshop enthusiasts who require accuracy, smooth operation, and durability. It features a quiet 1,100W induction motor and a 216mm Axcaliber Premium 48-tooth noise-reducing blade, providing a maximum cutting depth of 65mm. The cast iron table ensures a stable, unstressed surface, with twin 19mm mitre fence grooves for precise cuts.

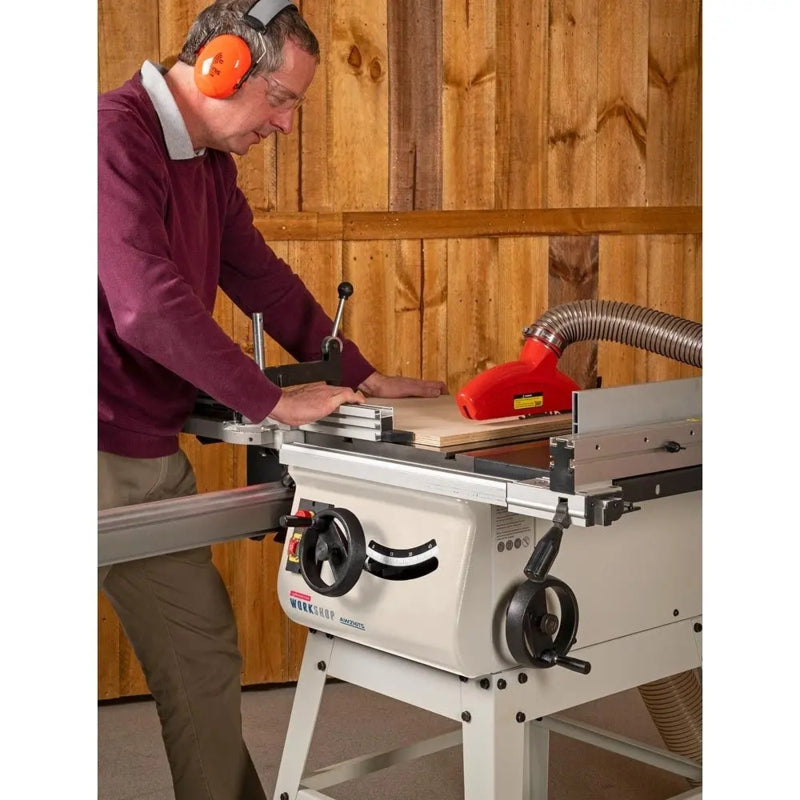

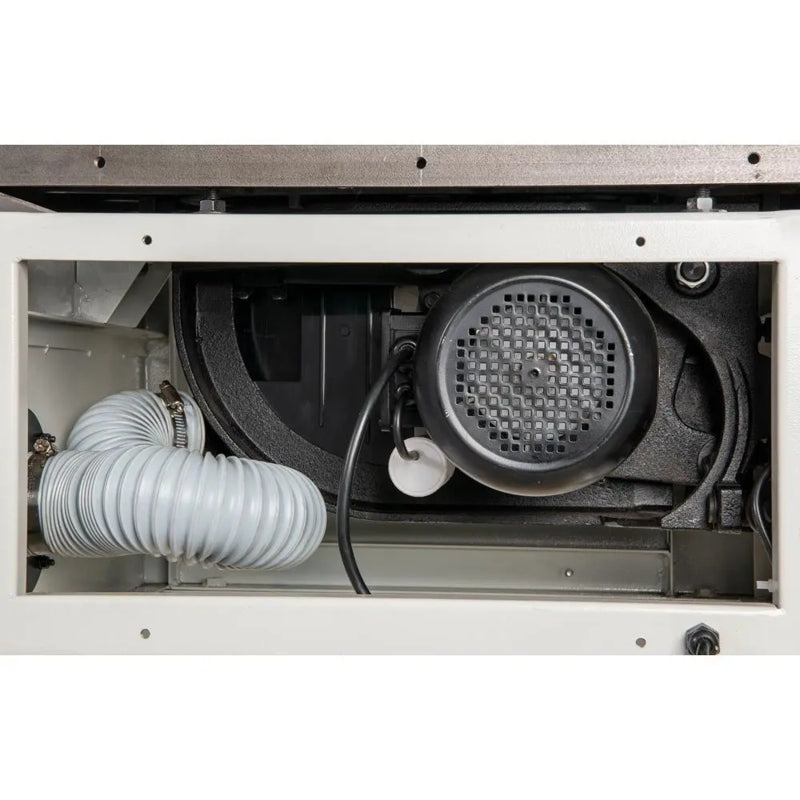

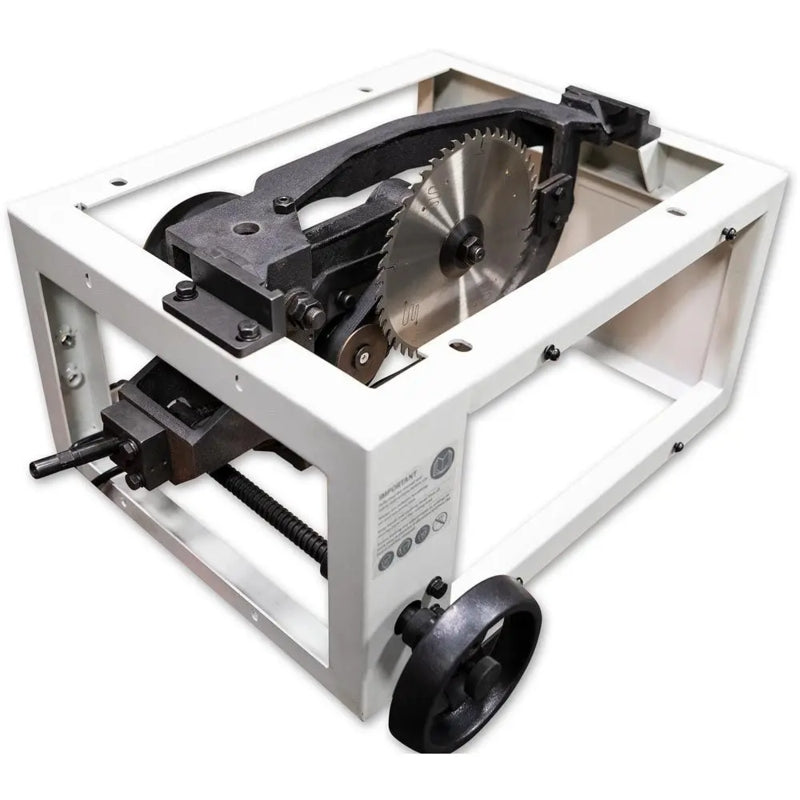

The motor and arbor assembly are mounted on trunnions bolted to the chassis, allowing exceptionally smooth blade tilt and height adjustments from 0° to 45°. The table includes a pressed steel side extension and rear support, while the full-length rip fence features a 400mm sliding sub-fence with high/low adjustment. Dust extraction is highly effective with a single 100mm outlet compatible with a suitable extractor. Safety is enhanced with a separate locking Emergency Stop on the NVR switch, and removable side panels provide easy cleaning and maintenance. The saw is also available as a package including a sliding table kit and leg stand (720848).

Features & Benefits:

• Durable Cast Iron Table: Provides a stable, ground surface for precision cutting.
• Smooth Blade Control: Tilt and height mechanisms allow accurate adjustments up to 45º tilt and 65mm depth of cut.

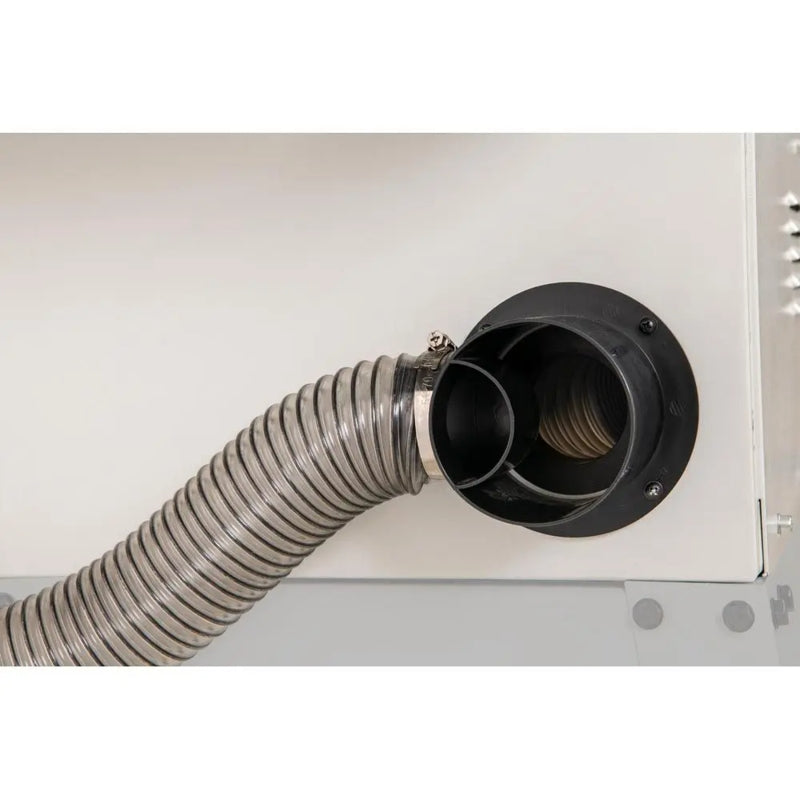

• Efficient Dust Extraction: 100mm outlet ensures a clean working environment above and below the blade.

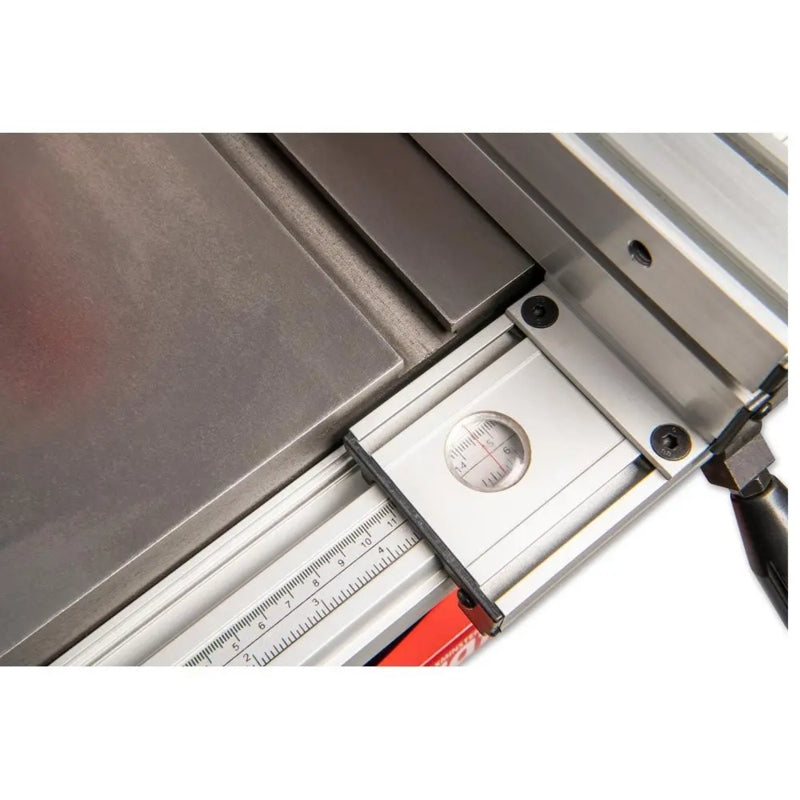

• Full-Length Rip Fence: Includes a 400mm sliding sub-fence for high/low adjustments.
• Extensions Included: Right-hand extension and rear support table increase cutting capacity.
• Safety Features: NVR switch with locking Emergency Stop enhances user protection.

Specifications:

Model: AW216TS
Code: 026107712
EAN Barcode: 5052511124534
Power: 1.1 kW
Voltage: 230 V
Blade Diameter: 216 mm
Blade RPM: 4,000 rpm
Blade Tilt: 0° to 45°
Bore Size: 30 mm
Dust Extraction Outlet: 100 mm
Max Depth of Cut @ 45º: 45 mm
Max Depth of Cut @ 90º: 65 mm
Max Width of Cut with Fence: 370 mm
Min Extraction Airflow Required: 850 m³/hr
Riving Knife Thickness: 2.2 mm
Sound Pressure Level LpA [Uncertainty K]: 81 dB(A) [1.5 dB]
T Slot Size: 19 mm x 9.5 mm
Table Height: 320 mm
Table Size: 400 mm x 570 mm
Table Size With Extensions: 675 mm x 570 mm
Overall L x W x H: 670 mm x 695 mm x 420 mm
Nett Weight: 70 kg
Rating: Home Workshop

Scope of Delivery:

• 1 x Axminster Workshop Table Saw 216mm, 1.1kW (AW216TS) | 026107712

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
