Axminster Workshop Dust Extractor 1.1kW - 230V (AW82E) | 026107696

Axminster Workshop Dust Extractor 1.1kW - 230V (AW82E) | 026107696.

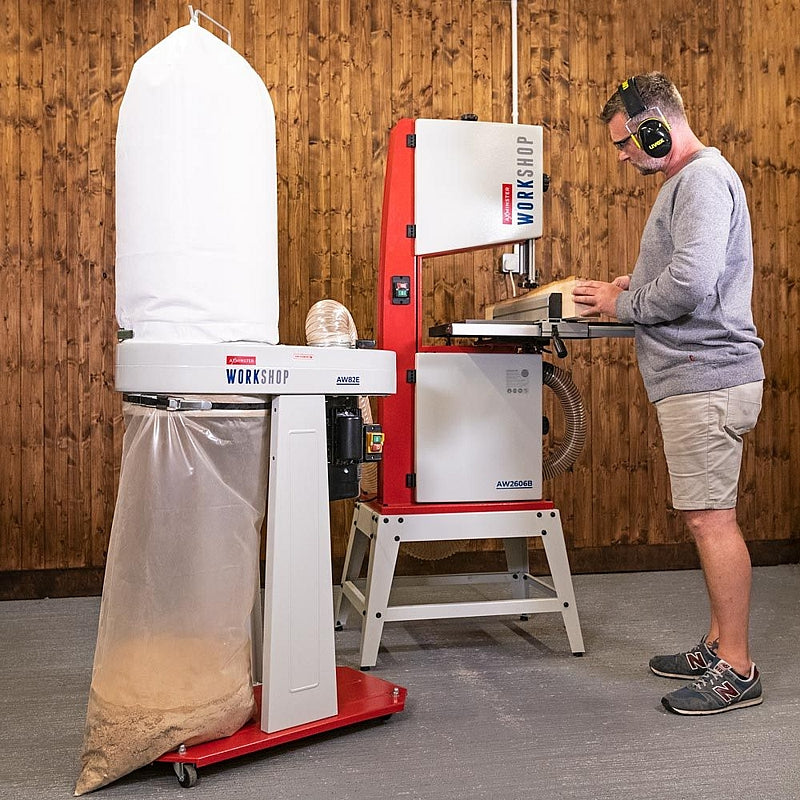

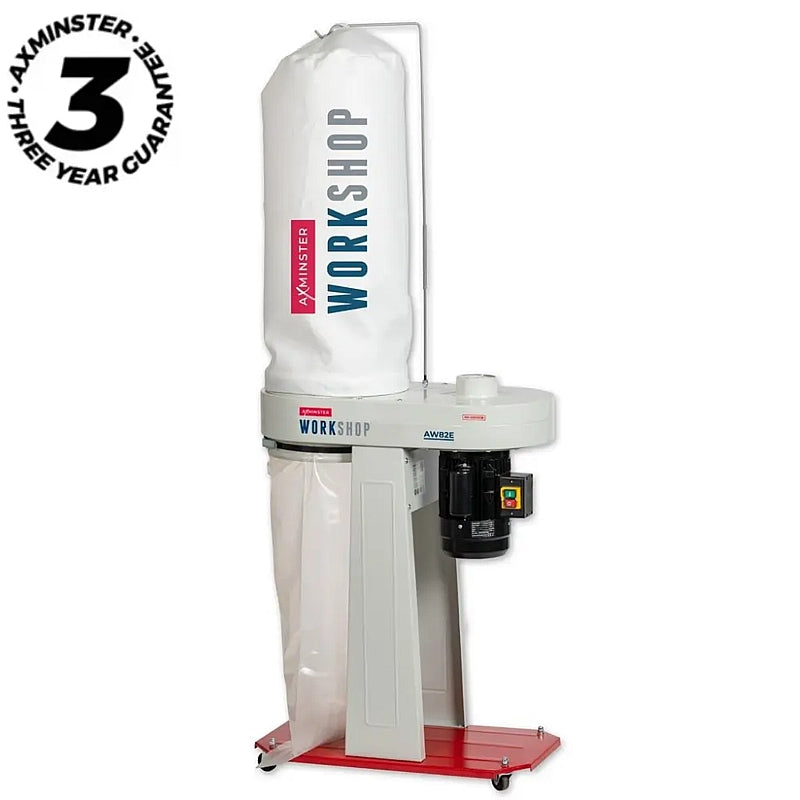

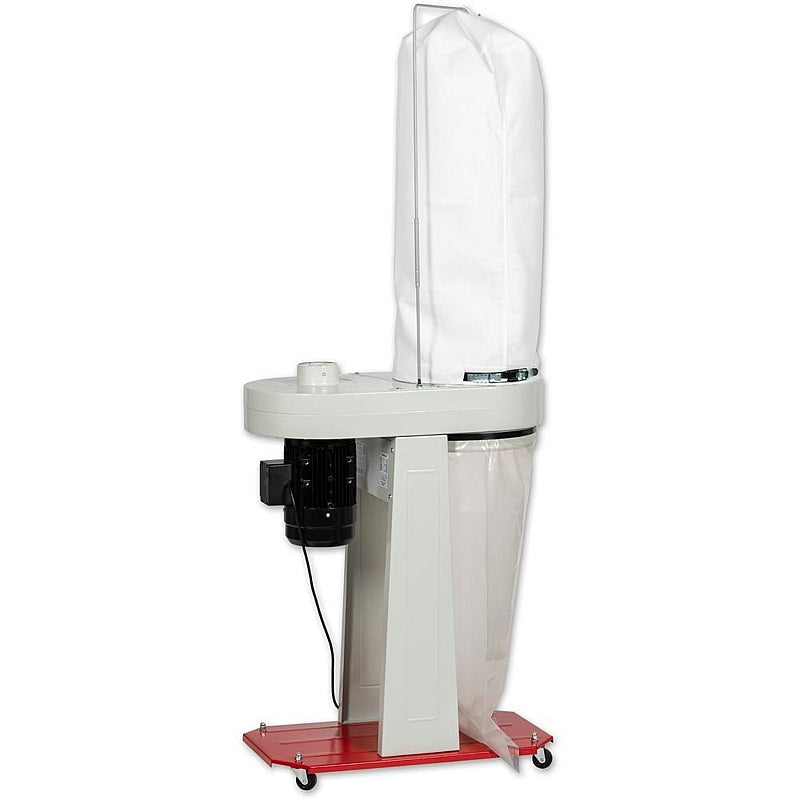

The Axminster Workshop Dust Extractor 1.1kW - 230V (AW82E) is a compact, mobile chip extractor designed for small workshop use. Powered by a 1.1kW induction motor, it delivers substantial airflow of 1,050 m³/hr @ 100 mm (22–36 m/s), making it ideal for chip extraction from bandsaws, table saws, spindle moulders, planers, or thicknessers.

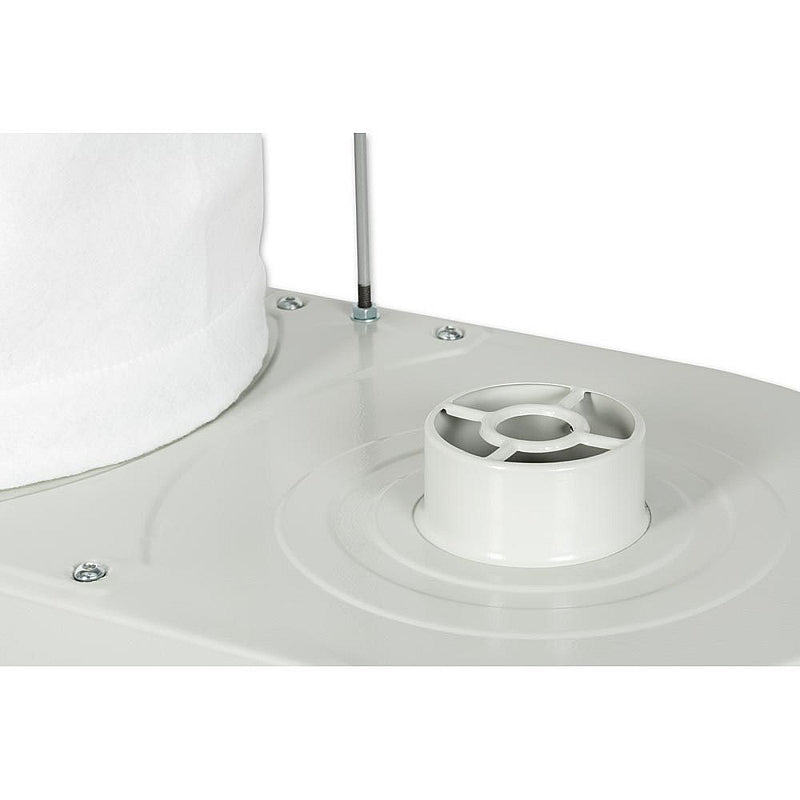

The extractor can be mounted either way up, offering flexibility with inlet positions on the top or bottom of the machine. Its base is fitted with castors for easy mobility around the workshop. The AW82E includes a 30 micron filter bag and a plastic waste sack, with a 100 mm inlet that connects easily to most machines using flexible hoses (not supplied). Compact and reasonably quiet, it is perfectly suited to smaller workshop setups.

Filtration can be upgraded with an optional 1 micron cartridge filter, which provides a very large surface area to maintain airflow without obstruction.

Features & Benefits:

• Compact Design: Ideal for small workshops while maintaining high-performance chip extraction.
• High-Performance Motor: 1.1kW induction motor provides airflow of 1,050 m³/hr @ 100 mm for effective dust and chip removal.
• Flexible Installation: Can be mounted either way up to suit workshop layout and inlet positioning.
• Easy Mobility: Castor-fitted base allows smooth movement around the workspace.
• Efficient Filtration: Includes 30 micron filter bag and plastic collection sack; optional 1 micron cartridge filter enhances fine dust capture.
• Versatile Connectivity: 100 mm hose inlet connects to a variety of machines with flexible hose (not supplied).
• Quiet Operation: Reasonably low noise ensures comfortable workshop use.

Specifications:

Airflow: 1,050 m³/hr @ 100 mm (22–36 m/s)
Bag Capacity: 84 litre
EAN Barcode: 5052511125029
Filter Performance: 100% >30 micron
Hose Diameter: 100 mm
Model: AW82E
Nett Weight: 31.5 kg
Overall L x W x H: 715 mm x 400 mm x 1,814 mm
Plug Fitted: UK 3-pin plug
Power: 1.1 kW
Rating: Home Workshop
Sound Pressure Level LpA [Uncertainty K]: 74 dB(A) [1.5 dB]
Voltage: 230 V

Scope of Delivery:

• 1 x Axminster Workshop Dust Extractor 1.1kW - 230V (AW82E)
• 1 x 30 micron filter bag
• 1 x Plastic waste collection sack
• Base fitted with castors for mobility

Axminster 3 Year Guarantee:

Look for the icon: It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine: Covered by the Axminster 3 Year Guarantee, the product is designed and intended for occasional periods of continuous work. Regular maintenance and annual servicing are required. Guarantee is void for industrial use or production line operations.

Keep your receipt: No registration is needed; simply keep proof of purchase to claim.

Free parts & labour: All parts and labour are covered free of charge for three years.

The 3 Year Guarantee covers parts and labour provided:

• The product is purchased and used correctly for the intended purpose.
• The product is operated correctly.
• The product is maintained and serviced according to the instructions.

The Guarantee does NOT cover:

• Products used outside the recommended classification (e.g., industrial use).
• Consumable items such as original blades, knives, drive belts, or abrasives.
• Damage from normal wear, misuse, or neglect.
• Operation with blunt or incorrect tooling.
• Modified products.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
