Axminster Workshop Floor Radial Drill, 230V (AW680RD) | 026107693

Axminster Workshop Floor Radial Drill, 230V (AW680RD) | 026107693.

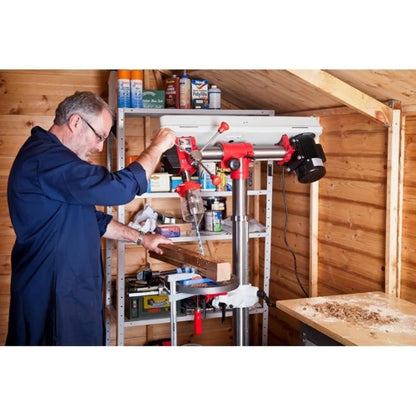

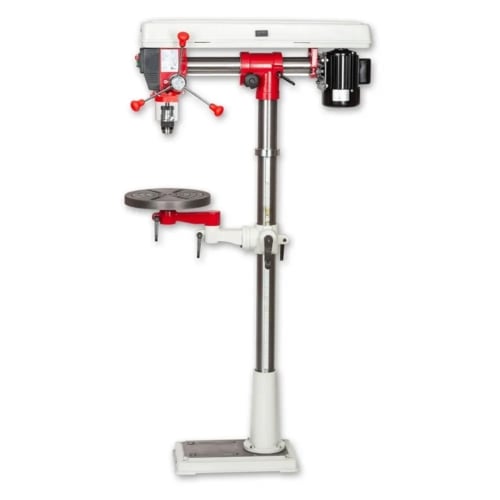

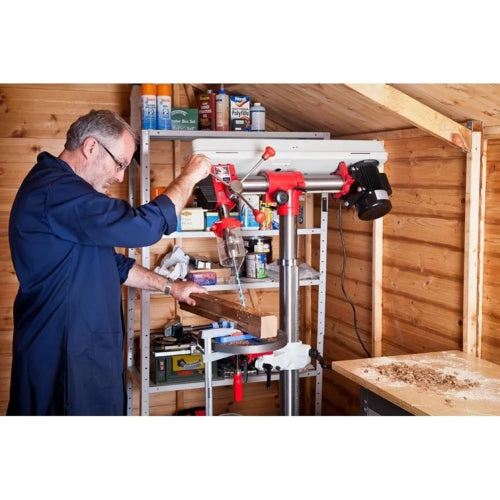

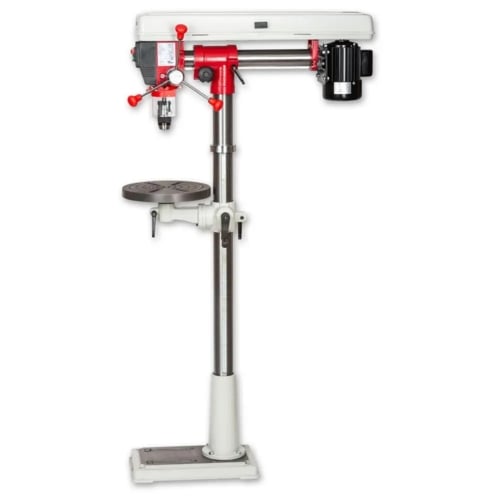

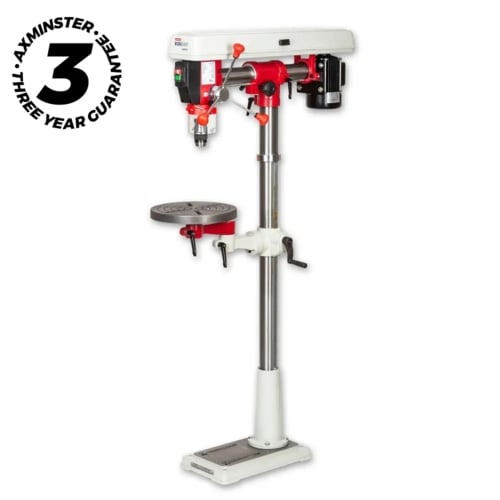

The Axminster Workshop Floor Radial Drill (AW680RD) is an excellent choice for workshops requiring precise and versatile drilling of wide workpieces. Its radial design and tilting head provide flexibility for a variety of drilling tasks, including angled holes. With a 550W induction motor and five-speed settings ranging from 460 to 2,480rpm, this drill delivers reliable performance for light to medium-duty applications.

The machine features a horizontal head movement controlled by a rack and pinion system and a positive locating pin to ensure accurate vertical alignment. A sturdy, two-part table assembly enhances versatility, while the keyless chuck ensures secure bit changes. Designed with safety and convenience in mind, it includes rubber down-feed grips, an NVR switch, a chuck guard, and a belt cover safety switch. This floor-standing drill is ideal for workshop use and should be securely bolted to the floor for stability.

Features & Benefits:

• Radial Design: The horizontal head movement (220mm to 420mm) accommodates wide workpieces, perfect for larger projects.

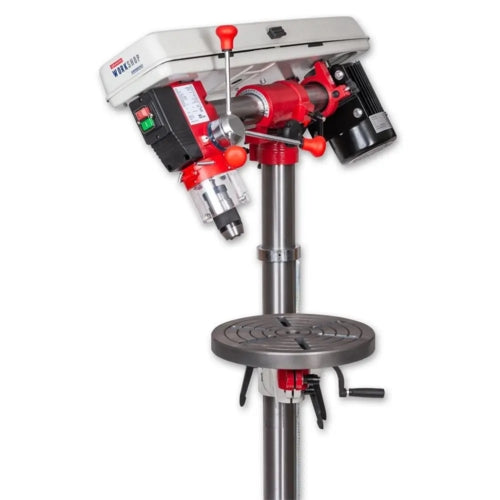

• Tilting Head: The head tilts easily up to 45° in either direction, allowing for precise angled drilling.
• Consistent Precision: The true running chuck spindle and well-fitted quill assembly ensure smooth and accurate drilling.

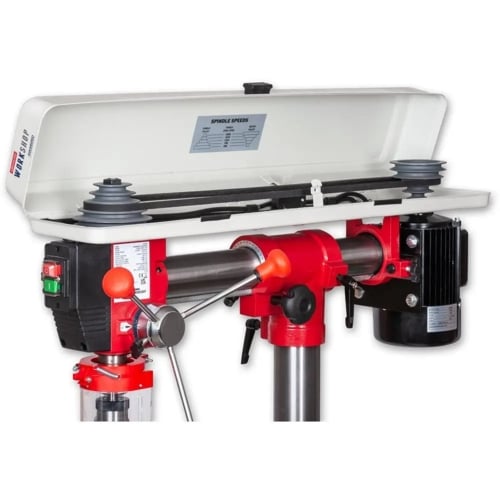

• Five-Speed Options: The 550W motor offers a speed range of 460–2,480rpm, suitable for various materials.
• Keyless Chuck: Comes with a quality 1–16mm keyless chuck for quick and secure bit changes.
• Sturdy Construction: Includes a two-part table assembly for enhanced stability and versatility.
• Safety Features: Fitted with rubber down-feed grips, an NVR switch, a chuck guard, and a belt cover safety switch for safe operation.

Specifications:

Base Size: 450mm x 270mm
Chuck Capacity: 1mm to 16mm
Chuck Travel: 80mm
Chuck Type: Keyless
Collar Size: 55mm
Diameter of Column: 70mm
Max Chuck to Base: 1,180mm
Max Chuck to Table: 680mm
Max Drilling Mild Steel: 16mm
Morse Taper: 2 MT
Nett Weight: 61kg
Overall Dimensions (L x W x H): 820mm x 320mm x 1,630mm
Power: 550W
Rating: Home Workshop
Speed Range: 460 – 2,480rpm (5)
Table Size: 310mm diameter
Table Tilt: 45° – 0° – 45°
Throat Depth: 420mm
Voltage: 230V

Scope of Delivery:

• 1 x Axminster Workshop Floor Radial Drill (AW680RD)
• 1 x Keyless Chuck (1mm to 16mm)
• 1 x Two-Part Table Assembly
• 1 x NVR Switch
• 1 x Chuck Guard
• 1 x Belt Cover Safety Switch

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
