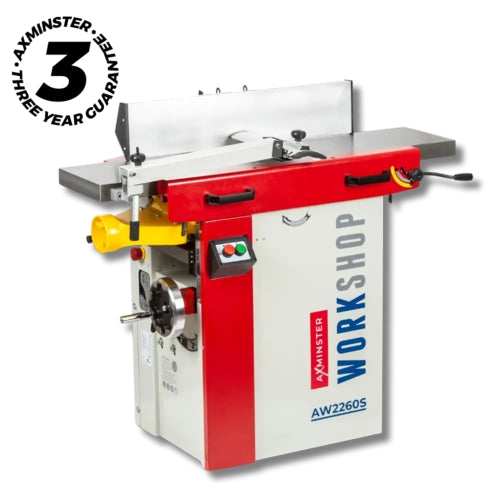

Axminster Workshop Planer Thicknesser, Spiral Block 230V, 1.5kW (AW2260S) | 026108512

Axminster Workshop Planer Thicknesser, Spiral Block - 230V, 1.5kW (AW2260S) | 026108512.

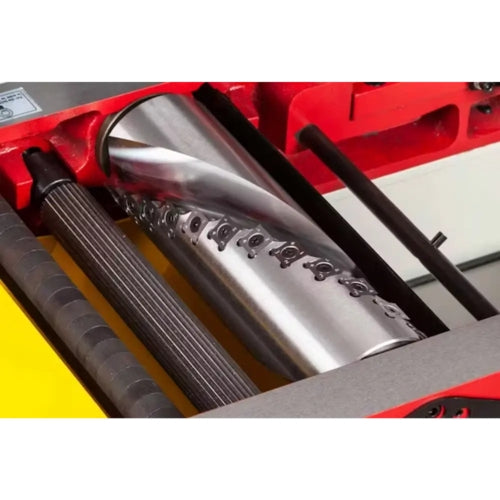

The Axminster Workshop Planer Thicknesser - 230V, 1.5kW (AW2260S) with its spiral cutter block is a pleasure to use and delivers excellent results. The spiral cutting block has twenty-four, four-sided, solid carbide cutters arranged in a helix. The shear cutting action produces a silky smooth finish without the typical planing ripple found with traditional straight knives. Each cutter’s edge lasts around 10-20 times longer than a HSS knife, and each cutter has four edges. When a cutter becomes dull, simply use the supplied torx driver to turn the cutter 90°, retighten the screw, and you’re ready to continue. Downtime is minimal, with no resetting or waiting for blade sharpening. Spiral cutter blocks are notably quieter and produce less vibration. Additionally, extraction is more efficient due to the size and even shape of the waste produced.

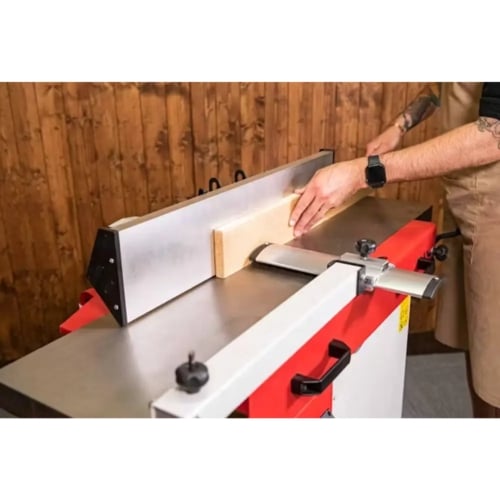

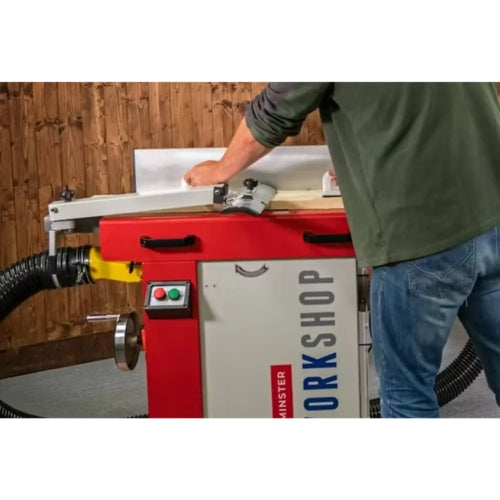

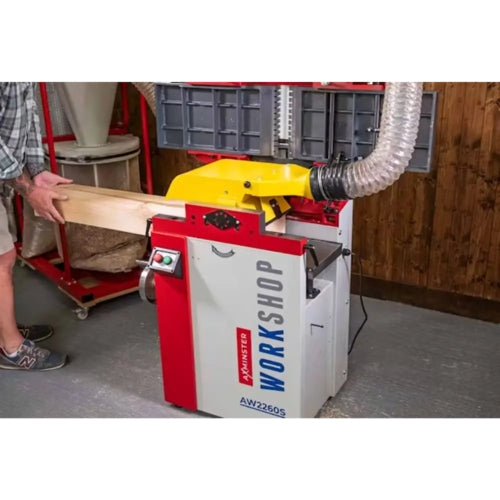

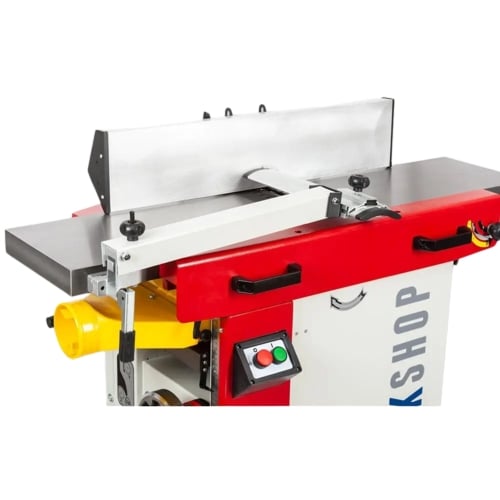

When surface planing, a long, rigid alloy fence supports your work. The fence is easily adjustable with stops for 90° and 45°. Changing from surfacing to thicknessing is simple, as the fence does not need to be removed or repositioned when lifting the table. The single lift table mechanism, spring-supported, requires little effort. For thicknessing, engage the power feed lever; the 4.8m/min feed speed ensures a smooth, even finish. The AW2260S is fitted with a digital thicknessing gauge, greatly simplifying depth adjustment.

Product Highlights:

The AW2260S offers a high-performance spiral cutter block, easy transition between jointing and thicknessing, and precise digital height readout.

Features & Benefits:

• Spiral Cutter Block: Produces an incredibly smooth finish and lasts many times longer than HSS blades, with quieter operation.

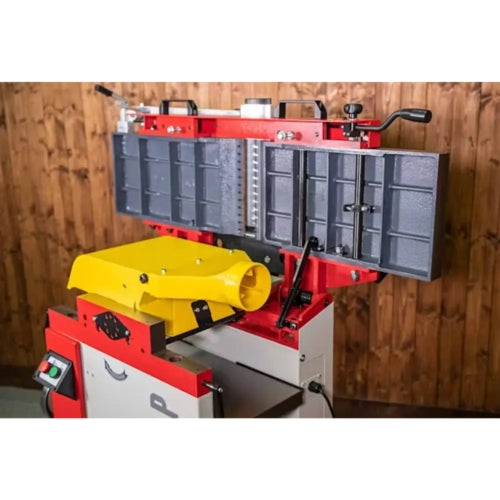

• Single Lift Tables: Joined tables can be lifted in one motion, making it quicker to switch between jointing and thicknessing.

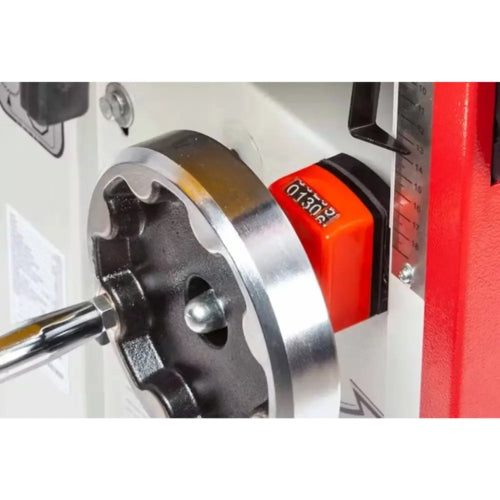

• Digital Height Readout: Quick and easy thickness adjustment ensures accurate cuts every time.
• 1500W Motor: Ample power for home workshop tasks, running on a normal 13 amp plug.
• Alloy Fence: Tilting alloy fence with a sturdy cast iron support arm provides accuracy and durability.
• Great Capacity: Maximum cutting width of 250mm (9.84") and height of 180mm (7.09"), allowing for large projects.

Specifications:

Cutterblock Diameter: 75 mm (2.95")
Cutterblock Speed: 4,000 rpm
Dust Extraction Outlet: 100 mm (3.94")
Feed Speed: 4.8 m/min (15.75 ft/min)
Knives: TC Spur Cutters x 24
Length of Table: 1,050 mm (41.34")
Max Depth of Cut Planer: 3.0 mm (0.12")
Max Depth of Cut Thicknesser: 3.0 mm (0.12")
Max Planing Width: 250 mm (9.84")
Max Thicknessing Height: 180 mm (7.09")
Min Extraction Airflow Required: 1,500 m³/hr (882 cfm)
Min Thicknessing Height: 5.0 mm (0.20")
Nett Weight: 170 kg (374.79 lbs)
Overall Dimensions (L x W x H): 1,120 mm x 970 mm x 1,020 mm (44.09" x 38.19" x 40.16")
Power: 1.5 kW
Rating: Home Workshop
Sound Pressure Level LpA [Uncertainty K]: 87 dB(A) [3.0 dB]
Voltage: 230 V

Scope of Delivery:

• 1 x Axminster Workshop Planer Thicknesser - 230V, 1.5kW (AW2260S)

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
