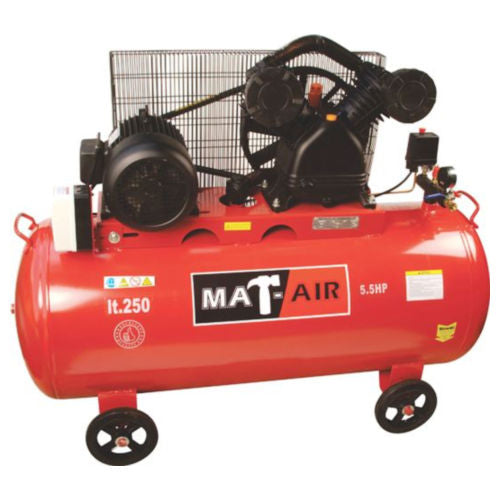

BELT DRIVE COMPRESSOR - 250 LITRE SINGLE STAGE
Suitable for craftsmen who need a compressor
for professional use
Piston compressor three cylinder 90°W placed
single stage
Splash lubrication, forced ventilation, cast iron
cylinder, steel valve plate and steel valves
Overload protection of electric motor with manual
reset
ON/OFF pressure Switch
Pressure reducer with two cocks
Condensate drain cock
Ball line cock
CODE
AIR2150
SPECIFICATIONS
Capacity (Litres) 250
Volts/Phase 380/1
HP 5,5
KW 4,0
Displacement l/Min 740
Displacement CFM 20,46
FAD L/Min 480
FAD CFM 17
BAR 8
PSI 115
RPM 950
Cylinder Formation 2V
Weight (kg) 169
