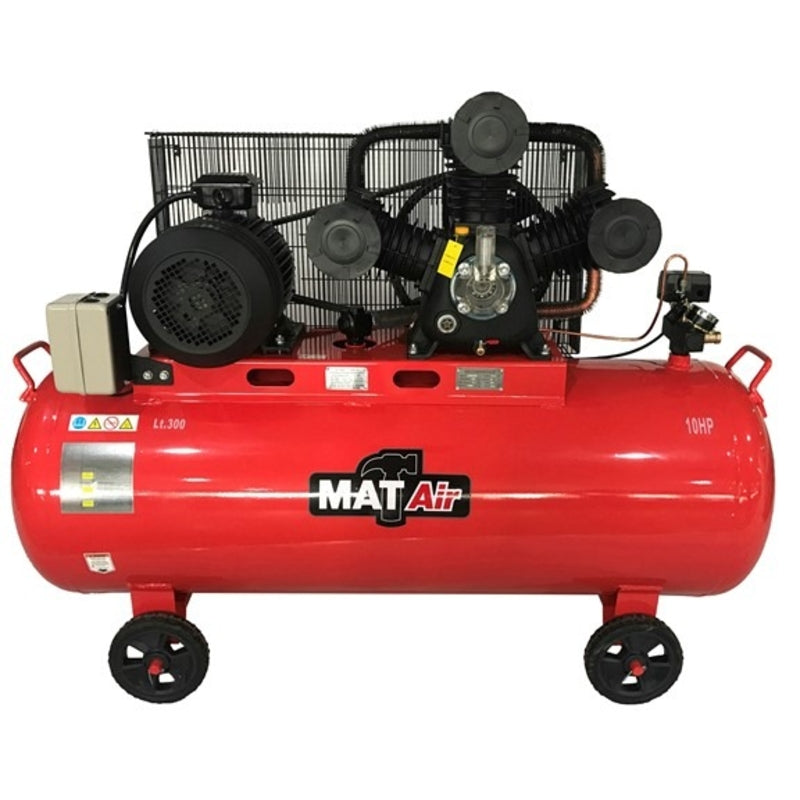

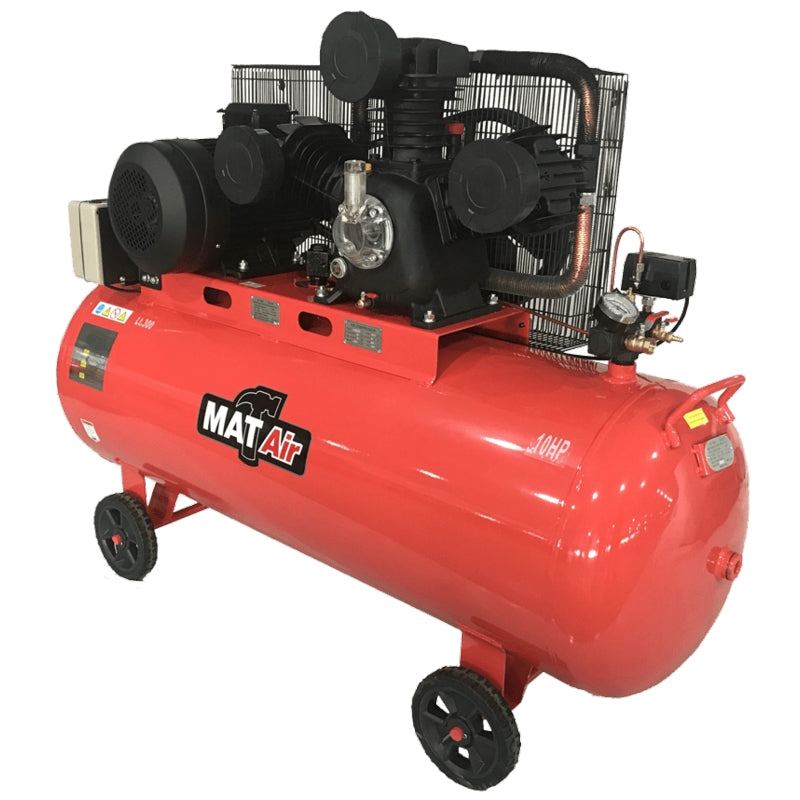

MATair 300L Air Compressor, 7.5kW/10.0HP, 380V/3P | AIR2200

MATair 300L Air Compressor, 7.5kW/10.0HP, 380V/3P | AIR2200.

The MATair 300L Air Compressor is designed for professional use, delivering consistent single-stage air compression. It features a three-cylinder W piston arrangement for efficient air output and reliable operation. The compressor includes splash lubrication, forced ventilation, cast iron cylinders, steel valve plates, and steel valves to enhance durability. Additionally, it is equipped with overload protection with manual reset, an ON/OFF pressure switch, a pressure reducer with one or two cocks, a condensate drain cock, and a ball line cock for versatile control and easy maintenance. The unit provides a free air delivery of 700 L/min (25 CFM) at a maximum pressure of 8 bar (115 PSI), operating at 950 RPM, making it ideal for demanding professional applications.

Features & Benefits:

• Professional Use: Perfect for craftsmen who require a dependable, high-capacity air supply.
• Efficient Single-Stage Design: Three-cylinder W piston configuration ensures steady and efficient air delivery.
• Durable Construction: Cast iron cylinders, steel valve plates, and steel valves offer long-lasting performance.
• Maintenance-Friendly: Splash lubrication, forced ventilation, condensate drain cock, and ball line cock simplify upkeep.
• Safety Features: Overload protection with manual reset and ON/OFF pressure switch ensure safe operation.
• Pressure Management: Pressure reducer with one or two cocks allows controlled air flow for different tasks.

Specifications:

• Code: AIR2200
• Barcode: 6921696507878
• Capacity: 300 L
• Voltage / Phase: 380 V / 3P
• Horse Power: 10 HP
• Power: 7.5 kW
• Displacement: 1000 L/min (35 CFM)
• Free Air Delivery (FAD): 700 L/min (25 CFM)
• Maximum Pressure: 8 bar (115 PSI)
• Speed: 950 RPM
• Cylinder Configuration: 3W
• Weight: 223 kg

Scope of Delivery:

• 1 x MATair 300L Air Compressor, 7.5kW/10.0HP, 380V/3P | AIR2200

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
