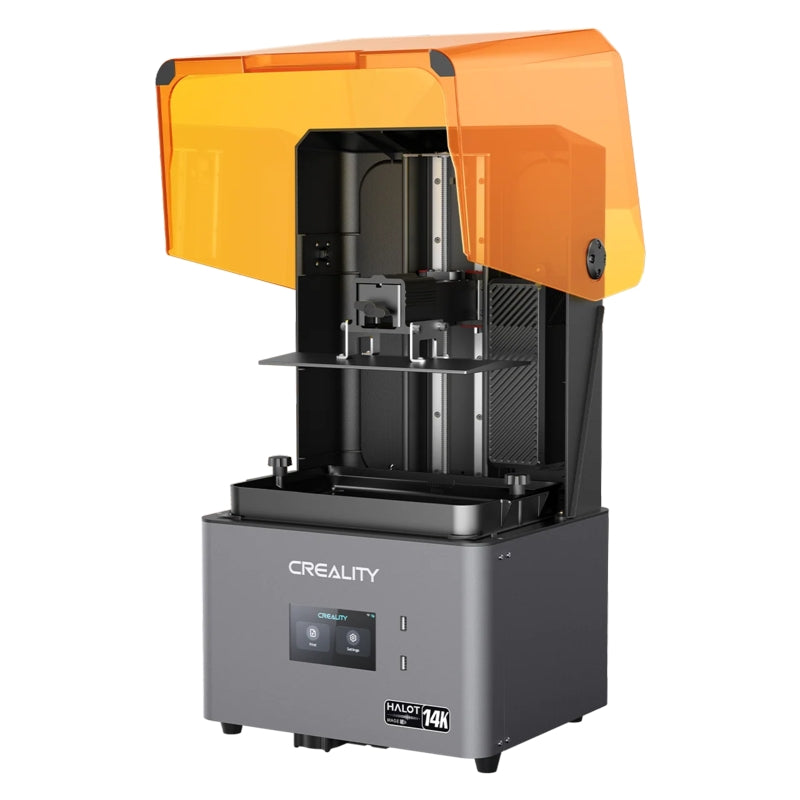

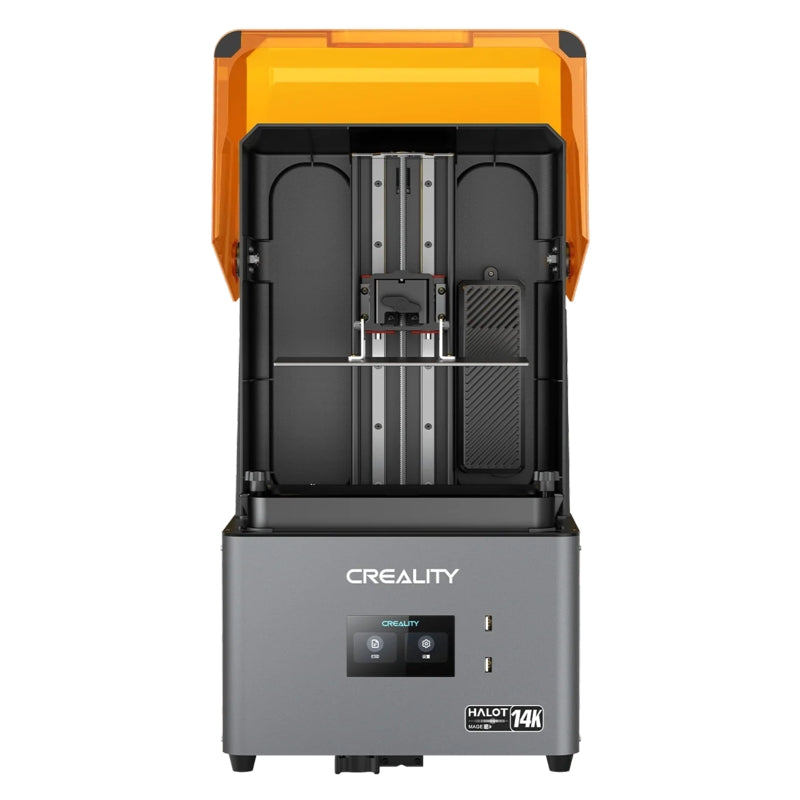

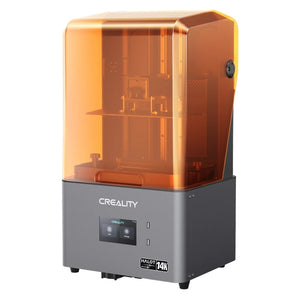

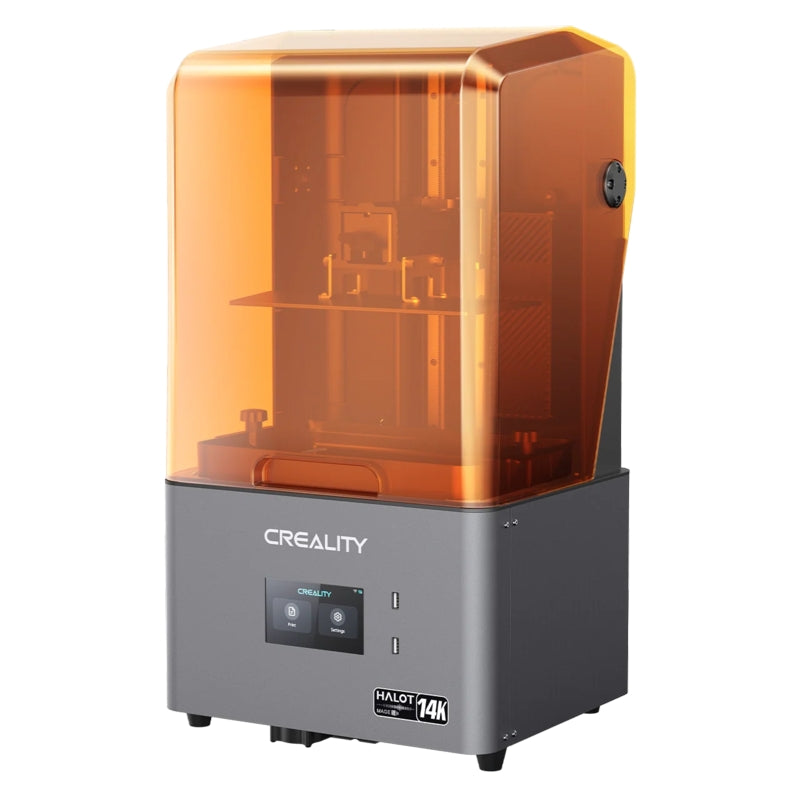

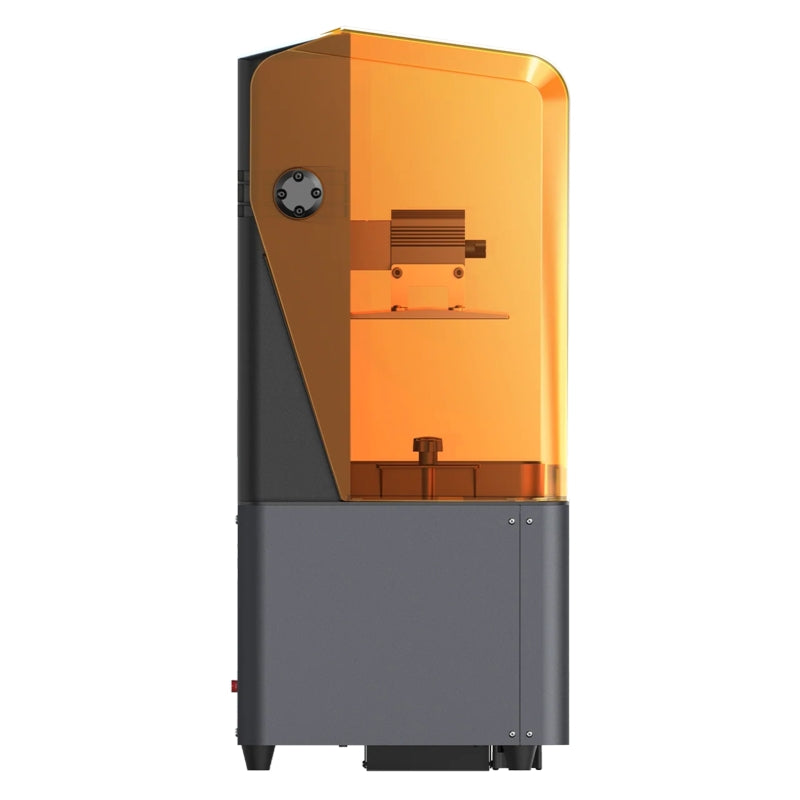

Creality HALOT-MAGE S 14K Resin 3D Printer | CRE265

Creality HALOT-MAGE S 14K Resin 3D Printer | CRE265.

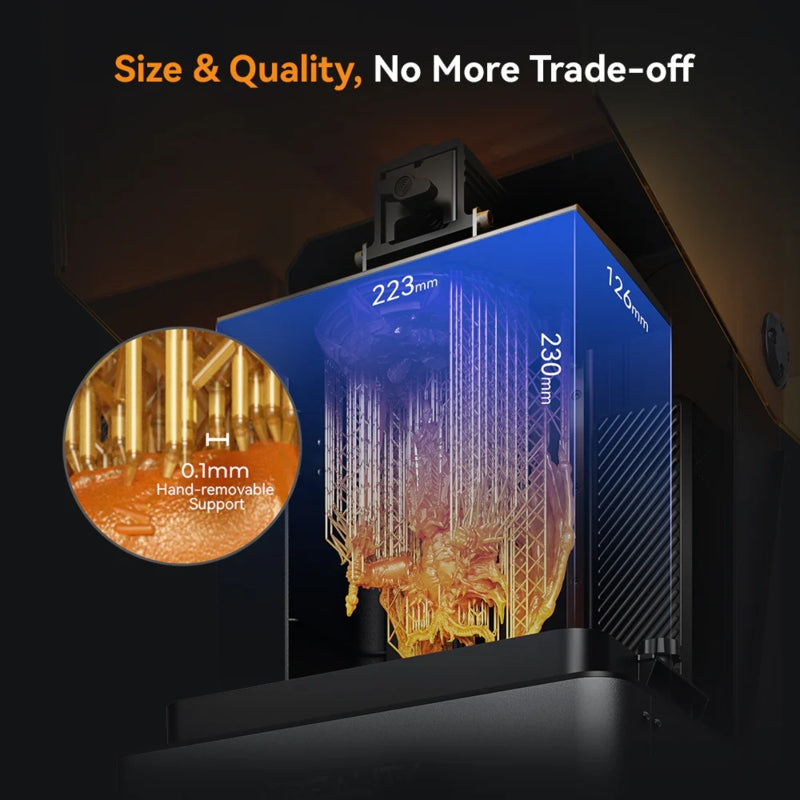

The Creality HALOT-MAGE S 14K Resin 3D Printer sets a new standard in high-resolution resin printing. Equipped with a 14K monochrome LCD screen (13320 × 5120 pixels) and a pixel size of just 16.8 × 24.8 microns, it ensures every print captures the finest textures, patterns, and details exactly as designed. The 10.1-inch display supports a 223 × 126 × 230mm build volume, providing ample space for intricate models without compromising on quality.

Featuring Creality’s Integral Light Source 3.0, this model delivers over 90% light uniformity for accurate curing and dimensional stability. Its “Dynax+” mode enhances speed up to 150mm/h, capable of completing a 150mm-tall model in about one hour, all while maintaining precision. Dual linear rails and a closed-loop motor system enhance Z-axis stability, eliminating wobbling during fast prints. Additionally, the “Pictor” release film minimises peel resistance, improving surface smoothness and extending film durability.

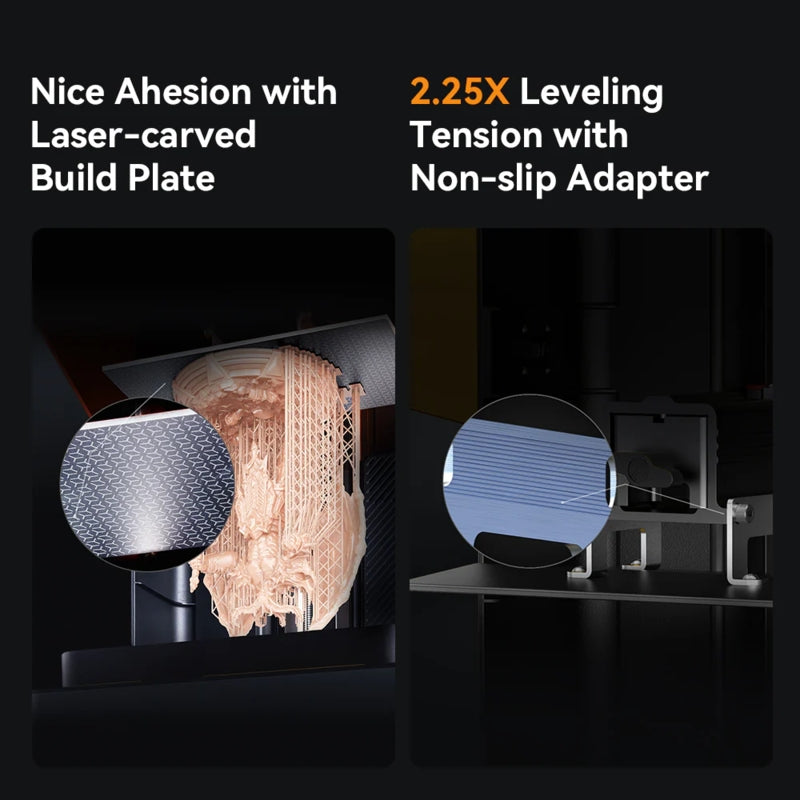

The laser-carved aluminium build plate ensures strong adhesion and easy part removal, while the non-slip adapter maintains consistent levelling tension. The HALOT OS operating system allows seamless control from PC or mobile via Creality Cloud, supporting remote monitoring and model downloads. Furthermore, its built-in air purifier efficiently filters resin odour using activated carbon, creating a cleaner and safer printing environment. For added convenience, users can opt for the Smart Resin Pump, which automates resin filling and withdrawal, reducing manual handling.

Features & Benefits:

• 14K Ultra-High Resolution: Delivers 13320 × 5120 pixels with a 16.8 × 24.8μm pixel size for exceptionally detailed prints.
• Integral Light Source 3.0: Provides over 90% uniform light distribution for precise, consistent curing.
• Fast Printing Performance: Achieves speeds of up to 150mm/h in “Dynax+” mode for faster model production.

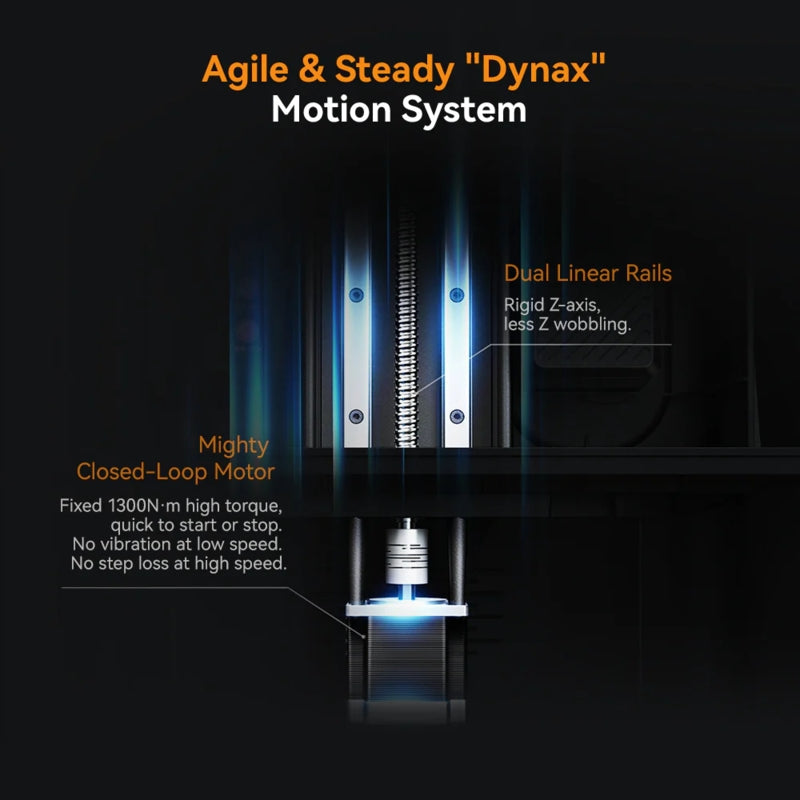

• Stable Motion System: Dual linear rails and closed-loop motor minimise vibration and enhance print accuracy.
• Durable Pictor Release Film: Reduces peel force by up to 35%, extending lifespan and improving surface quality.
• Laser-Carved Build Plate: Ensures superior first-layer adhesion and easy model removal.
• Smart Control via HALOT OS: Enables remote printing, monitoring, and direct Creality Cloud access.

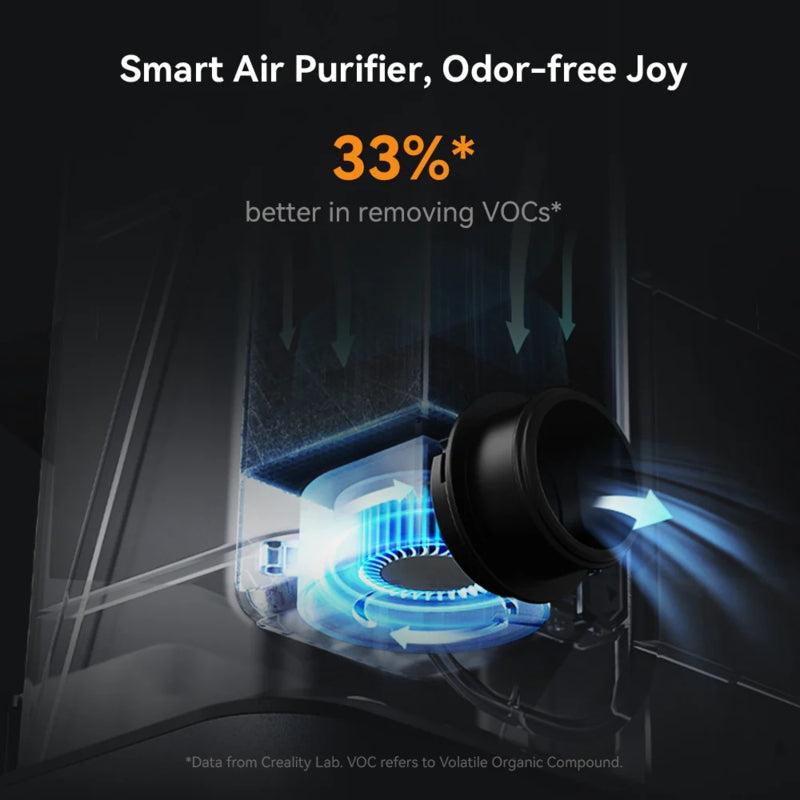

• Integrated Air Purifier: Filters resin odours efficiently using an activated carbon system.
• Optional Smart Resin Pump: Automates resin handling for cleaner, more convenient printing.
• Versatile Connectivity: Supports USB, Ethernet, and WiFi connections for flexible workflow management.

Specifications:

Printing Technology: LCD MSLA (UV Curing)
Build Volume: 223 × 126 × 230mm (6462cm³)
Printing Speed: ≤150mm/h
Layer Height: 0.05–0.2mm
XY Printing Resolution: 16.8 × 24.8μm
LCD Screen: 10.1" Monochrome LCD
LCD Resolution: 14K (13320 × 5120 pixels)
Light Source: Integral Light Source 3.0
Light Uniformity: ＞90%
Light Intensity: 3500 ±10%μW/cm²
Build Plate: Laser-carved aluminium alloy
Release Film: High-speed “Pictor” Film / Regular FEP Film
Motion System: Dual linear rails with closed-loop motor
Smart Resin Pump: Optional
Air Purifier: Integrated with activated carbon filter
Noise Level: 49dB (at 1m)
Rated Power: 100W
Power Input: 200–240V AC, 50/60Hz
Machine Dimensions: 333 × 270 × 608mm
Package Dimensions: 421 × 356 × 672mm
Net Weight: 13.13kg
Gross Weight: 16.35kg
File Transfer: USB Drive, RJ45 Ethernet, WiFi
APP for Cloud Printing: Creality Cloud
Supported File Formats: STL, OBJ
Compatible Resins: 405nm photosensitive resins
Slicing Software: HALOT BOX, CHITUBOX, Tango
Supported Computer OS: Windows, Mac
Display Screen: 4.3" Colour Touchscreen
UI Languages: Simplified/Traditional Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Dutch, Polish, Japanese, Korean

Scope of Delivery:

• 1 x Creality HALOT-MAGE S 14K Resin 3D Printer | CRE265
• 1 x Laser-Carved Aluminium Build Plate
• 1 x Pre-installed Pictor Release Film
• 1 x Power Cable
• 1 x USB Drive
• 1 x Air Purifier (Integrated)
• 1 x Quick Start Guide and Documentation

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
