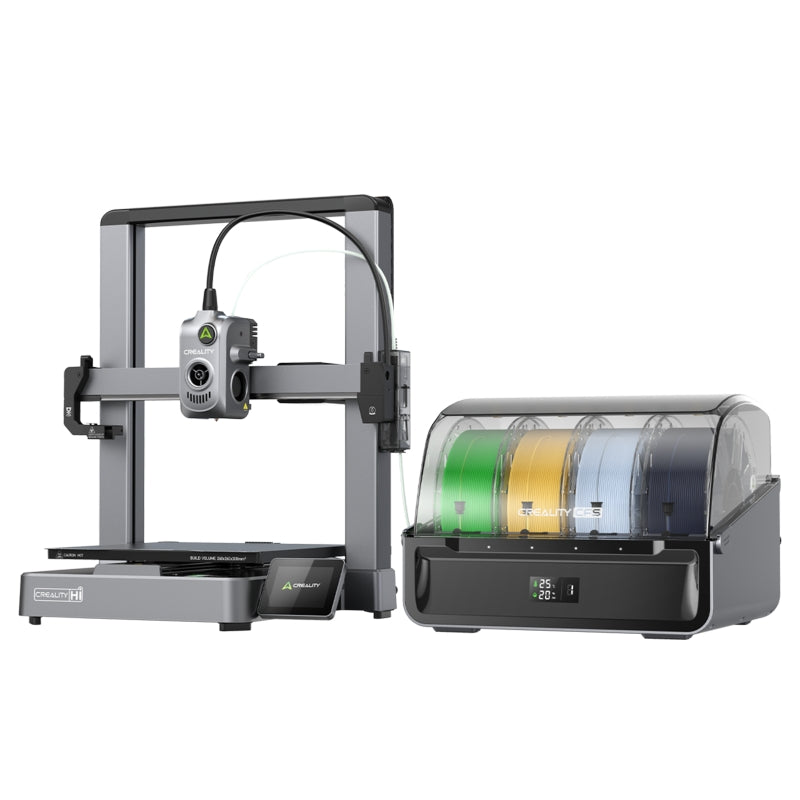

Creality Hi with CFS Combo 3D Printer | CRE223

Creality Hi with CFS Combo 3D Printer | CRE223.

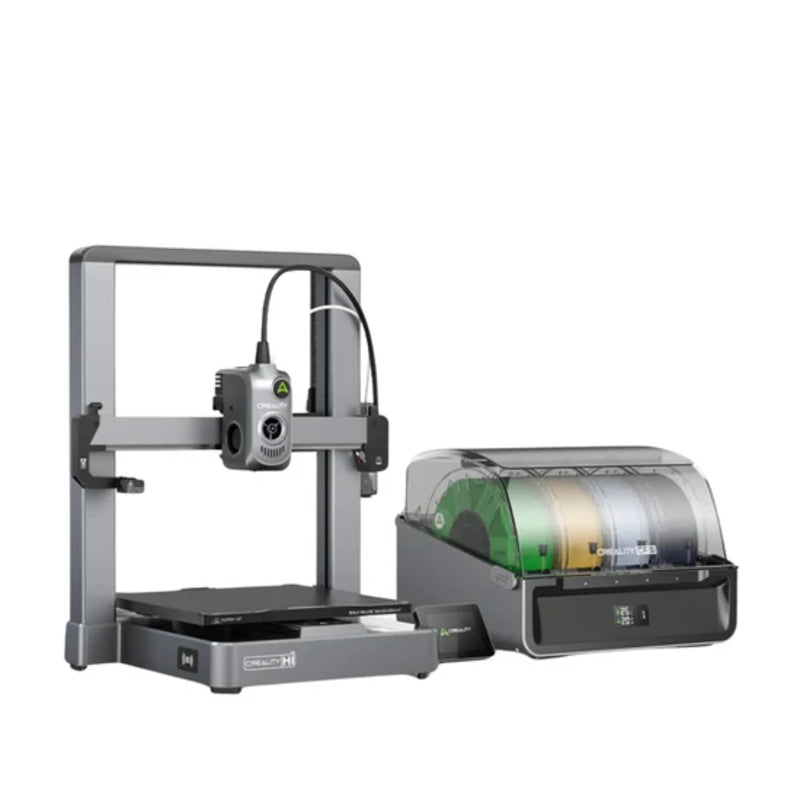

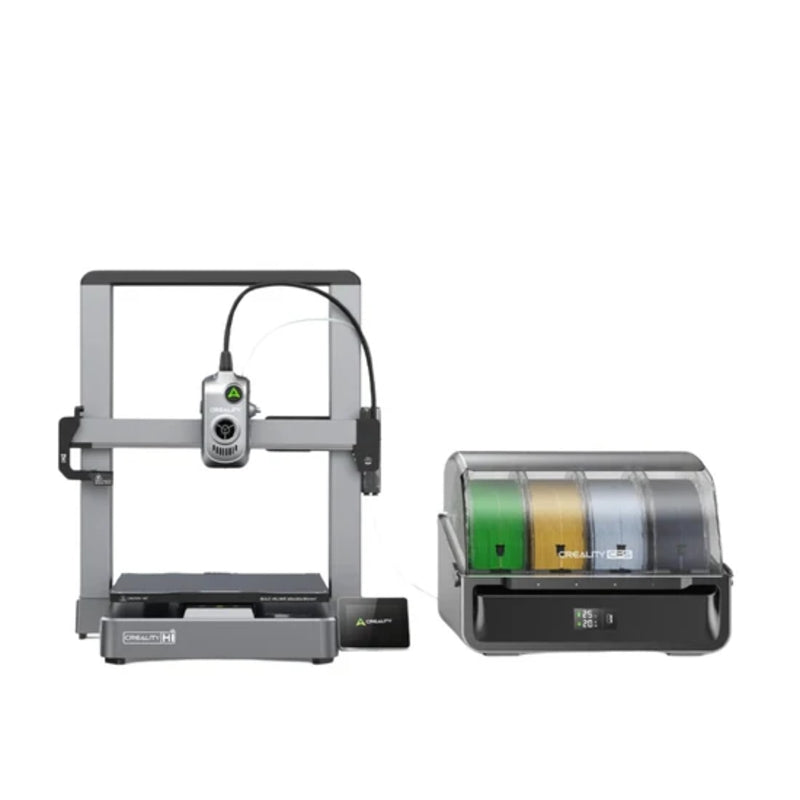

The Creality Hi Combo revolutionises 3D printing by combining cutting-edge technology with user-friendly design. Equipped with the Creality Filament System (CFS), it supports up to 16 colours by connecting four CFS units, eliminating the need for post-processing. Its full-metal frame ensures stability, while advanced motion systems allow print speeds up to 500 mm/s. With features such as automatic bed leveling, RFID filament detection, a high-flow hotend reaching 300°C, a foldable 3.2" (81 mm) touchscreen, and a built-in webcam with privacy cap, this printer is ideal for functional prints and full-size figurines. The robust construction, precise input shaping, and quiet operation make printing efficient and reliable, while the intuitive Creality OS, FLUIDD WebUI, and Creality Cloud provide seamless workflow and remote management.

Features & Benefits:

• Multi-Colour Printing: Connect up to four CFS units for up to 16 colours, enabling complex, vibrant prints without post-processing.

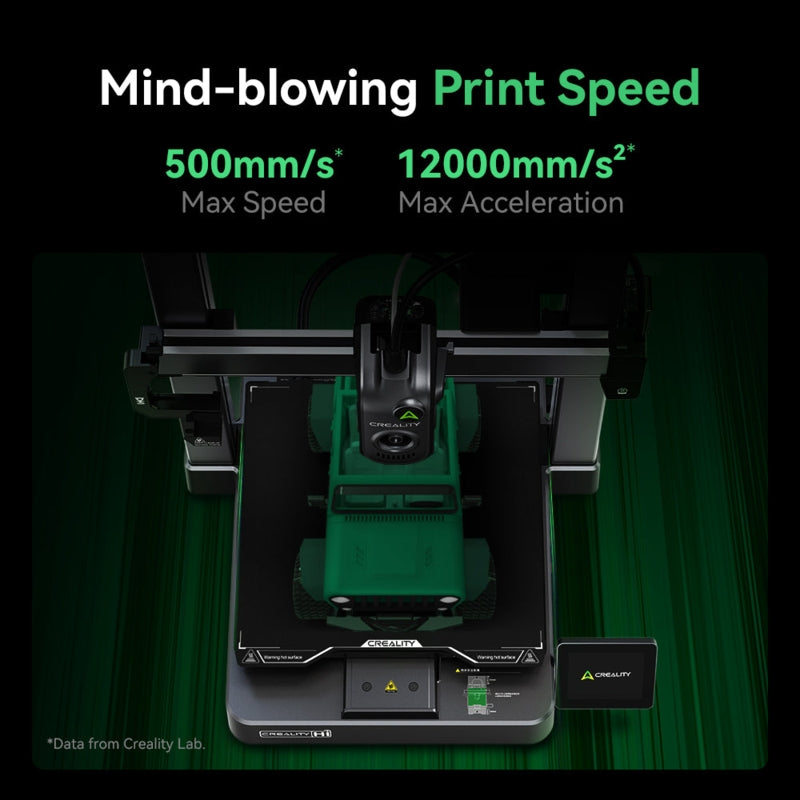

• Fast Printing Speed: Achieve up to 500 mm/s with ≤12000 mm/s² acceleration for rapid production without compromising quality.
• Precision Engineering: Full-metal frame, dual linear rods on Y-axis, and X-axis linear rail ensure exceptional stability and smooth prints.
• Automated Filament Management: RFID recognition, filament run-out detection, and auto relay simplify multi-material printing and reduce errors.
• User-Friendly Interface: 3.2" (81 mm) foldable touchscreen allows easy operation, with 95% pre-assembled setup ready in approximately 8 minutes.

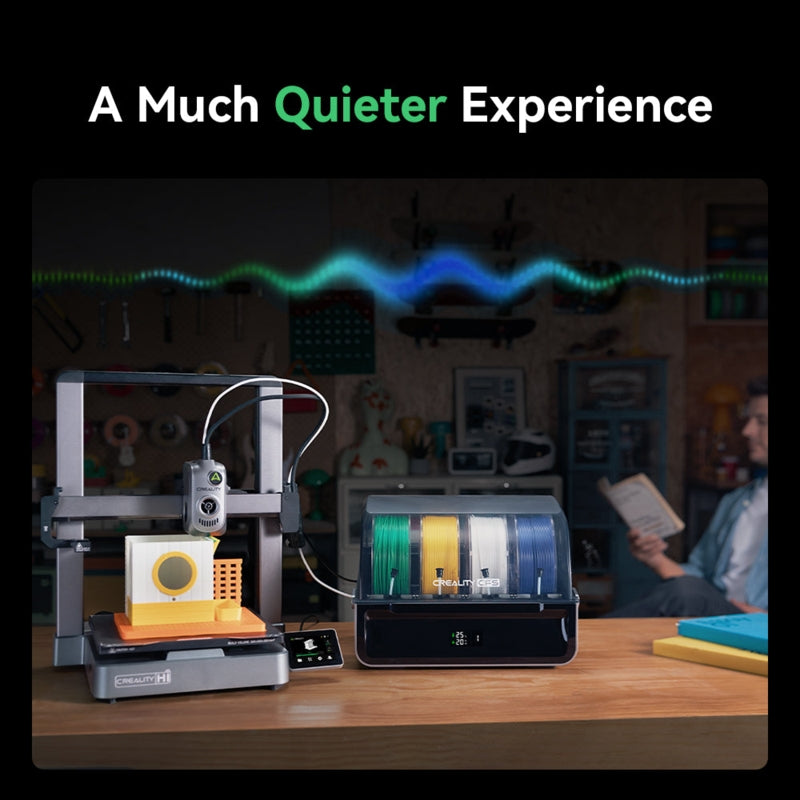

• Quiet Operation: Dynamically balanced fans, frictionless linear rails, and smooth rods reduce noise to ≤48 dB, providing a tranquil workspace.
• Advanced Software Integration: Creality OS, Creality Print, FLUIDD WebUI, and Creality Cloud support enhanced slicing, monitoring, and workflow control.

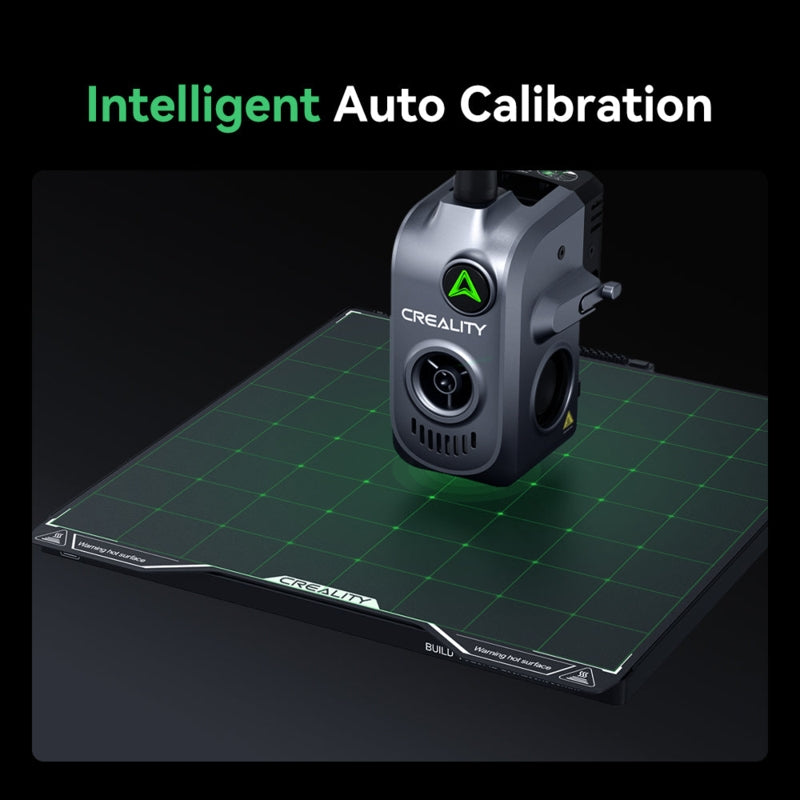

• Convenient Automated Features: Fully automated bed leveling, auto filament cutter, and smart slicing conflict detection ensure hands-off printing.

Specifications – Creality Hi 3D Printer:

• Printing Technology: Fused Deposition Modeling
• XYZE Motor: Step-servo motor for X/Y axis; step motor for others
• Build Volume: 260 × 260 × 300 mm
• Printer Dimensions: 409 × 392 × 477 mm
• Printer Package Dimensions: 650 × 460 × 240 mm
• Combo Package Dimensions: 650 × 460 × 560 mm
• File Transfer: USB drive/WiFi
• Display Screen: 3.2" (81 mm) colour touch screen
• 3D Printer Net Weight: 8.75 kg
• 3D Printer Gross Weight: 11.58 kg
• Combo Net Weight: 13.31 kg
• Combo Gross Weight: 19.14 kg
• Monitoring Camera: Yes
• Auto Filament Relay: Yes (with CFS)
• Filament Run-out Sensor: Yes
• Filament Tangle Detection: Yes
• Input Shaping (G-Sensor): Yes
• Lighting Kit: Yes
• Printing Speed: 300 mm/s typical; 500 mm/s max
• Rated Voltage: AC 100~240V/50 Hz
• Acceleration: ≤ 12000 mm/s²
• Rated Power: 1150W@220V; 390W@110V
• Printing Accuracy: 100 ± 0.1 mm
• Supported Filaments: Hyper-PLA/PLA/PETG/ABS/PLA-CF
• Layer Height: 0.1–0.35 mm
• Slicing Software: Creality Print 5.1 and newer versions

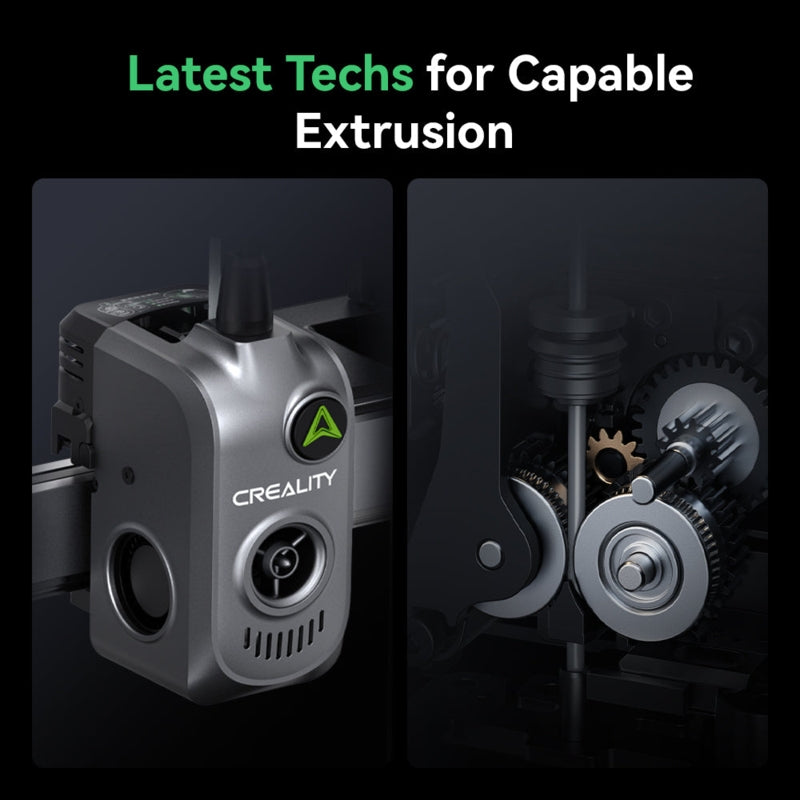

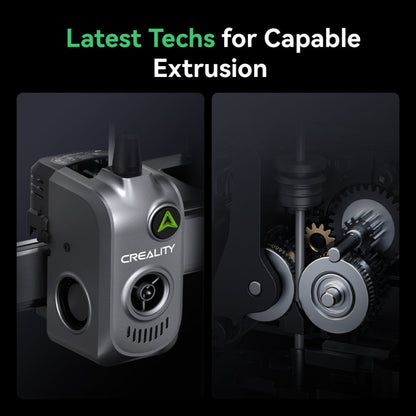

• Extruder: Direct drive extruder
• Max Number of Filaments: 1 (without CFS); 16 (with four CFS)
• Filament Diameter: 1.75 mm
• UI Languages: English, German, Spanish, French, Italian, Portuguese, Turkish, Russian, Japanese, Chinese
• Nozzle Type: Durable tri-metal nozzle
• RFID Filament: Optional
• Nozzle Diameter: 0.4 mm, compatible with 0.6/0.8 mm
• Support File Formats: G-code/3MF
• Nozzle Temperature: ≤ 300 ℃
• CFS: Yes
• Heatbed Temperature: ≤ 100 ℃
• CFS Connection: ≤ 4 (Separate power source required for 2+ units)
• Build Plate: Two-sided epoxy flexible build plate
• APP for Cloud Printing: Creality Cloud
• Leveling Mode: Full-auto leveling
• File Storage: 8G EMMC

Specifications – CFS Unit:

• Product: CFS
• Supported 3D Printer: Creality Hi
• Dimensions: 379 × 314 × 276 mm
• Connection Port: Creality 485 × 2
• Net Weight: 4.56 kg
• Power Supply: DC 24V
• Number of Filament Slots: 4
• Rated Power: 20W
• Drying Method: Desiccant
• Status Indicator: Indicator light (white/red) × 4
• Filament Buffer: IN × 4 & OUT × 1
• Display Screen: Segment LCD showing temperature and humidity
• Number of Extensions: ≤ 4
• Filament Spool Compatibility: 1 kg spool; diameter 197–202 mm, thickness 42–68 mm
• RFID Filament Recognition: Yes
• Supported Filaments: PLA/PETG/ABS/ASA/PET/PLA-CF (*Not compatible with flexible TPU, damp BVOH/PVA, or warped cardboard spools)
• Filament Diameter: 1.75 ± 0.05 mm
• Auto Filament Relay: Yes

Scope of Delivery:

• 1 x Creality Hi 3D Printer | CRE223
• 1 x Creality Filament System (CFS) Unit | CRE223-CFS

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
