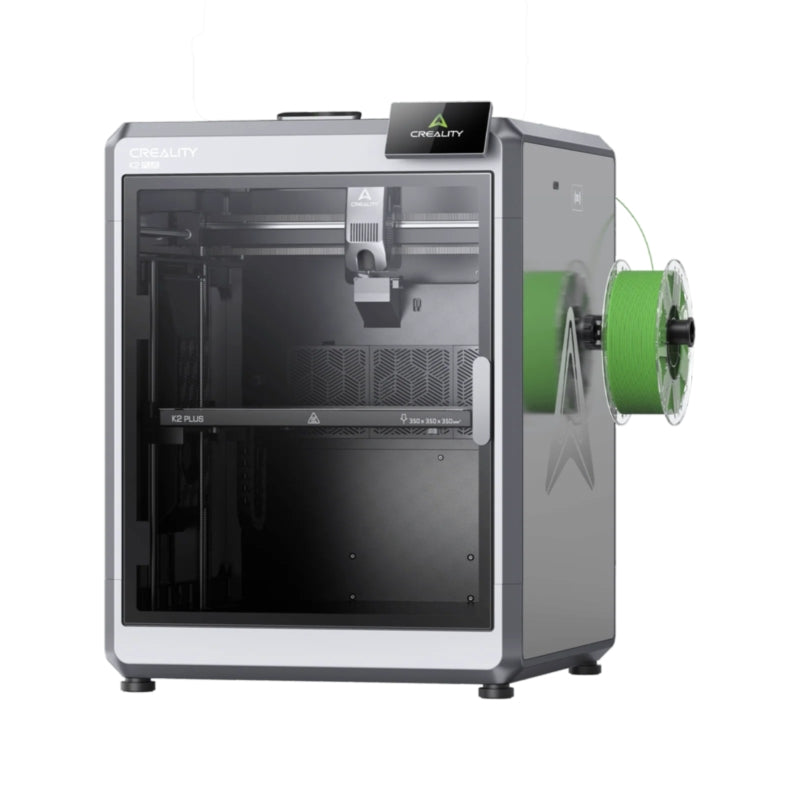

Creality K2 Plus Combo 3D Printer | CRE220

Creality K2 Plus Combo 3D Printer | CRE220.

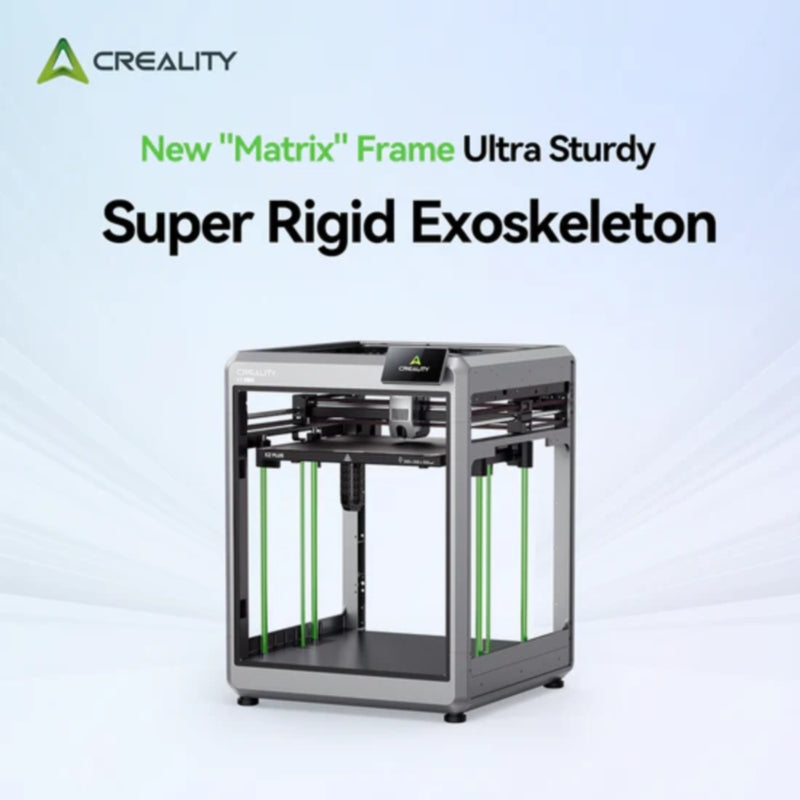

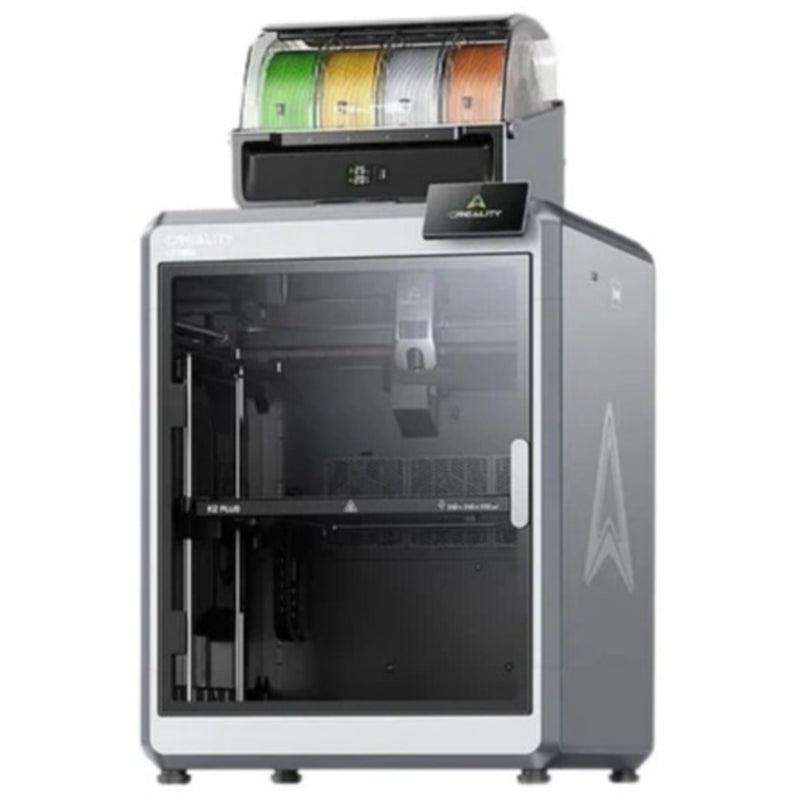

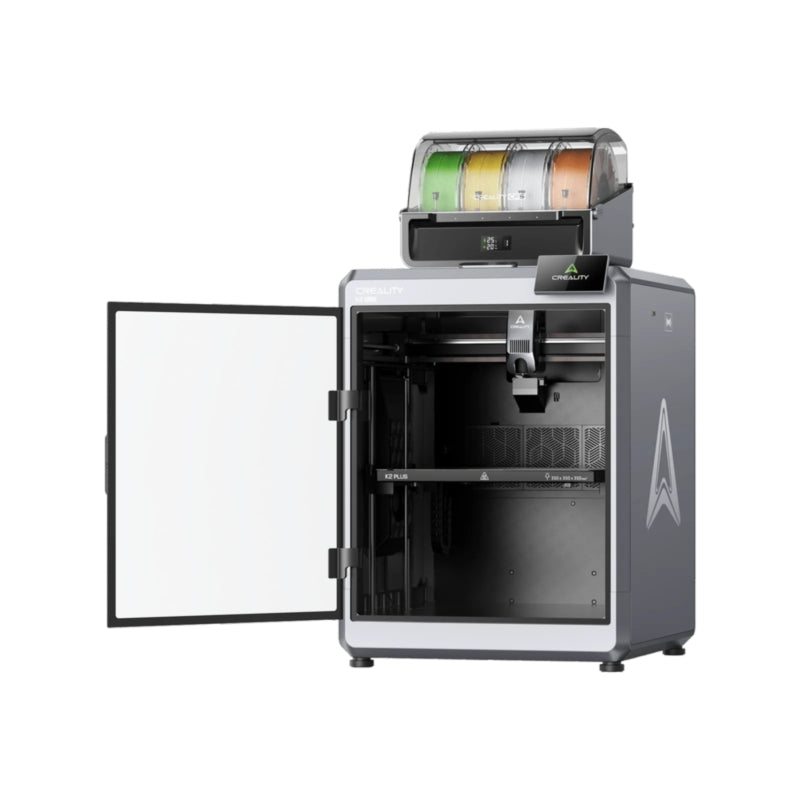

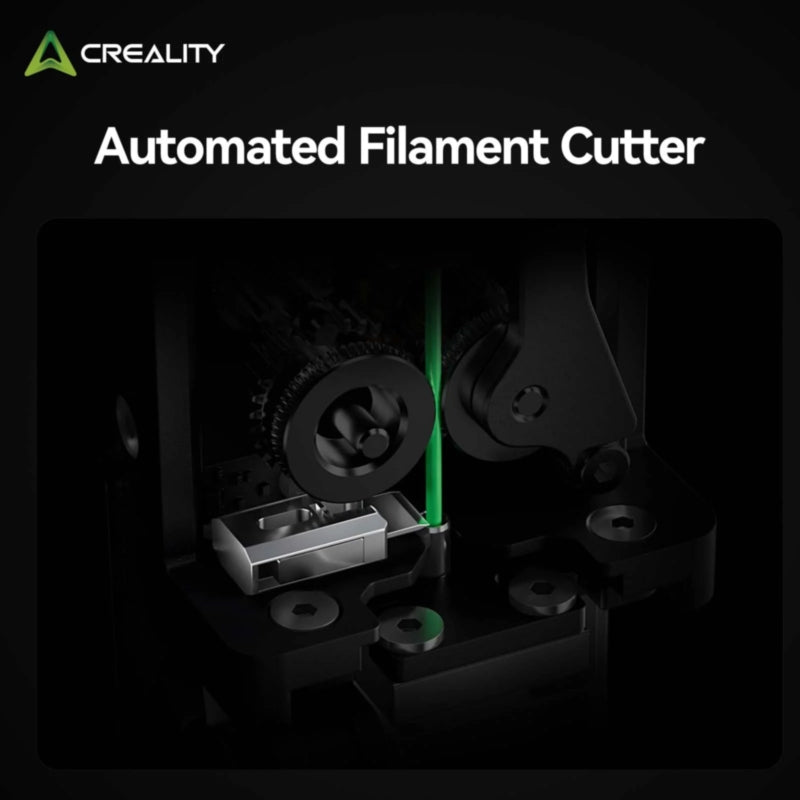

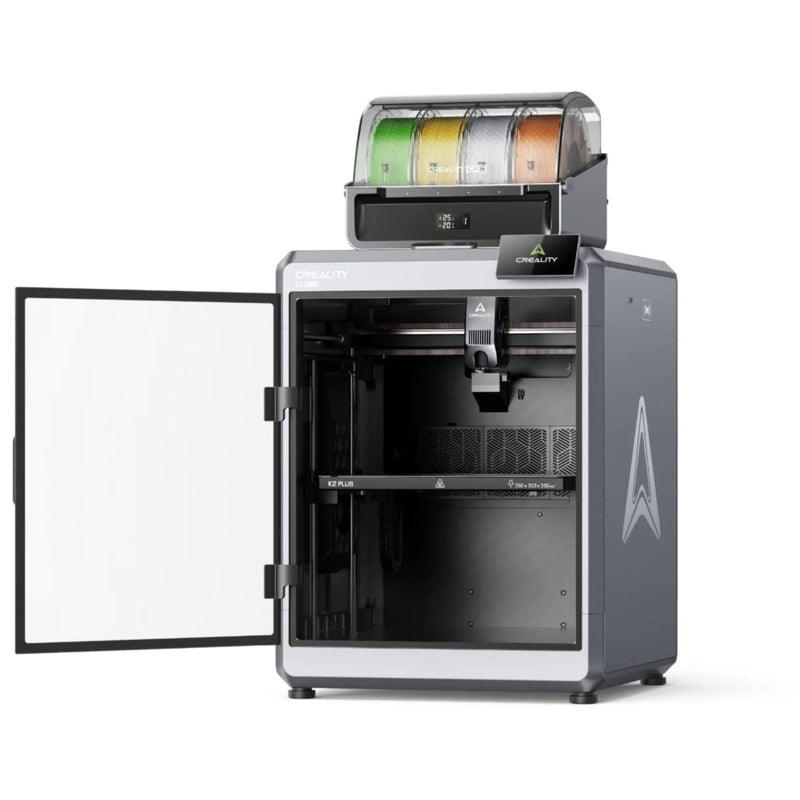

The Creality K2 Plus Combo 3D Printer is the enhanced successor to the K1C, designed for both professional and hobbyist users seeking a versatile and high-performance 3D printing solution. It features an upgraded frame, powerful stepper motors, and a next-generation dual-gear direct-drive extruder with a filament cutter for precise material handling.

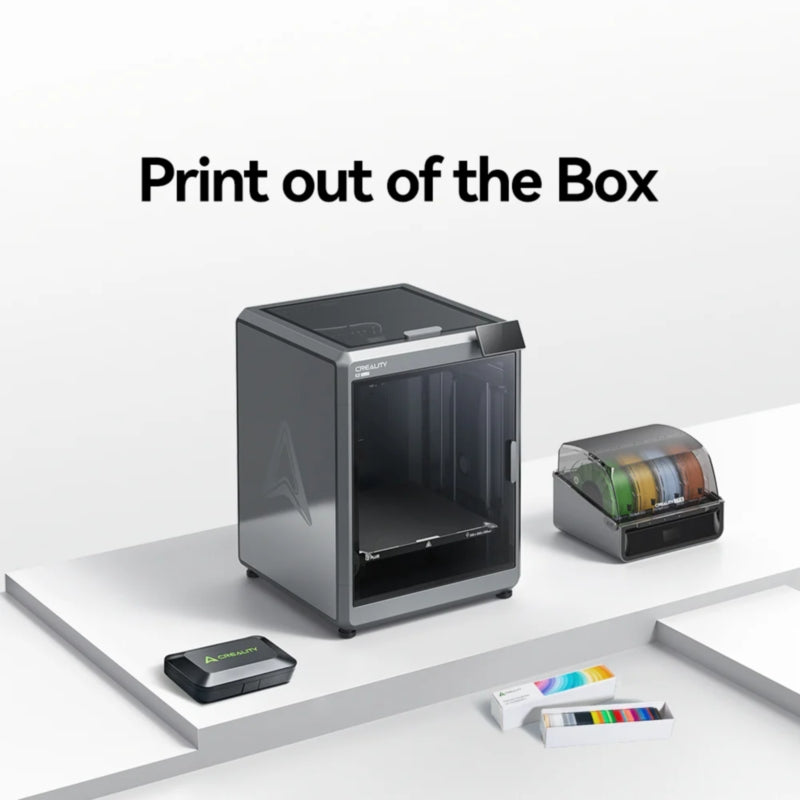

This printer comes pre-assembled, allowing immediate setup and printing. Auto bed leveling is achieved via a strain gauge sensor, while the actively heated build chamber supports higher printing temperatures and improved adhesion. The printer is also equipped with dual AI cameras for real-time monitoring and calibration, ensuring optimal print quality.

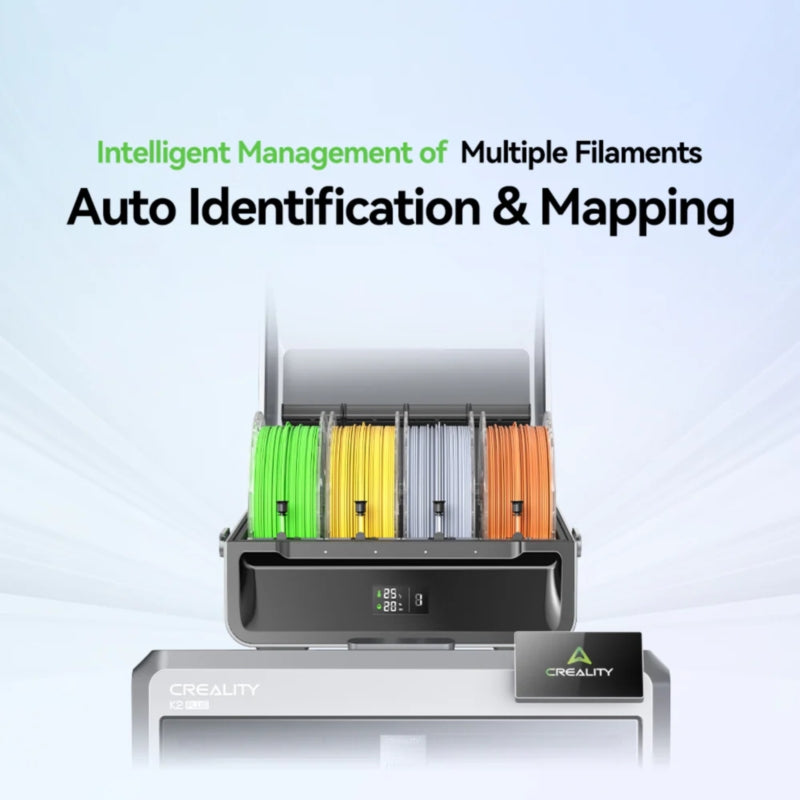

The included Creality Filament System (CFS) enables multi-material and multi-colour printing. By linking multiple CFS units, users can expand up to 16-colour printing. The K2 Plus features a flexible build plate, active chamber heater, chamber temperature control up to 60°C, and intelligent filament management with RFID-tagged filaments. Its powerful 1200W rating and high-speed capabilities of up to 600mm/s make it suitable for large and complex prints.

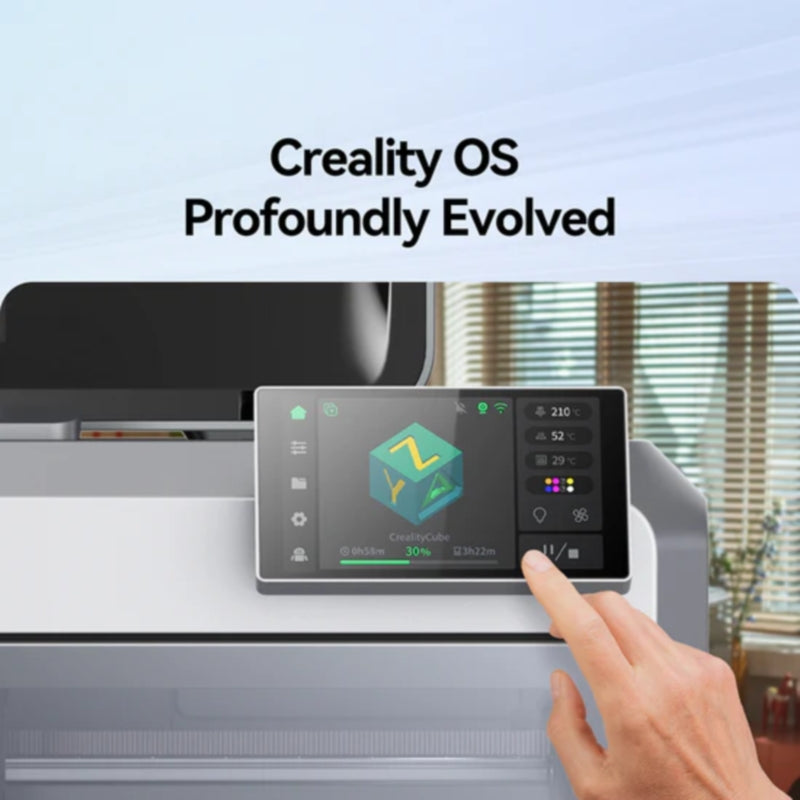

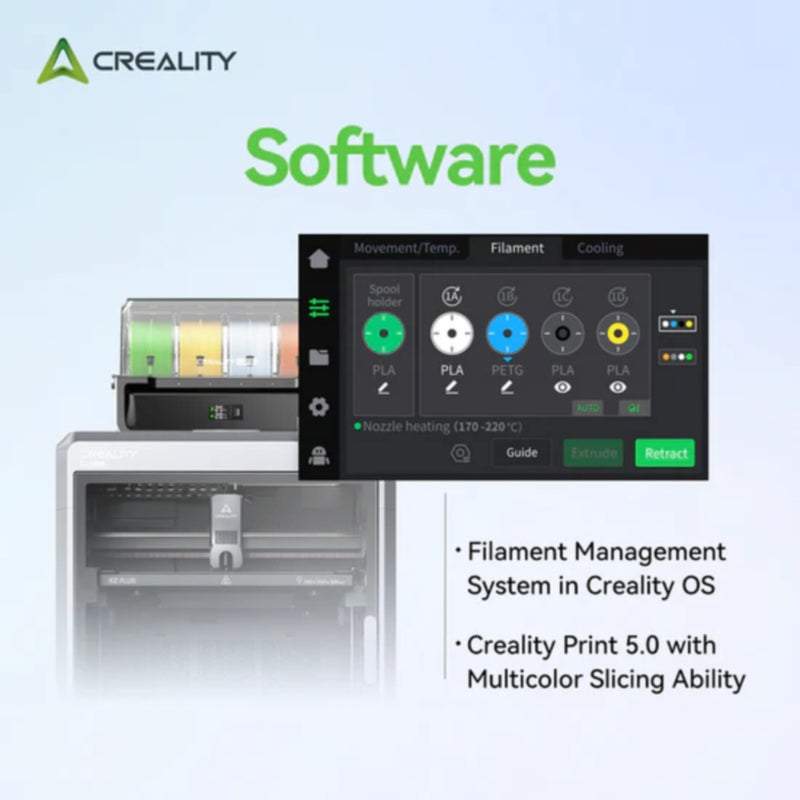

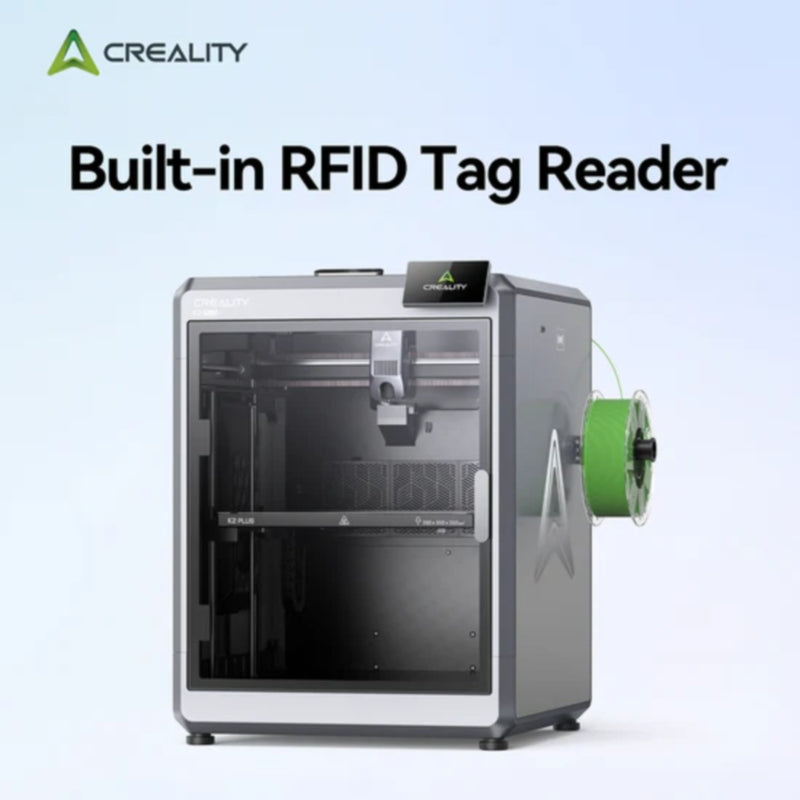

The user interface has been upgraded with Creality Print 5.0 software, a 4.3-inch colour touchscreen, and multilingual support. Connectivity is ensured via USB drive, Ethernet, or dual-band WiFi. Additional features include an air purifier to reduce VOCs, a built-in RFID tag reader, active belt tensioning, and input shaping for smooth motion.

Features & Benefits:

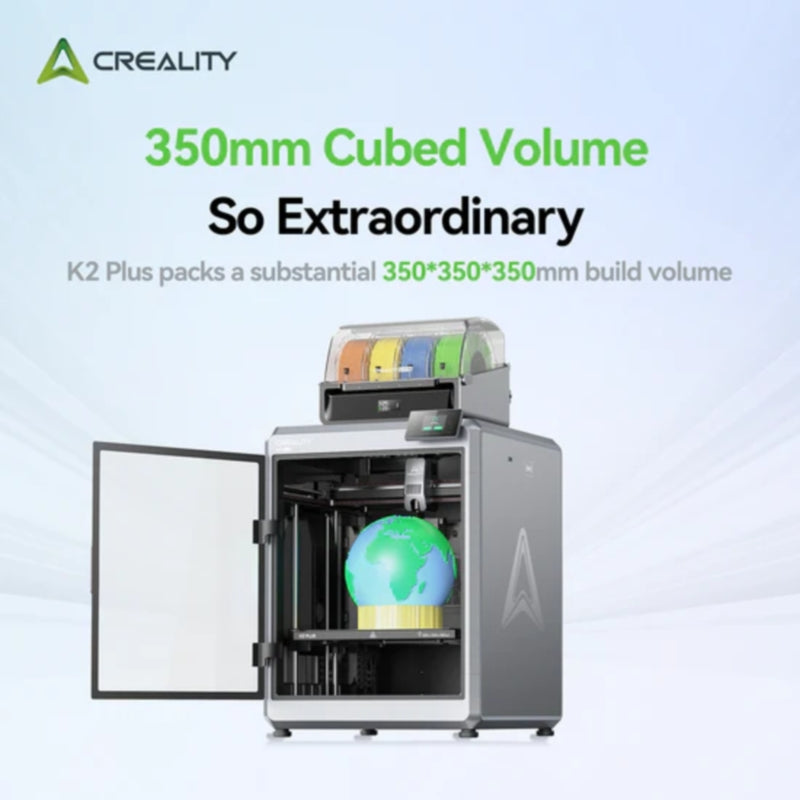

• Large Build Volume: 350 × 350 × 350mm print area allows for substantial, complex projects in a single print.
• High-Speed Printing: Capable of up to 600mm/s with acceleration of 30,000mm/s² for rapid prototyping.

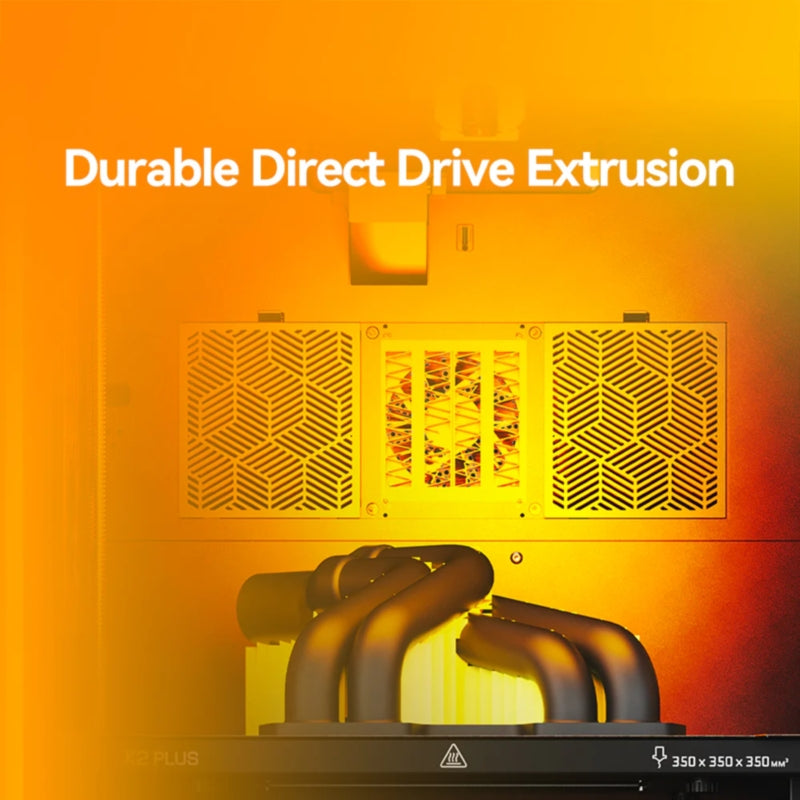

• Dual-Gear Direct Drive Extruder: Provides reliable filament feeding and precise extrusion for multiple materials.

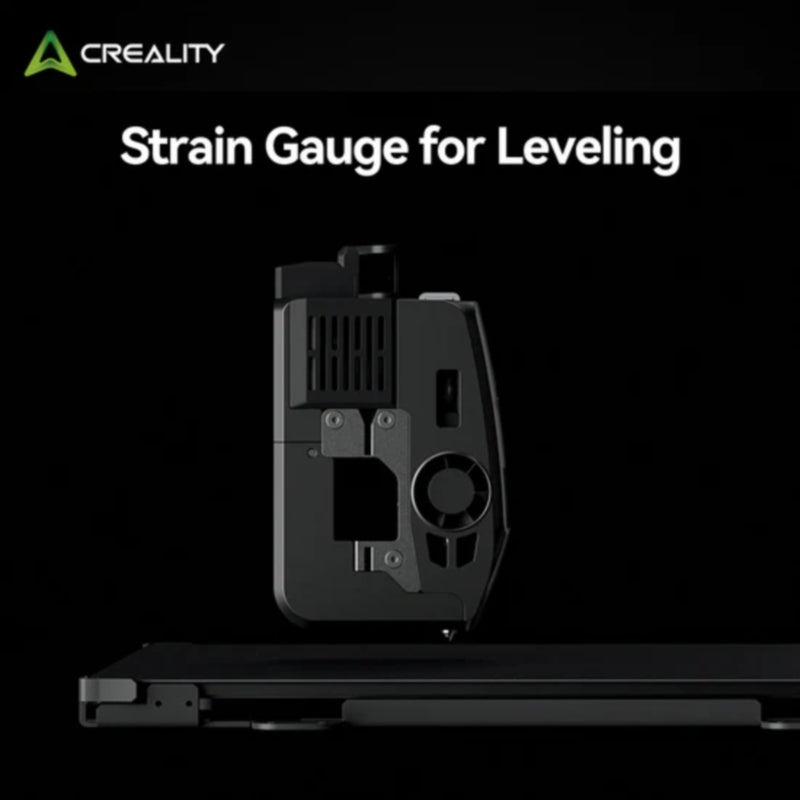

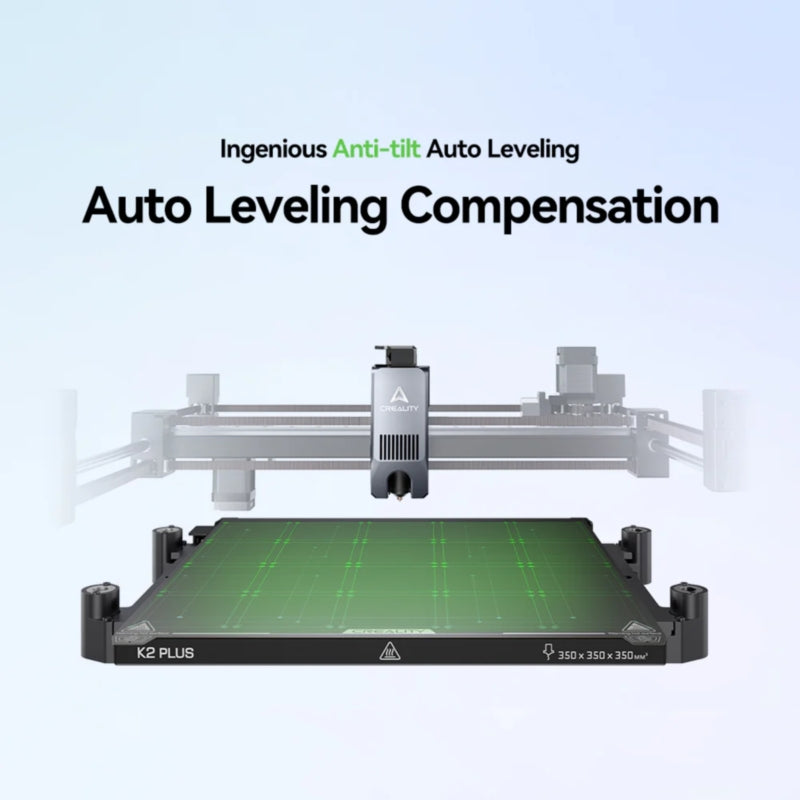

• Full-Auto Bed Leveling: Strain gauge sensor ensures perfect first-layer adhesion without manual adjustment.

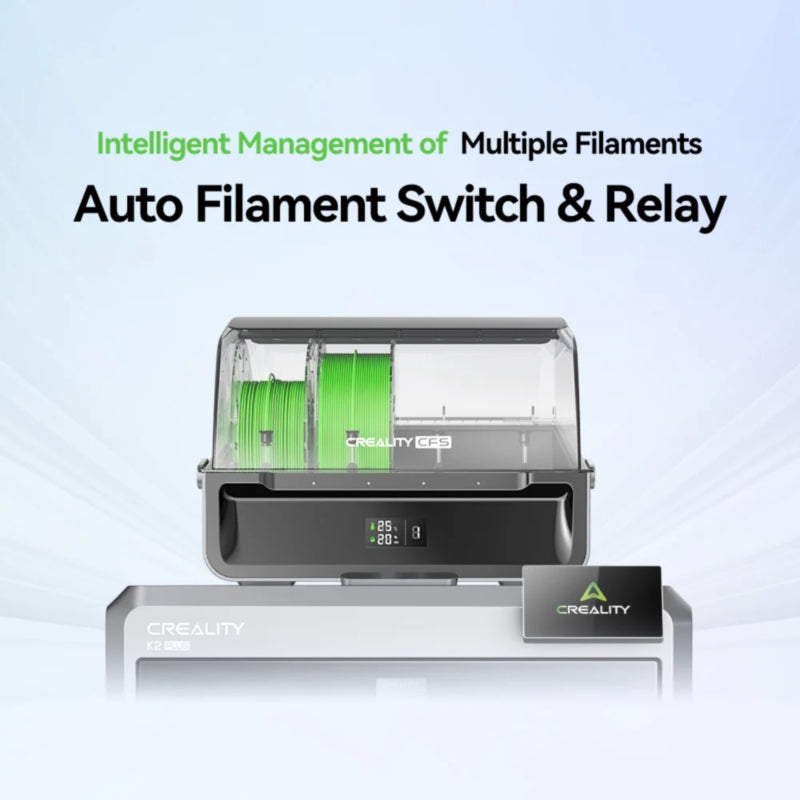

• Multi-Colour Printing: CFS system supports 4 filaments per unit, expandable to 16 colours for complex models.
• Active Heated Chamber: Maintains stable temperatures up to 60°C to improve print quality with challenging filaments.

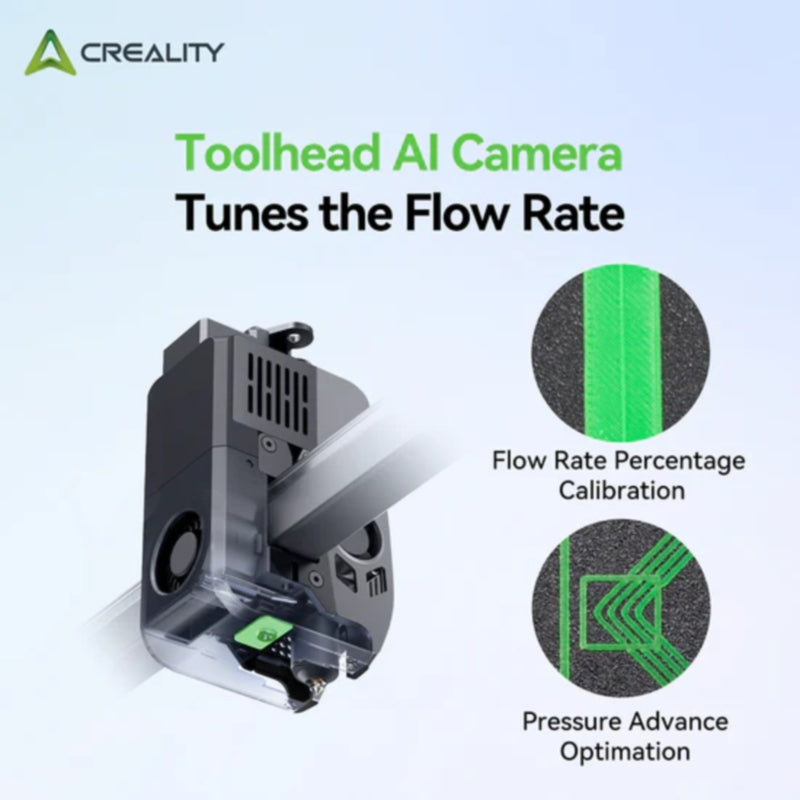

• Dual AI Cameras: Enable live monitoring and automated calibration for enhanced print reliability.
• Smart Filament Management: RFID-tagged filaments and auto filament relay reduce errors and material waste.
• Flexible Build Plate: Simplifies print removal and supports multiple material types.

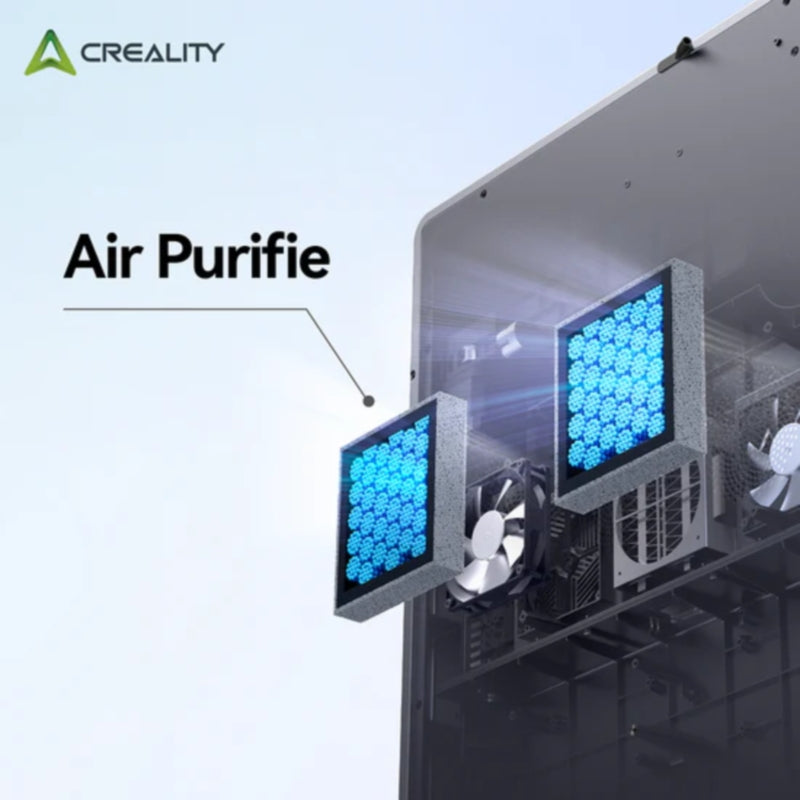

• Air Purifier and Lighting Kit: Ensures a safer printing environment by reducing VOCs and improving visibility.
• Intelligent Motion: Input shaping technology reduces vibration for smoother prints.
• User-Friendly Operation: Pre-assembled printer with intuitive touchscreen interface and Creality Print 5.0 software.

Specifications – K2 Plus 3D Printer:

Product: K2 Plus
Printing Technology: Fused Deposition Modeling (FDM)
Build Volume: 350mm × 350mm × 350mm
K2 Plus Dimensions: 495mm (L) × 515mm (W) × 640mm (H)
K2 Plus Combo Dimensions: 495mm (L) × 515mm (W) × 916mm (H)
Rated Voltage: 100–240V AC, 50/60Hz
Rated Power: 1200W
Net Weight: 35kg
Display Screen: 4.3" colour touch screen
Supported Filaments: PLA, ABS, PETG, PA-CF, PLA-CF, PET, ASA, PPA-CF
Printing Speed: ≤600mm/s
Acceleration: ≤30,000mm/s²
Printing Accuracy: 0.1mm ±
Layer Height: 0.05–0.3mm
Extruder: Dual-gear direct drive extruder
Filament Diameter: 1.75mm
Nozzle Diameter: 0.4mm
Max Nozzle Temperature: ≤350°C
Max Heatbed Temperature: ≤120°C
Chamber Temperature: ≤60°C
Auto Filament Relay: Yes
Filament Tangle Detection: Yes
Leveling Mode: Full-auto Leveling
Active Bed Tilt Calibration: Yes
Active Chamber Heater: Yes

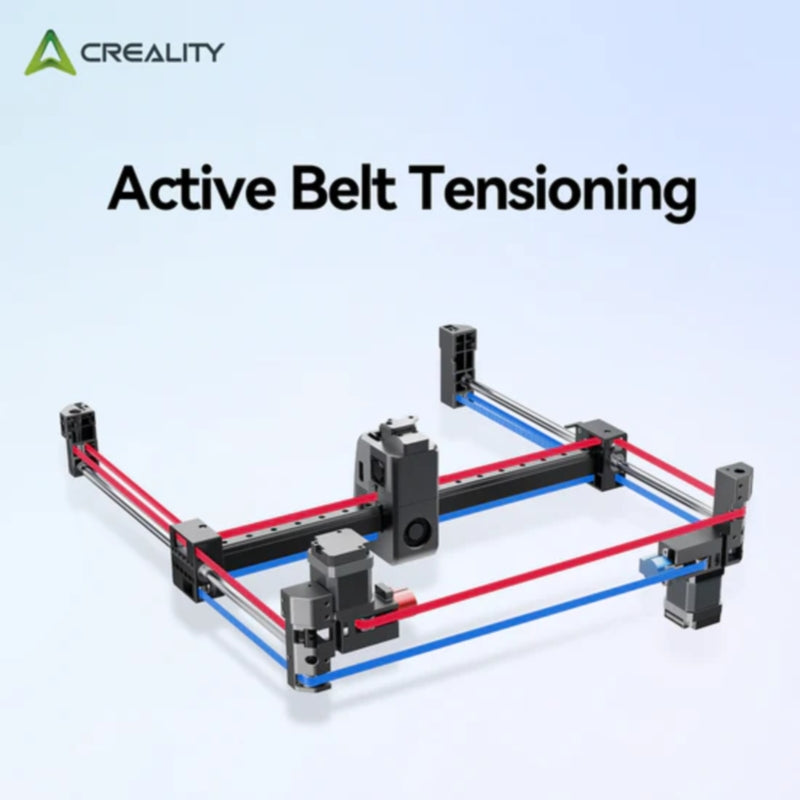

Active Belt Tensioning: Yes
Build Plate: Flexible build plate
Air Purifier: Yes
Lighting Kit: Yes
Input Shaping: Yes
AI Camera for Monitoring & Calibration: Standard
RFID-tagged Filaments: Yes
XYZE Motor: Servo-step motor
Printable File Format: G-code / 3MF
File Transfer: USB Drive / Ethernet / WiFi
CFS Compatibility: Yes
File Storage: 32GB EMMC
Number of CFS Extensions: ≤4
WiFi: 2.4GHz / 5GHz
Slicing Software: Creality Print 5.0 or newer versions
RFID Sensor in Printer: Included
UI Languages: English, German, Spanish, French, Italian, Portuguese, Russian, Turkish, Japanese, Korean, Chinese

Specifications – Creality Filament System (CFS) Unit:

Product: CFS
Supported 3D Printer: K2 Plus
Dimensions: 379mm (L) × 314mm (W) × 276mm (H)
Connection Port: Creality 485 ×2
Net Weight: 4.56kg
Power Supply: DC 24V (no additional supply needed when connected to K2 Plus)
Number of Filament Slots: 4
Rated Power: 20W
Drying Method: Desiccant
Status Indicator: Indicator lights (white/red) ×4
Filament Buffer: IN ×4 & OUT ×1

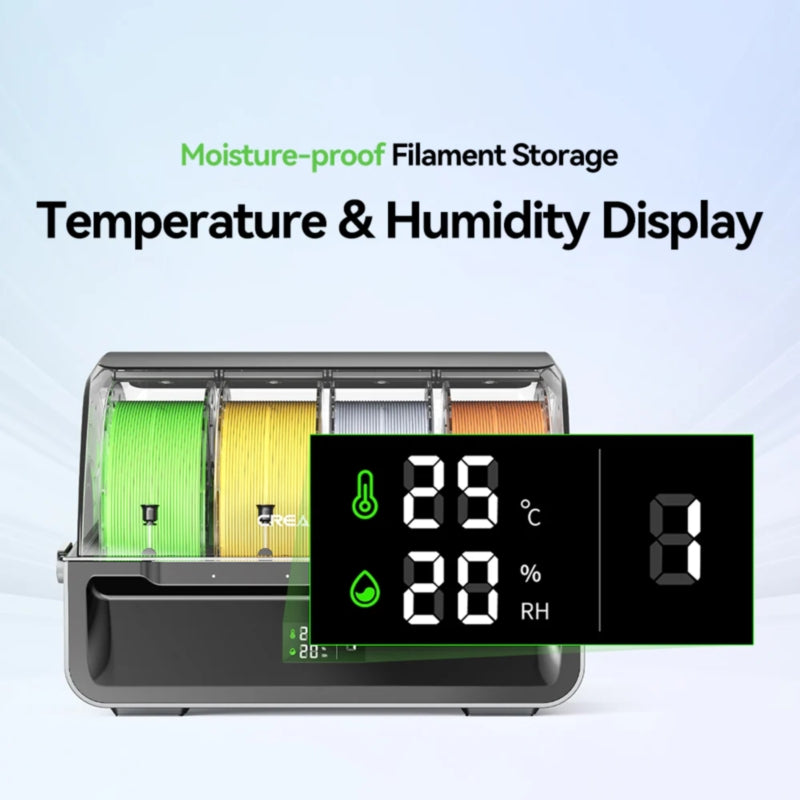

Display Screen: Segment LCD showing temperature and humidity
Number of Extensions: ≤4
Filament Spool Compatibility: 1kg filament spool; diameter: 197–202mm, thickness: 42–68mm
RFID Filament Recognition: Yes
Supported Filaments: PLA, PETG, ABS, ASA, PET, PLA-CF (*Not compatible with flexible TPU, damp BVOH/PVA, or warped cardboard spools)
Filament Diameter: 1.75 ±0.05mm
Auto Filament Relay: Yes
Package Dimensions: 438mm (L) × 365mm (W) × 330mm (H)
Gross Weight: 5.8kg

Scope of Delivery:

• 1 x Creality K2 Plus 3D Printer (pre-assembled)
• 1 x Creality Filament System (CFS) unit
• 1 x Dual-Gear Direct Drive Extruder
• 1 x Flexible Build Plate
• 1 x Power Cable
• 1 x Tool Kit
• 1 x Air Purifier
• 1 x Lighting Kit
• 1 x User Manual

Please Note: Images are for illustrative purposes only; included components are specified above. Additional CFS units are required for 16-colour printing; this Combo includes only one CFS unit.
