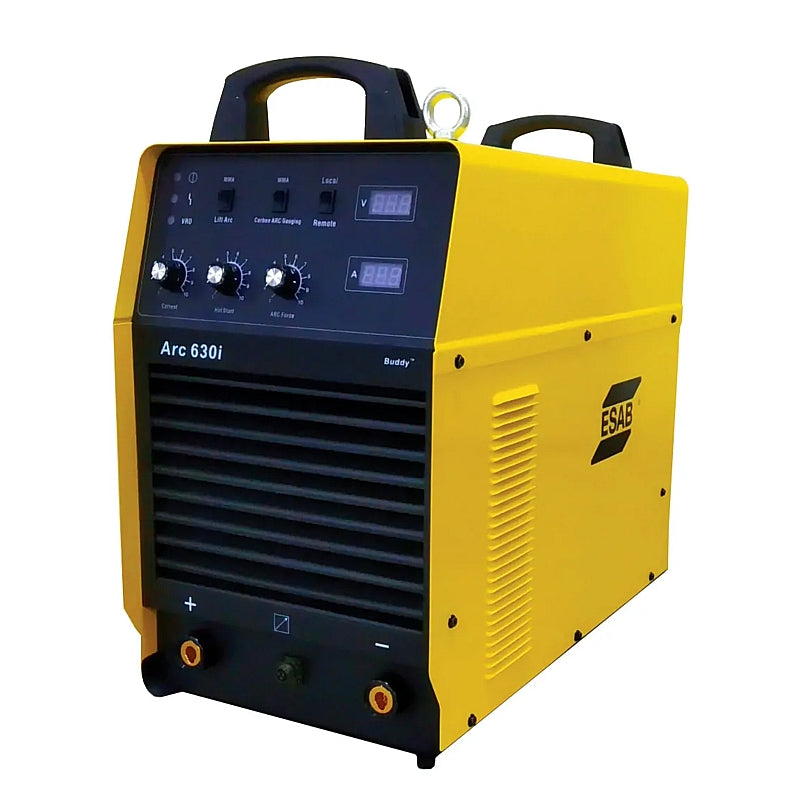

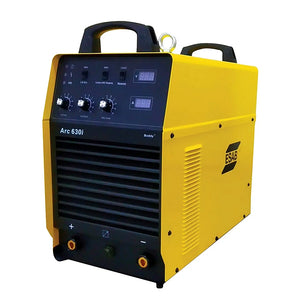

ESAB Buddy ARC 630i ARC/TIG Heavy Duty Inverter Welder | 0700300905 .
The ESAB Buddy ARC 630i is a high-performance, industrial-grade inverter welding machine engineered for continuous 24x7 operation. Designed for MMA (Stick) welding, Scratch TIG and Air Carbon Arc Gouging (A-CAG), this robust power source delivers up to 630 amps, making it ideal for heavy fabrication, construction and industrial maintenance applications.
Built with advanced IGBT inverter technology, the Buddy ARC 630i ensures excellent arc stability, improved energy efficiency and consistent welding performance. Moreover, it maintains stable operation even when using long welding leads with E6013 and E7018 electrodes. Thanks to its wide operating window of 20 – 630 A and wide mains voltage tolerance of 400 V (-15% to +20%), it adapts easily to demanding site conditions.
The machine features user-friendly controls, including adjustable Arc Force and Hot Start in MMA mode, as well as a process selection switch for MMA and Scratch TIG. In addition, integrated protection systems guard against mains over-voltage, under-voltage and overheating, thereby enhancing reliability and operational safety.
Its durable industrial construction allows it to withstand harsh environments such as cement plants, process plants and large construction sites. At the same time, the compact inverter design improves efficiency while maintaining powerful output performance.
Features & Benefits:
-
630 A High Output: Delivers powerful welding capacity suitable for thick materials and heavy-duty industrial applications.
-
Multiple Welding Processes: Supports MMA (Stick), Scratch TIG and Air Carbon Arc Gouging for maximum versatility.
-
IGBT Inverter Technology: Enhances energy efficiency while providing stable and controlled arc performance.
-
Wide Current Range (20 – 630 A): Allows precise adjustment for various electrode types and welding tasks.
-
Wide Voltage Tolerance (400 V -15% to +20%): Ensures stable performance even with mains fluctuations.
-
Adjustable Arc Force & Hot Start: Improves arc ignition and stabilises the weld pool, especially with E6013 and E7018 electrodes.
-
Built-in Protection Systems: Protects against over/under-voltage and overheating for increased durability.
-
Designed for 24x7 Operation: Suitable for continuous industrial use in demanding environments.
-
Rugged Industrial Design: Engineered to withstand harsh jobsite conditions while delivering consistent performance.
Application Areas:
- Heavy Fabrication
- Construction and Erection Projects
- Cement Plants
- Process Plants
- Repair and Maintenance
- Shipbuilding
Specifications:
-
Code: 0700300905
-
Mains Voltage: 380 - 400 V (-15% to +20%), 3 Phase, 50/60 Hz
-
Effective Input Current: 53 A
-
Output Current Range: 20 – 630 A
-
Maximum Load at 60% Duty Cycle: 630 A
-
Maximum Load at 100% Duty Cycle: 490 A
-
Open Circuit Voltage (Without VRD): 85 V
-
Open Circuit Voltage (VRD Activated): < 20 V
-
Power Factor at Full Load: 0.89
-
Efficiency (Maximum): 85%
-
Dimensions (L x W x H): 650 x 355 x 624 mm
-
Weight: 59 kg
-
Operating Temperature: -10 to +40 °C
-
Application Class: S
-
Standards of Conformity: EN 60974-1; EN 60974-10
Scope of Delivery:
- ESAB Buddy ARC 630i Welding Machine
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
