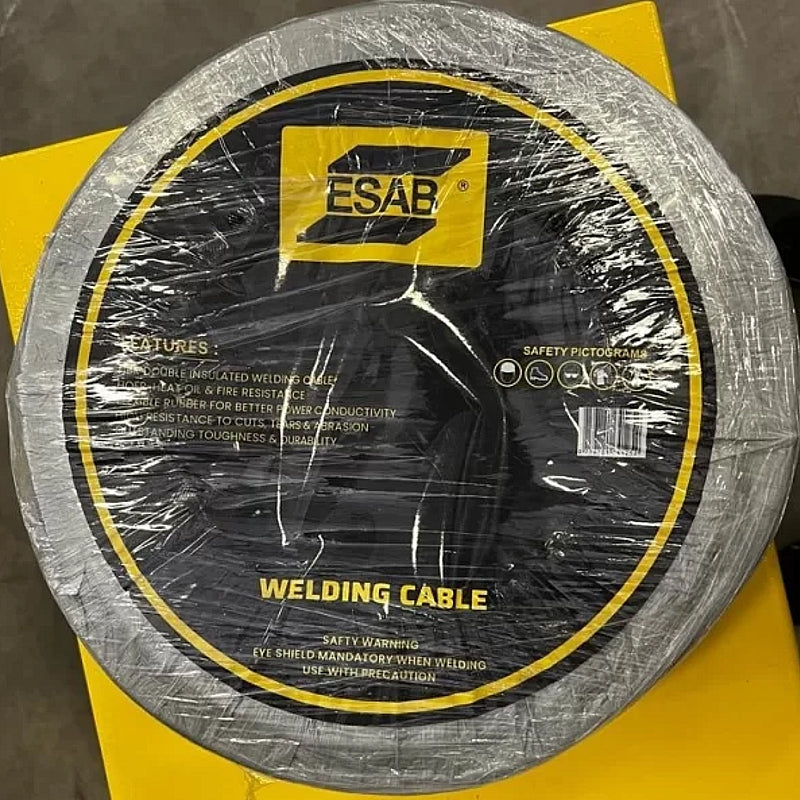

ESAB Welding Cable, 70mm² NBR Brown, 10Kg | WELDC70BWN100

ESAB Welding Cable, 70mm² NBR Brown, 10Kg | WELDC70BWN100.

The ESAB 70mm² NBR Brown Welding Cable is designed for reliable secondary current connections on both automated and hand-held metal arc welding electrodes and machines. Constructed with a high-conductivity, bare annealed copper flexible conductor, it ensures efficient current flow and stable welding performance.

The cable features double insulated Nitrile Rubber (NBR) insulation that enhances safety while maintaining flexibility. It offers excellent mechanical toughness, resisting cuts and breaks, and withstands oil, solvents, chemicals, ozone and adverse weather conditions. Supplied as a 10 kg roll, it is convenient for installation and industrial use, providing both versatility and long-term durability for demanding welding environments.

Features & Benefits:

• Double Insulated NBR Construction: Provides enhanced safety, flexibility, and durability for extended use.
• High-Conductivity Copper Conductor: Ensures efficient current transfer and consistent weld quality.
• Flame Retardant: Meets IEC 60332-1 flame propagation standards for improved operational safety.
• Mechanical Strength: Resistant to cuts and breaks, reducing maintenance and downtime.
• Chemical & Oil Resistant: Maintains integrity when exposed to oils, solvents, and chemicals.
• Ozone & Weather Resistant: Suitable for outdoor and harsh environmental conditions.
• Flexible Design: Minimum bending radius of 6 × cable diameter allows easy handling and installation.
• 10 kg Roll: Provides convenient weight for deployment in industrial or workshop settings.

Specifications:

• Code: WELDC70BWN100
• Cross Sectional Area: 70mm²
• Conductor: High conductivity, bare annealed copper flexible conductor (EC copper, Class 5 and Class 6), conforms to IEC 60228 and DIN VDE 0281
• Insulation: Double insulated flexible Nitrile Rubber (NBR)
• Core Colour: Brown (colour coded per cross sectional size)
• Nominal Voltage: 600 V
• Test Voltage: 3000 V
• Temperature Range (Fixed Installation): -30°C to +90°C
• Minimum Bending Radius: 6 × cable diameter
• Flame Propagation: Flame retardant as per IEC 60332-1
• Standards Compliance: BS EN 50523, CENELEC HD 22.6.31, VDE 0282, IEC 245-6, BS 6899, IS 6830/84

Scope of Delivery:

• 1 × 10 kg roll ESAB Welding Cable, 70mm² NBR Brown

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
