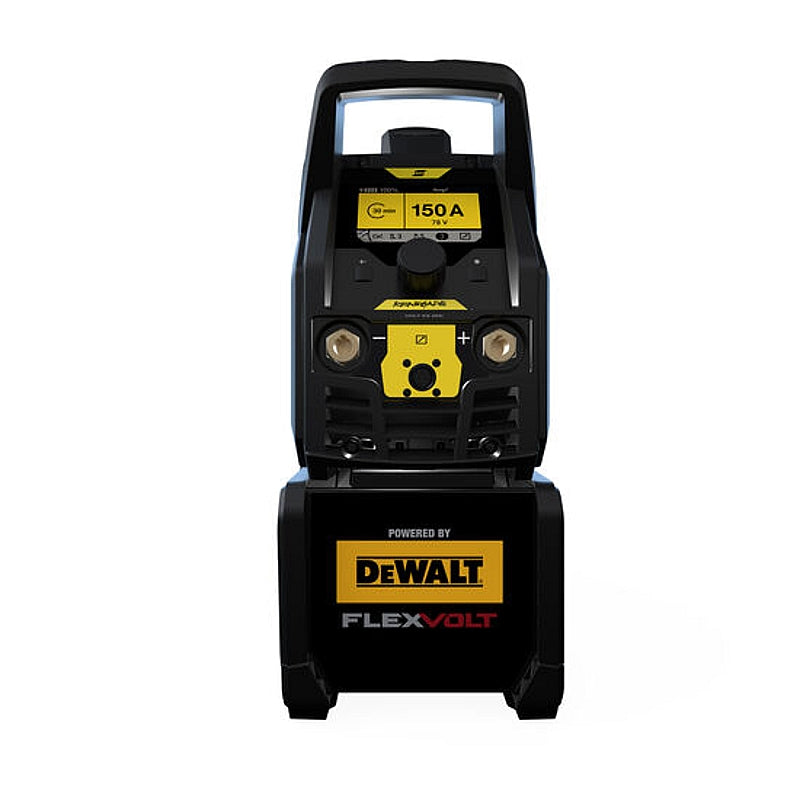

ESAB Renegade VOLT™ ES 200i (CE) ARC/TIG Cordless Battery-Powered Welder | 0447800881

ESAB Renegade VOLT™ ES 200i (CE) ARC/TIG Cordless Battery-Powered Welder | 0447800881.

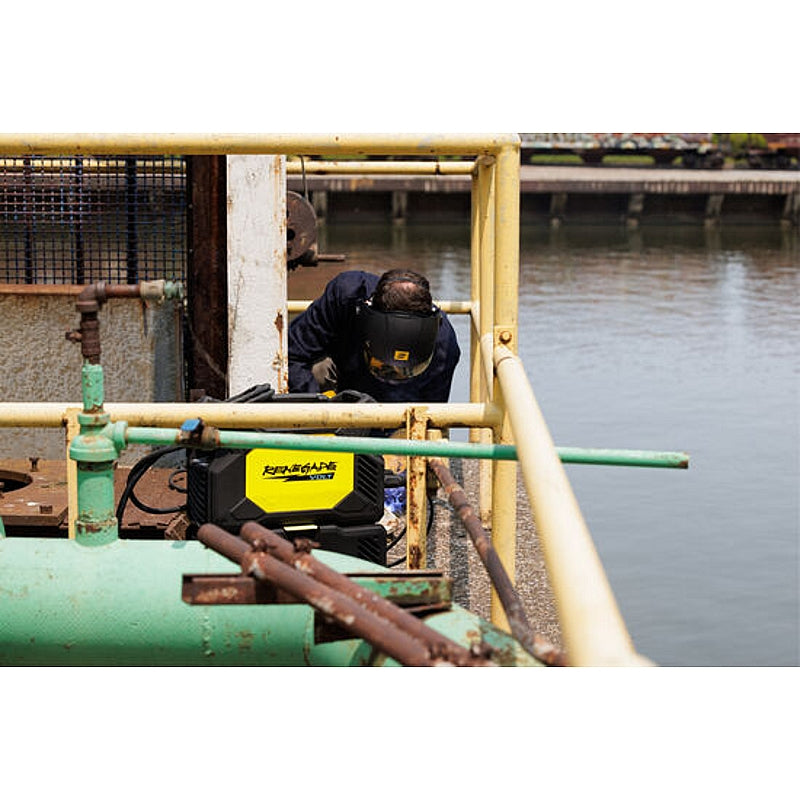

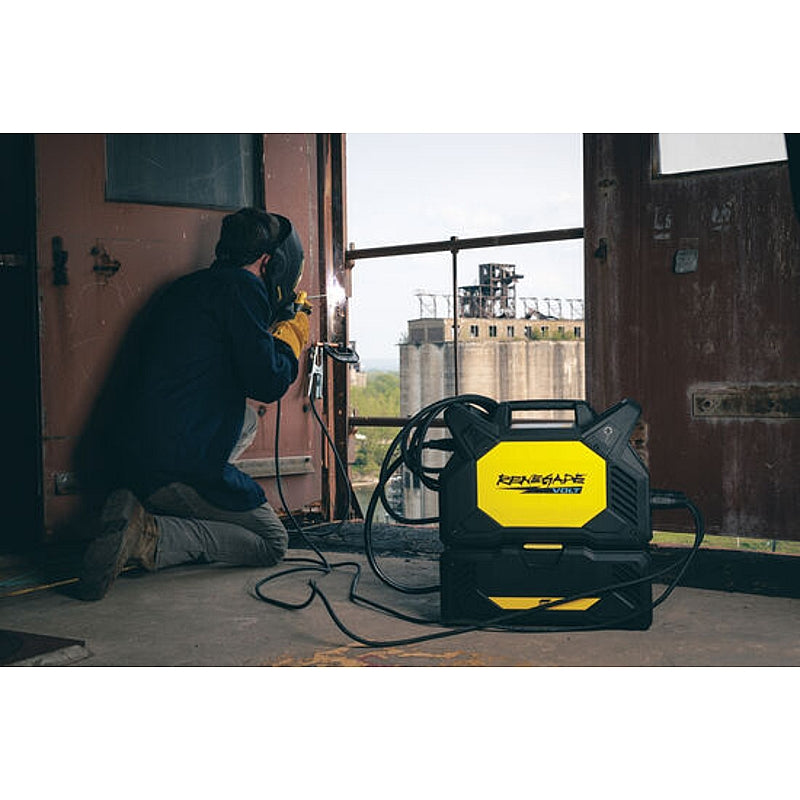

The ESAB Renegade VOLT™ ES 200i is a portable, cordless welding solution designed for professionals who require reliable performance in remote, offsite or hard-to-reach locations. Because it operates in Battery Mode, Mains Mode or AMP+ Hybrid Mode, it delivers exceptional versatility across a wide range of working environments.

This advanced unit runs on 6 Ah, 9 Ah and 12 Ah DEWALT® FLEXVOLT® batteries. Using four included 12 Ah batteries, the welder can burn up to 33 E6013 electrodes on a single charge under standard operating conditions. Consequently, it provides genuine independence from AC mains power while maintaining professional welding output.

When connected to AC mains power (120/230 VAC), the Renegade VOLT™ ES 200i delivers up to 200 A output at 230 V. In Battery Mode, it provides up to 140 A output, ensuring dependable performance even where power access is limited. Furthermore, AMP+ Hybrid Mode intelligently supplements mains power with battery power. As a result, it helps prevent nuisance breaker trips on smaller breaker sizes (for example 10 A or 16 A circuits) and increases available output when welding on 120 V input.

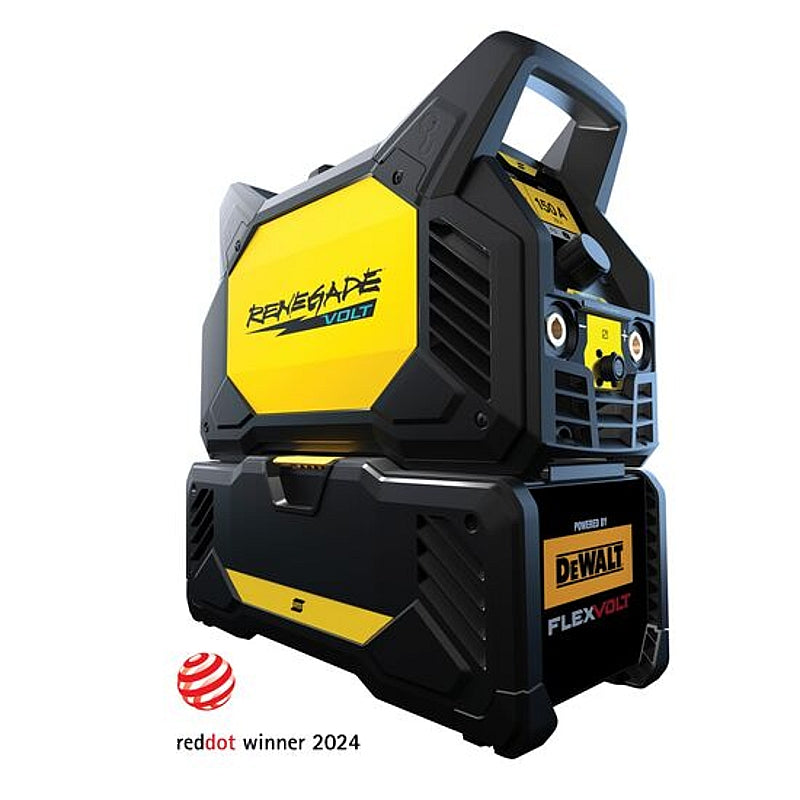

The welder features a rugged, industrial design with durable, impact-resistant housing and multiple lift points for easier handling and transport. In addition, the bright and intuitive colour-screen user interface is optimised for outdoor use, even in direct sunlight. The display includes a battery status indicator and a remaining arc time calculator, allowing operators to manage productivity more effectively.

To enhance welding performance, the Renegade VOLT™ ES 200i incorporates advanced arc features such as Hot Start, Arc Force, memory storage for welding parameters and a dedicated cellulosic mode (6010). These functions enable users to optimise arc characteristics based on application requirements or personal preference while maintaining high arc quality.

Features & Benefits:

• True Cordless Operation: Operates on DEWALT® FLEXVOLT® batteries, enabling welding in remote locations without direct access to AC mains power.
• Three Operating Modes: Switches between Battery, Mains and AMP+ Hybrid Mode to suit site conditions and power availability.
• AMP+ Hybrid Technology: Supplements mains power with battery power to reduce breaker trips and increase output on smaller circuits.
• High Output Performance: Delivers up to 200 A on 230 V mains and up to 140 A in Battery Mode for demanding applications.
• Advanced Arc Control: Includes Hot Start, Arc Force, cellulosic (6010) mode and memory storage to optimise arc performance.
• Outdoor-Optimised Interface: Features a bright, colour-screen display with battery status and remaining arc time calculator for improved control.
• Rugged Industrial Design: Impact-resistant housing and multiple lift points support reliable field operation and transport.

Industry:

• Repair and Maintenance
• Civil Construction
• Agriculture
• Food and Beverage
• Ship and Offshore Yards
• Railcars
• Power Generation
• Marine and Offshore
• Mining
• Transportation

Specifications:

• Model: Renegade VOLT™ ES 200i (CE)
• Primary Voltage: 120/230 VAC ± 15%, 1ph, 50/60 Hz
• Fuse (Slow): 16 A
• Rated kVA: 6.0 kVA @ 230 VAC; 2.7 kVA @ 120 VAC
• Voltage Range: 90 – 270 VAC
• Maximum Output (Mains 230V): 200 A
• Maximum Output (Battery Mode): 140 A
• Energy Save Mode: <50 W
• Power Factor at Maximum Current: 0.99
• Efficiency at Maximum Current: 80%
• Open Circuit Voltage (OCV): 80 VDC
• Operating Temperature: -10 to +40 °C
• Protection Class: IP23
• Certification: CE, UKCA

MMA Welding Output:

• Mains 120V at 25% Duty Cycle: 110 A / 24.4 V
• Mains 120V at 60% Duty Cycle: 70 A / 22.8 V
• Mains 120V at 100% Duty Cycle: 55 A / 22.2 V
• Mains 230V at 25% Duty Cycle: 200 A / 28.0 V
• Mains 230V at 60% Duty Cycle: 129 A / 25.2 V
• Mains 230V at 100% Duty Cycle: 100 A / 24.0 V
• Battery Mode (80 VDC) at 18% Duty Cycle: 140 A / 25.2 V
• Battery Mode (80 VDC) at 25% Duty Cycle: 110 A / 24.4 V
• Battery Mode (80 VDC) at 60% Duty Cycle: 80 A / 23.2 V
• Battery Mode (80 VDC) at 100% Duty Cycle: 60 A / 22.4 V
• AMP+ Hybrid 120V at 25% Duty Cycle: 150 A / 26.0 V
• AMP+ Hybrid 120V at 60% Duty Cycle: 90 A / 23.6 V
• AMP+ Hybrid 120V at 100% Duty Cycle: 70 A / 22.8 V
• AMP+ Hybrid 230V at 25% Duty Cycle: 200 A / 28.0 V
• AMP+ Hybrid 230V at 60% Duty Cycle: 129 A / 25.2 V
• AMP+ Hybrid 230V at 100% Duty Cycle: 100 A / 24.0 V

TIG Welding Output:

• Mains 120V at 25% Duty Cycle: 140 A / 15.6 V
• Mains 120V at 60% Duty Cycle: 90 A / 13.6 V
• Mains 120V at 100% Duty Cycle: 70 A / 12.8 V
• Mains 230V at 25% Duty Cycle: 200 A / 18.0 V
• Mains 230V at 60% Duty Cycle: 129 A / 15.2 V
• Mains 230V at 100% Duty Cycle: 100 A / 14.0 V
• Battery Mode (80 VDC) at 18% Duty Cycle: 150 A / 16.0 V
• Battery Mode (80 VDC) at 25% Duty Cycle: 115 A / 14.6 V
• Battery Mode (80 VDC) at 60% Duty Cycle: 90 A / 13.6 V
• Battery Mode (80 VDC) at 100% Duty Cycle: 70 A / 12.8 V
• AMP+ Hybrid 120V at 25% Duty Cycle: 180 A / 17.2 V
• AMP+ Hybrid 120V at 60% Duty Cycle: 130 A / 15.2 V
• AMP+ Hybrid 120V at 100% Duty Cycle: 100 A / 14.0 V
• AMP+ Hybrid 230V at 25% Duty Cycle: 200 A / 18.0 V
• AMP+ Hybrid 230V at 60% Duty Cycle: 129 A / 15.2 V
• AMP+ Hybrid 230V at 100% Duty Cycle: 100 A / 14.0 V

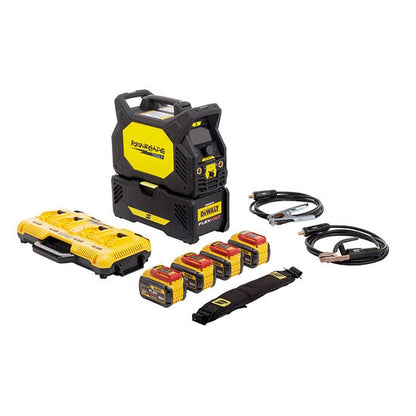

Scope of Delivery:

• Power source
• (4) DEWALT® FLEXVOLT® 20V/60V max 12 Ah batteries
• DEWALT® FLEXVOLT® four-port fast charger
• Electrode holder with 3 m (10 ft) cable and OKC 50 connector
• Return cable 200 A, 3 m (10 ft) with clamp and OKC 50 connector
• Shoulder strap

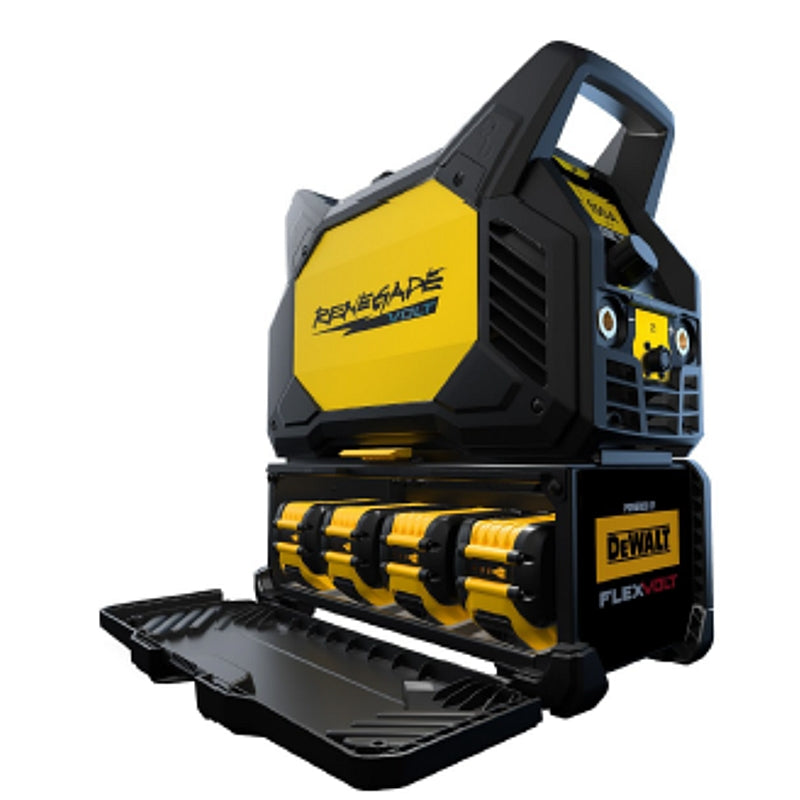

• Detachable battery box
