ESAB WELD 70S-6 Welding Wire 1.0mm, 15Kg | 321M109820

ESAB Weld 70S-6 Welding Wire 1.0mm, 15kg | 321M109820.

ESAB Weld 70S-6 functions as a copper-coated AWS ER70S-6 solid wire designed for general-purpose manual and semiautomatic Gas Metal Arc Welding (GMAW) applications in most industries. Welders use this wire on unalloyed and low-alloyed carbon-manganese steels for structural and engineering tasks. It performs reliably with either mixed gas (M21) or pure CO2 (C1) as shielding gas. Moreover, ESAB optimises the chemistry in its mild steel MIG wires to minimise post-weld rework and improve overall cost of ownership through cleaner welds and reduced cleanup. The wire delivers excellent feeding performance, which supports high-speed welding and consistent results over long feeding distances. Consequently, fabricators achieve stable arcs, good weld pool control, and dependable mechanical properties in production environments such as general manufacturing, construction, and fabrication shops. This 1.0 mm diameter wire on a 15 kg spool provides a practical balance of deposition rate and control for versatile welding needs.

Features & Benefits:

• Copper Coated Surface: Ensures smooth feeding, corrosion resistance, and consistent arc performance.
• Optimised Chemistry: Minimises post-weld rework and lowers total cost of ownership with cleaner welds.
• Excellent Feeding Performance: Supports high-speed welding and reliable operation over extended distances.
• Versatile Shielding Gas Compatibility: Works effectively with M21 mixed gas or C1 pure CO2 for setup flexibility.
• General-Purpose Suitability: Delivers reliable results on mild and low-alloy steels in various industrial applications.

Specifications:

• Product number: 321M109820
• Diameter: 1.0 mm
• Weight: 15 kg
• Classifications: SFA/AWS A5.18 : ER70S-6; EN ISO 14341-A : G 38 2 C1 3Si1; EN ISO 14341-A : G 42 3 M21 3Si1; EN ISO 14341-A : G 3Si1
• Shielding Gas: M21, C1 (EN ISO 14175)
• Alloy Type: Carbon-manganese steel (Mn/Si-alloyed)
• Typical Tensile Properties (EN M21, As Welded): Yield Strength 470 MPa; Tensile Strength 560 MPa; Elongation 26 %
• Typical Charpy V-Notch Properties (EN M21, As Welded, -30 °C): Impact Value 70 J
• Typical Wire Composition %: C 0.078; Mn 1.46; Si 0.85
• Deposition Data (1.0 mm): Current 80-250 A; Voltage 18-30 V; Wire Feed Speed 2.7-13.0 m/min; Deposition Rate 1.0-4.8 kg/h

Scope of Delivery:

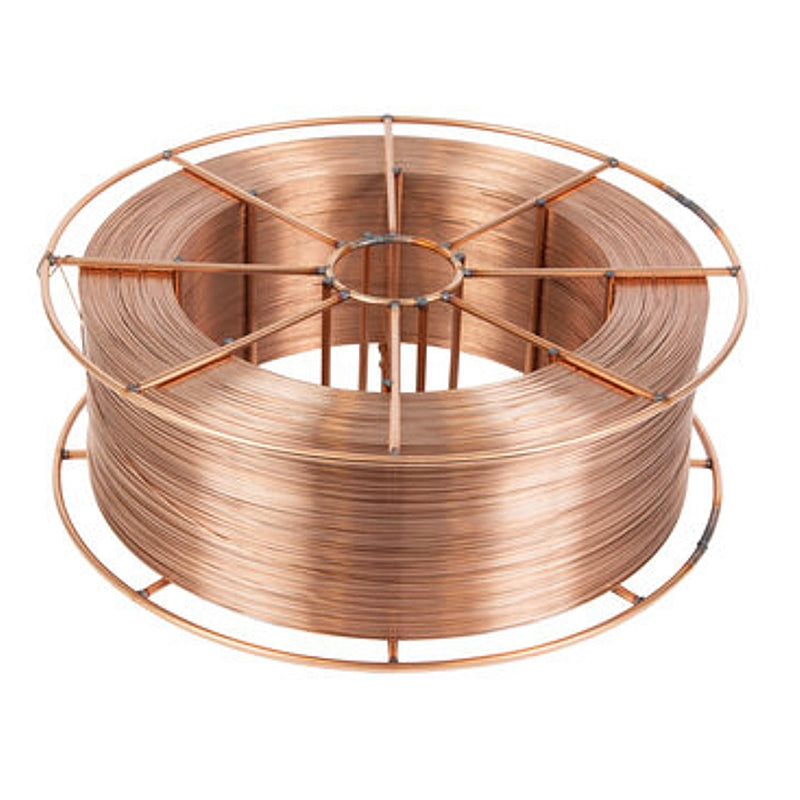

• 15 kg spool of ESAB Weld 70S-6 MIG Wire, 1.0 mm diameter
