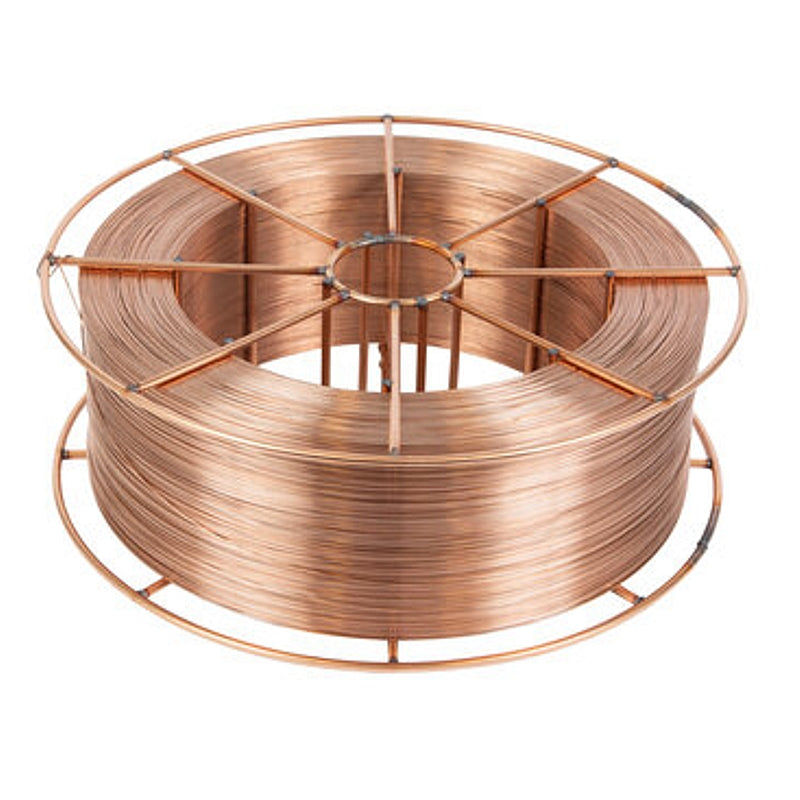

ESAB Weld G3Si1 MIG Wire 1.2mm, 15kg | 232112670H

ESAB Weld G3Si1 MIG Wire 1.2mm, 15kg | 232112670H.

ESAB Weld G3Si1 functions as a copper-coated, G3Si1 solid wire specifically for Gas Metal Arc Welding (GMAW) of all general structural and engineering unalloyed and low-alloyed carbon-manganese steels. Welders operate this electrode effectively with either a gas mixture (M21) or pure CO2 (C1) as the shielding gas. Furthermore, ESAB optimises the chemistry in its mild steel and low-alloy MIG wires, including Weld G3Si1, to minimise post-weld rework and deliver better overall cost of ownership. The wire demonstrates excellent feeding performance, which supports high-speed welding and reliable operation over long feeding distances. Consequently, fabricators achieve stable arc characteristics, good weld pool control, and consistent results across various production setups. This 1.2 mm diameter wire on a 15 kg spool suits demanding fabrication tasks in construction, pressure vessels, shipbuilding, and general engineering where quality and efficiency matter.

Features & Benefits:

• Copper Coated Surface: Promotes smooth feeding and protects against corrosion for consistent arc performance.
• Optimised Chemistry: Reduces post-weld rework needs and lowers total cost of ownership through cleaner, higher-quality welds.
• Excellent Feeding Performance: Enables high-speed welding and dependable results even over extended distances.
• Versatile Shielding Gas Options: Performs reliably with M21 mixed gas or C1 pure CO2 for greater setup flexibility.
• Precision Layer Wound: Supports stable arc and smooth metal transfer in demanding applications.

Specifications:

• Product number: 232112670H
• Diameter: 1.2 mm
• Weight: 15 kg
• Classifications: EN ISO 14341-A : G 38 2 C1 3Si1; EN ISO 14341-A : G 42 3 M21 3Si1; EN ISO 14341-A : G 3Si1; SFA/AWS A5.18 : ER70S-6
• Approvals: CE : EN 13479; DB : 42.039.39; UKCA : EN 13479; VdTÜV : 13038 (Approvals are based on factory location. Please contact ESAB for more information.)
• Alloy Type: Carbon-manganese steel (Mn/Si-alloyed)
• Shielding Gas: M21, C1 (EN ISO 14175)
• Typical Tensile Properties (EN M21, As Welded): Yield Strength 470 MPa; Tensile Strength 560 MPa; Elongation 26 %
• Typical Charpy V-Notch Properties (EN M21, As Welded, -30 °C): Impact Value 70 J
• Typical Wire Composition %: C 0.078; Mn 1.46; Si 0.85
• Deposition Data (1.2 mm): Current 120-330 A; Voltage 18-34 V; Wire Feed Speed 2.3-13.0 m/min; Deposition Rate 1.3-6.9 kg/h

Scope of Delivery:

• 15 kg spool of ESAB Weld G3Si1 MIG Wire, 1.2 mm diameter

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
