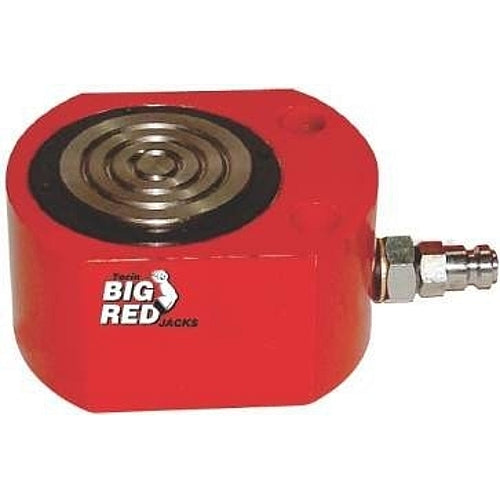

BIG RED Hydraulic Portable Ram, 20T | TRB2020

BIG RED Hydraulic Portable Ram, 20T | TRB2020.

Designed for strength and portability, the BIG RED TRB2020 Hydraulic Portable Ram delivers reliable performance for lifting, pushing, or aligning heavy loads. With a 20-ton capacity and compact build, this hydraulic ram is suitable for applications where height clearance is limited.

It features a minimum height of 62 mm (2.44") and a maximum height of 75 mm (2.95"), allowing for a 13 mm (0.51") lift stroke. Its 64 mm (2.52") cylinder diameter ensures dependable force distribution under load. Weighing just 3.1 kg (6.83 lbs), the TRB2020 combines mobility with industrial-grade strength.

The unit is compatible with the TRCP-180 hydraulic hand pump, delivering smooth and controlled hydraulic operation.

Features & Benefits:

• 20-Ton Capacity: Effectively handles medium-duty industrial lifting or pushing tasks with ease.
• Low-Profile Design: A 62 mm (2.44") minimum height is ideal for operations with restricted access.
• Short Lift Stroke: The 13 mm (0.51") lift allows for precise control during alignment or load positioning.
• Strong Cylinder Build: 64 mm (2.52") cylinder diameter provides excellent load stability and durability.
• Compact and Lightweight: At only 3.1 kg (6.83 lbs), the ram is easy to carry and operate across various locations.
• Compatible Pump: Designed for use with the TRCP-180 hand pump (see page 11 of the catalogue).

Specifications:

Product Code: TRB2020
Capacity: 20 Ton
Minimum Height: 62 mm (2.44")
Lift Height: 13 mm (0.51")
Maximum Height: 75 mm (2.95")
Cylinder Diameter: 64 mm (2.52")
Net Weight: 3.1 kg
Gross Weight: 3.2 kg
Package Size: 310 x 185 x 170 mm
Suitable Hand Pump: TRCP-180 (refer to catalogue page 11)

Scope of Delivery:

• 1 x BIG RED Hydraulic Portable Ram | TRB2020

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
