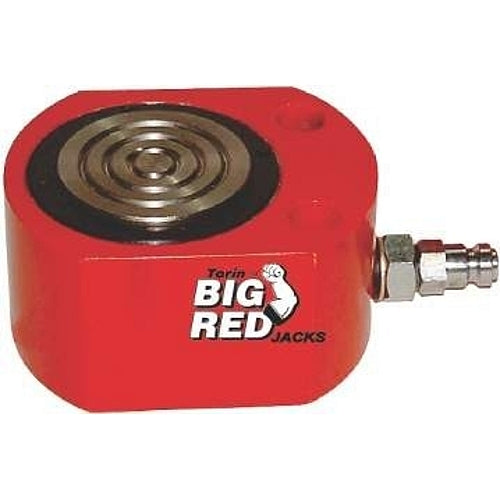

BIG RED Hydraulic Portable Ram, 5T | TRB2005

BIG RED Hydraulic Portable Ram, 5T | TRB2005.

The BIG RED TRB2005 Hydraulic Portable Ram is a reliable and compact solution for lifting needs up to 5 tons. Perfect for tight spaces, this ram features a minimum height of 41 mm (1.61") and offers a lift height of 7 mm (0.28"). With a maximum height of 48 mm (1.89"), it provides enough extension for many types of lifting operations.

The cylinder diameter of 35 mm (1.38") ensures stability and support during use. Lightweight at just 0.8 kg (1.76 lbs), the ram is easy to handle and transport. Designed for heavy-duty use, the TRB2005 is compatible with the TRCP-180 hydraulic hand pump, which further enhances its lifting capabilities.

Features & Benefits:

• Compact Size: The ram's low profile (41 mm or 1.61") allows it to fit in narrow spaces, making it suitable for tight or hard-to-reach areas.
• Efficient Lifting Capacity: Delivers a solid 5 tons of lifting capacity, ideal for smaller lifting operations.
• Stable Cylinder Design: The 35 mm (1.38") diameter cylinder ensures a stable lifting experience while maintaining strength during use.
• Portable and Lightweight: Weighing just 0.8 kg (1.76 lbs), this ram is easy to transport and maneuver for a variety of tasks.
• Compatible Pump: Designed to work seamlessly with the TRCP-180 hydraulic hand pump for enhanced lifting performance.

Specifications:

Product Code: TRB2005
Capacity: 5 Ton
Minimum Height: 41 mm (1.61")
Lift Height: 7 mm (0.28")
Maximum Height: 48 mm (1.89")
Cylinder Diameter: 35 mm (1.38")
Net Weight: 0.8 kg
Gross Weight: 0.9 kg
Package Size: 390 x 180 x 90 mm
Suitable Hand Pump: TRCP-180 (refer to catalogue page 11)

Scope of Delivery:

• 1 x BIG RED Hydraulic Portable Ram | TRB2005

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
